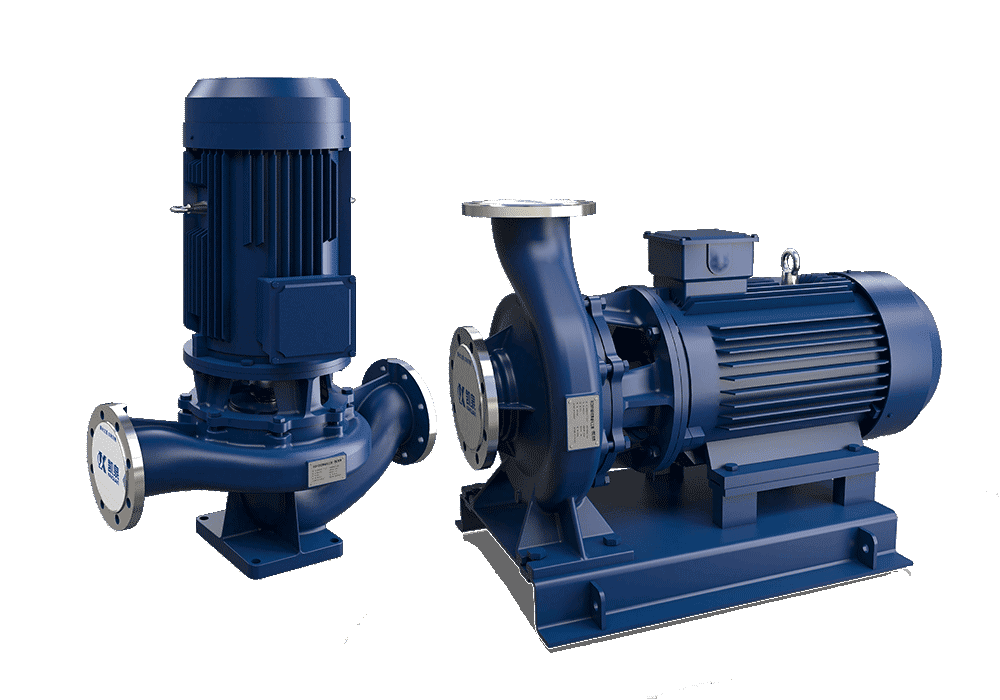

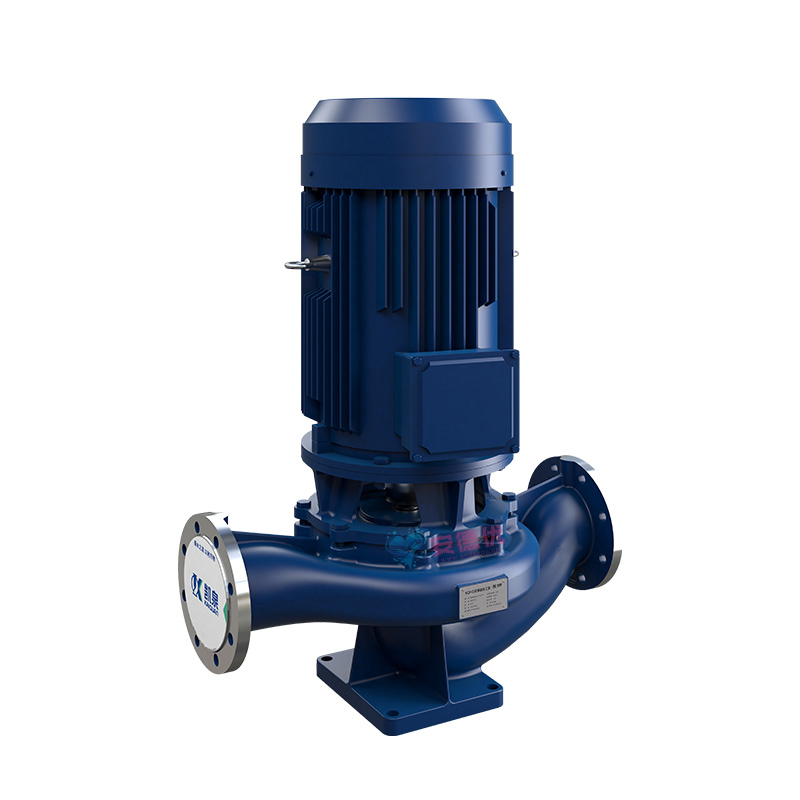

凯泉KQH/KQWH不锈钢单级化工管道离心泵

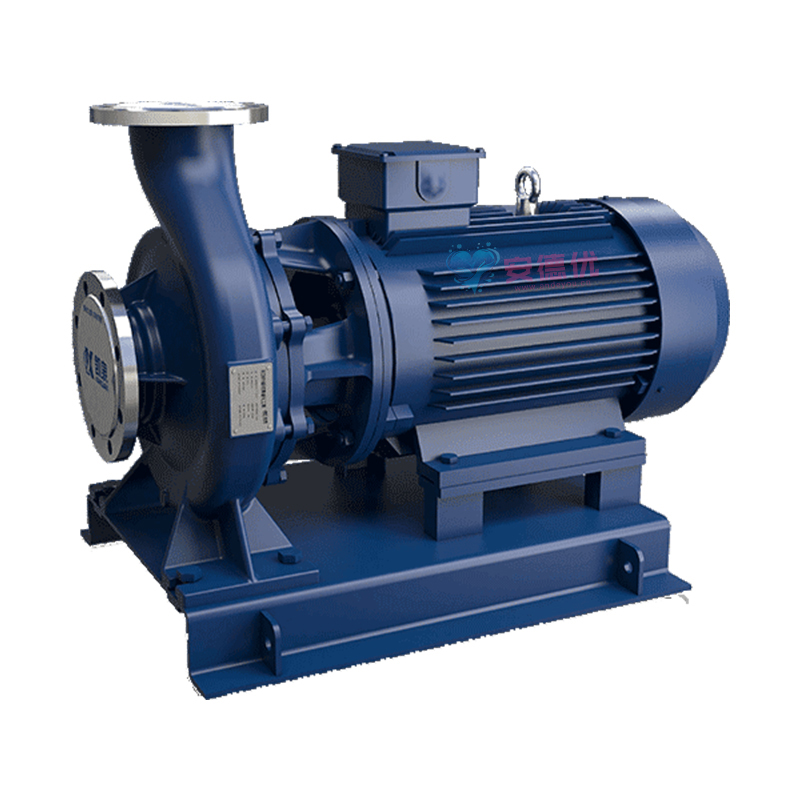

KQWH50-160-II

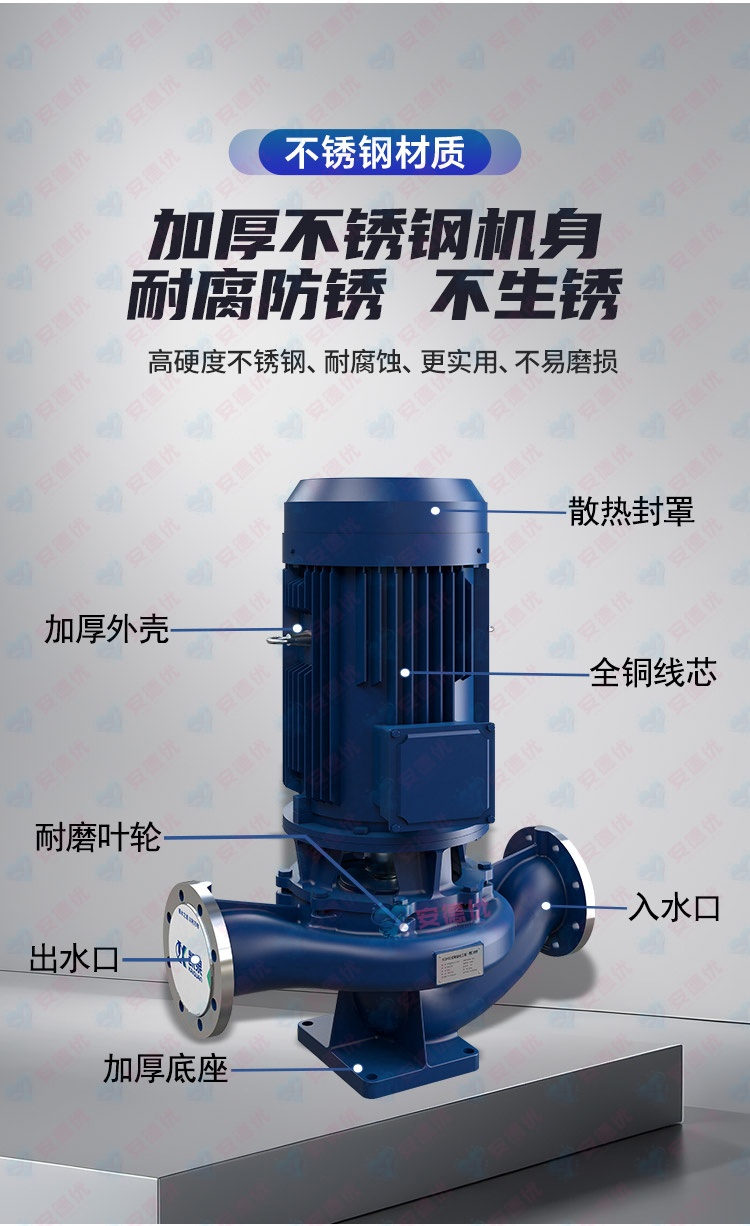

‌凯泉泵业的KQH/KQWH系列不锈钢单级化工管道离心泵，是创新研发的新一代化工泵‌。该泵结构特别简单，同心度高，振动小，使用可靠，维修方便。适用于化工、油品输送、食品、饮料、医药、水处理等领域，输送有一定腐蚀性、不含固体颗粒或少量颗粒、黏度类似于水的介质。采用分轴式特殊夹紧结构，材质优良，耐腐蚀性强，是化工行业的理想选择‌

电话咨询

在线留言

功能特点

规格参数

外形尺寸

视频介绍

产品应用：

广泛适用于部分化工、油品输送和部分酸、碱、盐、空调、采暖、卫生用水、环保、水处理、冷却冷冻系统，液体循环和供水、增压及灌溉等领域中具有一定腐蚀性的冷水和热水输送。介质固体不溶物体积不超过单位体积0.1%，粒度<0.2mm类似于水的介质。

适用范围：

流量范围：4-1080m³/h

扬程范围：5-129m

配套功率：0.75-200kW

最大工作压力：≤1.6MPa

转速：1480r/min和2960r/min

介质温度：-20°C-120°C

环境温度：最大+40°C；海拔高度小于1000m；相对湿度不超过95%

若客户要求超出上述参数范围，通过协商可特殊供货。

产品概述：

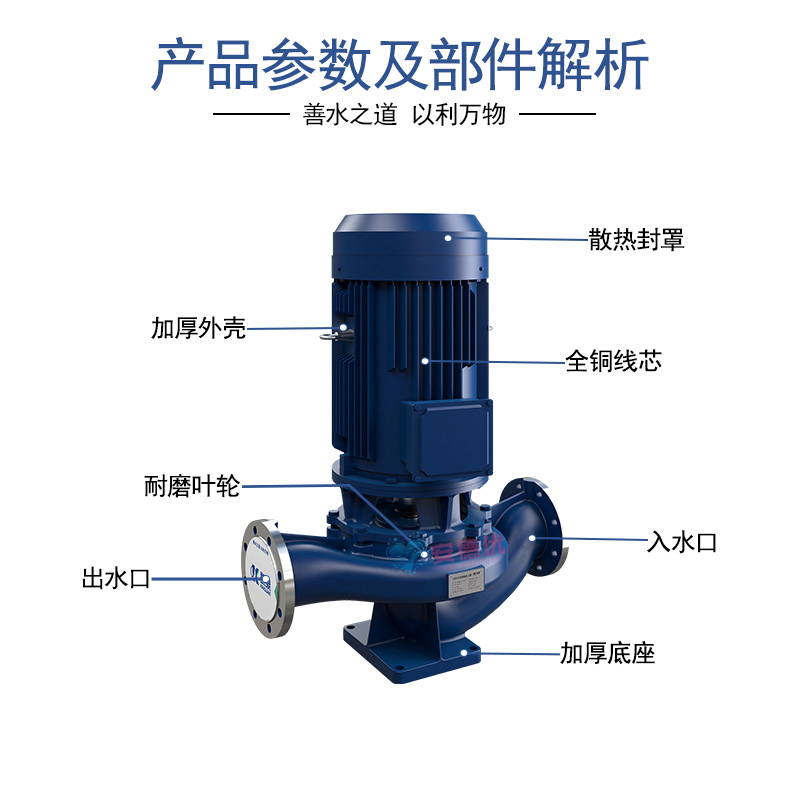

第二代KQWH、KQH系列单级卧式和单级立式化工泵是我公司在原化工泵基础上，充分考虑到化工泵在使用过程中对结构要求的特殊性，汲取国内外先进结构经验，轴采用分轴式，特殊套轴式结构，具有结构简单、同心度高，振动小，使用可靠，维修方便等特点，是创新研发的新一代单级化工泵。

型号	流量(m³/h)	扬程(m)	转速(r/min)	电机功率(kW)	口径(DN)
KQ(W)H40-100-II	6.3	12.5	2960	0.75	40×40
KQ(W)H40-100A-II	5.6	10	2960	0.75	40×40
KQ(W)H40-125-II	6.3	20	2960	1.1	40×40
KQ(W)H40-125A-II	5.6	16	2960	0.75	40×40
KQ(W)H40-160-II	6.3	32	2960	2.2	40×40
KQ(W)H40-160A-II	5.9	28	2960	1.5	40×40
KQ(W)H40-160B-II	5.5	24	2960	1.1	40×40
KQ(W)H40-200-II	6.3	50	2960	4	40×40
KQ(W)H40-200A-II	5.9	44	2960	3	40×40
KQ(W)H40-200B-II	5.3	36	2960	2.2	40×40
KQ(W)H50-100-II	12.5	12.5	2960	1.1	50×50
KQ(W)H50-100A-II	11	10	2960	0.75	50×50
KQ(W)H50-125-II	12.5	20	2960	1.5	50×50
KQ(W)H50-125A-II	11	16	2960	1.1	50×50
KQ(W)H50-160-II	12.5	32	2960	3	50×50
KQ(W)H50-160A-II	10	27	2960	2.2	50×50
KQ(W)H50-160B-II	10.4	22	2960	1.5	50×50
KQ(W)H50-200-II	12.5	50	2960	5.5	50×50
KQ(W)H50-200A-II	11.7	44	2960	4	50×50
KQ(W)H50-200B-II	10.4	36	2960	3	50×50
KQ(W)H50-250-II	12.5	80	2960	11	50×50
KQ(W)H50-250A-II	11.6	70	2960	7.5	50×50
KQ(W)H50-250B-II	10.8	60	2960	7.5	50×50
KQ(W)H65-100-II	25	12.5	2960	1.5	65×65
KQ(W)H65-100A-II	22.3	10	2960	1.1	65×65
KQ(W)H65-125-II	25	20	2960	3	65×65
KQ(W)H65-125A-II	22.3	16	2960	2.2	65×65
KQ(W)H65-160-II	25	32	2960	4	65×65
KQ(W)H65-160A-II	23	28	2960	4	65×65
KQ(W)H65-160B-II	20	24	2960	3	65×65
KQ(W)H65-200-II	25	50	2960	7.5	65×65
KQ(W)H65-200A-II	23.4	44	2960	7.5	65×65
KQ(W)H65-200B-II	21.8	38	2960	5.5	65×65
KQ(W)H65-250-II	25	80	2960	15	65×65
KQ(W)H65-250A-II	23.4	70	2960	11	65×65
KQ(W)H65-250B-II	21.6	60	2960	11	65×65
KQ(W)H65-315-II	25	125	2960	30	65×65
KQ(W)H65-315A-II	23.7	113	2960	22	65×65
KQ(W)H65-315B-II	22.5	101	2960	18.5	65×65
KQ(W)H65-315C-II	20.6	85	2960	15	65×65
KQ(W)H65-100(I)-II	50	12.5	2960	3	65×65
KQ(W)H65-100(I)A-II	44.7	10	2960	2.2	65×65
KQ(W)H65-125(I)-II	50	20	2960	5.5	65×65
KQ(W)H65-125(I)A-II	45	16	2960	4	65×65
KQ(W)H65-160(I)-II	50	32	2960	7.5	65×65
KQ(W)H65-160(I)A-II	46.7	28	2960	7.5	65×65
KQ(W)H65-160(I)B-II	40	24	2960	5.5	65×65
KQ(W)H65-200(I)-II	50	50	2960	15	65×65
KQ(W)H65-200(I)A-II	47	44	2960	11	65×65
KQ(W)H65-200(I)B-II	43.5	38	2960	7.5	65×65
KQ(W)H65-250(I)-II	50	80	2960	22	65×65
KQ(W)H65-250(I)A-II	46.7	70	2960	18.5	65×65
KQ(W)H65-250(I)B-II	43.3	60	2960	15	65×65
KQ(W)H65-315(I)-II	50	125	2960	37	65×65
KQ(W)H65-315(I)A-II	46.7	113	2960	30	65×65
KQ(W)H65-315(I)B-II	43.3	101	2960	30	65×65
KQ(W)H65-315(I)C-II	40	85	2960	22	65×65
KQ(W)H80-100-II	100	12.5	2960	5.5	80×80
KQ(W)H80-100A-II	89	10	2960	4	80×80
KQ(W)H80-125-II	95	20	2960	11	80×80
KQ(W)H80-125A-II	85	16	2960	7.5	80×80
KQ(W)H80-100(Z)-II	60	16	2960	4	80×80
KQ(W)H80-125(Z)-II	70	26	2960	7.5	80×80
KQ(W)H80-125(Z)A-II	70	20	2960	5.5	80×80
KQ(W)H80-160(Z)-II	75	32	2960	11	80×80
KQ(W)H80-200(Z)-II	75	50	2960	18.5	80×80
KQ(W)H80-200(Z)A-II	72	44	2960	15	80×80
KQ(W)H80-200(Z)B-II	68	38	2960	11	80×80
KQ(W)H80-160-II	100	32	2960	15	80×80
KQ(W)H80-160A-II	93.5	28	2960	11	80×80
KQ(W)H80-160B-II	80	24	2960	11	80×80
KQ(W)H80-200-II	100	50	2960	22	80×80
KQ(W)H80-200A-II	93.5	44	2960	18.5	80×80
KQ(W)H80-250-II	100	80	2960	37	80×80
KQ(W)H80-250A-II	93.5	70	2960	30	80×80
KQ(W)H80-250B-II	87	60	2960	30	80×80
KQ(W)H80-315-II	100	125	2960	75	80×80
KQ(W)H80-315A-II	95	113	2960	55	80×80
KQ(W)H80-315B-II	90	101	2960	45	80×80
KQ(W)H80-315C-II	82	85	2960	37	80×80
KQ(W)H100-125(I)-II	100	5	1480	2.2	100×100
KQ(W)H100-160(I)-II	100	8	1480	4	100×100
KQ(W)H100-180(I)A-II	87	6.3	1480	3	100×100
KQ(W)H100-200(I)-II	100	12.5	1480	5.5	100×100
KQ(W)H100-200(I)A-II	86	9.3	1480	4	100×100
KQ(W)H100-250(I)-II	100	20	1480	11	100×100
KQ(W)H100-250(I)A-II	93	17.4	1480	7.5	100×100
KQ(W)H100-250(I)B-II	87	15	1480	5.5	100×100
KQ(W)H100-315(I)-II	100	32	1480	15	100×100
KQ(W)H100-315(I)A-II	91	27	1480	11	100×100
KQ(W)H100-315(I)B-II	79	20	1480	7.5	100×100
KQ(W)H100-400(I)-II	100	50	1480	30	100×100
KQ(W)H100-400(I)A-II	94	44	1480	22	100×100
KQ(W)H100-400(I)B-II	87	38	1480	18.5	100×100
KQ(W)H100-100-II	160	12.5	2960	11	100×100
KQ(W)H100-100A-II	143	10	2960	7.5	100×100
KQ(W)H100-125-II	160	20	2960	15	100×100
KQ(W)H100-125A-II	143	16	2960	11	100×100
KQ(W)H100-160-II	160	32	2960	22	100×100
KQ(W)H100-160A-II	150	28	2960	18.5	100×100
KQ(W)H100-160B-II	138	24	2960	15	100×100
KQ(W)H100-200-II	160	50	2980	37	100×100
KQ(W)H100-200A-II	150	44	2960	30	100×100
KQ(W)H100-200B-II	138	37.5	2960	22	100×100
KQ(W)H100-250-II	160	80	2960	55	100×100
KQ(W)H100-250A-II	150	70	2960	45	100×100
KQ(W)H100-250B-II	138	60	2960	37	100×100
KQ(W)H100-315-II	160	125	2960	90	100×100
KQ(W)H100-315A-II	150	110	2960	75	100×100
KQ(W)H100-315B-II	143	100	2960	75	100×100
KQ(W)H100-315C-II	134	88	2960	55	100×100
KQ(W)H150-200-II	200	12.5	1480	15	150×150
KQ(W)H150-200A-II	179	10	1480	11	150×150
KQ(W)H150-250-II	200	20	1480	18.5	150×150
KQ(W)H150-250A-II	180	16	1480	15	150×150
KQ(W)H150-250B-II	167	14	1480	11	150×150
KQ(W)H150-315-II	200	32	1480	30	150×150
KQ(W)H150-315A-II	200	28	1480	22	150×150
KQ(W)H150-315B-II	173	24	1480	18.5	150×150
KQ(W)H150-400-II	200	50	1480	45	150×150
KQ(W)H150-400A-II	187	44	1480	37	150×150
KQ(W)H150-400B-II	200	38	1480	30	150×150
KQ(W)H150-400C-II	160	32	1480	22	150×150
KQ(W)H150-460-II	200	80	1480	75	150×150
KQ(W)H150-460A-II	187	70	1480	75	150×150
KQ(W)H150-460B-II	173	60	1480	55	150×150
KQ(W)H200-200(Z)-II	300	12.5	1480	18.5	200×200
KQ(W)H200-200(Z)A-II	280	10	1480	15	200×200
KQ(W)H200-250(Z)-II	300	20	1480	30	200×200
KQ(W)H200-250(Z)A-II	280	16	1480	18.5	200×200
KQ(W)H200-250(Z)B-II	262	13	1480	15	200×200
KQ(W)H200-315(Z)-II	300	32	1480	45	200×200
KQ(W)H200-315(Z)A-II	280	28	1480	37	200×200
KQ(W)H200-315(Z)B-II	262	24	1480	30	200×200
KQ(W)H200-400(Z)-II	300	50	1480	75	200×200
KQ(W)H200-400(Z)A-II	280	44	1480	55	200×200
KQ(W)H200-400(Z)B-II	260	38	1480	45	200×200
KQ(W)H200-400(Z)C-II	245	32	1480	37	200×200
KQ(W)H200-460(Z)-II	300	80	1480	110	200×200
KQ(W)H200-460(Z)A-II	280	70	1480	90	200×200
KQ(W)H200-460(Z)B-II	262	60	1480	75	200×200
KQ(W)H200-200(I)-II	400	12.5	1480	22	200×200
KQ(W)H200-200(I)A-II	358	10	1480	18.5	200×200
KQ(W)H200-250(I)-II	400	20	1480	30	200×200
KQ(W)H200-250(I)A-II	358	16	1480	22	200×200
KQ(W)H200-250(I)B-II	322	13	1480	18.5	200×200
KQ(W)H200-315(I)-II	390	32	1480	55	200×200
KQ(W)H200-315(I)A-II	360	28	1480	45	200×200
KQ(W)H200-315(I)B-II	340	24	1480	37	200×200
KQ(W)H200-400(I)-II	400	50	1480	75	200×200
KQ(W)H200-400(I)A-II	374	44	1480	75	200×200
KQ(W)H200-400(I)B-II	370	40	1480	55	200×200
KQ(W)H200-400(I)C-II	340	36	1480	45	200×200
KQ(W)H200-460-II	400	80	1480	132	200×200
KQ(W)H200-460A-II	374	70	1480	110	200×200
KQ(W)H200-460B-II	346	60	1480	90	200×200
KQWH250-250-II	520	20	1480	45	250×250
KQWH250-250A-II	490	17	1480	37	250×250
KQWH250-290-II	500	25	1480	45	250×250
KQWH250-315-II	550	32	1480	75	250×250
KQWH250-315A-II	500	28	1480	55	250×250
KQWH250-400-II	500	50	1480	90	250×250
KQWH250-400A-II	500	44	1480	90	250×250
KQWH250-400C-II	460	37	1480	75	250×250
KQWH250-460-II	550	80	1480	200	250×250
KQWH250-460A-II	515	70	1480	160	250×250
KQWH250-460B-II	480	60	1480	132	250×250
KQWH250-315I-II	720	32	1480	90	250×250
KQWH250-315IA-II	630	32	1480	75	250×250
KQWH250-315IB-II	700	28	1480	75	250×250
KQWH250-315IC-II	600	24	1480	55	250×250
KQWH250-400I-II	720	50	1480	132	250×250
KQWH250-400IA-II	660	44	1480	110	250×250
KQWH250-400(I)B-II	600	38	1480	90	250×250
KQWH300-250-E-II	900	20	1480	75	300×300
KQWH300-250A-E-II	820	18	1480	55	300×300
KQWH300-250B-E-II	660	18	1480	45	300×300
KQWH300-315-E-II	900	32	1480	110	300×300
KQWH300-315A-E-II	900	28	1480	90	300×300
KQWH300-400-E-II	900	50	1480	160	300×300
KQWH300-400A-E-II	900	40	1480	132	300×300
KQWH300-400B-E-II	800	36	1480	110	300×300
