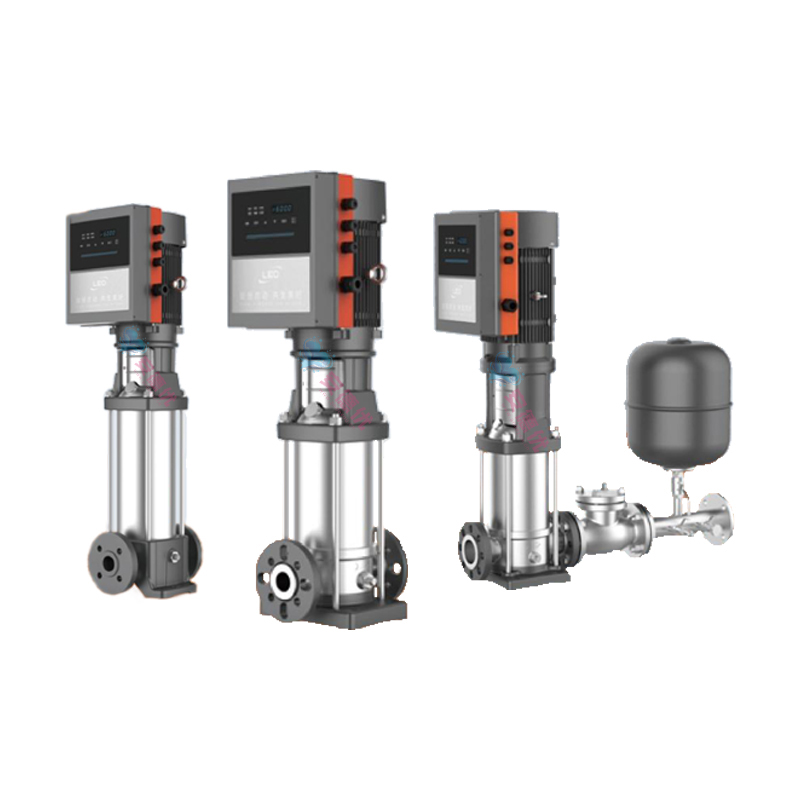

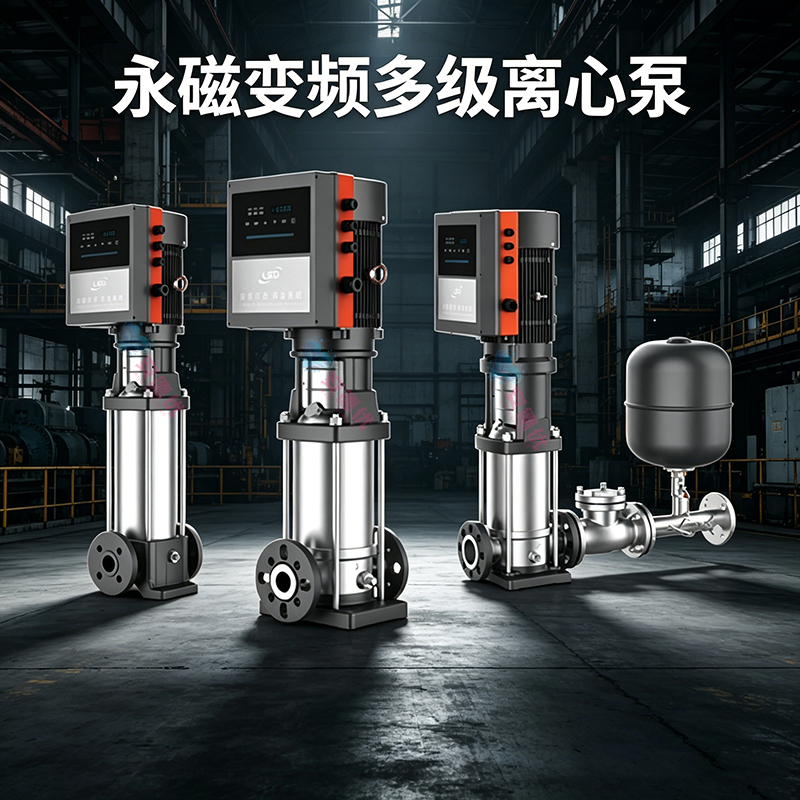

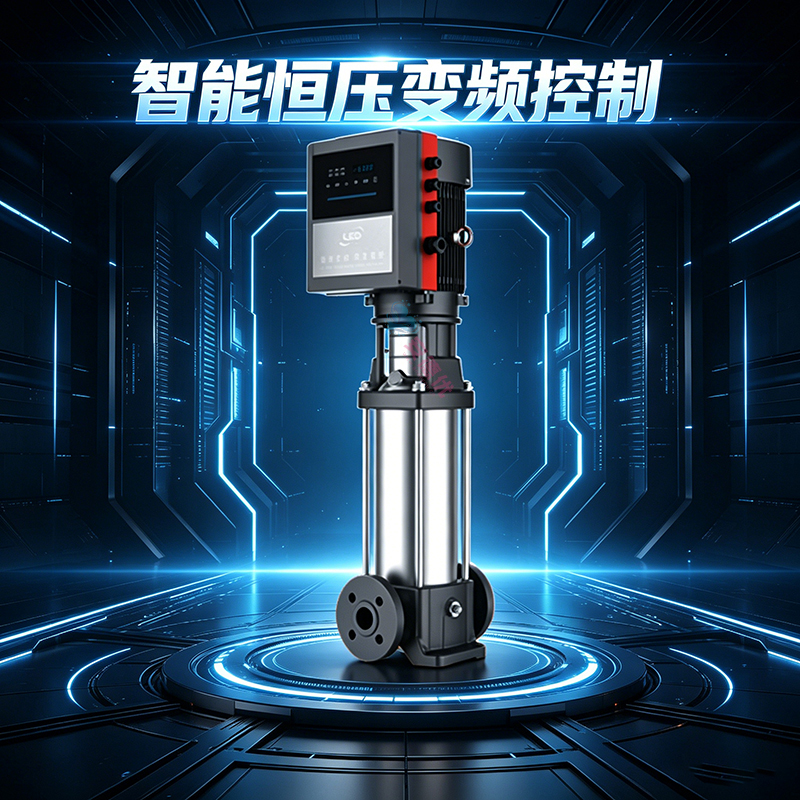

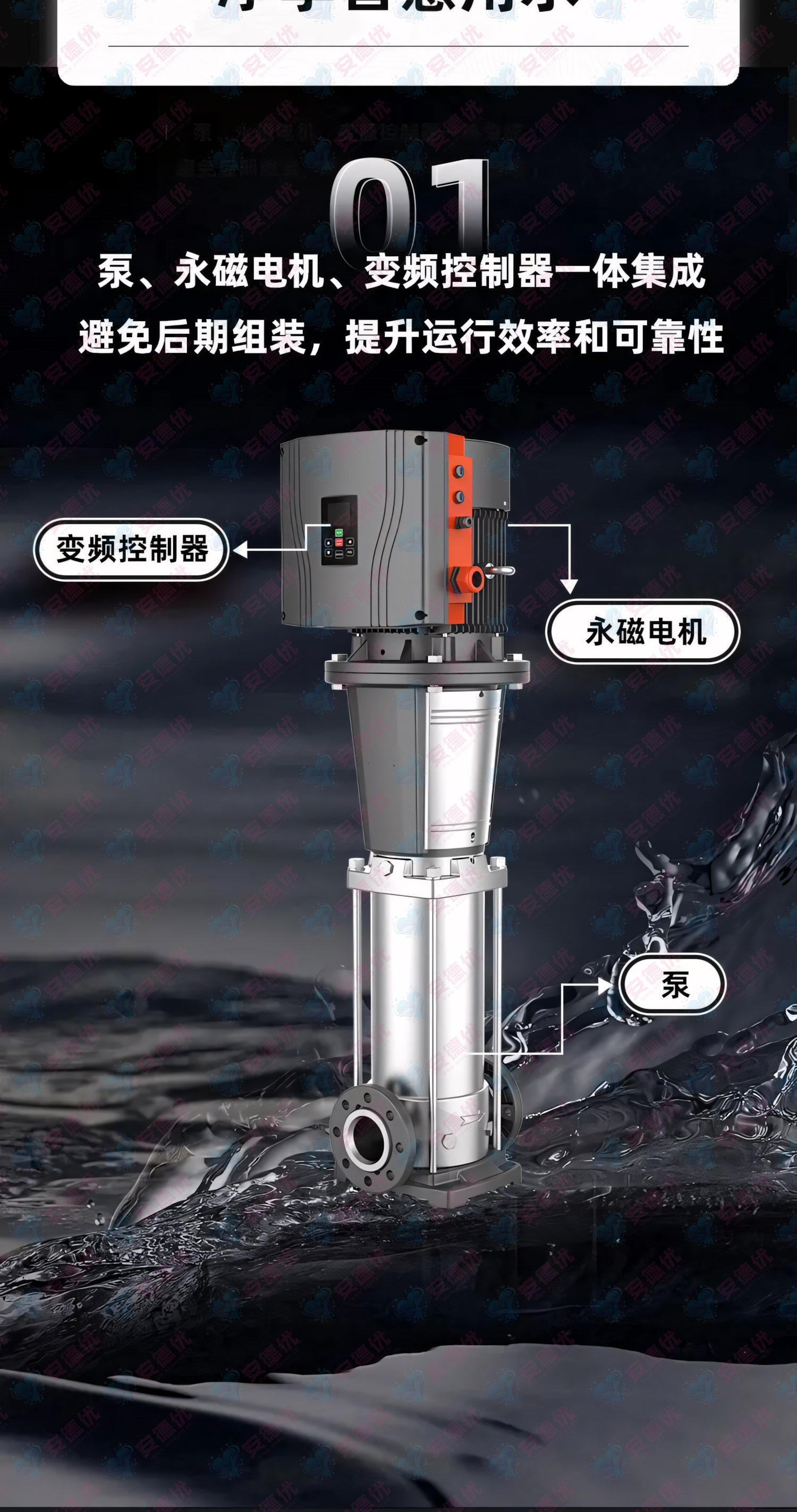

PM5-LVR(S)是集成泵、永磁电机和变频控制器的一体式永磁智能立式多级泵；具有高效节能、智能控制、外观美丽、操作便捷等特点。

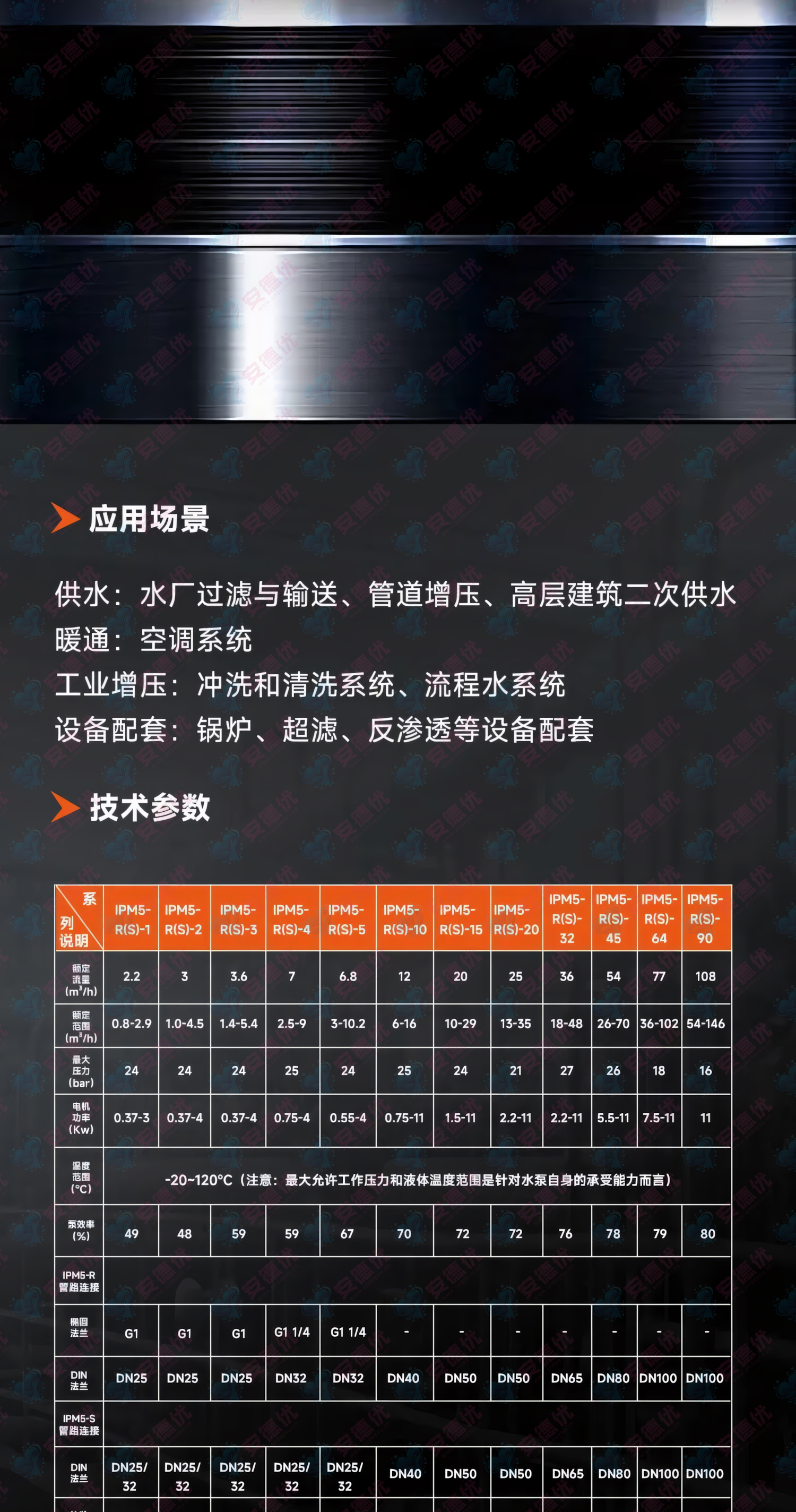

供水：水厂过滤与输送、管道增压、高层建筑二次供水
暖通：空调系统
工业增压：冲洗和清洗系统、流程水系统
设备配套：锅炉、超滤、反渗透等设备配套

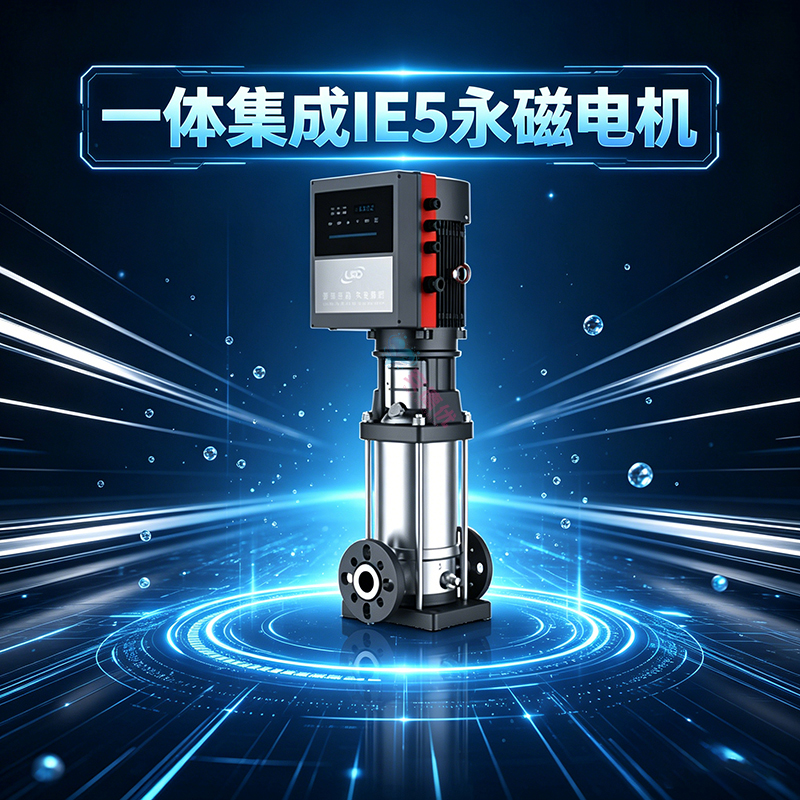

高效永磁同步电机，能效超IE5
防护等级：IP55
绝缘等级：F
输入电源：380V-480V/50Hz/60Hz，0.37kW-22kW为永磁变频一体机，30kW及以上为变频分体机。
防护等级：IP55
低粘度、非易燃易爆易气化、不含固体颗粒和纤维的液体，液体不能对泵材料有化学反应，当输送的液体密度和粘度大于水时，需要配用大功率电机；
液体温度：-20℃~+120℃
液体PH值：4-10
最高环境温度：+40℃
最大工作压力：25bar
最高海拔：1000m

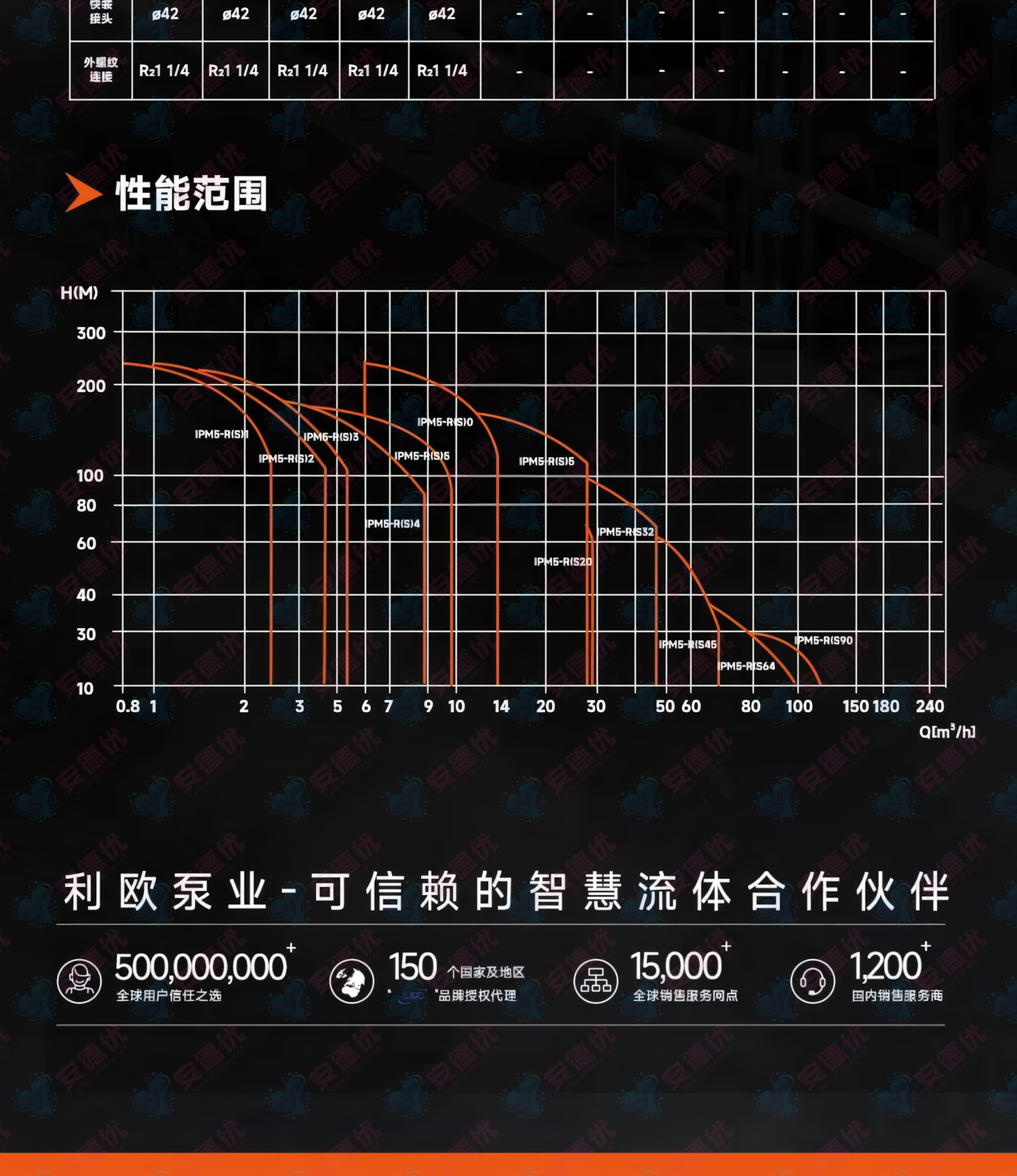

| 型号 | 电压/频率 | 额定流量(m³/h) | 额定扬程(m) | 功率(Kw) | 口径 |
| PM5-LVR(S)1-4 | 380V-480V/60Hz | 1 | 34 | 0.37 | DN25 |
| PM5-LVR(S)1-6 | 380V-480V/60Hz | 1 | 51 | 0.55 | DN25 |
| PM5-LVR(S)1-9 | 380V-480V/60Hz | 1 | 76 | 0.75 | DN25 |
| PM5-LVR(S)1-11 | 380V-480V/60Hz | 1 | 94 | 1.1 | DN25 |
| PM5-LVR(S)1-13 | 380V-480V/60Hz | 1 | 111 | 1.1 | DN25 |
| PM5-LVR(S)1-15 | 380V-480V/60Hz | 1 | 131 | 1.5 | DN25 |
| PM5-LVR(S)1-17 | 380V-480V/60Hz | 1 | 147 | 1.5 | DN25 |
| PM5-LVR(S)1-19 | 380V-480V/60Hz | 1 | 166 | 2.2 | DN25 |
| PM5-LVR(S)1-21 | 380V-480V/60Hz | 1 | 183 | 2.2 | DN25 |
| PM5-LVR(S)1-23 | 380V-480V/60Hz | 1 | 200 | 2.2 | DN25 |
| PM5-LVR(S)1-25 | 380V-480V/60Hz | 1 | 217 | 2.2 | DN25 |
| PM5-LVR(S)1-27 | 380V-480V/60Hz | 1 | 237 | 3 | DN25 |
| PM5-LVR(S)2-2 | 380V-480V/60Hz | 2 | 22 | 0.37 | DN25 |
| PM5-LVR(S)2-3 | 380V-480V/60Hz | 2 | 34 | 0.55 | DN25 |
| PM5-LVR(S)2-4 | 380V-480V/60Hz | 2 | 46 | 0.75 | DN25 |
| PM5-LVR(S)2-6 | 380V-480V/60Hz | 2 | 69 | 1.1 | DN25 |
| PM5-LVR(S)2-7 | 380V-480V/60Hz | 2 | 82 | 1.5 | DN25 |
| PM5-LVR(S)2-9 | 380V-480V/60Hz | 2 | 108 | 2.2 | DN25 |
| PM5-LVR(S)2-11 | 380V-480V/60Hz | 2 | 130 | 2.2 | DN25 |
| PM5-LVR(S)2-13 | 380V-480V/60Hz | 2 | 156 | 3 | DN25 |
| PM5-LVR(S)2-15 | 380V-480V/60Hz | 2 | 178 | 3 | DN25 |
| PM5-LVR(S)2-18 | 380V-480V/60Hz | 2 | 216 | 4 | DN25 |
| PM5-LVR(S)3-4 | 380V-480V/60Hz | 3 | 30 | 0.55 | DN25 |
| PM5-LVR(S)3-6 | 380V-480V/60Hz | 3 | 46 | 0.75 | DN25 |
| PM5-LVR(S)3-8 | 380V-480V/60Hz | 3 | 61 | 1.1 | DN25 |
| PM5-LVR(S)3-11 | 380V-480V/60Hz | 3 | 86 | 1.5 | DN25 |
| PM5-LVR(S)3-13 | 380V-480V/60Hz | 3 | 103 | 2.2 | DN25 |
| PM5-LVR(S)3-17 | 380V-480V/60Hz | 3 | 133 | 2.2 | DN25 |
| PM5-LVR(S)3-19 | 380V-480V/60Hz | 3 | 150 | 3 | DN25 |
| PM5-LVR(S)3-21 | 380V-480V/60Hz | 3 | 165 | 3 | DN25 |
| PM5-LVR(S)3-23 | 380V-480V/60Hz | 3 | 181 | 3 | DN25 |
| PM5-LVR(S)3-25 | 380V-480V/60Hz | 3 | 199 | 4 | DN25 |
| PM5-LVR(S)4-2 | 380V-480V/60Hz | 4 | 23 | 0.75 | DN32 |
| PM5-LVR(S)4-3 | 380V-480V/60Hz | 4 | 36 | 1.1 | DN32 |
| PM5-LVR(S)4-4 | 380V-480V/60Hz | 4 | 49 | 1.5 | DN32 |
| PM5-LVR(S)4-5 | 380V-480V/60Hz | 4 | 62 | 2.2 | DN32 |
| PM5-LVR(S)4-6 | 380V-480V/60Hz | 4 | 74 | 2.2 | DN32 |
| PM5-LVR(S)4-7 | 380V-480V/60Hz | 4 | 88 | 3 | DN32 |
| PM5-LVR(S)4-8 | 380V-480V/60Hz | 4 | 99 | 3 | DN32 |
| PM5-LVR(S)4-10 | 380V-480V/60Hz | 4 | 126 | 4 | DN32 |
| PM5-LVR(S)4-12 | 380V-480V/60Hz | 4 | 149 | 4 | DN32 |
| PM5-LVR(S)5-3 | 380V-480V/60Hz | 5 | 23 | 0.75 | DN32 |
| PM5-LVR(S)5-4 | 380V-480V/60Hz | 5 | 31 | 1.1 | DN32 |
| PM5-LVR(S)5-6 | 380V-480V/60Hz | 5 | 50 | 1.5 | DN32 |
| PM5-LVR(S)5-8 | 380V-480V/60Hz | 5 | 67 | 2.2 | DN32 |
| PM5-LVR(S)5-10 | 380V-480V/60Hz | 5 | 85 | 2.2 | DN32 |
| PM5-LVR(S)5-12 | 380V-480V/60Hz | 5 | 102 | 3 | DN32 |
| PM5-LVR(S)5-14 | 380V-480V/60Hz | 5 | 121 | 4 | DN32 |
| PM5-LVR(S)5-16 | 380V-480V/60Hz | 5 | 138 | 4 | DN32 |
| PM5-LVR(S)10-2 | 380V-480V/60Hz | 10 | 26 | 1.5 | DN40 |
| PM5-LVR(S)10-3 | 380V-480V/60Hz | 10 | 39 | 2.2 | DN40 |
| PM5-LVR(S)10-5 | 380V-480V/60Hz | 10 | 66 | 3 | DN40 |
| PM5-LVR(S)10-7 | 380V-480V/60Hz | 10 | 94 | 4 | DN40 |
| PM5-LVR(S)10-9 | 380V-480V/60Hz | 10 | 120 | 5.5 | DN40 |
| PM5-LVR(S)10-10 | 380V-480V/60Hz | 10 | 135 | 7.5 | DN40 |
| PM5-LVR(S)10-12 | 380V-480V/60Hz | 10 | 161 | 7.5 | DN40 |
| PM5-LVR(S)10-14 | 380V-480V/60Hz | 10 | 189 | 11 | DN40 |
| PM5-LVR(S)10-16 | 380V-480V/60Hz | 10 | 215 | 11 | DN40 |
| PM5-LVR(S)15-1 | 380V-480V/60Hz | 15 | 17.5 | 1.5 | DN50 |
| PM5-LVR(S)15-2 | 380V-480V/60Hz | 15 | 36 | 3 | DN50 |
| PM5-LVR(S)15-3 | 380V-480V/60Hz | 15 | 54 | 4 | DN50 |
| PM5-LVR(S)15-4 | 380V-480V/60Hz | 15 | 73 | 5.5 | DN50 |
| PM5-LVR(S)15-5 | 380V-480V/60Hz | 15 | 91 | 7.5 | DN50 |
| PM5-LVR(S)15-6 | 380V-480V/60Hz | 15 | 112 | 11 | DN50 |
| PM5-LVR(S)15-7 | 380V-480V/60Hz | 15 | 129 | 11 | DN50 |
| PM5-LVR(S)15-8 | 380V-480V/60Hz | 15 | 147 | 11 | DN50 |
| PM5-LVR(S)15-9 | 380V-480V/60Hz | 20 | 148 | 15 | DN50 |
| PM5-LVR(S)15-10 | 380V-480V/60Hz | 20 | 164 | 15 | DN50 |
| PM5-LVR(S)15-12 | 380V-480V/60Hz | 20 | 198 | 18.5 | DN50 |
| PM5-LVR(S)20-1 | 380V-480V/60Hz | 20 | 17.5 | 2.2 | DN50 |
| PM5-LVR(S)20-2 | 380V-480V/60Hz | 20 | 36.5 | 4 | DN50 |
| PM5-LVR(S)20-3 | 380V-480V/60Hz | 20 | 56 | 5.5 | DN50 |
| PM5-LVR(S)20-4 | 380V-480V/60Hz | 20 | 75 | 7.5 | DN50 |
| PM5-LVR(S)20-5 | 380V-480V/60Hz | 20 | 94 | 11 | DN50 |
| PM5-LVR(S)20-6 | 380V-480V/60Hz | 20 | 113 | 11 | DN50 |
| PM5-LVR(S)20-7 | 380V-480V/60Hz | 25 | 119 | 15 | DN50 |
| PM5-LVR(S)20-8 | 380V-480V/60Hz | 25 | 135 | 15 | DN50 |
| PM5-LVR(S)20-10 | 380V-480V/60Hz | 25 | 171 | 18.5 | DN50 |
| PM5-LVR(S)32-1-1 | 380V-480V/60Hz | 32 | 17 | 2.2 | DN65 |
| PM5-LVR(S)32-1 | 380V-480V/60Hz | 32 | 22 | 3 | DN65 |
| PM5-LVR(S)32-2-1 | 380V-480V/60Hz | 32 | 42 | 5.5 | DN65 |
| PM5-LVR(S)32-3-2 | 380V-480V/60Hz | 32 | 60 | 7.5 | DN65 |
| PM5-LVR(S)32-3 | 380V-480V/60Hz | 32 | 71 | 11 | DN65 |
| PM5-LVR(S)32-4-2 | 380V-480V/60Hz | 32 | 85 | 11 | DN65 |
| PM5-LVR(S)32-4 | 380V-480V/60Hz | 36 | 87 | 15 | DN65 |
| PM5-LVR(S)32-5-2 | 380V-480V/60Hz | 36 | 99 | 15 | DN65 |
| PM5-LVR(S)32-5 | 380V-480V/60Hz | 36 | 110 | 18.5 | DN65 |
| PM5-LVR(S)32-6-2 | 380V-480V/60Hz | 36 | 122 | 18.5 | DN65 |
| PM5-LVR(S)32-6 | 380V-480V/60Hz | 36 | 131 | 18.5 | DN65 |
| PM5-LVR(S)32-7-2 | 380V-480V/60Hz | 36 | 145 | 22 | DN65 |
| PM5-LVR(S)32-7 | 380V-480V/60Hz | 36 | 154 | 22 | DN65 |
| PM5-LVR(S)32-8-2 | 380V-480V/60Hz | 36 | 170 | 30 | DN65 |
| PM5-LVR(S)32-8 | 380V-480V/60Hz | 36 | 179 | 30 | DN65 |
| PM5-LVR(S)32-9-2 | 380V-480V/60Hz | 36 | 192 | 30 | DN65 |
| PM5-LVR(S)32-9 | 380V-480V/60Hz | 36 | 201 | 30 | DN65 |
| PM5-LVR(S)32-10-2 | 380V-480V/60Hz | 36 | 213 | 30 | DN65 |
| PM5-LVR(S)45-1-1 | 380V-480V/60Hz | 45 | 25.5 | 5.5 | DN80 |
| PM5-LVR(S)45-1 | 380V-480V/60Hz | 45 | 30.5 | 7.5 | DN80 |
| PM5-LVR(S)45-2-1 | 380V-480V/60Hz | 45 | 58 | 11 | DN80 |
| PM5-LVR(S)45-2 | 380V-480V/60Hz | 54 | 57 | 15 | DN80 |
| PM5-LVR(S)45-3-2 | 380V-480V/60Hz | 54 | 75.5 | 18.5 | DN80 |
| PM5-LVR(S)45-3-1 | 380V-480V/60Hz | 54 | 80.5 | 18.5 | DN80 |
| PM5-LVR(S)45-3 | 380V-480V/60Hz | 54 | 86 | 18.5 | DN80 |
| PM5-LVR(S)45-4-2 | 380V-480V/60Hz | 54 | 104 | 22 | DN80 |
| PM5-LVR(S)45-4-1 | 380V-480V/60Hz | 54 | 112 | 30 | DN80 |
| PM5-LVR(S)45-4 | 380V-480V/60Hz | 54 | 118 | 30 | DN80 |
| PM5-LVR(S)45-5-2 | 380V-480V/60Hz | 54 | 135 | 30 | DN80 |
| PM5-LVR(S)45-5-1 | 380V-480V/60Hz | 54 | 141 | 30 | DN80 |
| PM5-LVR(S)45-5 | 380V-480V/60Hz | 54 | 146 | 30 | DN80 |
| PM5-LVR(S)45-6-2 | 380V-480V/60Hz | 54 | 165 | 37 | DN80 |
| PM5-LVR(S)45-6-1 | 380V-480V/60Hz | 54 | 172 | 37 | DN80 |
| PM5-LVR(S)45-6 | 380V-480V/60Hz | 54 | 176 | 37 | DN80 |
| PM5-LVR(S)45-7-2 | 380V-480V/60Hz | 54 | 198 | 45 | DN80 |
| PM5-LVR(S)45-7-1 | 380V-480V/60Hz | 54 | 204 | 45 | DN80 |
| PM5-LVR(S)45-7 | 380V-480V/60Hz | 54 | 209 | 45 | DN80 |
| PM5-LVR(S)64-1-1 | 380V-480V/60Hz | 64 | 25 | 7.5 | DN100 |
| PM5-LVR(S)64-1 | 380V-480V/60Hz | 64 | 34 | 11 | DN100 |
| PM5-LVR(S)64-2-2 | 380V-480V/60Hz | 77 | 43 | 15 | DN100 |
| PM5-LVR(S)64-2-1 | 380V-480V/60Hz | 78 | 53.5 | 18.5 | DN100 |
| PM5-LVR(S)64-2 | 380V-480V/60Hz | 79 | 64.5 | 22 | DN100 |
| PM5-LVR(S)64-3-2 | 380V-480V/60Hz | 80 | 76 | 22 | DN100 |
| PM5-LVR(S)64-3-1 | 380V-480V/60Hz | 81 | 88 | 30 | DN100 |
| PM5-LVR(S)64-3 | 380V-480V/60Hz | 82 | 98.5 | 30 | DN100 |
| PM5-LVR(S)64-4-2 | 380V-480V/60Hz | 83 | 111 | 37 | DN100 |
| PM5-LVR(S)64-4-1 | 380V-480V/60Hz | 84 | 122 | 37 | DN100 |
| PM5-LVR(S)64-4 | 380V-480V/60Hz | 85 | 135 | 45 | DN100 |
| PM5-LVR(S)64-5-2 | 380V-480V/60Hz | 86 | 150 | 45 | DN100 |
| PM5-LVR(S)90-1-1 | 380V-480V/60Hz | 90 | 26 | 11 | DN100 |
| PM5-LVR(S)90-1 | 380V-480V/60Hz | 108 | 29.7 | 15 | DN100 |
| PM5-LVR(S)90-2-2 | 380V-480V/60Hz | 109 | 43.7 | 18.5 | DN100 |
| PM5-LVR(S)90-2-1 | 380V-480V/60Hz | 110 | 51.9 | 22 | DN100 |
| PM5-LVR(S)90-2 | 380V-480V/60Hz | 111 | 63.1 | 30 | DN100 |
| PM5-LVR(S)90-3-2 | 380V-480V/60Hz | 112 | 76.3 | 37 | DN100 |
| PM5-LVR(S)90-3-1 | 380V-480V/60Hz | 113 | 85.5 | 37 | DN100 |
| PM5-LVR(S)90-3 | 380V-480V/60Hz | 114 | 96.2 | 45 | DN100 |
| PM5-LVR(S)90-4-2 | 380V-480V/60Hz | 115 | 110 | 45 | DN100 |
