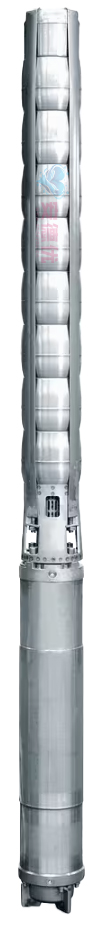

威乐Sub TWS节段式不锈钢潜水深井泵(4/6/8寸)

TWS4.01-06+MW4-0.37-O-A-2.5M-220V、TWS4.01-09+MW4-0.37-O-A-2.5M-220V、TWS4.01-13+MW4-0.55-O-A-2.5M-220V、TWS4.01-13+MW4-0.55-O-A-5M、TWS4.01-17+MW4-0.75-O-A-2.5M-220V、TWS4.01-17+MW4-0.75-O-A-5M、TWS4.01-21+MW4-1.1-O-A-3M-220V、TWS4.01-21+MW4-1.1-O-A-5M、TWS4.01-25+MW4-1.1-O-A-3M-220V、TWS4.01-25+MW4-1.1-O-A-5M、TWS4.01-28+MW4-1.5-O-A-3M-220V、TWS4.01-28+MW4-1.5-O-A-5M、TWS4.01-32+MW4-1.5-O-A-3M-220V、TWS4.01-32+MW4-1.5-O-A-5M

威乐Sub TWS系列节段式不锈钢潜水深井泵，专为深井提水、农业灌溉及矿山排水等高要求场景设计。产品采用优质不锈钢材质，涵盖4寸、6寸、8寸多种规格，具备高效节能、耐腐蚀、运行稳定的卓越性能，能满足大流量、高扬程的复杂工况需求。TWS系列深井泵结构紧凑、安装便捷，是工业供水、农田灌溉、地热利用及区域供水系统的理想选择，为客户提供持久可靠的深层地下水解决方案。
Product Consultation 电话咨询
功能特点
规格参数
外形尺寸
视频介绍

功能特点

特点/产品优势

Wilo-TWS 系列不锈钢潜水深井泵具有结构紧凑，性能优良，高效节能，体积小，重量轻，运行平稳，使用安装方便等特点。泵内装弹性球形止回阀，防止因停机逆流及管路水锤对泵产生冲击的作用。可以垂直或水平安装。

结构

多级潜水泵4"， 6" 和8" 采用NEMA 标准连接，轴向叶轮以及集成的止回阀设计。所有的部件都采用防腐蚀材料。

应用

· 给水管网中作为增加泵

· 给水厂

· 灌溉和喷洒

· 空调和工业循环系统中作为循环泵

· 消防和喷淋系统

· 采矿和土建工程中降低或控制地下水位

· 地热利用

· 喷泉和水力装置

· 滑雪场人工造雪

· 海上钻井平台

型号代码

TWS

不锈钢潜水深井泵

8

适用井径：英寸

95

额定流量：m3/h

06

叶轮级数

MW

潜水电机

4

适用井径：英寸

1.5

功率kW

O

形式：O：充油式，W：充水式，C：屏蔽式

A

轴封形式：A：标配，B：抗砂，摩擦副SIC-SIC

3m

电缆长度

220V

电压 1~220V 380V

技术数据

电制：3~380V, 50Hz; 1~220V, 50Hz

工作制：S1

防护等级: IP 68

液体温度：1~40°C

液体PH 值 ：6.5~8

最小流速: 0.1-0.5 m/s

固体物含量：≤0.01%

最大颗粒直径:≤0.2mm

最大淹没深度：70m

每小时启动次数： Max. 20

规格参数

型号 电压
(V)		 额定流量
(m³/h)		 额定扬程
(m)		 功率
(kW)		 额定转速(rpm) 口径
TWS4.01-06+MW4-0.37-O-A-2.5M-220V 220V 1.64 25 0.37 2830 Rp 1 1/4
TWS4.01-09+MW4-0.37-O-A-2.5M-220V 220V 1.6 38.5 0.37 2830 Rp 1 1/4
TWS4.01-13+MW4-0.55-O-A-2.5M-220V 220V 1.63 54 0.55 2830 Rp 1 1/4
TWS4.01-13+MW4-0.55-O-A-5M 380V 1.63 54 0.55 2850 Rp 1 1/4
TWS4.01-17+MW4-0.75-O-A-2.5M-220V 220V 1.63 71 0.75 2830 Rp 1 1/4
TWS4.01-17+MW4-0.75-O-A-5M 380V 1.63 71 0.75 2850 Rp 1 1/4
TWS4.01-21+MW4-1.1-O-A-3M-220V 220V 1.63 88 1.1 2825 Rp 1 1/4
TWS4.01-21+MW4-1.1-O-A-5M 380V 1.63 88 1.1 2850 Rp 1 1/4
TWS4.01-25+MW4-1.1-O-A-3M-220V 220V 1.37 117 1.1 2825 Rp 1 1/4
TWS4.01-25+MW4-1.1-O-A-5M 380V 1.37 117 1.1 2850 Rp 1 1/4
TWS4.01-28+MW4-1.5-O-A-3M-220V 220V 1.63 118 1.5 2825 Rp 1 1/4
TWS4.01-28+MW4-1.5-O-A-5M 380V 1.63 118 1.5 2850 Rp 1 1/4
TWS4.01-32+MW4-1.5-O-A-3M-220V 220V 1.6 137 1.5 2825 Rp 1 1/4
TWS4.01-32+MW4-1.5-O-A-5M 380V 1.6 137 1.5 2850 Rp 1 1/4
TWS4.01-36+MW4-1.5-O-A-3M-220V 220V 1.37 170 1.5 2825 Rp 1 1/4
TWS4.01-36+MW4-1.5-O-A-5M 380V 1.37 170 1.5 2850 Rp 1 1/4
TWS4.01-39+MW4-2.2-O-A-5M 380V 1.37 182 2.2 2850 Rp 1 1/4
TWS4.01-42+MW4-2.2-O-A-5M 380V 1.37 198 2.2 2850 Rp 1 1/4
TWS4.01-46+MW4-2.2-O-A-5M 380V 1.37 216 2.2 2850 Rp 1 1/4
TWS4.01-50+MW4-2.2-O-A-5M 380V 1.62 210 2.2 2850 Rp 1 1/4
TWS4.03-06+MW4-0.37-O-A-2.5M-220V 220V 2.7 26.3 0.37 2830 Rp 1 1/4
TWS4.03-09+MW4-0.55-O-A-2.5M-220V 220V 2.7 38.5 0.55 2830 Rp 1 1/4
TWS4.03-09+MW4-0.55-O-A-5M 380V 2.7 38.5 0.55 2850 Rp 1 1/4
TWS4.03-12+MW4-0.75-O-A-2.5M-220V 220V 2.7 38.5 0.75 2830 Rp 1 1/4
TWS4.03-12+MW4-0.75-O-A-5M 380V 2.7 53 0.75 2850 Rp 1 1/4
TWS4.03-15+MW4-1.1-O-A-3M-220V 220V 2.7 67 1.1 2825 Rp 1 1/4
TWS4.03-15+MW4-1.1-O-A-5M 380V 2.7 67 1.1 2850 Rp 1 1/4
TWS4.03-18+MW4-1.1-O-A-3M-220V 220V 2.7 81 1.1 2825 Rp 1 1/4
TWS4.03-18+MW4-1.1-O-A-5M 380V 2.7 81 1.1 2850 Rp 1 1/4
TWS4.03-22+MW4-1.5-O-A-3M-220V 220V 2.7 98 1.5 2825 Rp 1 1/4
TWS4.03-22+MW4-1.5-O-A-5M 380V 1.7 98 1.5 2850 Rp 1 1/4
TWS4.03-27+MW4-2.2-O-A-5M 380V 2.7 120 2.2 2850 Rp 1 1/4
TWS4.03-32+MW4-2.2-O-A-5M 380V 2.7 142 2.2 2850 Rp 1 1/4
TWS4.03-38+MW4-3-O-A-5M 380V 2.7 170 3 2850 Rp 1 1/4
TWS4.03-43+MW4-3-O-A-5M 380V 2.7 191 3 2850 Rp 1 1/4
TWS4.05-04+MW4-0.37-O-A-2.5M-220V 220V 4.1 17.1 0.37 2830 Rp 1 1/2
TWS4.05-06+MW4-0.55-O-A-2.5M-220V 220V 4.1 26 0.55 2830 Rp 1 1/2
TWS4.05-06+MW4-0.55-O-A-5M 380V 4.1 26.2 0.55 2850 Rp 1 1/2
TWS4.05-08+MW4-0.75-O-A-2.5M-220V 220V 4.1 34.5 0.75 2830 Rp 1 1/2
TWS4.05-08+MW4-0.75-O-A-5M 380V 4.1 34.7 0.75 2850 Rp 1 1/2
TWS4.05-12+MW4-1.1-O-A-3M-220V 220V 4.1 52 1.1 2825 Rp 1 1/2
TWS4.05-12+MW4-1.1-O-A-5M 380V 4.1 52 1.1 2850 Rp 1 1/2
TWS4.05-17+MW4-1.5-O-A-3M-220V 220V 4.1 75 1.5 2825 Rp 1 1/2
TWS4.05-17+MW4-1.5-O-A-5M 380V 4.1 75 1.5 2850 Rp 1 1/2
TWS4.05-21+MW4-2.2-O-A-5M 380V 4.1 91 2.2 2850 Rp 1 1/2
TWS4.05-25+MW4-2.2-O-A-5M 380V 4.1 110 2.2 2850 Rp 1 1/2
TWS4.05-29+MW4-3-O-A-5M 380V 4.1 127 3 2850 Rp 1 1/2
TWS4.05-33+MW4-3-O-A-5M 380V 4.1 144 3 2850 Rp 1 1/2
TWS4.05-38+MW4-4-O-A-5M 380V 4.1 167 4 2850 Rp 1 1/2
TWS4.05-43+MW4-4-O-A-5M 380V 4.1 190 4 2850 Rp 1 1/2
TWS4.08-05+MW4-0.75-O-A-2.5M-220V 220V 8.3 18 0.75 2830 Rp 2
TWS4.08-05+MW4-0.75-O-A-5M 380V 8.3 18 0.75 2850 Rp 2
TWS4.08-07+MW4-1.1-O-A-3M-220V 220V 8.3 26 1.1 2825 Rp 2
TWS4.08-07+MW4-1.1-O-A-5M 380V 8.3 26 1.1 2850 Rp 2
TWS4.08-10+MW4-1.5-O-A-3M-220V 220V 8.3 37 1.5 2825 Rp 2
TWS4.08-10+MW4-1.5-O-A-5M 380V 8.3 37 1.5 2850 Rp 2
TWS4.08-12+MW4-2.2-O-A-5M 380V 8.3 45 2.2 2850 Rp 2
TWS4.08-15+MW4-2.2-O-A-5M 380V 8.3 56 2.2 2850 Rp 2
TWS4.08-18+MW4-3-O-A-5M 380V 8.3 68 3 2850 Rp 2
TWS4.08-21+MW4-4-O-A-5M 380V 8.3 80 4 2850 Rp 2
TWS4.08-25+MW4-4-O-A-5M 380V 8.3 95 4 2850 Rp 2
TWS4.08-30+MW4-5.5-O-A-5M 380V 8.3 115 5.5 2850 Rp 2
TWS4.08-37+MW4-5.5-O-A-5M 380V 8.1 143 5.5 2850 Rp 2
TWS4.08-44+MW4-7.5-O-A-5M 380V 8.1 171 7.5 2850 Rp 2
TWS4.08-50+MW4-7.5-O-A-5M 380V 8.3 191 7.5 2850 Rp 2
TWS4.12-05+MW4-1.5-O-A-3M-220V 220V 12 25.1 1.5 2825 Rp 2
TWS4.12-05+MW4-1.5-O-A-5M 380V 12 25.1 1.5 2850 Rp 2
TWS4.12-07+MW4-2.2-O-A-5M 380V 12 35 2.2 2850 Rp 2
TWS4.12-10+MW4-3-O-A-5M 380V 12 51 3 2850 Rp 2
TWS4.12-13+MW4-4-O-A-5M 380V 12 66 4 2850 Rp 2
TWS4.12-15+MW4-5.5-O-A-5M 380V 12 77 5.5 2850 Rp 2
TWS4.12-18+MW4-5.5-O-A-5M 380V 12 91 5.5 2850 Rp 2
TWS4.12-21+MW4-7.5-O-A-5M 380V 12 106 7.5 2850 Rp 2
TWS4.12-25+MW4-7.5-O-A-5M 380V 12 126 7.5 2850 Rp 2
TWS6.17-01+MW4-0.55-O-A-5M 380V 14.7 7.5 0.55 2850 Rp 2 1/2
TWS6.17-02+MW4-1.1-O-A-5M 380V 14.8 15.7 1.1 2850 Rp 2 1/2
TWS6.17-03+MW4-2.2-O-A-5M 380V 14.8 23 2.2 2850 Rp 2 1/2
TWS6.17-04+MW4-2.2-O-A-5M 380V 14.8 31.5 2.2 2850 Rp 2 1/2
TWS6.17-05+MW4-3-O-A-5M 380V 14.8 40 3 2850 Rp 2 1/2
TWS6.17-06+MW4-4-O-A-5M 380V 14.8 49 4 2850 Rp 2 1/2
TWS6.17-07+MW4-4-O-A-5M 380V 14.8 57 4 2850 Rp 2 1/2
TWS6.17-08+MW4-5.5-O-A-5M 380V 14.8 65 5.5 2850 Rp 2 1/2
TWS6.17-09+MW4-5.5-O-A-5M 380V 14.8 73 5.5 2850 Rp 2 1/2
TWS6.17-10+MW4-5.5-O-A-5M 380V 14.8 82 5.5 2850 Rp 2 1/2
TWS6.17-11+MW4-7.5-O-A-5M 380V 14.8 90 7.5 2850 Rp 2 1/2
TWS6.17-12+MW4-7.5-O-A-5M 380V 14.8 98 7.5 2850 Rp 2 1/2
TWS6.17-13+MW4-7.5-O-A-5M 380V 14.8 106 7.5 2850 Rp 2 1/2
TWS6.17-14+MW6-9.2-O-A-5M 380V 14.8 115 9.2 2850 Rp 2 1/2
TWS6.17-14+MW6-9.2-W-A-5M 380V 14.8 115 9.2 2860 Rp 2 1/2
TWS6.17-15+MW6-9.2-O-A-5M 380V 14.8 123 9.2 2850 Rp 2 1/2
TWS6.17-15+MW6-9.2-W-A-5M 380V 14.8 123 9.2 2860 Rp 2 1/2
TWS6.17-16+MW6-9.2-O-A-5M 380V 14.8 130 9.2 2850 Rp 2 1/2
TWS6.17-16+MW6-9.2-W-A-5M 380V 14.8 130 9.2 2860 Rp 2 1/2
TWS6.17-17+MW6-9.2-O-A-5M 380V 14.8 140 9.2 2850 Rp 2 1/2
TWS6.17-17+MW6-9.2-W-A-5M 380V 14.8 140 9.2 2860 Rp 2 1/2
TWS6.17-18+MW6-11-O-A-5M 380V 14.8 148 11 2860 Rp 2 1/2
TWS6.17-18+MW6-11-W-A-5M 380V 14.8 148 11 2860 Rp 2 1/2
TWS6.17-19+MW6-11-O-A-5M 380V 14.8 156 11 2860 Rp 2 1/2
TWS6.17-19+MW6-11-W-A-5M 380V 14.8 156 11 2860 Rp 2 1/2
TWS6.17-20+MW6-11-O-A-5M 380V 14.8 163 11 2860 Rp 2 1/2
TWS6.17-20+MW6-11-W-A-5M 380V 14.8 163 11 2860 Rp 2 1/2
TWS6.17-21+MW6-13-O-A-5M 380V 14.8 172 13 2860 Rp 2 1/2
TWS6.17-21+MW6-13-W-A-5M 380V 14.8 172 13 2870 Rp 2 1/2
TWS6.17-22+MW6-13-O-A-5M 380V 14.8 180 13 2860 Rp 2 1/2
TWS6.17-22+MW6-13-W-A-5M 380V 14.8 180 13 2870 Rp 2 1/2
TWS6.17-23+MW6-13-O-A-5M 380V 14.8 190 13 2860 Rp 2 1/2
TWS6.17-23+MW6-13-W-A-5M 380V 14.8 190 13 2870 Rp 2 1/2
TWS6.17-24+MW6-13-O-A-5M 380V 14.8 198 13 2860 Rp 2 1/2
TWS6.17-24+MW6-13-W-A-5M 380V 14.8 198 13 2870 Rp 2 1/2
TWS6.17-25+MW6-15-O-A-5M 380V 14.8 205 15 2860 Rp 2 1/2
TWS6.17-25+MW6-15-W-A-5M 380V 14.8 205 15 2870 Rp 2 1/2
TWS6.17-26+MW6-15-O-A-5M 380V 14.8 212 15 2860 Rp 2 1/2
TWS6.17-26+MW6-15-W-A-5M 380V 14.8 212 15 2870 Rp 2 1/2
TWS6.30-01+MW4-1.1-O-A-5M 380V 24.1 9.1 1.1 2850 Rp 3
TWS6.30-02+MW4-2.2-O-A-5M 380V 24.1 17.4 2.2 2850 Rp 3
TWS6.30-03+MW4-3-O-A-5M 380V 24 26 3 2850 Rp 3
TWS6.30-04+MW4-4-O-A-5M 380V 24 34 4 2850 Rp 3
TWS6.30-05+MW4-5.5-O-A-5M 380V 24 44 5.5 2850 Rp 3
TWS6.30-06+MW4-5.5-O-A-5M 380V 24 52 5.5 2850 Rp 3
TWS6.30-07+MW4-7.5-O-A-5M 380V 24 60 7.5 2850 Rp 3
TWS6.30-08+MW4-7.5-O-A-5M 380V 24 69 7.5 2850 Rp 3
TWS6.30-09+MW6-9.2-O-A-5M 380V 24 77 9.2 2850 Rp 3
TWS6.30-09+MW6-9.2-W-A-5M 380V 24 77 9.2 2860 Rp 3
TWS6.30-10+MW6-9.2-O-A-5M 380V 24 86 9.2 2850 Rp 3
TWS6.30-10+MW6-9.2-W-A-5M 380V 24 86 9.2 2860 Rp 3
TWS6.30-11+MW6-9.2-O-A-5M 380V 24 95 9.2 2850 Rp 3
TWS6.30-11+MW6-9.2-W-A-5M 380V 24 95 9.2 2860 Rp 3
TWS6.30-12+MW6-11-O-A-5M 380V 24 103 11 2860 Rp 3
TWS6.30-12+MW6-11-W-A-5M 380V 24 103 11 2860 Rp 3
TWS6.30-13+MW6-11-O-A-5M 380V 24 112 11 2860 Rp 3
TWS6.30-13+MW6-11-W-A-5M 380V 24 113 11 2860 Rp 3
TWS6.30-14+MW6-13-O-A-5M 380V 24 120 13 2860 Rp 3
TWS6.30-14+MW6-13-W-A-5M 380V 24 120 13 2870 Rp 3
TWS6.30-15+MW6-13-O-A-5M 380V 24 130 13 2860 Rp 3
TWS6.30-15+MW6-13-W-A-5M 380V 24 130 13 2870 Rp 3
TWS6.30-16+MW6-15-O-A-5M 380V 24 138 15 2860 Rp 3
TWS6.30-16+MW6-15-W-A-5M 380V 24 138 15 2870 Rp 3
TWS6.30-17+MW6-15-O-A-5M 380V 24 148 15 2860 Rp 3
TWS6.30-17+MW6-15-W-A-5M 380V 24 148 15 2870 Rp 3
TWS6.30-18+MW6-18.5-O-A-5M 380V 24 155 18.5 2860 Rp 3
TWS6.30-18+MW6-18.5-W-A-5M 380V 24 155 18.5 2880 Rp 3
TWS6.30-19+MW6-18.5-O-A-5M 380V 24 163 18.5 2860 Rp 3
TWS6.30-19+MW6-18.5-W-A-5M 380V 24 163 18.5 2880 Rp 3
TWS6.30-20+MW6-18.5-O-A-5M 380V 24 172 18.5 2860 Rp 3
TWS6.30-20+MW6-18.5-W-A-5M 380V 24 172 18.5 2880 Rp 3
TWS6.30-21+MW6-18.5-O-A-5M 380V 24.5 180 18.5 2860 Rp 3
TWS6.30-21+MW6-18.5-W-A-5M 380V 24.5 180 18.5 2880 Rp 3
TWS6.30-22+MW6-22-O-A-5M 380V 24 190 22 2860 Rp 3
TWS6.30-22+MW6-22-W-A-5M 380V 24 190 22 2880 Rp 3
TWS6.30-23+MW6-22-O-A-5M 380V 24 200 22 2860 Rp 3
TWS6.30-23+MW6-22-W-A-5M 380V 24 200 22 2880 Rp 3
TWS6.30-24+MW6-22-O-A-5M 380V 24 210 22 2860 Rp 3
TWS6.30-24+MW6-22-W-A-5M 380V 24 210 22 2880 Rp 3
TWS6.30-25+MW6-22-O-A-5M 380V 24 215 22 2860 Rp 3
TWS6.30-25+MW6-22-W-A-5M 380V 24 215 22 2880 Rp 3
TWS6.42-01+MW4-2.2-O-A-5M 380V 43 8.5 2.2 2850 Rp 3
TWS6.42-02+MW4-3-O-A-5M 380V 43 16.8 3 2850 Rp 3
TWS6.42-03+MW4-5.5-O-A-5M 380V 43 26 5.5 2850 Rp 3
TWS6.42-04+MW4-7.5-O-A-5M 380V 43 34.5 7.5 2850 Rp 3
TWS6.42-05+MW4-7.5-O-A-5M 380V 43 44.5 7.5 2850 Rp 3
TWS6.42-06+MW6-9.2-O-A-5M 380V 43 53 9.2 2850 Rp 3
TWS6.42-06+MW6-9.2-W-A-5M 380V 43 53 9.2 2850 Rp 3
TWS6.42-07+MW6-11-O-A-5M 380V 43 62 11 2860 Rp 3
TWS6.42-07+MW6-11-W-A-5M 380V 43 62 11 2860 Rp 3
TWS6.42-08+MW6-13-O-A-5M 380V 43 70 13 2850 Rp 3
TWS6.42-08+MW6-13-W-A-5M 380V 43 70 13 2870 Rp 3
TWS6.42-09+MW6-15-O-A-5M 380V 43 80 15 2860 Rp 3
TWS6.42-09+MW6-15-W-A-5M 380V 43 80 15 2870 Rp 3
TWS6.42-10+MW6-15-O-A-5M 380V 43 87 15 2860 Rp 3
TWS6.42-10+MW6-15-W-A-5M 380V 43 87 15 2870 Rp 3
TWS6.42-11+MW6-18.5-O-A-5M 380V 43 96 18.5 2860 Rp 3
TWS6.42-11+MW6-18.5-W-A-5M 380V 43 96 18.5 2880 Rp 3
TWS6.42-12+MW6-18.5-O-A-5M 380V 43 105 18.5 2860 Rp 3
TWS6.42-12+MW6-18.5-W-A-5M 380V 43 105 18.5 2860 Rp 3
TWS6.42-13+MW6-22-O-A-5M 380V 43 115 22 2860 Rp 3
TWS6.42-13+MW6-22-W-A-5M 380V 43 115 22 2880 Rp 3
TWS6.42-14+MW6-22-O-A-5M 380V 43 123 22 2860 Rp 3
TWS6.42-14+MW6-22-W-A-5M 380V 43 123 22 2880 Rp 3
TWS6.42-15+MW6-22-O-A-5M 380V 43 131 22 2860 Rp 3
TWS6.42-15+MW6-22-W-A-5M 380V 43 131 22 2880 Rp 3
TWS6.42-16+MW6-26-O-A-5M 380V 43 140 26 2860 Rp 3
TWS6.42-16+MW6-26-W-A-5M 380V 43 140 26 2880 Rp 3
TWS6.42-17+MW6-26-O-A-5M 380V 43 150 26 2860 Rp 3
TWS6.42-17+MW6-26-W-A-5M 380V 43 150 26 2880 Rp 3
TWS6.42-18+MW6-30-O-A-5M 380V 43 158 30 2860 Rp 3
TWS6.42-18+MW6-30-W-A-5M 380V 43 158 30 2880 Rp 3
TWS6.42-19+MW6-30-O-A-5M 380V 43 167 30 2860 Rp 3
TWS6.42-19+MW6-30-W-A-5M 380V 43 167 30 2880 Rp 3
TWS6.42-20+MW6-30-O-A-5M 380V 43 178 30 2860 Rp 3
TWS6.42-20+MW6-30-W-A-5M 380V 43 178 30 2880 Rp 3
TWS6.42-21+MW6-37-O-A-5M 380V 43 183 37 2860 Rp 3
TWS6.42-21+MW6-37-W-A-5M 380V 43 183 37 2880 Rp 3
TWS6.42-22+MW6-37-O-A-5M 380V 43 191 37 2860 Rp 3
TWS6.42-22+MW6-37-W-A-5M 380V 43 191 37 2880 Rp 3
TWS6.60-01+MW4-2.2-O-A-5M 380V 55 6.4 2.2 2850 Rp 4
TWS6.60-02+MW4-4-O-A-5M 380V 55 14.8 4 2850 Rp 4
TWS6.60-02-2+MW4-3-O-A-5M 380V 55 11.8 3 2850 Rp 4
TWS6.60-03+MW4-5.5-O-A-5M 380V 55 22 5.5 2850 Rp 4
TWS6.60-04+MW4-7.5-O-A-5M 380V 55 31.5 7.5 2850 Rp 4
TWS6.60-05+MW6-9.2-O-A-5M 380V 55 40 9.2 2850 Rp 4
TWS6.60-05+MW6-9.2-W-A-5M 380V 55 40 9.2 2860 Rp 4
TWS6.60-06+MW6-11-O-A-5M 380V 55 49 11 2860 Rp 4
TWS6.60-06+MW6-11-W-A-5M 380V 55 49 11 2860 Rp 4
TWS6.60-07+MW6-13-O-A-5M 380V 55 57 13 2860 Rp 4
TWS6.60-07+MW6-13-W-A-5M 380V 55 57 13 2870 Rp 4
TWS6.60-08+MW6-15-O-A-5M 380V 55 66 15 2860 Rp 4
TWS6.60-08+MW6-15-W-A-5M 380V 55 66 15 2870 Rp 4
TWS6.60-08-2+MW6-13-O-A-5M 380V 55 60 13 2860 Rp 4
TWS6.60-08-2+MW6-13-W-A-5M 380V 55 60 13 2870 Rp 4
TWS6.60-09+MW6-18.5-O-A-5M 380V 55 75 18.5 2860 Rp 4
TWS6.60-09+MW6-18.5-W-A-5M 380V 55 75 18.5 2880 Rp 4
TWS6.60-09-2+MW6-15-O-A-5M 380V 55 70 15 2860 Rp 4
TWS6.60-09-2+MW6-15-W-A-5M 380V 55 70 15 2870 Rp 4
TWS6.60-10+MW6-18.5-O-A-5M 380V 55 84 18.5 2860 Rp 4
TWS6.60-10+MW6-18.5-W-A-5M 380V 55 84 18.5 2880 Rp 4
TWS6.60-11+MW6-22-O-A-5M 380V 55 93 22 2860 Rp 4
TWS6.60-11+MW6-22-W-A-5M 380V 55 93 22 2880 Rp 4
TWS6.60-12+MW6-22-O-A-5M 380V 55 100 22 2860 Rp 4
TWS6.60-12+MW6-22-W-A-5M 380V 55 100 22 2880 Rp 4
TWS6.60-13+MW6-22-O-A-5M 380V 55 110 22 2860 Rp 4
TWS6.60-13+MW6-22-W-A-5M 380V 55 110 22 2880 Rp 4
TWS6.60-14+MW6-26-O-A-5M 380V 55 116 26 2860 Rp 4
TWS6.60-14+MW6-26-W-A-5M 380V 55 116 26 2880 Rp 4
TWS6.60-15+MW6-26-O-A-5M 380V 55 124 26 2860 Rp 4
TWS6.60-15+MW6-26-W-A-5M 380V 55 124 26 2880 Rp 4
TWS6.60-16+MW6-30-O-A-5M 380V 55 132 30 2860 Rp 4
TWS6.60-16+MW6-30-W-A-5M 380V 55 132 30 2880 Rp 4
TWS6.60-17+MW6-30-O-A-5M 380V 55 142 30 2860 Rp 4
TWS6.60-17+MW6-30-W-A-5M 380V 55 142 30 2880 Rp 4
TWS6.60-18+MW6-30-O-A-5M 380V 55 153 30 2860 Rp 4
TWS6.60-18+MW6-30-W-A-5M 380V 55 153 30 2880 Rp 4
TWS6.60-19+MW6-37-O-A-5M 380V 55 161 37 2860 Rp 4
TWS6.60-19+MW6-37-W-A-5M 380V 55 161 37 2880 Rp 4
TWS6.60-20+MW6-37-O-A-5M 380V 55 170 37 2860 Rp 4
TWS6.60-20+MW6-37-W-A-5M 380V 55 170 37 2880 Rp 4
TWS6.60-21+MW6-37-O-A-5M 380V 55 180 37 2860 Rp 4
TWS6.60-21+MW6-37-W-A-5M 380V 55 180 37 2880 Rp 4
TWS8.75-02+MW6-7.5-O-A-5M 380V 70 27 7.5 2850 Rp 5
TWS8.75-02+MW6-7.5-W-A-5M 380V 70 27 7.5 2860 Rp 5
TWS8.75-03+MW6-11-O-A-5M 380V 70 41 11 2860 Rp 5
TWS8.75-03+MW6-11-W-A-5M 380V 70 41 11 2860 Rp 5
TWS8.75-04+MW6-15-O-A-5M 380V 70 56 15 2860 Rp 5
TWS8.75-04+MW6-15-W-A-5M 380V 70 56 15 2870 Rp 5
TWS8.75-05+MW6-18.5-O-A-5M 380V 70 70 18.5 2860 Rp 5
TWS8.75-05+MW6-18.5-W-A-5M 380V 70 70 18.5 2880 Rp 5
TWS8.75-06+MW6-22-O-A-5M 380V 70 84 22 2860 Rp 5
TWS8.75-06+MW6-22-W-A-5M 380V 70 84 22 2880 Rp 5
TWS8.75-07+MW6-30-O-A-5M 380V 70 98 30 2860 Rp 5
TWS8.75-07+MW6-30-W-A-5M 380V 70 98 30 2880 Rp 5
TWS8.75-08+MW6-30-O-A-5M 380V 70 115 30 2860 Rp 5
TWS8.75-08+MW6-30-W-A-5M 380V 70 115 30 2880 Rp 5
TWS8.75-09+MW6-37-O-A-5M 380V 70 129 37 2880 Rp 5
TWS8.75-09+MW6-37-W-A-5M 380V 70 130 37 2880 Rp 5
TWS8.75-10+MW6-37-O-A-5M 380V 70 143 37 2860 Rp 5
TWS8.75-10+MW6-37-W-A-5M 380V 70 143 37 2880 Rp 5
TWS8.75-11+MW8-45-W-A-5M 380V 70 158 45 2880 Rp 5
TWS8.75-12+MW8-45-W-A-5M 380V 70 171 45 2880 Rp 5
TWS8.75-13+MW8-55-W-A-5M 380V 70 186 55 2880 Rp 5
TWS8.75-14+MW8-55-W-A-5M 380V 70 200 55 2880 Rp 5
TWS8.75-15+MW8-55-W-A-5M 380V 70 213 55 2880 Rp 5
TWS8.75-16+MW8-64-W-A-5M 380V 70 230 64 2880 Rp 5
TWS8.75-17+MW8-64-W-A-5M 380V 70 245 64 2880 Rp 5
TWS8.75-18+MW8-75-W-A-5M 380V 70 260 75 2880 Rp 5
TWS8.75-19+MW8-75-W-A-5M 380V 70 27.5 75 2880 Rp 5
TWS8.75-20+MW8-75-W-A-5M 380V 70 290 75 2880 Rp 5
TWS8.95-02+MW6-9.2-O-A-5M 380V 73 28.5 9.2 2850 Rp 5
TWS8.95-02+MW6-9.2-W-A-5M 380V 73 28.5 9.2 2860 Rp 5
TWS8.95-03+MW6-13-O-A-5M 380V 73 44 13 2860 Rp 5
TWS8.95-03+MW6-13-W-A-5M 380V 72 44 13 2870 Rp 5
TWS8.95-04+MW6-18.5-O-A-5M 380V 72 59 18.5 2860 Rp 5
TWS8.95-04+MW6-18.5-W-A-5M 380V 72 59 18.5 2880 Rp 5
TWS8.95-05+MW6-22-O-A-5M 380V 72.9 73.76 22 2860 Rp 5
TWS8.95-05+MW6-22-W-A-5M 380V 72.9 73.76 22 2880 Rp 5
TWS8.95-06+MW6-26-O-A-5M 380V 73 88 26 2860 Rp 5
TWS8.95-06+MW6-26-W-A-5M 380V 73 88 26 2880 Rp 5
TWS8.95-07+MW6-30-O-A-5M 380V 73 103 30 2860 Rp 5
TWS8.95-07+MW6-30-W-A-5M 380V 73 103 30 2880 Rp 5
TWS8.95-08+MW6-37-O-A-5M 380V 73 118 37 2860 Rp 5
TWS8.95-08+MW6-37-W-A-5M 380V 73 118 37 2880 Rp 5
TWS8.95-09+MW6-37-O-A-5M 380V 73 132 37 2860 Rp 5
TWS8.95-09+MW6-37-W-A-5M 380V 73 132 37 2880 Rp 5
TWS8.95-10+MW8-45-W-A-5M 380V 73 148 45 2880 Rp 5
TWS8.95-11+MW8-45-W-A-5M 380V 73 163 45 2880 Rp 5
TWS8.95-12+MW8-55-W-A-5M 380V 73 180 55 2880 Rp 5
TWS8.95-13+MW8-55-W-A-5M 380V 72.9 194.5 55 2880 Rp 5
TWS8.95-14+MW8-55-W-A-5M 380V 73 210 55 2880 Rp 5
TWS8.95-15+MW8-64-W-A-5M 380V 73 228 64 2880 Rp 5
TWS8.95-16+MW8-64-W-A-5M 380V 73 242 64 2880 Rp 5
TWS8.95-17+MW8-75-W-A-5M 380V 73 260 75 2880 Rp 5
TWS8.95-18+MW8-75-W-A-5M 380V 73 275 75 2880 Rp 5

外形尺寸

视频介绍

留言咨询

*
*
*
*
*
提交
