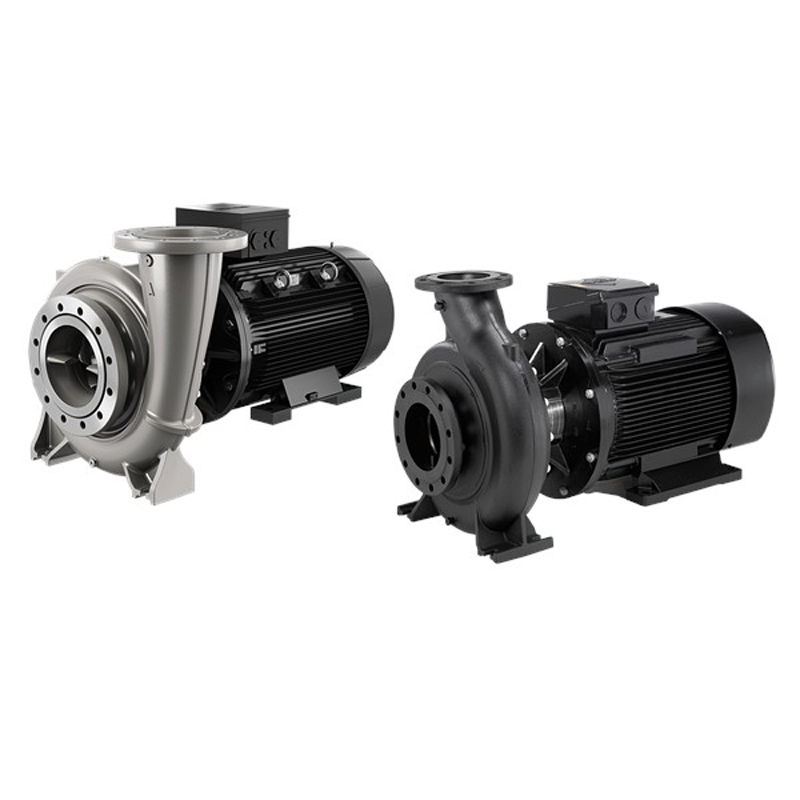

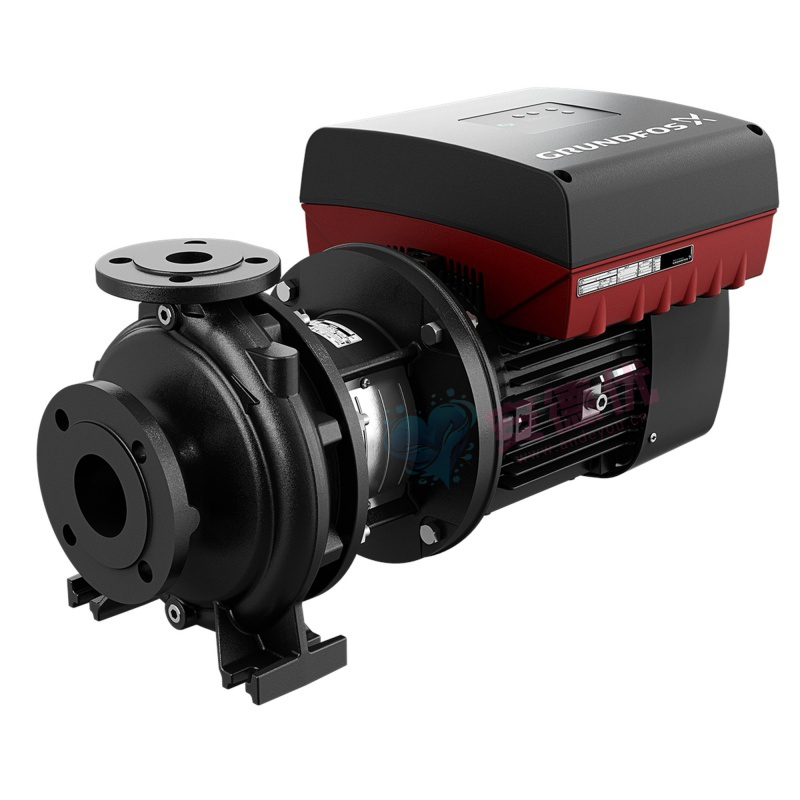

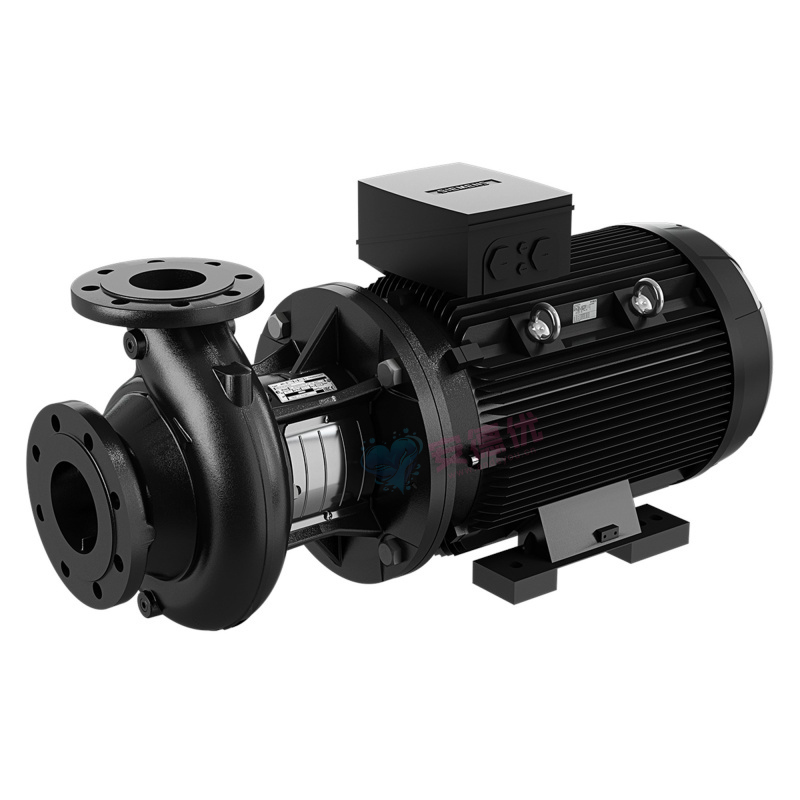

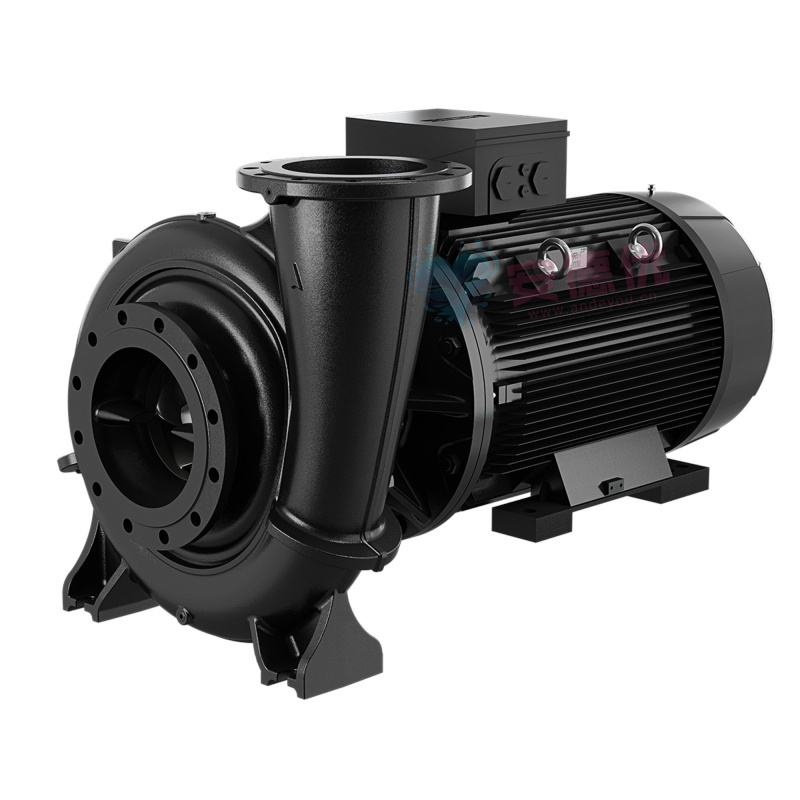

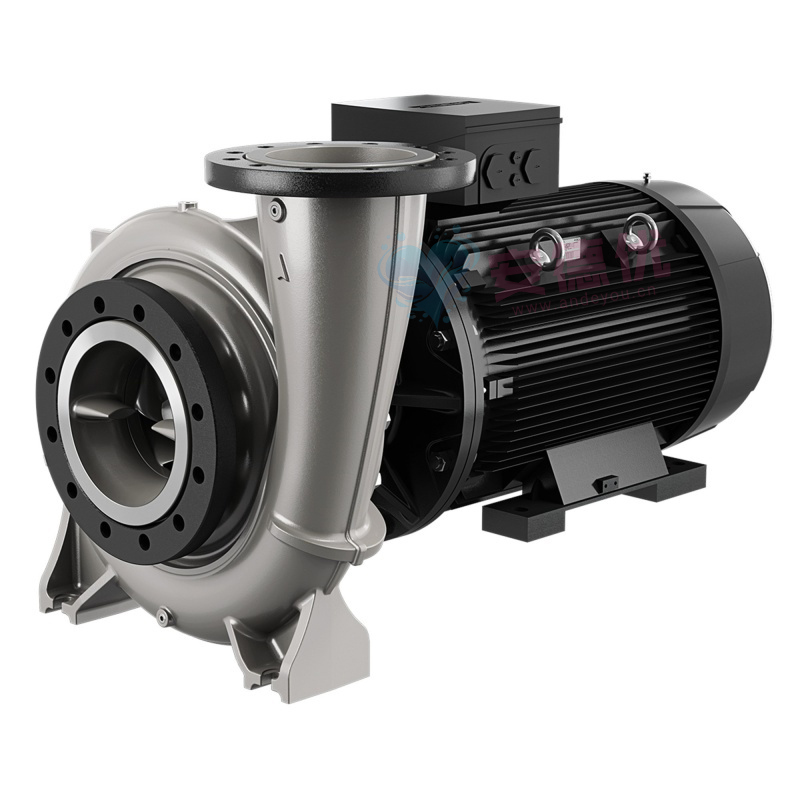

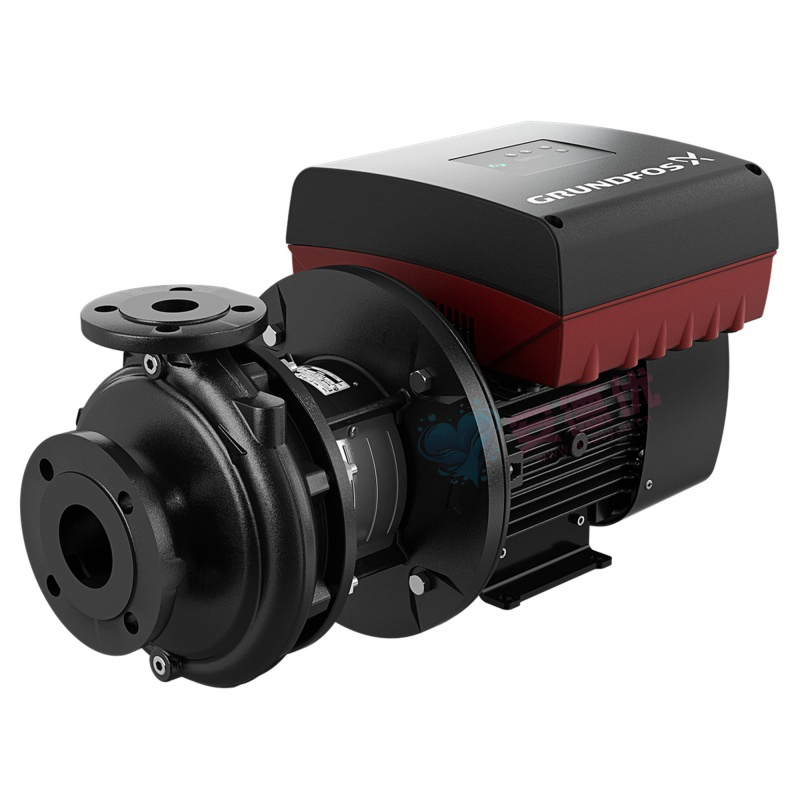

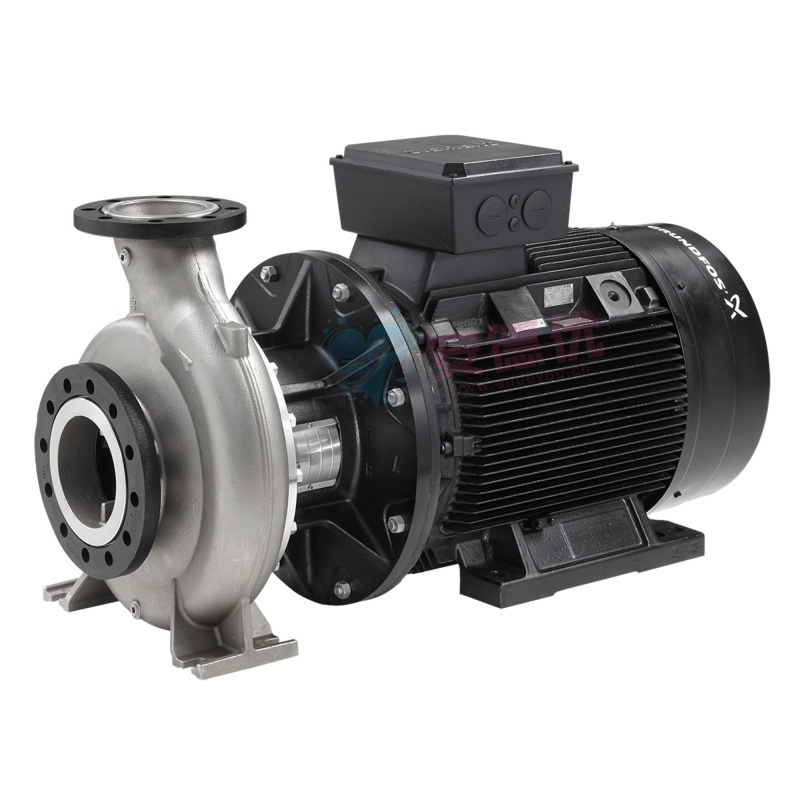

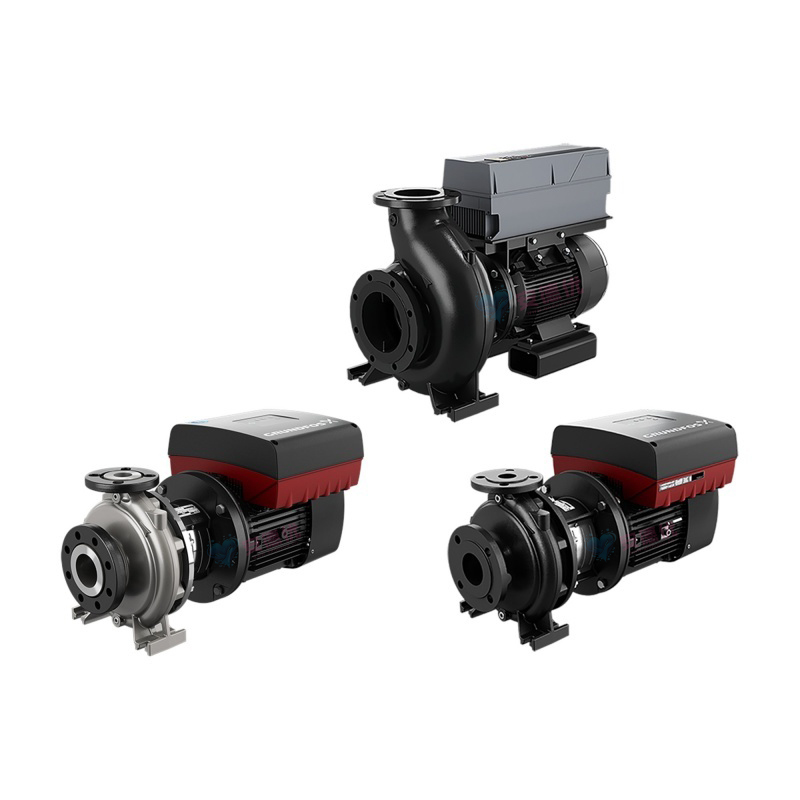

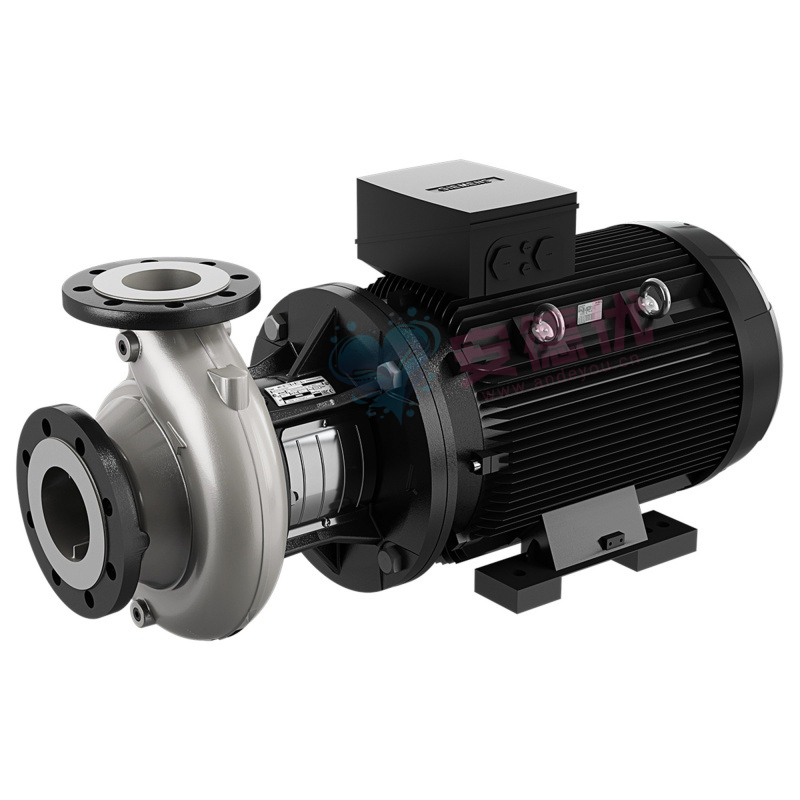

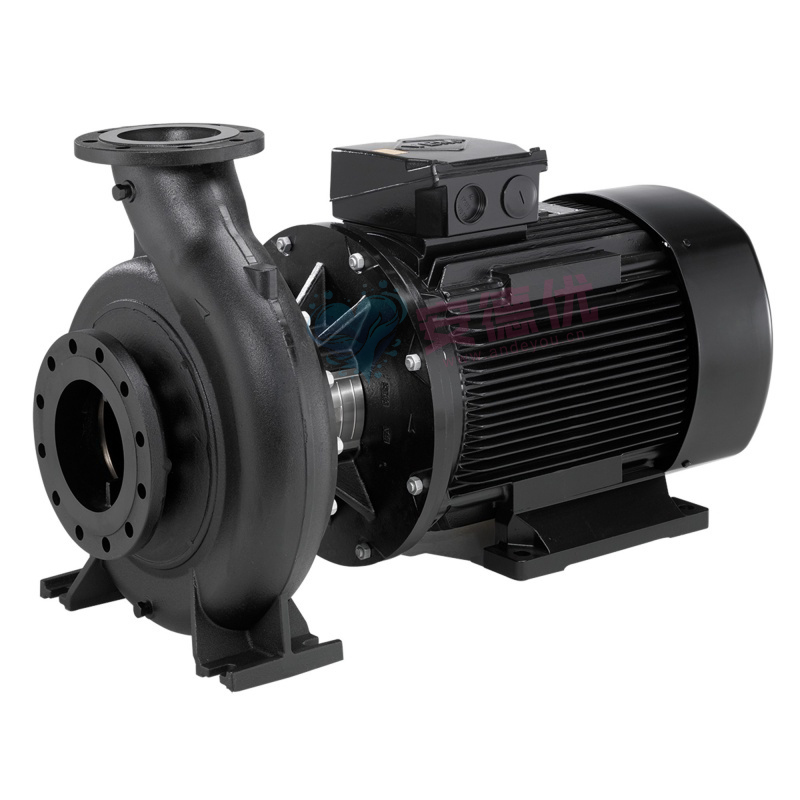

格兰富NBG卧式管道单级端吸泵(直连)

NBG 50-32-125.1/100、NBG 50-32-125/130、NBG 50-32-160/177、NBG 50-32-200/206、NBG 50-32-250/244、NBG 65-40-200/219、NBG 65-40-250/260、NBG 65-40-315/305、NBG 65-40-315/334、NBG 65-40-315/344、NBG 65-50-125/127、NBG 65-50-160/158、NBG 65-50-160/177、NBG 80-50-200/198、NBG 80-50-200/219、NBG 80-50-250/254、NBG 80-50-315/300、NBG 80-65-125/135、NBG 80-65-125/144、NBG 80-65-160/167

格兰富NBG卧式管道单级端吸泵，ISO2858/5199标准，2-1300 m³/h，2-250 m，IE3/IE5能效，直连MGE变频或CUE外置变频，背抽式免拆管路维护，铸铁/不锈钢多材质，EPDM/FKM机械密封，-25~+140 ℃液体，PN10-25法兰，底座灌浆设计，低噪音低振动，适用于市政供水、楼宇增压、工业循环、HVAC、灌溉等。
电话咨询
在线留言
  • 功能特点
  • 规格参数
  • 外形尺寸
  • 视频介绍

    • ‌GRUNDFOS格兰富NBG卧式管道单级端吸泵(直连)‌

    1. ‌高效节能设计‌

      • 采用优化叶轮水力模型，效率高达89.4%（2极型号），符合ISO 9906 Annex A标准，显著降低运行能耗。

    2. ‌多样化配置选项‌

      • 提供铸铁/不锈钢材质选择，适配不同介质需求。
      • 支持多种法兰标准（DIN/ANSI/JIS）及压力等级（PN10-PN40），满足全球安装规范。
      • 可选配标准轴承支架或重载轴承支架，适应不同负载条件。

    3. ‌灵活密封方案‌

      • 标配集装式机械密封，可选双密封布置或填料密封（仅铸铁型号），确保泄漏防护可靠性。
      • 轴封直径覆盖42-55mm，适配不同工况要求。

    4. ‌模块化结构设计‌

      • 泵体与电机直联结构，减少维护点，支持快速拆卸（轴承支架最小回拉距离X标注于图纸）。
      • 提供带脚泵壳或配底板安装方式，兼容水平/垂直管道布置。

    5. ‌扩展性能范围‌

      • 覆盖流量8-1400 m³/h，扬程最高200m（2极型号），支持50Hz多极变速（2/4/6极）。
      • 新增型号与现有泵安装尺寸完全兼容，便于系统升级改造。

    6. ‌智能兼容性‌

      • 支持变频电机驱动（内置变频器选项），适配IE2能效电机，预留传感器接口。

    7. ‌严苛标准认证‌

      • 设计符合EN 733及ISO 2858标准，压力等级最高达PN40（不锈钢型号）。

    ‌典型应用场景‌：工业循环系统、暖通空调、供水增压、热交换站等需高效稳定输液的领域。

    型号 电压/频率 额定流量(m³/h) 额定扬程(m) 功率(kW) 效率等级 进出口径
    NBG 50-32-125.1/100 380V/50Hz 14.96 9.886 0.75 IE3 50×32
    NBG 50-32-125.1/100 380V/50Hz 14.94 9.851 0.75 IE3 50×32
    NBG 50-32-125.1/100 380V/50Hz 15.04 9.99 0.75 IE4 50×32
    NBG 50-32-125.1/110 380V/50Hz 17.15 12.09 1.1 IE4 50×32
    NBG 50-32-125.1/110 380V/50Hz 17 11.88 1.1 IE3 50×32
    NBG 50-32-125.1/110 380V/50Hz 17.03 11.92 1.1 IE3 50×32
    NBG 50-32-125.1/121 220V/50Hz 9.5 3.74 0.25 IE4 50×32
    NBG 50-32-125.1/121 380V/50Hz 19.73 15.75 1.5 IE4 50×32
    NBG 50-32-125.1/121 380V/50Hz 19.7 15.7 1.5 IE3 50×32
    NBG 50-32-125.1/121 380V/50Hz 9.2 3.507 0.25 IE3 50×32
    NBG 50-32-125.1/121 380V/50Hz 19.5 15.38 1.5 IE3 50×32
    NBG 50-32-125.1/139 380V/50Hz 10.62 4.946 0.25 IE3 50×32
    NBG 50-32-125.1/139 380V/50Hz 10.97 5.275 0.25 IE4 50×32
    NBG 50-32-125.1/140 380V/50Hz 11.04 5.072 0.37 IE3 50×32
    NBG 50-32-125.1/140 380V/50Hz 11.36 5.371 0.37 IE4 50×32
    NBG 50-32-125.1/140 380V/50Hz 23.4 22.6 2.2 IE3 50×32
    NBG 50-32-125.1/140 380V/50Hz 23.16 22.14 2.2 IE3 50×32
    NBG 50-32-125.1/140 380V/50Hz 23.36 22.52 2.2 IE4 50×32
    NBG 50-32-125/106 380V/50Hz 20.13 10.91 1.1 IE4 50×32
    NBG 50-32-125/106 380V/50Hz 19.95 10.72 1.1 IE3 50×32
    NBG 50-32-125/106 380V/50Hz 19.99 10.76 1.1 IE3 50×32
    NBG 50-32-125/115 380V/50Hz 10.34 3.057 0.25 IE3 50×32
    NBG 50-32-125/115 220V/50Hz 10.67 3.261 0.25 IE4 50×32
    NBG 50-32-125/115 380V/50Hz 22.7 13 1.5 IE3 50×32
    NBG 50-32-125/115 380V/50Hz 22.47 12.73 1.5 IE3 50×32
    NBG 50-32-125/115 380V/50Hz 22.74 13.04 1.5 IE4 50×32
    NBG 50-32-125/130 380V/50Hz 25.14 18.41 2.2 IE3 50×32
    NBG 50-32-125/130 380V/50Hz 25.36 18.74 2.2 IE4 50×32
    NBG 50-32-125/130 220V/50Hz 12.14 4.603 0.25 IE4 50×32
    NBG 50-32-125/130 380V/50Hz 25.4 18.8 2.2 IE3 50×32
    NBG 50-32-125/130 380V/50Hz 11.76 4.316 0.25 IE3 50×32
    NBG 50-32-125/142 380V/50Hz 12.94 5.344 0.37 IE3 50×32
    NBG 50-32-125/142 220V/50Hz 13.32 5.658 0.37 IE4 50×32
    NBG 50-32-125/142 380V/50Hz 28.1 23.56 3 IE3 50×32
    NBG 50-32-125/142 380V/50Hz 28.1 23.56 3 IE3 50×32
    NBG 50-32-125/142 380V/50Hz 28.1 23.56 3 IE4 50×32
    NBG 50-32-160.1/137 380V/50Hz 7.4 4.136 0.25 IE3 50×32
    NBG 50-32-160.1/137 220V/50Hz 7.64 4.412 0.25 IE4 50×32
    NBG 50-32-160.1/139 380V/50Hz 15.9 19.4 1.5 IE3 50×32
    NBG 50-32-160.1/139 380V/50Hz 15.74 19 1.5 IE3 50×32
    NBG 50-32-160.1/139 380V/50Hz 15.93 19.47 1.5 IE4 50×32
    NBG 50-32-160.1/155 380V/50Hz 19.17 24.32 2.2 IE4 50×32
    NBG 50-32-160.1/155 380V/50Hz 19 23.9 2.2 IE3 50×32
    NBG 50-32-160.1/155 380V/50Hz 19.2 24.4 2.2 IE3 50×32
    NBG 50-32-160.1/155 380V/50Hz 8.82 5.305 0.25 IE3 50×32
    NBG 50-32-160.1/155 220V/50Hz 9.11 5.658 0.25 IE4 50×32
    NBG 50-32-160.1/169 380V/50Hz 20.47 32.02 3 IE4 50×32
    NBG 50-32-160.1/169 380V/50Hz 20.47 32.02 3 IE3 50×32
    NBG 50-32-160.1/169 380V/50Hz 20.47 32.02 3 IE3 50×32
    NBG 50-32-160.1/172 380V/50Hz 10.37 7.065 0.37 IE3 50×32
    NBG 50-32-160.1/172 220V/50Hz 10.67 7.481 0.37 IE4 50×32
    NBG 50-32-160.1/177 380V/50Hz 11.26 7.96 0.55 IE3 50×32
    NBG 50-32-160.1/177 220V/50Hz 11.38 8.129 0.55 IE4 50×32
    NBG 50-32-160.1/177 380V/50Hz 22.73 34.81 4 IE3 50×32
    NBG 50-32-160.1/177 380V/50Hz 22.58 34.34 4 IE3 50×32
    NBG 50-32-160.1/177 380V/50Hz 22.62 34.45 4 IE4 50×32
    NBG 50-32-160/134 380V/50Hz 9.96 4.226 0.25 IE3 50×32
    NBG 50-32-160/134 220V/50Hz 10.28 4.508 0.25 IE4 50×32
    NBG 50-32-160/139 380V/50Hz 23.1 19.9 2.2 IE3 50×32
    NBG 50-32-160/139 380V/50Hz 22.86 19.49 2.2 IE3 50×32
    NBG 50-32-160/139 380V/50Hz 23.06 19.83 2.2 IE4 50×32
    NBG 50-32-160/151 380V/50Hz 25.19 24.47 3 IE4 50×32
    NBG 50-32-160/151 380V/50Hz 25.19 24.47 3 IE3 50×32
    NBG 50-32-160/151 380V/50Hz 25.19 24.47 3 IE3 50×32
    NBG 50-32-160/154 380V/50Hz 12.37 5.706 0.37 IE3 50×32
    NBG 50-32-160/154 220V/50Hz 12.73 6.042 0.37 IE4 50×32
    NBG 50-32-160/163 380V/50Hz 29.2 28.6 4 IE3 50×32
    NBG 50-32-160/163 380V/50Hz 29.25 28.7 4 IE4 50×32
    NBG 50-32-160/163 380V/50Hz 29.4 28.99 4 IE3 50×32
    NBG 50-32-160/170 380V/50Hz 14.49 7.672 0.55 IE3 50×32
    NBG 50-32-160/170 220V/50Hz 14.65 7.835 0.55 IE4 50×32
    NBG 50-32-160/173 380V/50Hz 14.69 8.248 0.75 IE3 50×32
    NBG 50-32-160/173 380V/50Hz 14.95 8.541 0.75 IE4 50×32
    NBG 50-32-160/177 380V/50Hz 33.34 35.32 5.5 IE3 50×32
    NBG 50-32-160/177 380V/50Hz 33.23 35.08 5.5 IE3 50×32
    NBG 50-32-160/177 380V/50Hz 33.34 35.32 5.5 IE4 50×32
    NBG 50-32-200.1/172 380V/50Hz 18.16 27.89 3 IE3 50×32
    NBG 50-32-200.1/172 380V/50Hz 18.16 27.89 3 IE3 50×32
    NBG 50-32-200.1/172 380V/50Hz 18.16 27.89 3 IE4 50×32
    NBG 50-32-200.1/175 380V/50Hz 8.57 6.612 0.37 IE3 50×32
    NBG 50-32-200.1/175 220V/50Hz 8.81 7.001 0.37 IE4 50×32
    NBG 50-32-200.1/188 380V/50Hz 20.1 34.96 4 IE4 50×32
    NBG 50-32-200.1/188 380V/50Hz 20.21 35.32 4 IE3 50×32
    NBG 50-32-200.1/188 380V/50Hz 20.07 34.84 4 IE3 50×32
    NBG 50-32-200.1/196 220V/50Hz 10.79 9.011 0.55 IE4 50×32
    NBG 50-32-200.1/196 380V/50Hz 10.67 8.823 0.55 IE3 50×32
    NBG 50-32-200.1/205 380V/50Hz 22.33 43.69 5.5 IE4 50×32
    NBG 50-32-200.1/205 380V/50Hz 22.33 43.69 5.5 IE3 50×32
    NBG 50-32-200.1/205 380V/50Hz 22.25 43.39 5.5 IE3 50×32
    NBG 50-32-200.1/207 380V/50Hz 10.77 10.55 0.75 IE3 50×32
    NBG 50-32-200.1/207 380V/50Hz 22.83 44.4 7.5 IE4 50×32
    NBG 50-32-200.1/207 380V/50Hz 10.96 10.92 0.75 IE4 50×32
    NBG 50-32-200.1/207 380V/50Hz 22.76 44.1 7.5 IE3 50×32
    NBG 50-32-200.1/207 380V/50Hz 22.72 43.95 7.5 IE3 50×32
    NBG 50-32-200/176 380V/50Hz 27.78 30.22 4 IE3 50×32
    NBG 50-32-200/176 380V/50Hz 27.59 29.8 4 IE3 50×32
    NBG 50-32-200/176 380V/50Hz 27.64 29.91 4 IE4 50×32
    NBG 50-32-200/184 220V/50Hz 14.15 8.325 0.55 IE4 50×32
    NBG 50-32-200/184 380V/50Hz 14 8.152 0.55 IE3 50×32
    NBG 50-32-200/190 380V/50Hz 29.7 37.97 5.5 IE3 50×32
    NBG 50-32-200/190 380V/50Hz 29.6 37.72 5.5 IE3 50×32
    NBG 50-32-200/190 380V/50Hz 29.7 37.97 5.5 IE4 50×32
    NBG 50-32-200/197 380V/50Hz 15.57 10.07 0.75 IE3 50×32
    NBG 50-32-200/197 380V/50Hz 15.85 10.43 0.75 IE4 50×32
    NBG 50-32-200/206 380V/50Hz 33.85 46.75 7.5 IE4 50×32
    NBG 50-32-200/206 380V/50Hz 33.67 46.28 7.5 IE3 50×32
    NBG 50-32-200/206 380V/50Hz 33.73 46.43 7.5 IE3 50×32
    NBG 50-32-200/216 380V/50Hz 19.03 12.41 1.1 IE4 50×32
    NBG 50-32-200/216 380V/50Hz 18.97 12.33 1.1 IE3 50×32
    NBG 50-32-200/219 380V/50Hz 19.33 12.81 1.5 IE4 50×32
    NBG 50-32-200/219 380V/50Hz 36.15 55.59 11 IE3 50×32
    NBG 50-32-200/219 380V/50Hz 36.09 55.4 11 IE3 50×32
    NBG 50-32-200/219 380V/50Hz 36.15 55.59 11 IE4 50×32
    NBG 50-32-200/219 380V/50Hz 19.27 12.72 1.5 IE3 50×32
    NBG 50-32-250/199 380V/50Hz 18.99 42.26 5.5 IE3 50×32
    NBG 50-32-250/199 380V/50Hz 18.93 41.97 5.5 IE3 50×32
    NBG 50-32-250/199 380V/50Hz 18.99 42.26 5.5 IE4 50×32
    NBG 50-32-250/206 380V/50Hz 8.72 10.93 0.75 IE3 50×32
    NBG 50-32-250/206 380V/50Hz 8.87 11.32 0.75 IE4 50×32
    NBG 50-32-250/219 380V/50Hz 21.61 50.62 7.5 IE3 50×32
    NBG 50-32-250/219 380V/50Hz 21.65 50.79 7.5 IE3 50×32
    NBG 50-32-250/219 380V/50Hz 21.72 51.14 7.5 IE4 50×32
    NBG 50-32-250/236 380V/50Hz 11.22 14.79 1.1 IE3 50×32
    NBG 50-32-250/236 380V/50Hz 11.26 14.9 1.1 IE4 50×32
    NBG 50-32-250/244 380V/50Hz 25.29 66 11 IE4 50×32
    NBG 50-32-250/244 380V/50Hz 25.29 66 11 IE3 50×32
    NBG 50-32-250/244 380V/50Hz 25.24 65.78 11 IE3 50×32
    NBG 50-32-250/257 380V/50Hz 12.36 18.67 1.5 IE4 50×32
    NBG 50-32-250/257 380V/50Hz 12.31 18.54 1.5 IE3 50×32
    NBG 50-32-250/262 380V/50Hz 13.15 19.43 2.2 IE4 50×32
    NBG 50-32-250/262 380V/50Hz 26.97 79.24 15 IE3 50×32
    NBG 50-32-250/262 380V/50Hz 26.97 79.24 15 IE3 50×32
    NBG 50-32-250/262 380V/50Hz 27.01 79.51 15 IE4 50×32
    NBG 50-32-250/262 380V/50Hz 13.01 19.04 2.2 IE3 50×32
    NBG 65-40-200/172 380V/50Hz 42.64 29.81 5.5 IE3 65×40
    NBG 65-40-200/172 380V/50Hz 42.49 29.6 5.5 IE3 65×40
    NBG 65-40-200/172 380V/50Hz 42.64 29.81 5.5 IE4 65×40
    NBG 65-40-200/177 380V/50Hz 20.66 7.576 0.75 IE3 65×40
    NBG 65-40-200/177 380V/50Hz 21.03 7.846 0.75 IE4 65×40
    NBG 65-40-200/188 380V/50Hz 48.25 35.97 7.5 IE3 65×40
    NBG 65-40-200/188 380V/50Hz 48.33 36.09 7.5 IE3 65×40
    NBG 65-40-200/188 380V/50Hz 48.5 36.34 7.5 IE4 65×40
    NBG 65-40-200/198 380V/50Hz 25.32 9.961 1.1 IE3 65×40
    NBG 65-40-200/198 380V/50Hz 25.41 10.03 1.1 IE4 65×40
    NBG 65-40-200/206 380V/50Hz 55.85 45.17 11 IE4 65×40
    NBG 65-40-200/206 380V/50Hz 55.76 45.02 11 IE3 65×40
    NBG 65-40-200/206 380V/50Hz 55.85 45.17 11 IE3 65×40
    NBG 65-40-200/217 380V/50Hz 28.4 12.43 1.5 IE3 65×40
    NBG 65-40-200/217 380V/50Hz 28.5 12.51 1.5 IE4 65×40
    NBG 65-40-200/219 380V/50Hz 29.2 12.62 2.2 IE3 65×40
    NBG 65-40-200/219 380V/50Hz 29.5 12.89 2.2 IE4 65×40
    NBG 65-40-200/219 380V/50Hz 60.32 52.21 15 IE3 65×40
    NBG 65-40-200/219 380V/50Hz 60.32 52.21 15 IE3 65×40
    NBG 65-40-200/219 380V/50Hz 60.42 52.39 15 IE4 65×40
    NBG 65-40-250/211 380V/50Hz 50.27 51.98 11 IE4 65×40
    NBG 65-40-250/211 380V/50Hz 50.18 51.8 11 IE3 65×40
    NBG 65-40-250/211 380V/50Hz 50.27 51.98 11 IE3 65×40
    NBG 65-40-250/219 380V/50Hz 25.13 13.41 1.5 IE3 65×40
    NBG 65-40-250/219 380V/50Hz 25.21 13.51 1.5 IE4 65×40
    NBG 65-40-250/230 380V/50Hz 57.79 61.36 15 IE3 65×40
    NBG 65-40-250/230 380V/50Hz 57.79 61.36 15 IE3 65×40
    NBG 65-40-250/230 380V/50Hz 57.88 61.57 15 IE4 65×40
    NBG 65-40-250/242 380V/50Hz 28.5 16.67 2.2 IE3 65×40
    NBG 65-40-250/242 380V/50Hz 28.8 17.02 2.2 IE4 65×40
    NBG 65-40-250/245 380V/50Hz 64.68 68.55 18.5 IE3 65×40
    NBG 65-40-250/245 380V/50Hz 64.79 68.79 18.5 IE3 65×40
    NBG 65-40-250/245 380V/50Hz 64.79 68.79 18.5 IE4 65×40
    NBG 65-40-250/255 380V/50Hz 65.51 78.54 22 IE3 65×40
    NBG 65-40-250/255 380V/50Hz 65.51 78.54 22 IE3 65×40
    NBG 65-40-250/255 380V/50Hz 65.62 78.81 22 IE4 65×40
    NBG 65-40-250/260 380V/50Hz 67.59 83.49 30 IE4 65×40
    NBG 65-40-250/260 380V/50Hz 32.41 19.94 3 IE4 65×40
    NBG 65-40-250/260 380V/50Hz 32.08 19.53 3 IE3 65×40
    NBG 65-40-250/260 380V/50Hz 67.37 82.93 30 IE3 65×40
    NBG 65-40-315/273 380V/50Hz 39.77 71.81 22 IE3 65×40
    NBG 65-40-315/273 380V/50Hz 39.77 71.81 22 IE3 65×40
    NBG 65-40-315/273 380V/50Hz 39.84 72.06 22 IE4 65×40
    NBG 65-40-315/283 380V/50Hz 19.76 19.13 3 IE3 65×40
    NBG 65-40-315/283 380V/50Hz 19.97 19.53 3 IE4 65×40
    NBG 65-40-315/298 380V/50Hz 45.32 85.74 30 IE3 65×40
    NBG 65-40-315/298 380V/50Hz 45.47 86.32 30 IE4 65×40
    NBG 65-40-315/305 380V/50Hz 22.2 22.4 4 IE3 65×40
    NBG 65-40-315/305 380V/50Hz 22.12 22.25 4 IE4 65×40
    NBG 65-40-315/318 380V/50Hz 48.89 102.3 37 IE3 65×40
    NBG 65-40-315/318 380V/50Hz 49.22 103.7 37 IE4 65×40
    NBG 65-40-315/334 380V/50Hz 24.97 29.1 5.5 IE3 65×40
    NBG 65-40-315/334 380V/50Hz 25.06 29.3 5.5 IE4 65×40
    NBG 65-40-315/336 380V/50Hz 52.16 120.4 45 IE3 65×40
    NBG 65-40-315/336 380V/50Hz 52.51 122.1 45 IE4 65×40
    NBG 65-40-315/344 380V/50Hz 47.36 138.7 45 IE3 65×40
    NBG 65-40-315/344 380V/50Hz 47.68 140.5 45 IE4 65×40
    NBG 65-40-315/344 380V/50Hz 23.16 34.57 7.5 IE3 65×40
    NBG 65-40-315/344 380V/50Hz 23.24 34.81 7.5 IE4 65×40
    NBG 65-50-125/105 380V/50Hz 37.2 10 1.5 IE3 65×50
    NBG 65-50-125/105 380V/50Hz 36.82 9.794 1.5 IE3 65×50
    NBG 65-50-125/105 380V/50Hz 37.26 10.04 1.5 IE4 65×50
    NBG 65-50-125/116 380V/50Hz 19.91 2.878 0.25 IE3 65×50
    NBG 65-50-125/116 220V/50Hz 20.57 3.069 0.25 IE4 65×50
    NBG 65-50-125/116 380V/50Hz 42.5 12.5 2.2 IE3 65×50
    NBG 65-50-125/116 380V/50Hz 42.06 12.24 2.2 IE3 65×50
    NBG 65-50-125/116 380V/50Hz 42.43 12.46 2.2 IE4 65×50
    NBG 65-50-125/127 380V/50Hz 45.05 16.11 3 IE3 65×50
    NBG 65-50-125/127 380V/50Hz 45.05 16.11 3 IE3 65×50
    NBG 65-50-125/127 380V/50Hz 45.05 16.11 3 IE4 65×50
    NBG 65-50-125/130 380V/50Hz 21.98 3.985 0.37 IE3 65×50
    NBG 65-50-125/130 220V/50Hz 22.62 4.22 0.37 IE4 65×50
    NBG 65-50-125/139 380V/50Hz 44.33 21.62 4 IE4 65×50
    NBG 65-50-125/139 380V/50Hz 43.72 21.03 4 IE3 65×50
    NBG 65-50-125/139 380V/50Hz 44.56 21.84 4 IE3 65×50
    NBG 65-50-125/142 220V/50Hz 24.64 5.387 0.55 IE4 65×50
    NBG 65-50-125/142 380V/50Hz 45.97 22.66 5.5 IE4 65×50
    NBG 65-50-125/142 380V/50Hz 24.38 5.275 0.55 IE3 65×50
    NBG 65-50-125/142 380V/50Hz 45.81 22.51 5.5 IE3 65×50
    NBG 65-50-125/142 380V/50Hz 45.97 22.66 5.5 IE3 65×50
    NBG 65-50-160/134 380V/50Hz 14.85 4.801 0.37 IE3 65×50
    NBG 65-50-160/134 220V/50Hz 15.28 5.083 0.37 IE4 65×50
    NBG 65-50-160/144 380V/50Hz 39.4 23.89 4 IE3 65×50
    NBG 65-50-160/144 380V/50Hz 39.13 23.56 4 IE3 65×50
    NBG 65-50-160/144 380V/50Hz 39.2 23.64 4 IE4 65×50
    NBG 65-50-160/151 380V/50Hz 17.63 6.713 0.55 IE3 65×50
    NBG 65-50-160/151 380V/50Hz 17.81 6.856 0.55 IE4 65×50
    NBG 65-50-160/158 380V/50Hz 44.46 29.7 5.5 IE3 65×50
    NBG 65-50-160/158 380V/50Hz 44.3 29.5 5.5 IE3 65×50
    NBG 65-50-160/158 380V/50Hz 44.46 29.7 5.5 IE4 65×50
    NBG 65-50-160/162 380V/50Hz 21.54 7.672 0.75 IE3 65×50
    NBG 65-50-160/162 380V/50Hz 21.92 7.945 0.75 IE4 65×50
    NBG 65-50-160/172 380V/50Hz 48.4 36.85 7.5 IE4 65×50
    NBG 65-50-160/172 380V/50Hz 48.23 36.6 7.5 IE3 65×50
    NBG 65-50-160/172 380V/50Hz 48.15 36.47 7.5 IE3 65×50
    NBG 65-50-160/177 380V/50Hz 22.15 9.961 1.1 IE3 65×50
    NBG 65-50-160/177 380V/50Hz 50.57 39.29 11 IE3 65×50
    NBG 65-50-160/177 380V/50Hz 50.49 39.16 11 IE3 65×50
    NBG 65-50-160/177 380V/50Hz 50.57 39.29 11 IE4 65×50
    NBG 65-50-160/177 380V/50Hz 22.22 10.03 1.1 IE4 65×50
    NBG 80-50-200/171 380V/50Hz 31.28 8.285 1.1 IE3 80×50
    NBG 80-50-200/171 380V/50Hz 31.39 8.342 1.1 IE4 80×50
    NBG 80-50-200/181 380V/50Hz 70.78 38.67 11 IE4 80×50
    NBG 80-50-200/181 380V/50Hz 70.66 38.54 11 IE3 80×50
    NBG 80-50-200/181 380V/50Hz 70.78 38.67 11 IE3 80×50
    NBG 80-50-200/188 380V/50Hz 35.16 10.26 1.5 IE3 80×50
    NBG 80-50-200/188 380V/50Hz 35.28 10.33 1.5 IE4 80×50
    NBG 80-50-200/198 380V/50Hz 81.31 46.35 15 IE3 80×50
    NBG 80-50-200/198 380V/50Hz 81.31 46.35 15 IE3 80×50
    NBG 80-50-200/198 380V/50Hz 81.44 46.51 15 IE4 80×50
    NBG 80-50-200/210 380V/50Hz 88.76 52.8 18.5 IE3 80×50
    NBG 80-50-200/210 380V/50Hz 88.76 52.8 18.5 IE4 80×50
    NBG 80-50-200/210 380V/50Hz 44.15 12.99 22 IE4 80×50
    NBG 80-50-200/210 380V/50Hz 43.7 12.72 2.2 IE3 80×50
    NBG 80-50-200/210 380V/50Hz 88.61 52.62 18.5 IE3 80×50
    NBG 80-50-200/219 380V/50Hz 45.16 14.2 3 IE4 80×50
    NBG 80-50-200/219 380V/50Hz 93.74 58.46 22 IE4 80×50
    NBG 80-50-200/219 380V/50Hz 93.59 58.26 22 IE3 80×50
    NBG 80-50-200/219 380V/50Hz 44.69 13.91 3 IE3 80×50
    NBG 80-50-200/219 380V/50Hz 93.59 58.26 22 IE3 80×50
    NBG 80-50-250/205 380V/50Hz 70.66 47.28 15 IE3 80×50
    NBG 80-50-250/205 380V/50Hz 70.78 47.44 15 IE4 80×50
    NBG 80-50-250/205 380V/50Hz 70.66 47.28 15 IE3 80×50
    NBG 80-50-250/221 380V/50Hz 35.16 13.71 2.2 IE3 80×50
    NBG 80-50-250/221 380V/50Hz 35.52 14 2.2 IE4 80×50
    NBG 80-50-250/222 380V/50Hz 73.22 57.75 18.5 IE3 80×50
    NBG 80-50-250/222 380V/50Hz 73.09 57.56 18.5 IE3 80×50
    NBG 80-50-250/222 380V/50Hz 73.22 57.75 18.5 IE4 80×50
    NBG 80-50-250/233 380V/50Hz 79.17 63.65 22 IE4 80×50
    NBG 80-50-250/233 380V/50Hz 79.04 63.43 22 IE3 80×50
    NBG 80-50-250/233 380V/50Hz 79.04 63.43 22 IE3 80×50
    NBG 80-50-250/241 380V/50Hz 39.92 16.37 3 IE3 80×50
    NBG 80-50-250/241 380V/50Hz 40.34 16.72 3 IE4 80×50
    NBG 80-50-250/254 380V/50Hz 91.35 75.11 30 IE3 80×50
    NBG 80-50-250/254 380V/50Hz 91.66 75.62 30 IE4 80×50
    NBG 80-50-250/263 380V/50Hz 97.72 81.1 37 IE4 80×50
    NBG 80-50-250/263 380V/50Hz 97.07 80.01 37 IE3 80×50
    NBG 80-50-250/263 380V/50Hz 46.64 19.27 4 IE4 80×50
    NBG 80-50-250/263 380V/50Hz 46.8 19.4 4 IE3 80×50
    NBG 80-50-315/267 380V/50Hz 70.22 87.62 30 IE3 80×50
    NBG 80-50-315/267 380V/50Hz 70.46 88.21 30 IE4 80×50
    NBG 80-50-315/277 380V/50Hz 36 22.7 4 IE3 80×50
    NBG 80-50-315/277 380V/50Hz 35.88 22.54 4 IE4 80×50
    NBG 80-50-315/285 380V/50Hz 76.86 100.3 37 IE3 80×50
    NBG 80-50-315/285 380V/50Hz 77.38 101.7 37 IE4 80×50
    NBG 80-50-315/300 380V/50Hz 82.78 111.6 45 IE3 80×50
    NBG 80-50-315/300 380V/50Hz 83.34 113.1 45 IE4 80×50
    NBG 80-50-315/303 380V/50Hz 42.49 27.48 5.5 IE3 80×50
    NBG 80-50-315/303 380V/50Hz 42.64 27.66 5.5 IE4 80×50
    NBG 80-50-315/321 380V/50Hz 90.12 131.5 55 IE3 80×50
    NBG 80-50-315/321 380V/50Hz 90.43 132.4 55 IE4 80×50
    NBG 80-50-315/331 380V/50Hz 47.32 32.75 7.5 IE3 80×50
    NBG 80-50-315/331 380V/50Hz 47.49 32.97 7.5 IE4 80×50
    NBG 80-50-315/344 380V/50Hz 50.86 37.25 11 IE4 80×50
    NBG 80-50-315/344 380V/50Hz 50.69 37 11 IE3 80×50
    NBG 80-65-125/111 380V/50Hz 61.61 11.88 3 IE3 80×65
    NBG 80-65-125/111 380V/50Hz 61.61 11.88 3 IE3 80×65
    NBG 80-65-125/111 380V/50Hz 61.61 11.88 3 IE4 80×65
    NBG 80-65-125/112 380V/50Hz 27.89 2.898 0.37 IE3 80×65
    NBG 80-65-125/112 220V/50Hz 28.69 3.069 0.37 IE4 80×65
    NBG 80-65-125/121 380V/50Hz 69.71 14.8 4 IE3 80×65
    NBG 80-65-125/121 380V/50Hz 69.24 14.6 4 IE3 80×65
    NBG 80-65-125/121 380V/50Hz 69.36 14.65 4 IE4 80×65
    NBG 80-65-125/125 380V/50Hz 32.42 4.124 0.55 IE3 80×65
    NBG 80-65-125/125 220V/50Hz 32.76 4.211 0.55 IE4 80×65
    NBG 80-65-125/135 380V/50Hz 75.98 19.8 5.5 IE3 80×65
    NBG 80-65-125/135 380V/50Hz 75.72 19.67 5.5 IE3 80×65
    NBG 80-65-125/135 380V/50Hz 75.98 19.8 5.5 IE4 80×65
    NBG 80-65-125/138 380V/50Hz 42.11 4.699 0.75 IE3 80×65
    NBG 80-65-125/138 380V/50Hz 37.97 5.164 0.75 IE4 80×65
    NBG 80-65-125/144 380V/50Hz 80.75 23.12 7.5 IE3 80×65
    NBG 80-65-125/144 380V/50Hz 81.03 23.27 7.5 IE4 80×65
    NBG 80-65-125/144 380V/50Hz 80.61 23.04 7.5 IE3 80×65
    NBG 80-65-125/144 380V/50Hz 46.84 5.363 1.1 IE4 80×65
    NBG 80-65-125/144 380V/50Hz 46.68 5.326 1.1 IE3 80×65
    NBG 80-65-160/131 380V/50Hz 31.14 4.603 0.55 IE3 80×65
    NBG 80-65-160/131 220V/50Hz 31.47 4.701 0.55 IE4 80×65
    NBG 80-65-160/136 380V/50Hz 69.81 20.82 5.5 IE3 80×65
    NBG 80-65-160/136 380V/50Hz 69.58 20.68 5.5 IE3 80×65
    NBG 80-65-160/136 380V/50Hz 69.81 20.82 5.5 IE4 80×65
    NBG 80-65-160/139 380V/50Hz 34.47 5.179 0.75 IE3 80×65
    NBG 80-65-160/139 380V/50Hz 35.08 5.363 0.75 IE4 80×65
    NBG 80-65-160/150 380V/50Hz 77.2 25.56 7.5 IE3 80×65
    NBG 80-65-160/150 380V/50Hz 77.59 25.83 7.5 IE4 80×65
    NBG 80-65-160/150 380V/50Hz 77.33 25.65 7.5 IE3 80×65
    NBG 80-65-160/158 380V/50Hz 40.02 7.5 1.1 IE3 80×65
    NBG 80-65-160/158 380V/50Hz 40.16 7.25 1.1 IE4 80×65
    NBG 80-65-160/167 380V/50Hz 88.76 33.62 11 IE3 80×65
    NBG 80-65-160/167 380V/50Hz 88.61 33.51 11 IE3 80×65
    NBG 80-65-160/167 380V/50Hz 88.76 33.62 11 IE4 80×65
    NBG 80-65-160/175 380V/50Hz 44.89 9.074 1.5 IE3 80×65
    NBG 80-65-160/175 380V/50Hz 45.04 9.137 1.5 IE4 80×65
    NBG 80-65-160/177 380V/50Hz 94.85 38.78 15 IE4 80×65
    NBG 80-65-160/177 380V/50Hz 94.69 38.64 15 IE3 80×65
    NBG 80-65-160/177 380V/50Hz 45.88 9.369 2.2 IE3 80×65
    NBG 80-65-160/177 380V/50Hz 46.36 9.566 2.2 IE4 80×65
    NBG 80-65-160/177 380V/50Hz 94.69 38.64 15 IE3 80×65
    NBG 100-65-200/162 380V/50Hz 89.52 30.52 11 IE3 100×65
    NBG 100-65-200/162 380V/50Hz 89.67 30.63 11 IE4 100×65
    NBG 100-65-200/162 380V/50Hz 89.67 30.63 11 IE3 100×65
    NBG 100-65-200/170 380V/50Hz 45.68 8.087 1.5 IE3 100×65
    NBG 100-65-200/170 380V/50Hz 45.84 8.144 1.5 IE4 100×65
    NBG 100-65-200/177 380V/50Hz 94.79 37.62 15 IE3 100×65
    NBG 100-65-200/177 380V/50Hz 94.79 37.62 15 IE3 100×65
    NBG 100-65-200/177 380V/50Hz 94.95 37.74 15 IE4 100×65
    NBG 100-65-200/189 380V/50Hz 52.93 10.06 2.2 IE3 100×65
    NBG 100-65-200/189 380V/50Hz 53.48 10.27 2.2 IE4 100×65
    NBG 100-65-200/190 380V/50Hz 110.7 43.31 18.5 IE3 100×65
    NBG 100-65-200/190 380V/50Hz 110.5 43.17 18.5 IE3 100×65
    NBG 100-65-200/190 380V/50Hz 100.3 45.07 18.5 IE4 100×65
    NBG 100-65-200/198 380V/50Hz 118 47.81 22 IE3 100×65
    NBG 100-65-200/198 380V/50Hz 118 47.81 22 IE3 100×65
    NBG 100-65-200/198 380V/50Hz 118.2 47.97 22 IE4 100×65
    NBG 100-65-200/205 380V/50Hz 60.21 12.69 3 IE4 100×65
    NBG 100-65-200/205 380V/50Hz 59.59 12.43 3 IE3 100×65
    NBG 100-65-200/217 380V/50Hz 118.1 60.84 30 IE3 100×65
    NBG 100-65-200/217 380V/50Hz 118.5 61.25 30 IE4 100×65
    NBG 100-65-200/219 380V/50Hz 65.1 14.5 4 IE3 100×65
    NBG 100-65-200/219 380V/50Hz 64.88 14.4 4 IE4 100×65
    NBG 100-65-200/219 380V/50Hz 120 61.78 37 IE3 100×65
    NBG 100-65-200/219 380V/50Hz 120.8 62.62 37 IE4 100×65
    NBG 100-65-250/215 380V/50Hz 52.08 13.19 3 IE4 100×65
    NBG 100-65-250/215 380V/50Hz 51.54 12.92 3 IE3 100×65
    NBG 100-65-250/223 380V/50Hz 124 60.1 30 IE4 100×65
    NBG 100-65-250/223 380V/50Hz 123.6 59.7 30 IE3 100×65
    NBG 100-65-250/232 380V/50Hz 62.1 15.8 4 IE3 100×65
    NBG 100-65-250/232 380V/50Hz 61.89 15.69 4 IE4 100×65
    NBG 100-65-250/238 380V/50Hz 134.4 68.55 37 IE3 100×65
    NBG 100-65-250/238 380V/50Hz 135.3 69.48 37 IE4 100×65
    NBG 100-65-250/251 380V/50Hz 144.5 76.47 45 IE3 100×65
    NBG 100-65-250/251 380V/50Hz 145.5 77.51 45 IE4 100×65
    NBG 100-65-250/254 380V/50Hz 70.48 19.36 5.5 IE3 100×65
    NBG 100-65-250/254 380V/50Hz 70.72 19.5 5.5 IE4 100×65
    NBG 100-65-250/269 380V/50Hz 156.9 89.26 55 IE3 100×65
    NBG 100-65-250/269 380V/50Hz 157.4 89.86 55 IE4 100×65
    NBG 100-65-250/270 380V/50Hz 161 89.75 75 IE4 100×65
    NBG 100-65-250/270 380V/50Hz 75.78 22.87 7.5 IE4 100×65
    NBG 100-65-250/270 380V/50Hz 160.5 89.15 75 IE3 100×65
    NBG 100-65-250/270 380V/50Hz 75.52 22.71 7.5 IE3 100×65
    NBG 100-65-315/261 380V/50Hz 62.63 20.28 5.5 IE3 100×65
    NBG 100-65-315/261 380V/50Hz 62.84 20.42 5.5 IE4 100×65
    NBG 100-65-315/272 380V/50Hz 143.9 91.78 55 IE3 100×65
    NBG 100-65-315/272 380V/50Hz 144.4 92.39 55 IE4 100×65
    NBG 100-65-315/282 380V/50Hz 70.38 24.94 7.5 IE3 100×65
    NBG 100-65-315/282 380V/50Hz 70.62 25.11 7.5 IE4 100×65
    NBG 100-65-315/295 380V/50Hz 166.6 109.2 75 IE3 100×65
    NBG 100-65-315/295 380V/50Hz 167.2 109.9 75 IE4 100×65
    NBG 100-65-315/308 380V/50Hz 181.9 120.4 90 IE4 100×65
    NBG 100-65-315/308 380V/50Hz 181.3 119.6 90 IE3 100×65
    NBG 100-65-315/314 380V/50Hz 87.29 31.04 11 IE3 100×65
    NBG 100-65-315/314 380V/50Hz 87.58 31.25 11 IE4 100×65
    NBG 100-65-315/320 380V/50Hz 91.65 32.07 15 IE3 100×65
    NBG 100-65-315/320 380V/50Hz 91.96 32.28 15 IE4 100×65
    NBG 100-65-315/320 380V/50Hz 197.7 130.2 110 IE3 100×65
    NBG 100-65-315/320 380V/50Hz 197.7 130.2 110 IE4 100×65
    NBG 100-80-125/120 380V/50Hz 51.32 2.973 0.55 IE3 100×80
    NBG 100-80-125/120 220V/50Hz 51.86 3.036 0.55 IE4 100×80
    NBG 100-80-125/120-110 380V/50Hz 74.77 12.86 4 IE3 100×80
    NBG 100-80-125/120-110 380V/50Hz 74.26 12.69 4 IE3 100×80
    NBG 100-80-125/120-110 380V/50Hz 74.38 12.73 4 IE4 100×80
    NBG 100-80-125/125 380V/50Hz 99.58 14.8 5.5 IE3 100×80
    NBG 100-80-125/125 380V/50Hz 99.92 14.9 5.5 IE4 100×80
    NBG 100-80-125/125 380V/50Hz 99.92 14.9 5.5 IE3 100×80
    NBG 100-80-125/130 380V/50Hz 52.82 3.972 0.75 IE4 100×80
    NBG 100-80-125/130 380V/50Hz 51.9 3.836 0.75 IE3 100×80
    NBG 100-80-125/136 380V/50Hz 108.7 18.59 7.5 IE3 100×80
    NBG 100-80-125/136 380V/50Hz 108.8 18.66 7.5 IE3 100×80
    NBG 100-80-125/136 380V/50Hz 109.2 18.78 7.5 IE4 100×80
    NBG 100-80-125/142 380V/50Hz 61.57 5.03 1.1 IE3 100×80
    NBG 100-80-125/142 380V/50Hz 61.79 5.065 1.1 IE4 100×80
    NBG 100-80-125/144 380V/50Hz 126.7 20.83 11 IE3 100×80
    NBG 100-80-125/144 380V/50Hz 126.5 20.76 11 IE3 100×80
    NBG 100-80-125/144 380V/50Hz 126.7 20.83 11 IE4 100×80
    NBG 100-80-160/135 380V/50Hz 45.54 4.469 0.75 IE4 100×80
    NBG 100-80-160/135 380V/50Hz 44.75 4.316 0.75 IE3 100×80
    NBG 100-80-160/143 380V/50Hz 101.8 20.51 7.5 IE3 100×80
    NBG 100-80-160/143 380V/50Hz 102.4 20.72 7.5 IE4 100×80
    NBG 100-80-160/143 380V/50Hz 102 20.58 7.5 IE3 100×80
    NBG 100-80-160/149 380V/50Hz 51.82 5.661 1.1 IE4 100×80
    NBG 100-80-160/149 380V/50Hz 51.64 5.622 1.1 IE3 100×80
    NBG 100-80-160/157 380V/50Hz 103.6 27.23 11 IE3 100×80
    NBG 100-80-160/157 380V/50Hz 103.4 27.13 11 IE3 100×80
    NBG 100-80-160/157 380V/50Hz 103.6 27.23 11 IE4 100×80
    NBG 100-80-160/165 380V/50Hz 57.6 7.397 1.5 IE3 100×80
    NBG 100-80-160/165 380V/50Hz 57.8 7.448 1.5 IE4 100×80
    NBG 100-80-160/173 380V/50Hz 115.4 34.74 15 IE3 100×80
    NBG 100-80-160/173 380V/50Hz 115.4 34.74 15 IE3 100×80
    NBG 100-80-160/173 380V/50Hz 115.6 34.86 15 IE4 100×80
    NBG 100-80-160/177 380V/50Hz 118.8 36.61 18.5 IE3 100×80
    NBG 100-80-160/177 380V/50Hz 118.8 36.61 18.5 IE4 100×80
    NBG 100-80-160/177 380V/50Hz 63.56 8.778 2.2 IE3 100×80
    NBG 100-80-160/177 380V/50Hz 64.22 8.961 2.2 IE4 100×80
    NBG 100-80-160/177 380V/50Hz 118.6 36.49 18.5 IE3 100×80
    NBG 125-80-160/146 380V/50Hz 85.01 4.668 1.5 IE4 125×80
    NBG 125-80-160/146 380V/50Hz 84.71 4.635 1.5 IE3 125×80
    NBG 125-80-160/147-127 380V/50Hz 163.5 16.71 11 IE4 125×80
    NBG 125-80-160/147-127 380V/50Hz 163.2 16.65 11 IE3 125×80
    NBG 125-80-160/147-127 380V/50Hz 163.5 16.71 11 IE3 125×80
    NBG 125-80-160/151 380V/50Hz 181.8 20.52 15 IE4 125×80
    NBG 125-80-160/151 380V/50Hz 181.5 20.45 15 IE3 125×80
    NBG 125-80-160/151 380V/50Hz 181.5 20.45 15 IE3 125×80
    NBG 125-80-160/161 380V/50Hz 191.9 25.06 18.5 IE4 125×80
    NBG 125-80-160/161 380V/50Hz 191.6 24.98 18.5 IE3 125×80
    NBG 125-80-160/161 380V/50Hz 191.9 25.06 18.5 IE3 125×80
    NBG 125-80-160/161 380V/50Hz 93.32 6.243 2.2 IE4 125×80
    NBG 125-80-160/161 380V/50Hz 92.36 6.115 2.2 IE3 125×80
    NBG 125-80-160/167 380V/50Hz 200.4 27.73 22 IE3 125×80
    NBG 125-80-160/167 380V/50Hz 200.4 27.73 22 IE3 125×80
    NBG 125-80-160/167 380V/50Hz 200.7 27.83 22 IE4 125×80
    NBG 125-80-160/175 380V/50Hz 100.3 7.693 3 IE3 125×80
    NBG 125-80-160/175 380V/50Hz 101.4 7.854 3 IE4 125×80
    NBG 125-80-160/177 380V/50Hz 103 8 4 IE3 125×80
    NBG 125-80-160/177 380V/50Hz 102.6 7.945 4 IE4 125×80
    NBG 125-80-160/177 380V/50Hz 213.3 32.82 30 IE3 125×80
    NBG 125-80-160/177 380V/50Hz 214 33.04 30 IE4 125×80
    NBG 125-80-200/164 380V/50Hz 72.89 7.002 2.2 IE3 125×80
    NBG 125-80-200/164 380V/50Hz 73.65 7.149 2.2 IE4 125×80
    NBG 125-80-200/171 380V/50Hz 160.5 31.98 22 IE3 125×80
    NBG 125-80-200/171 380V/50Hz 160.8 32.08 22 IE4 125×80
    NBG 125-80-200/171 380V/50Hz 160.5 31.98 22 IE3 125×80
    NBG 125-80-200/179 380V/50Hz 82.23 8.58 3 IE3 125×80
    NBG 125-80-200/179 380V/50Hz 83.09 8.76 3 IE4 125×80
    NBG 125-80-200/188 380V/50Hz 182 40.53 30 IE3 125×80
    NBG 125-80-200/188 380V/50Hz 182.6 40.8 30 IE4 125×80
    NBG 125-80-200/196 380V/50Hz 91.5 10.9 4 IE3 125×80
    NBG 125-80-200/196 380V/50Hz 91.18 10.82 4 IE4 125×80
    NBG 125-80-200/200 380V/50Hz 199.8 46.57 37 IE3 125×80
    NBG 125-80-200/200 380V/50Hz 186.8 48.15 37 IE4 125×80
    NBG 125-80-200/211 380V/50Hz 212.3 53.24 45 IE3 125×80
    NBG 125-80-200/211 380V/50Hz 213.7 53.96 45 IE4 125×80
    NBG 125-80-200/214 380V/50Hz 104 13.58 5.5 IE3 125×80
    NBG 125-80-200/214 380V/50Hz 104.4 13.68 5.5 IE4 125×80
    NBG 125-80-200/222 380V/50Hz 229.2 60.72 55 IE4 125×80
    NBG 125-80-200/222 380V/50Hz 105 14.9 7.5 IE4 125×80
    NBG 125-80-200/222 380V/50Hz 228.4 60.31 55 IE3 125×80
    NBG 125-80-200/222 380V/50Hz 105.7 14.9 7.5 IE3 125×80
    NBG 125-80-250/220 380V/50Hz 187.5 60.61 45 IE4 125×80
    NBG 125-80-250/220 380V/50Hz 186.3 59.8 45 IE3 125×80
    NBG 125-80-250/225 380V/50Hz 91.93 15.51 5.5 IE3 125×80
    NBG 125-80-250/225 380V/50Hz 92.24 15.62 5.5 IE4 125×80
    NBG 125-80-250/234 380V/50Hz 203.1 68.7 55 IE3 125×80
    NBG 125-80-250/234 380V/50Hz 203.8 69.16 55 IE4 125×80
    NBG 125-80-250/244 380V/50Hz 99.58 19.16 7.5 IE3 125×80
    NBG 125-80-250/244 380V/50Hz 99.92 19.29 7.5 IE4 125×80
    NBG 125-80-250/257 380V/50Hz 233 84.37 75 IE4 125×80
    NBG 125-80-250/257 380V/50Hz 232.2 83.8 75 IE3 125×80
    NBG 125-80-250/270 380V/50Hz 119.9 23.12 11 IE3 125×80
    NBG 125-80-250/270 380V/50Hz 249.6 92.93 90 IE3 125×80
    NBG 125-80-250/270 380V/50Hz 120.3 23.28 11 IE4 125×80
    NBG 125-80-250/270 380V/50Hz 250.4 93.56 90 IE4 125×80
    NBG 125-80-315/278 380V/50Hz 221.5 103.2 90 IE3 125×80
    NBG 125-80-315/278 380V/50Hz 222.3 103.9 90 IE4 125×80
    NBG 125-80-315/280 380V/50Hz 107.7 24.46 11 IE3 125×80
    NBG 125-80-315/280 380V/50Hz 108 24.63 11 IE4 125×80
    NBG 125-80-315/295 380V/50Hz 243.5 113.8 110 IE4 125×80
    NBG 125-80-315/295 380V/50Hz 243.5 113.8 110 IE3 125×80
    NBG 125-80-315/305 380V/50Hz 126.2 29.6 15 IE4 125×80
    NBG 125-80-315/305 380V/50Hz 125.8 29.39 15 IE3 125×80
    NBG 125-80-315/310 380V/50Hz 263.4 126.8 132 IE3 125×80
    NBG 125-80-315/310 380V/50Hz 263.4 126.8 132 IE4 125×80
    NBG 125-80-315/320 380V/50Hz 138.2 32.38 18.5 IE3 125×80
    NBG 125-80-315/320 380V/50Hz 138.6 32.6 18.5 IE4 125×80
    NBG 125-80-315/328 380V/50Hz 288.6 143.7 160 IE4 125×80
    NBG 125-80-315/328 380V/50Hz 288.6 143.7 160 IE3 125×80
    NBG 125-80-315/334 380V/50Hz 147.5 35.8 22 IE4 125×80
    NBG 125-80-315/334 380V/50Hz 147 35.56 22 IE3 125×80
    NBG 125-80-400/347 380V/50Hz 114 35.97 18.5 IE3 125×80
    NBG 125-80-400/347 380V/50Hz 114.4 36.22 18.5 IE4 125×80
    NBG 125-80-400/365 380V/50Hz 124.5 39.67 22 IE3 125×80
    NBG 125-80-400/365 380V/50Hz 124.9 39.94 22 IE4 125×80
    NBG 125-80-400/365 380V/50Hz 124.5 39.67 22 IE3 125×80
    NBG 125-80-400/397 380V/50Hz 149.1 46.99 30 IE4 125×80
    NBG 125-80-400/397 380V/50Hz 148.1 46.35 30 IE3 125×80
    NBG 125-80-400/419 380V/50Hz 162.6 53.24 37 IE4 125×80
    NBG 125-80-400/419 380V/50Hz 162.6 53.24 37 IE3 125×80
    NBG 125-80-400/438 380V/50Hz 175.9 59.18 45 IE4 125×80
    NBG 125-80-400/438 380V/50Hz 175.9 59.18 45 IE3 125×80
    NBG 125-100-160/160-140 380V/50Hz 113.2 4.833 2.2 IE3 125×100
    NBG 125-100-160/160-140 380V/50Hz 114.4 4.934 2.2 IE4 125×100
    NBG 125-100-160/160-140 220V/50Hz 65.8 2.16 0.55 IE4 125×100
    NBG 125-100-160/160-154 380V/50Hz 243.2 20.97 18.5 IE3 125×100
    NBG 125-100-160/160-154 380V/50Hz 243.6 21.04 18.5 IE4 125×100
    NBG 125-100-160/167 380V/50Hz 228.2 26.27 22 IE4 125×100
    NBG 125-100-160/167 380V/50Hz 227.9 26.18 22 IE3 125×100
    NBG 125-100-160/169 380V/50Hz 72.66 2.617 0.75 IE4 125×100
    NBG 125-100-160/169 380V/50Hz 73.8 2.7 0.75 IE3 125×100
    NBG 125-100-160/169 380V/50Hz 116.2 6.411 3 IE3 125×100
    NBG 125-100-160/169 380V/50Hz 117.4 6.545 3 IE4 125×100
    NBG 125-100-160/176 380V/50Hz 84.6 3.1 1.1 IE3 125×100
    NBG 125-100-160/176 380V/50Hz 120.2 7.051 4 IE4 125×100
    NBG 125-100-160/176 380V/50Hz 83.29 3.005 1.1 IE4 125×100
    NBG 125-100-160/176 380V/50Hz 244.7 29.69 30 IE3 125×100
    NBG 125-100-160/176 380V/50Hz 120.6 7.1 4 IE3 125×100
    NBG 125-100-160/176 380V/50Hz 245.5 29.89 30 IE4 125×100
    NBG 125-100-200/170 380V/50Hz 268.8 28.13 30 IE3 125×100
    NBG 125-100-200/170 380V/50Hz 269.8 28.32 30 IE4 125×100
    NBG 125-100-200/177 380V/50Hz 128.7 8 4 IE3 125×100
    NBG 125-100-200/177 380V/50Hz 128.3 7.945 4 IE4 125×100
    NBG 125-100-200/181 380V/50Hz 285.3 33.65 37 IE3 125×100
    NBG 125-100-200/181 380V/50Hz 287.2 34.11 37 IE4 125×100
    NBG 125-100-200/182 380V/50Hz 89 3.8 1.1 IE3 125×100
    NBG 125-100-200/182 380V/50Hz 87.62 3.683 1.1 IE4 125×100
    NBG 125-100-200/192 380V/50Hz 300.7 39.9 45 IE3 125×100
    NBG 125-100-200/192 380V/50Hz 302.7 40.44 45 IE4 125×100
    NBG 125-100-200/193 380V/50Hz 93.53 4.408 1.5 IE4 125×100
    NBG 125-100-200/193 380V/50Hz 94.5 4.5 1.5 IE3 125×100
    NBG 125-100-200/193 380V/50Hz 94.5 4.5 1.5 IE3 125×100
    NBG 125-100-200/195 380V/50Hz 146.7 10.34 5.5 IE3 125×100
    NBG 125-100-200/195 380V/50Hz 147.2 10.41 5.5 IE4 125×100
    NBG 125-100-200/203 380V/50Hz 323.2 46.26 55 IE3 125×100
    NBG 125-100-200/203 380V/50Hz 324.3 46.57 55 IE4 125×100
    NBG 125-100-200/210 380V/50Hz 160.8 12.67 7.5 IE3 125×100
    NBG 125-100-200/210 380V/50Hz 161.4 12.76 7.5 IE4 125×100
    NBG 125-100-200/214 380V/50Hz 110 5.3 2.2 IE3 125×100
    NBG 125-100-200/214 380V/50Hz 110 5.3 2.2 IE3 125×100
    NBG 125-100-200/214 380V/50Hz 108.9 5.191 2.2 IE4 125×100
    NBG 125-100-200/219 380V/50Hz 173.4 13.88 11 IE3 125×100
    NBG 125-100-200/219 380V/50Hz 122.1 5.86 3 IE3 125×100
    NBG 125-100-200/219 380V/50Hz 122.8 5.92 3 IE3 125×100
    NBG 125-100-200/219 220V/50Hz 122.1 5.86 3 IE4 125×100
    NBG 125-100-200/219 380V/50Hz 174 13.97 11 IE4 125×100
    NBG 125-100-200/219 380V/50Hz 357.8 55.69 75 IE3 125×100
    NBG 125-100-200/219 380V/50Hz 359 56.07 75 IE4 125×100
    NBG 125-100-250/205 380V/50Hz 246.2 47.51 55 IE3 125×100
    NBG 125-100-250/205 380V/50Hz 247 47.83 55 IE4 125×100
    NBG 125-100-250/215 380V/50Hz 137.5 12.98 7.5 IE3 125×100
    NBG 125-100-250/215 380V/50Hz 138 13.07 7.5 IE4 125×100
    NBG 125-100-250/216 380V/50Hz 97.7 5.6 2.2 IE3 125×100
    NBG 125-100-250/216 380V/50Hz 96.69 5.485 2.2 IE4 125×100
    NBG 125-100-250/229 380V/50Hz 302 61.78 75 IE3 125×100
    NBG 125-100-250/229 380V/50Hz 303 62.19 75 IE4 125×100
    NBG 125-100-250/236 380V/50Hz 107 7.349 3 IE3 125×100
    NBG 125-100-250/236 220V/50Hz 106.4 7.274 3 IE4 125×100
    NBG 125-100-250/242 380V/50Hz 311.8 71.11 90 IE3 125×100
    NBG 125-100-250/242 380V/50Hz 312.8 71.59 90 IE4 125×100
    NBG 125-100-250/245 380V/50Hz 161.7 17.78 11 IE3 125×100
    NBG 125-100-250/245 380V/50Hz 162.2 17.9 11 IE4 125×100
    NBG 125-100-250/258 380V/50Hz 324.4 81.83 110 IE3 125×100
    NBG 125-100-250/258 380V/50Hz 324.4 81.83 110 IE4 125×100
    NBG 125-100-250/260 380V/50Hz 111.7 8.778 4 IE3 125×100
    NBG 125-100-250/260 380V/50Hz 111.2 8.689 4 IE4 125×100
    NBG 125-100-250/274 380V/50Hz 345.4 91.87 132 IE3 125×100
    NBG 125-100-250/274 380V/50Hz 119.5 9.799 5.5 IE3 125×100
    NBG 125-100-250/274 380V/50Hz 118.9 9.699 5.5 IE4 125×100
    NBG 125-100-250/274 380V/50Hz 174.3 22.3 15 IE3 125×100
    NBG 125-100-250/274 380V/50Hz 174.9 22.46 15 IE4 125×100
    NBG 125-100-250/274 380V/50Hz 345.4 91.87 132 IE4 125×100
    NBG 125-100-315/269 380V/50Hz 297.8 90.18 110 IE3 125×100
    NBG 125-100-315/269 380V/50Hz 297.8 90.18 110 IE4 125×100
    NBG 125-100-315/272 380V/50Hz 99.11 10.1 4 IE3 125×100
    NBG 125-100-315/272 380V/50Hz 98.61 10 4 IE4 125×100
    NBG 125-100-315/279 380V/50Hz 155.1 23.95 15 IE3 125×100
    NBG 125-100-315/279 380V/50Hz 155.6 24.11 15 IE4 125×100
    NBG 125-100-315/284 380V/50Hz 319.8 101.4 132 IE4 125×100
    NBG 125-100-315/284 380V/50Hz 319.8 101.4 132 IE3 125×100
    NBG 125-100-315/295 380V/50Hz 167.6 27.03 18.5 IE3 125×100
    NBG 125-100-315/295 380V/50Hz 168.2 27.22 18.5 IE4 125×100
    NBG 125-100-315/301 380V/50Hz 111.8 12.53 5.5 IE4 125×100
    NBG 125-100-315/301 380V/50Hz 112.4 12.66 5.5 IE3 125×100
    NBG 125-100-315/301 380V/50Hz 345.7 115 160 IE3 125×100
    NBG 125-100-315/301 380V/50Hz 345.7 115 160 IE4 125×100
    NBG 125-100-315/301 380V/50Hz 111.8 12.53 5.5 IE3 125×100
    NBG 125-100-315/312 380V/50Hz 178.9 30.73 22 IE3 125×100
    NBG 125-100-315/312 380V/50Hz 178.9 30.73 22 IE3 125×100
    NBG 125-100-315/312 380V/50Hz 179.5 30.94 22 IE4 125×100
    NBG 125-100-315/322 380V/50Hz 380.7 133.2 200 IE3 125×100
    NBG 125-100-315/322 380V/50Hz 380.7 133.2 200 IE4 125×100
    NBG 125-100-315/326 380V/50Hz 125.9 15.16 7.5 IE3 125×100
    NBG 125-100-315/326 380V/50Hz 125.3 15 7.5 IE3 125×100
    NBG 125-100-315/326 380V/50Hz 124 14.7 7.5 IE4 125×100
    NBG 125-100-315/334 380V/50Hz 130.3 15.72 11 IE3 125×100
    NBG 125-100-315/334 380V/50Hz 129.7 15.56 11 IE4 125×100
    NBG 125-100-315/334 380V/50Hz 196.7 35.36 30 IE3 125×100
    NBG 125-100-315/334 380V/50Hz 130.3 15.72 11 IE3 125×100
    NBG 125-100-315/334 380V/50Hz 198 35.84 30 IE4 125×100
    NBG 125-100-400/334 380V/50Hz 176.9 33.42 22 IE4 125×100
    NBG 125-100-400/334 380V/50Hz 176.3 33.2 22 IE3 125×100
    NBG 125-100-400/340 380V/50Hz 116.5 15.41 7.5 IE3 125×100
    NBG 125-100-400/340 380V/50Hz 115.3 15.1 7.5 IE4 125×100
    NBG 125-100-400/360 380V/50Hz 189 40.21 30 IE4 125×100
    NBG 125-100-400/360 380V/50Hz 187.8 39.67 30 IE3 125×100
    NBG 125-100-400/375 380V/50Hz 209.2 43.86 37 IE4 125×100
    NBG 125-100-400/375 380V/50Hz 209.2 43.86 37 IE3 125×100
    NBG 125-100-400/380 380V/50Hz 131.4 20 11 IE4 125×100
    NBG 125-100-400/380 380V/50Hz 132 20.21 11 IE3 125×100
    NBG 125-100-400/395 380V/50Hz 211.3 49.9 45 IE4 125×100
    NBG 125-100-400/395 380V/50Hz 211.3 49.9 45 IE3 125×100
    NBG 125-100-400/415 380V/50Hz 147.6 24.5 15 IE4 125×100
    NBG 125-100-400/415 380V/50Hz 147.6 24.5 15 IE3 125×100
    NBG 125-100-400/415 380V/50Hz 215.1 56.85 55 IE4 125×100
    NBG 125-100-400/415 380V/50Hz 214.3 56.47 55 IE3 125×100
    NBG 150-125-200/176-150 380V/50Hz 135.7 2.841 1.5 IE4 150×125
    NBG 150-125-200/176-150 380V/50Hz 137.1 2.9 1.5 IE3 150×125
    NBG 150-125-200/176-154 380V/50Hz 384.9 28.44 45 IE3 150×125
    NBG 150-125-200/176-154 380V/50Hz 387.5 28.83 45 IE4 150×125
    NBG 150-125-200/176-154 380V/50Hz 208.6 6.941 5.5 IE4 150×125
    NBG 150-125-200/176-154 380V/50Hz 207.9 6.894 5.5 IE3 150×125
    NBG 150-125-200/196-166 380V/50Hz 420 37.86 55 IE3 150×125
    NBG 150-125-200/196-166 380V/50Hz 421.4 38.12 55 IE4 150×125
    NBG 150-125-200/196-174 380V/50Hz 234.8 8.82 7.5 IE3 150×125
    NBG 150-125-200/196-174 380V/50Hz 235.6 8.881 7.5 IE4 150×125
    NBG 150-125-200/196-182 380V/50Hz 150.7 4.114 2.2 IE4 150×125
    NBG 150-125-200/196-182 380V/50Hz 152.3 4.2 2.2 IE3 150×125
    NBG 150-125-200/205 380V/50Hz 492.4 43.32 75 IE3 150×125
    NBG 150-125-200/205 380V/50Hz 494.1 43.61 75 IE4 150×125
    NBG 150-125-200/215 380V/50Hz 168.5 5.206 3 IE3 150×125
    NBG 150-125-200/215 380V/50Hz 167.7 5.153 3 IE4 150×125
    NBG 150-125-200/219 380V/50Hz 259.5 12.23 11 IE3 150×125
    NBG 150-125-200/219 380V/50Hz 260.4 12.31 11 IE4 150×125
    NBG 150-125-200/219 380V/50Hz 535.6 49.3 90 IE3 150×125
    NBG 150-125-200/219 380V/50Hz 537.4 49.63 90 IE4 150×125
    NBG 150-125-200/224 380V/50Hz 553.8 52.37 110 IE3 150×125
    NBG 150-125-200/224 380V/50Hz 553.8 52.37 110 IE4 150×125
    NBG 150-125-200/226 380V/50Hz 181 5.961 4 IE4 150×125
    NBG 150-125-200/226 380V/50Hz 274.4 13.45 15 IE4 150×125
    NBG 150-125-200/226 380V/50Hz 182 6.022 4 IE3 150×125
    NBG 150-125-200/226 380V/50Hz 273.5 13.36 15 IE3 150×125
    NBG 150-125-250/216 380V/50Hz 145.6 5.658 3 IE3 150×125
    NBG 150-125-250/216 220V/50Hz 145.6 5.658 3 IE4 150×125
    NBG 150-125-250/216 380V/50Hz 146.4 5.716 3 IE3 150×125
    NBG 150-125-250/220 380V/50Hz 221 13.16 11 IE3 150×125
    NBG 150-125-250/220 380V/50Hz 221.8 13.24 11 IE4 150×125
    NBG 150-125-250/221 380V/50Hz 475.6 53.39 90 IE3 150×125
    NBG 150-125-250/221 380V/50Hz 477.2 53.75 90 IE4 150×125
    NBG 150-125-250/232 380V/50Hz 163.7 6.635 4 IE3 150×125
    NBG 150-125-250/232 380V/50Hz 162.8 6.567 4 IE4 150×125
    NBG 150-125-250/235 380V/50Hz 513.1 62.3 110 IE4 150×125
    NBG 150-125-250/235 380V/50Hz 513.1 62.3 110 IE3 150×125
    NBG 150-125-250/236 380V/50Hz 239.3 15.62 15 IE3 150×125
    NBG 150-125-250/236 380V/50Hz 240.1 15.73 15 IE4 150×125
    NBG 150-125-250/248 380V/50Hz 553.6 70.85 132 IE3 150×125
    NBG 150-125-250/248 380V/50Hz 553.6 70.85 132 IE4 150×125
    NBG 150-125-250/249 380V/50Hz 255.5 17.68 18.5 IE3 150×125
    NBG 150-125-250/249 380V/50Hz 256.3 17.8 18.5 IE4 150×125
    NBG 150-125-250/253 380V/50Hz 183.9 8.083 5.5 IE4 150×125
    NBG 150-125-250/253 380V/50Hz 184.9 8.166 5.5 IE3 150×125
    NBG 150-125-250/253 380V/50Hz 183.9 8.083 5.5 IE3 150×125
    NBG 150-125-250/261 380V/50Hz 600.3 80.14 160 IE3 150×125
    NBG 150-125-250/261 380V/50Hz 600.3 80.14 160 IE4 150×125
    NBG 150-125-250/262 380V/50Hz 272.7 19.94 22 IE3 150×125
    NBG 150-125-250/262 380V/50Hz 272.7 19.94 22 IE3 150×125
    NBG 150-125-250/262 380V/50Hz 273.6 20.08 22 IE4 150×125
    NBG 150-125-250/269 380V/50Hz 635.6 85.95 200 IE4 150×125
    NBG 150-125-250/269 380V/50Hz 635.6 85.95 200 IE3 150×125
    NBG 150-125-250/269 380V/50Hz 311.3 21.25 30 IE4 150×125
    NBG 150-125-250/269 380V/50Hz 309.2 20.97 30 IE3 150×125
    NBG 150-125-250/269 380V/50Hz 201 9.2 7.5 IE4 150×125
    NBG 150-125-250/269 380V/50Hz 203.1 9.391 7.5 IE3 150×125
    NBG 150-125-250/269 380V/50Hz 204.1 9.487 7.5 IE3 150×125
    NBG 150-125-315/262 380V/50Hz 382.2 82.15 132 IE3 150×125
    NBG 150-125-315/262 380V/50Hz 382.2 82.15 132 IE4 150×125
    NBG 150-125-315/275 380V/50Hz 127.6 10.2 5.5 IE3 150×125
    NBG 150-125-315/275 380V/50Hz 128.3 10.31 5.5 IE3 150×125
    NBG 150-125-315/275 380V/50Hz 197.1 22.82 18.5 IE3 150×125
    NBG 150-125-315/275 380V/50Hz 127.6 10.2 5.5 IE4 150×125
    NBG 150-125-315/275 380V/50Hz 197.8 22.97 18.5 IE4 150×125
    NBG 150-125-315/277 380V/50Hz 408 95.03 160 IE4 150×125
    NBG 150-125-315/277 380V/50Hz 408 95.03 160 IE3 150×125
    NBG 150-125-315/290 380V/50Hz 210.5 26 22 IE3 150×125
    NBG 150-125-315/290 380V/50Hz 211.2 26.18 22 IE4 150×125
    NBG 150-125-315/290 380V/50Hz 210.5 26 22 IE3 150×125
    NBG 150-125-315/297 380V/50Hz 143.3 12.37 7.5 IE3 150×125
    NBG 150-125-315/297 380V/50Hz 142.6 12.25 7.5 IE3 150×125
    NBG 150-125-315/297 380V/50Hz 141.1 12 7.5 IE4 150×125
    NBG 150-125-315/297 380V/50Hz 445.2 112.1 200 IE3 150×125
    NBG 150-125-315/297 380V/50Hz 445.2 112.1 200 IE4 150×125
    NBG 150-125-315/317 380V/50Hz 238.4 32.19 30 IE4 150×125
    NBG 150-125-315/317 380V/50Hz 236.8 31.76 30 IE3 150×125
    NBG 150-125-315/335 380V/50Hz 169.4 15.82 11 IE3 150×125
    NBG 150-125-315/335 380V/50Hz 169.4 15.82 11 IE3 150×125
    NBG 150-125-315/335 380V/50Hz 168.6 15.66 11 IE4 150×125
    NBG 150-125-315/336 380V/50Hz 262.2 35.94 37 IE3 150×125
    NBG 150-125-315/336 380V/50Hz 262.2 35.94 37 IE4 150×125
    NBG 150-125-315/338 380V/50Hz 174.9 16.02 15 IE4 150×125
    NBG 150-125-315/338 380V/50Hz 265.8 36.26 45 IE4 150×125
    NBG 150-125-315/338 380V/50Hz 265.8 36.26 45 IE3 150×125
    NBG 150-125-315/338 380V/50Hz 174.9 16.02 15 IE3 150×125
    NBG 150-125-315/338 380V/50Hz 174 15.86 15 IE3 150×125
    NBG 150-125-400/345 380V/50Hz 220.5 38.03 37 IE3 150×125
    NBG 150-125-400/345 380V/50Hz 220.5 38.03 37 IE4 150×125
    NBG 150-125-400/351 380V/50Hz 145.3 17.66 11 IE3 150×125
    NBG 150-125-400/351 380V/50Hz 145.3 17.66 11 IE3 150×125
    NBG 150-125-400/351 380V/50Hz 144.5 17.48 11 IE3 150×125
    NBG 150-125-400/368 380V/50Hz 238.8 43.76 45 IE3 150×125
    NBG 150-125-400/368 380V/50Hz 238.8 43.76 45 IE4 150×125
    NBG 150-125-400/384 380V/50Hz 170.7 21.13 15 IE4 150×125
    NBG 150-125-400/384 380V/50Hz 169.9 20.91 15 IE3 150×125
    NBG 150-125-400/384 380V/50Hz 170.7 21.13 15 IE3 150×125
    NBG 150-125-400/392 380V/50Hz 265.4 50.11 55 IE3 150×125
    NBG 150-125-400/392 380V/50Hz 266.3 50.45 55 IE4 150×125
    NBG 150-125-400/410 380V/50Hz 187.6 23.89 18.5 IE3 150×125
    NBG 150-125-400/410 380V/50Hz 189 24.23 18.5 IE3 150×125
    NBG 150-125-400/410 380V/50Hz 188 23.99 18.5 IE4 150×125
    NBG 150-125-400/433 380V/50Hz 308.3 60.72 75 IE4 150×125
    NBG 150-125-400/433 380V/50Hz 307.2 60.31 75 IE4 150×125
    NBG 150-125-400/433 380V/50Hz 308.3 60.72 75 IE3 150×125
    NBG 150-125-400/434 380V/50Hz 195 26.34 22 IE4 150×125
    NBG 150-125-400/434 380V/50Hz 197 26.88 22 IE3 150×125
    NBG 150-125-400/438 380V/50Hz 196.7 27.29 30 IE3 150×125
    NBG 150-125-400/438 380V/50Hz 195.1 26.85 30 IE3 150×125
    NBG 150-125-400/438 380V/50Hz 195.7 27.02 30 IE4 150×125
    NBG 150-125-400/438 380V/50Hz 287.7 62.51 90 IE3 150×125
    NBG 150-125-400/438 380V/50Hz 286.8 62.09 90 IE4 150×125
    NBG 150-125-500/406 380V/50Hz 232.7 53.18 55 IE4 150×125
    NBG 150-125-500/421 380V/50Hz 166.7 24.91 18.5 IE4 150×125
    NBG 150-125-500/421 380V/50Hz 167.6 25.16 18.5 IE3 150×125
    NBG 150-125-500/445 380V/50Hz 181.6 28.23 22 IE3 150×125
    NBG 150-125-500/445 380V/50Hz 179.7 27.66 22 IE4 150×125
    NBG 150-125-500/447 380V/50Hz 270 64.2 75 IE3 150×125
    NBG 150-125-500/447 380V/50Hz 269.1 63.77 75 IE4 150×125
    NBG 150-125-500/473 380V/50Hz 294.3 71.38 90 IE3 150×125
    NBG 150-125-500/473 380V/50Hz 293.3 70.9 90 IE4 150×125
    NBG 150-125-500/493 380V/50Hz 207.2 34.17 30 IE3 150×125
    NBG 150-125-500/493 380V/50Hz 205.5 33.62 30 IE3 150×125
    NBG 150-125-500/493 380V/50Hz 206.1 33.82 30 IE4 150×125
    NBG 150-125-500/500 380V/50Hz 322.7 78.67 110 IE4 150×125
    NBG 150-125-500/500 380V/50Hz 322.7 78.67 110 IE3 150×125
    NBG 150-125-500/524 380V/50Hz 224.5 37.92 37 IE3 150×125
    NBG 150-125-500/524 380V/50Hz 222.3 37.15 37 IE4 150×125
    NBG 150-125-500/526 380V/50Hz 325.2 88.49 132 IE3 150×125
    NBG 150-125-500/526 380V/50Hz 325.2 88.49 132 IE4 150×125
    NBG 150-125-500/546 380V/50Hz 226.8 41.77 45 IE3 150×125
    NBG 150-125-500/546 380V/50Hz 224.5 40.93 45 IE4 150×125
    NBG 150-125-500/548 380V/50Hz 342.8 95.56 160 IE3 150×125
    NBG 150-125-500/548 380V/50Hz 342.8 95.56 160 IE4 150×125
    NBG 150-125-500/548 380V/50Hz 226.1 41.24 55 IE4 150×125
    NBG 150-125-500/548 380V/50Hz 228.4 42.08 55 IE3 150×125
    NBG 200-150-200/210-154 380V/50Hz 374.6 5.272 7.5 IE3 200×150
    NBG 200-150-200/210-154 380V/50Hz 375.8 5.308 7.5 IE4 200×150
    NBG 200-150-200/210-168 380V/50Hz 230.5 2.6 2.2 IE3 200×150
    NBG 200-150-200/210-168 380V/50Hz 230.5 2.6 2.2 IE3 200×150
    NBG 200-150-200/210-168 380V/50Hz 228.1 2.547 2.2 IE4 200×150
    NBG 200-150-200/216-176 380V/50Hz 758.4 27.58 75 IE3 200×150
    NBG 200-150-200/216-176 380V/50Hz 760.9 27.77 75 IE4 200×150
    NBG 200-150-200/218-200 220V/50Hz 248.3 3.334 3 IE4 200×150
    NBG 200-150-200/218-200 380V/50Hz 249.6 3.368 3 IE3 200×150
    NBG 200-150-200/218-200 380V/50Hz 248.3 3.334 3 IE3 200×150
    NBG 200-150-200/218-202 380V/50Hz 785.1 29.26 90 IE3 200×150
    NBG 200-150-200/218-202 380V/50Hz 787.8 29.46 90 IE4 200×150
    NBG 200-150-200/218-208 380V/50Hz 382.6 7.914 11 IE3 200×150
    NBG 200-150-200/218-208 380V/50Hz 383.9 7.968 11 IE4 200×150
    NBG 200-150-200/224 380V/50Hz 263.7 4.185 4 IE3 200×150
    NBG 200-150-200/224 380V/50Hz 262.4 4.142 4 IE4 200×150
    NBG 200-150-200/224 380V/50Hz 402.5 9.25 15 IE3 200×150
    NBG 200-150-200/224 380V/50Hz 403.8 9.313 15 IE4 200×150
    NBG 200-150-200/224 380V/50Hz 829.6 37.06 110 IE3 200×150
    NBG 200-150-200/224 380V/50Hz 831.8 37.26 110 IE4 200×150
    NBG 200-150-200/224 380V/50Hz 829.6 37.06 110 IE4 200×150
    NBG 200-150-250/226-214 380V/50Hz 375.2 10.18 15 IE3 200×150
    NBG 200-150-250/226-214 380V/50Hz 376.5 10.24 15 IE4 200×150
    NBG 200-150-250/226-220 380V/50Hz 636.7 46.36 132 IE4 200×150
    NBG 200-150-250/226-220 380V/50Hz 636.7 46.36 132 IE3 200×150
    NBG 200-150-250/230 380V/50Hz 339.7 12.44 18.5 IE3 200×150
    NBG 200-150-250/230 380V/50Hz 340.9 12.52 18.5 IE4 200×150
    NBG 200-150-250/235 380V/50Hz 239.1 6.163 5.5 IE4 200×150
    NBG 200-150-250/235 380V/50Hz 709.8 53.96 160 IE3 200×150
    NBG 200-150-250/235 380V/50Hz 709.8 53.96 160 IE4 200×150
    NBG 200-150-250/235 380V/50Hz 240.4 6.226 5.5 IE3 200×150
    NBG 200-150-250/242 380V/50Hz 349.6 14.9 22 IE3 200×150
    NBG 200-150-250/242 380V/50Hz 350.7 15 22 IE4 200×150
    NBG 200-150-250/250 380V/50Hz 832.3 62.41 200 IE3 200×150
    NBG 200-150-250/250 380V/50Hz 832.3 62.41 200 IE4 200×150
    NBG 200-150-250/252 380V/50Hz 269.2 7.349 7.5 IE3 200×150
    NBG 200-150-250/252 380V/50Hz 266.5 7.2 7.5 IE4 200×150
    NBG 200-150-250/262 380V/50Hz 416.7 19.01 30 IE3 200×150
    NBG 200-150-250/262 380V/50Hz 419.5 19.27 30 IE4 200×150
    NBG 200-150-250/275 380V/50Hz 441.6 22.09 37 IE4 200×150
    NBG 200-150-250/275 380V/50Hz 441.6 22.09 37 IE3 200×150
    NBG 200-150-250/282 380V/50Hz 311.7 10.31 11 IE3 200×150
    NBG 200-150-250/282 380V/50Hz 310.1 10.2 11 IE4 200×150
    NBG 200-150-250/282 380V/50Hz 464.4 23.23 45 IE3 200×150
    NBG 200-150-250/282 380V/50Hz 464.4 23.23 45 IE4 200×150
    NBG 200-150-315.2/244 380V/50Hz 707 60.08 160 IE3 200×150
    NBG 200-150-315.2/244 380V/50Hz 707 60.08 160 IE4 200×150
    NBG 200-150-315.2/250 380V/50Hz 365 15.93 22 IE3 200×150
    NBG 200-150-315.2/250 380V/50Hz 366.2 16.04 22 IE4 200×150
    NBG 200-150-315.2/259 380V/50Hz 250.7 7.8 7.5 IE4 200×150
    NBG 200-150-315.2/259 380V/50Hz 253.3 7.962 7.5 IE3 200×150
    NBG 200-150-315.2/262 380V/50Hz 757.7 72.86 200 IE3 200×150
    NBG 200-150-315.2/262 380V/50Hz 757.7 72.86 200 IE4 200×150
    NBG 200-150-315.2/275 380V/50Hz 405.5 20.45 30 IE3 200×150
    NBG 200-150-315.2/275 380V/50Hz 408.3 20.73 30 IE4 200×150
    NBG 200-150-315.2/293 380V/50Hz 294.6 10.62 11 IE3 200×150
    NBG 200-150-315.2/293 380V/50Hz 293.1 10.51 11 IE4 200×150
    NBG 200-150-315.2/294 380V/50Hz 437 24.27 37 IE3 200×150
    NBG 200-150-315.2/294 380V/50Hz 437 24.27 37 IE4 200×150
    NBG 200-150-315.2/314 380V/50Hz 480.3 27.61 45 IE3 200×150
    NBG 200-150-315.2/314 380V/50Hz 480.3 27.61 45 IE4 200×150
    NBG 200-150-315.2/328 380V/50Hz 335.1 13.06 15 IE3 200×150
    NBG 200-150-315.2/328 380V/50Hz 335.1 13.06 15 IE4 200×150
    NBG 200-150-315.2/334 380V/50Hz 531.5 30.63 55 IE3 200×150
    NBG 200-150-315.2/334 380V/50Hz 533.3 30.84 55 IE4 200×150
    NBG 200-150-315.2/342 380V/50Hz 360.4 14.54 18.5 IE3 200×150
    NBG 200-150-315.2/342 380V/50Hz 358.6 14.39 18.5 IE4 200×150
    NBG 200-150-315.2/342 380V/50Hz 554.9 32.63 75 IE3 200×150
    NBG 200-150-315.2/342 380V/50Hz 553 32.41 75 IE4 200×150
    NBG 200-150-315/275 380V/50Hz 461.4 20.52 37 IE4 200×150
    NBG 200-150-315/275 380V/50Hz 461.4 20.52 37 IE3 200×150
    NBG 200-150-315/280 380V/50Hz 311.3 9.391 11 IE3 200×150
    NBG 200-150-315/280 380V/50Hz 311.3 9.391 11 IE3 200×150
    NBG 200-150-315/280 380V/50Hz 309.7 9.295 11 IE4 200×150
    NBG 200-150-315/291 380V/50Hz 488.2 23.44 45 IE3 200×150
    NBG 200-150-315/291 380V/50Hz 488.2 23.44 45 IE4 200×150
    NBG 200-150-315/305 380V/50Hz 340 11.32 15 IE3 200×150
    NBG 200-150-315/305 380V/50Hz 341.8 11.43 15 IE3 200×150
    NBG 200-150-315/305 380V/50Hz 341.8 11.43 15 IE4 200×150
    NBG 200-150-315/310 380V/50Hz 527.1 27.19 55 IE3 200×150
    NBG 200-150-315/310 380V/50Hz 528.9 27.38 55 IE4 200×150
    NBG 200-150-315/322 380V/50Hz 366.3 13.01 18.5 IE3 200×150
    NBG 200-150-315/322 380V/50Hz 368.9 13.2 18.5 IE3 200×150
    NBG 200-150-315/322 380V/50Hz 367 13.06 18.5 IE4 200×150
    NBG 200-150-315/336 380V/50Hz 591.11 33.37 75 IE3 200×150
    NBG 200-150-315/336 380V/50Hz 591.1 33.37 75 IE4 200×150
    NBG 200-150-315/336 380V/50Hz 589.1 33.14 75 IE4 200×150
    NBG 200-150-315/337 380V/50Hz 394.4 14.79 22 IE3 200×150
    NBG 200-150-315/337 380V/50Hz 390.4 14.49 22 IE4 200×150
    NBG 200-150-315/338 380V/50Hz 593.2 33.67 90 IE4 200×150
    NBG 200-150-315/338 380V/50Hz 392.3 14.76 30 IE3 200×150
    NBG 200-150-315/338 380V/50Hz 393.5 14.85 30 IE4 200×150
    NBG 200-150-315/338 380V/50Hz 595.2 33.9 90 IE3 200×150
    NBG 200-150-315/338 380V/50Hz 395.5 15 30 IE3 200×150
    NBG 200-150-400/343 380V/50Hz 388.9 36.36 55 IE3 200×150
    NBG 200-150-400/343 380V/50Hz 390.2 36.6 55 IE4 200×150
    NBG 200-150-400/357 380V/50Hz 269.2 17.56 18.5 IE4 200×150
    NBG 200-150-400/357 380V/50Hz 268.6 17.48 18.5 IE3 200×150
    NBG 200-150-400/357 380V/50Hz 270.5 17.74 18.5 IE3 200×150
    NBG 200-150-400/375 380V/50Hz 441.4 44.98 75 IE3 200×150
    NBG 200-150-400/375 380V/50Hz 439.9 44.68 75 IE4 200×150
    NBG 200-150-400/375 380V/50Hz 441.4 44.98 75 IE4 200×150
    NBG 200-150-400/375 380V/50Hz 290.4 20 22 IE3 200×150
    NBG 200-150-400/375 380V/50Hz 287.4 19.6 22 IE4 200×150
    NBG 200-150-400/394 380V/50Hz 475.5 50.37 90 IE3 200×150
    NBG 200-150-400/394 380V/50Hz 473.9 50.03 90 IE4 200×150
    NBG 200-150-400/408 380V/50Hz 332.1 23.41 30 IE4 200×150
    NBG 200-150-400/408 380V/50Hz 333.7 23.65 30 IE3 200×150
    NBG 200-150-400/408 380V/50Hz 331 23.26 30 IE3 200×150
    NBG 200-150-400/412 380V/50Hz 520.5 55.65 110 IE3 200×150
    NBG 200-150-400/412 380V/50Hz 520.5 55.65 110 IE4 200×150
    NBG 200-150-400/430 380V/50Hz 369.4 25.88 37 IE3 200×150
    NBG 200-150-400/430 380V/50Hz 367.6 25.62 37 IE4 200×150
    NBG 200-150-400/430 380V/50Hz 371.3 26.15 37 IE3 200×150
    NBG 200-150-400/431 380V/50Hz 571.11 61.35 132 IE3 200×150
    NBG 200-150-400/431 380V/50Hz 571.1 61.35 132 IE4 200×150
    NBG 200-150-400/438 380V/50Hz 588.1 63.67 160 IE4 200×150
    NBG 200-150-400/438 380V/50Hz 387.6 26.77 45 IE3 200×150
    NBG 200-150-400/438 380V/50Hz 388.4 26.88 45 IE3 200×150
    NBG 200-150-400/438 380V/50Hz 384.4 26.34 45 IE4 200×150
    NBG 200-150-400/438 380V/50Hz 588.1 63.67 160 IE3 200×150
    NBG 200-150-500/457 380V/50Hz 299.4 31.04 37 IE3 200×150
    NBG 200-150-500/457 380V/50Hz 296.3 30.42 37 IE4 200×150
    NBG 200-150-500/457 380V/50Hz 297.8 30.72 37 IE3 200×150
    NBG 200-150-500/459 380V/50Hz 460.4 70.54 132 IE3 200×150
    NBG 200-150-500/459 380V/50Hz 460.4 70.54 132 IE4 200×150
    NBG 200-150-500/483 380V/50Hz 321.8 34.34 45 IE3 200×150
    NBG 200-150-500/483 380V/50Hz 322.4 34.48 45 IE3 200×150
    NBG 200-150-500/483 380V/50Hz 319.2 33.79 45 IE4 200×150
    NBG 200-150-500/489 380V/50Hz 495.4 80.04 160 IE4 200×150
    NBG 200-150-500/489 380V/50Hz 495.4 80.04 160 IE3 200×150
    NBG 200-150-500/513 380V/50Hz 333.4 39.2 55 IE4 200×150
    NBG 200-150-500/513 380V/50Hz 336.8 40 55 IE3 200×150
    NBG 200-150-500/513 380V/50Hz 336.1 39.84 55 IE3 200×150
    NBG 200-150-500/521 380V/50Hz 524.1 93.87 200 IE3 200×150
    NBG 200-150-500/521 380V/50Hz 524.1 93.87 200 IE4 200×150
    NBG 200-150-500/548 380V/50Hz 347 45.94 75 IE3 200×150
    NBG 200-150-500/548 380V/50Hz 343.5 45.01 75 IE4 200×150
    NBG 250-200-400/280 380V/50Hz 399.6 22.82 37 IE3 250×200
    NBG 250-200-400/280 380V/50Hz 399.6 22.82 37 IE4 250×200
    NBG 250-200-400/296 380V/50Hz 435.9 26.46 45 IE3 250×200
    NBG 250-200-400/296 380V/50Hz 435.9 26.46 45 IE4 250×200
    NBG 250-200-400/308 380V/50Hz 308.2 12.86 15 IE4 250×200
    NBG 250-200-400/308 380V/50Hz 306.7 12.73 15 IE3 250×200
    NBG 250-200-400/308 380V/50Hz 308.2 12.86 15 IE3 250×200
    NBG 250-200-400/312 380V/50Hz 478 30.21 55 IE4 250×200
    NBG 250-200-400/312 380V/50Hz 476.4 30 55 IE3 250×200
    NBG 250-200-400/328 380V/50Hz 343.2 14.64 18.5 IE3 250×200
    NBG 250-200-400/328 380V/50Hz 345.7 14.85 18.5 IE3 250×200
    NBG 250-200-400/328 380V/50Hz 343.9 14.7 18.5 IE4 250×200
    NBG 250-200-400/344 380V/50Hz 537.1 37.8 75 IE3 250×200
    NBG 250-200-400/344 380V/50Hz 537.1 37.8 75 IE4 250×200
    NBG 250-200-400/344 380V/50Hz 535.3 37.55 75 IE4 250×200
    NBG 250-200-400/348 380V/50Hz 359 16.84 22 IE4 250×200
    NBG 250-200-400/348 380V/50Hz 362.6 17.19 22 IE3 250×200
    NBG 250-200-400/364 380V/50Hz 590.1 41.71 90 IE3 250×200
    NBG 250-200-400/364 380V/50Hz 588.2 41.43 90 IE4 250×200
    NBG 250-200-400/384 380V/50Hz 408.4 20.21 30 IE4 250×200
    NBG 250-200-400/384 380V/50Hz 407.2 20.09 30 IE3 250×200
    NBG 250-200-400/384 380V/50Hz 410.5 20.42 30 IE3 250×200
    NBG 250-200-400/392 380V/50Hz 629.5 46.78 110 IE3 250×200
    NBG 250-200-400/392 380V/50Hz 629.5 46.78 110 IE4 250×200
    NBG 250-200-400/404 380V/50Hz 668.6 49.63 132 IE4 250×200
    NBG 250-200-400/404 380V/50Hz 439.4 22.19 37 IE3 250×200
    NBG 250-200-400/404 380V/50Hz 437.2 21.96 37 IE3 250×200
    NBG 250-200-400/404 380V/50Hz 434.9 21.74 37 IE4 250×200
    NBG 250-200-400/404 380V/50Hz 668.6 49.63 132 IE3 250×200
    NBG 250-200-450/355 380V/50Hz 287.6 16.98 18.5 IE3 250×200
    NBG 250-200-450/355 380V/50Hz 288.2 17.05 18.5 IE4 250×200
    NBG 250-200-450/355 380V/50Hz 289.7 17.22 18.5 IE3 250×200
    NBG 250-200-450/367 380V/50Hz 458.3 43.61 75 IE3 250×200
    NBG 250-200-450/367 380V/50Hz 456.8 43.32 75 IE4 250×200
    NBG 250-200-450/371 380V/50Hz 316.3 18.85 22 IE3 250×200
    NBG 250-200-450/371 380V/50Hz 313.1 18.48 22 IE4 250×200
    NBG 250-200-450/391 380V/50Hz 509.7 47.41 90 IE4 250×200
    NBG 250-200-450/391 380V/50Hz 511.4 47.73 90 IE3 250×200
    NBG 250-200-450/407 380V/50Hz 358.8 23.12 30 IE3 250×200
    NBG 250-200-450/407 380V/50Hz 356 22.75 30 IE3 250×200
    NBG 250-200-450/407 380V/50Hz 357 22.89 30 IE4 250×200
    NBG 250-200-450/415 380V/50Hz 550.8 53.64 1110 IE3 250×200
    NBG 250-200-450/415 380V/50Hz 550.8 53.64 110 IE4 250×200
    NBG 250-200-450/431 380V/50Hz 382.4 24.95 37 IE3 250×200
    NBG 250-200-450/431 380V/50Hz 384.4 25.21 37 IE3 250×200
    NBG 250-200-450/431 380V/50Hz 380.5 24.7 37 IE4 250×200
    NBG 250-200-450/435 380V/50Hz 601.8 58.6 132 IE3 250×200
    NBG 250-200-450/435 380V/50Hz 601.8 58.6 132 IE4 250×200
    NBG 250-200-450/451 380V/50Hz 409.3 27.46 45 IE4 250×200
    NBG 250-200-450/451 380V/50Hz 413.4 28.02 45 IE3 250×200
    NBG 250-200-450/451 380V/50Hz 412.6 27.91 45 IE3 250×200
    NBG 250-200-450/455 380V/50Hz 658.5 64.1 160 IE3 250×200
    NBG 250-200-450/455 380V/50Hz 658.5 64.1 160 IE4 250×200
    NBG 300-250-350/266 380V/50Hz 748.9 13.65 37 IE3 300×250
    NBG 300-250-350/266 380V/50Hz 748.9 13.65 37 IE4 300×250
    NBG 300-250-350/277 380V/50Hz 475 7.043 11 IE3 300×250
    NBG 300-250-350/277 380V/50Hz 475 7.043 11 IE3 300×250
    NBG 300-250-350/277 380V/50Hz 472.6 6.971 11 IE4 300×250
    NBG 300-250-350/294 380V/50Hz 750.2 18.54 45 IE3 300×250
    NBG 300-250-350/294 380V/50Hz 750.2 18.54 45 IE4 300×250
    NBG 300-250-350/306 380V/50Hz 523.3 8.778 15 IE3 300×250
    NBG 300-250-350/306 380V/50Hz 523.3 8.778 15 IE4 300×250
    NBG 300-250-350/306 380V/50Hz 520.7 8.689 15 IE3 300×250
    NBG 300-250-350/318 380V/50Hz 799.6 21.77 55 IE3 300×250
    NBG 300-250-350/318 380V/50Hz 802.3 21.92 55 IE4 300×250
    NBG 300-250-350/330 380V/50Hz 542.4 10.37 18.5 IE3 300×250
    NBG 300-250-350/330 380V/50Hz 546.3 10.52 18.5 IE3 300×250
    NBG 300-250-350/330 380V/50Hz 543.6 10.41 18.5 IE4 300×250
    NBG 300-250-350/362 380V/50Hz 875.5 27.48 75 IE4 300×250
    NBG 300-250-350/362 380V/50Hz 878.5 27.66 75 IE3 300×250
    NBG 300-250-350/366 380V/50Hz 601.4 12.29 22 IE3 300×250
    NBG 300-250-350/366 380V/50Hz 595.3 12.04 22 IE4 300×250
    NBG 300-250-350/370 380V/50Hz 914.7 28.74 90 IE4 300×250
    NBG 300-250-350/370 380V/50Hz 917.7 28.93 90 IE3 300×250
    NBG 300-250-400/281 380V/50Hz 613.4 18.02 45 IE3 300×250
    NBG 300-250-400/281 380V/50Hz 613.4 18.02 45 IE4 300×250
    NBG 300-250-400/289 380V/50Hz 429.2 8.386 15 IE3 300×250
    NBG 300-250-400/289 380V/50Hz 431.4 8.472 15 IE3 300×250
    NBG 300-250-400/289 380V/50Hz 431.4 8.472 15 IE4 300×250
    NBG 300-250-400/301 380V/50Hz 602.3 24.02 55 IE4 300×250
    NBG 300-250-400/313 380V/50Hz 422.1 11.65 18.5 IE3 300×250
    NBG 300-250-400/313 380V/50Hz 419.1 11.49 18.5 IE3 300×250
    NBG 300-250-400/313 380V/50Hz 420 11.53 18.5 IE4 300×250
    NBG 300-250-400/329 380V/50Hz 471.5 12.81 22 IE3 300×250
    NBG 300-250-400/329 380V/50Hz 466.8 12.56 22 IE4 300×250
    NBG 300-250-400/329 380V/50Hz 708.2 29.04 75 IE3 300×250
    NBG 300-250-400/329 380V/50Hz 705.8 28.84 75 IE4 300×250
    NBG 300-250-400/349 380V/50Hz 732 34.61 90 IE4 300×250
    NBG 300-250-400/349 380V/50Hz 734.4 34.85 90 IE3 300×250
    NBG 300-250-400/361 380V/50Hz 520.2 16.46 30 IE3 300×250
    NBG 300-250-400/361 380V/50Hz 516 16.19 30 IE3 300×250
    NBG 300-250-400/361 380V/50Hz 517.6 16.29 30 IE4 300×250
    NBG 300-250-400/365 380V/50Hz 812.3 38.54 110 IE3 300×250
    NBG 300-250-400/365 380V/50Hz 812.3 38.54 110 IE4 300×250
    NBG 300-250-400/365 380V/50Hz 812.8 38.59 110 IE4 300×250
    NBG 300-250-400/381 380V/50Hz 544.5 18.66 37 IE3 300×250
    NBG 300-250-400/381 380V/50Hz 541.7 18.48 37 IE4 300×250
    NBG 300-250-400/381 380V/50Hz 547.3 18.85 37 IE3 300×250
    NBG 300-250-400/385 380V/50Hz 850.3 44.67 132 IE3 300×250
    NBG 300-250-400/385 380V/50Hz 850.3 44.67 132 IE4 300×250
    NBG 300-250-400/401 380V/50Hz 616.2 20.64 45 IE3 300×250
    NBG 300-250-400/401 380V/50Hz 617.5 20.73 45 IE3 300×250
    NBG 300-250-400/401 380V/50Hz 611.2 20.31 45 IE4 300×250
    NBG 300-250-400/405 380V/50Hz 896.4 50.58 160 IE4 300×250
    NBG 300-250-400/405 380V/50Hz 896.4 50.58 160 IE3 300×250
    NBG 300-250-450/313 380V/50Hz 390.5 12.3 18.5 IE3 300×250
    NBG 300-250-450/313 380V/50Hz 391.3 12.35 18.5 IE4 300×250
    NBG 300-250-450/313 380V/50Hz 393.3 12.48 18.5 IE3 300×250
    NBG 300-250-450/325 380V/50Hz 426.1 13.54 22 IE3 300×250
    NBG 300-250-450/325 380V/50Hz 421.8 13.27 22 IE4 300×250
    NBG 300-250-450/325 380V/50Hz 641 30.73 75 IE3 300×250
    NBG 300-250-450/325 380V/50Hz 638.9 30.52 75 IE4 300×250
    NBG 300-250-450/341 380V/50Hz 654.3 36.08 90 IE4 300×250
    NBG 300-250-450/341 380V/50Hz 656.5 36.32 90 IE3 300×250
    NBG 300-250-450/357 380V/50Hz 467.4 17.81 30 IE3 300×250
    NBG 300-250-450/357 380V/50Hz 463.7 17.53 30 IE3 300×250
    NBG 300-250-450/357 380V/50Hz 465.1 17.63 30 IE4 300×250
    NBG 300-250-450/361 380V/50Hz 717.9 41.39 110 IE4 300×250
    NBG 300-250-450/361 380V/50Hz 717.9 41.39 110 IE3 300×250
    NBG 300-250-450/377 380V/50Hz 507.4 20.21 37 IE3 300×250
    NBG 300-250-450/377 380V/50Hz 504.9 20 37 IE3 300×250
    NBG 300-250-450/377 380V/50Hz 502.3 19.8 37 IE4 300×250
    NBG 300-250-450/381 380V/50Hz 783.8 46.46 132 IE3 300×250
    NBG 300-250-450/381 380V/50Hz 783.3 46.46 132 IE4 300×250
    NBG 300-250-450/397 380V/50Hz 550.3 22.15 45 IE4 300×250
    NBG 300-250-450/397 380V/50Hz 554.8 22.51 45 IE3 300×250
    NBG 300-250-450/397 380V/50Hz 555.9 22.6 45 IE3 300×250
    NBG 300-250-450/401 380V/50Hz 844.9 51.74 160 IE3 300×250
    NBG 300-250-450/401 380V/50Hz 844.9 51.74 160 IE4 300×250
    NBG 300-250-450/433 380V/50Hz 591.3 25.62 55 IE3 300×250
    NBG 300-250-450/433 380V/50Hz 592.5 25.73 55 IE3 300×250
    NBG 300-250-450/433 380V/50Hz 586.5 25.21 55 IE4 300×250
    NBG 300-250-450/445 380V/50Hz 927.6 60.29 200 IE3 300×250
    NBG 300-250-450/445 380V/50Hz 927.6 60.29 200 IE4 300×250
    NBG 300-250-500/409 380V/50Hz 496.9 21.95 45 IE4 300×250
    NBG 300-250-500/409 380V/50Hz 501.9 22.4 45 IE3 300×250
    NBG 300-250-500/409 380V/50Hz 500.9 22.3 45 IE3 300×250
    NBG 300-250-500/417 380V/50Hz 791.3 52.58 160 IE3 300×250
    NBG 300-250-500/417 380V/50Hz 791.3 52.58 160 IE4 300×250
    NBG 300-250-500/437 380V/50Hz 545.2 25.52 55 IE3 300×250
    NBG 300-250-500/437 380V/50Hz 540.8 25.11 55 IE4 300×250
    NBG 300-250-500/437 380V/50Hz 546.3 25.62 55 IE3 300×250
    NBG 300-250-500/445 380V/50Hz 852.5 60.08 200 IE3 300×250
    NBG 300-250-500/445 380V/50Hz 852.5 60.08 200 IE4 300×250
    NBG 300-250-500/485 380V/50Hz 618.9 30.32 75 IE4 300×250
    NBG 300-250-500/485 380V/50Hz 625.2 30.94 75 IE3 300×250
    NBG 300-250-500/525 380V/50Hz 666.6 35.73 90 IE3 300×250
    NBG 300-250-500/525 380V/50Hz 666.6 35.73 90 IE4 300×250
  • 17778888851
  • 邮箱：199999411@qq.com
  • 地址：河北省保定市莲池区三丰中路长江商务中心A507
    • 链接导航
    关于我们 产品中心 解决方案 新闻中心 资料下载 常见问题 加入我们 联系我们 质保查询
    更多媒体
  • Customer Message
  • 微博
  • 微信
  • 抖音
    • Copyright © 2023-2024 保定市安德优商业有限公司 All Rights Reserved冀ICP备2024095057号-1
    冀公网安备13060602001745号
    留言咨询

    提交
