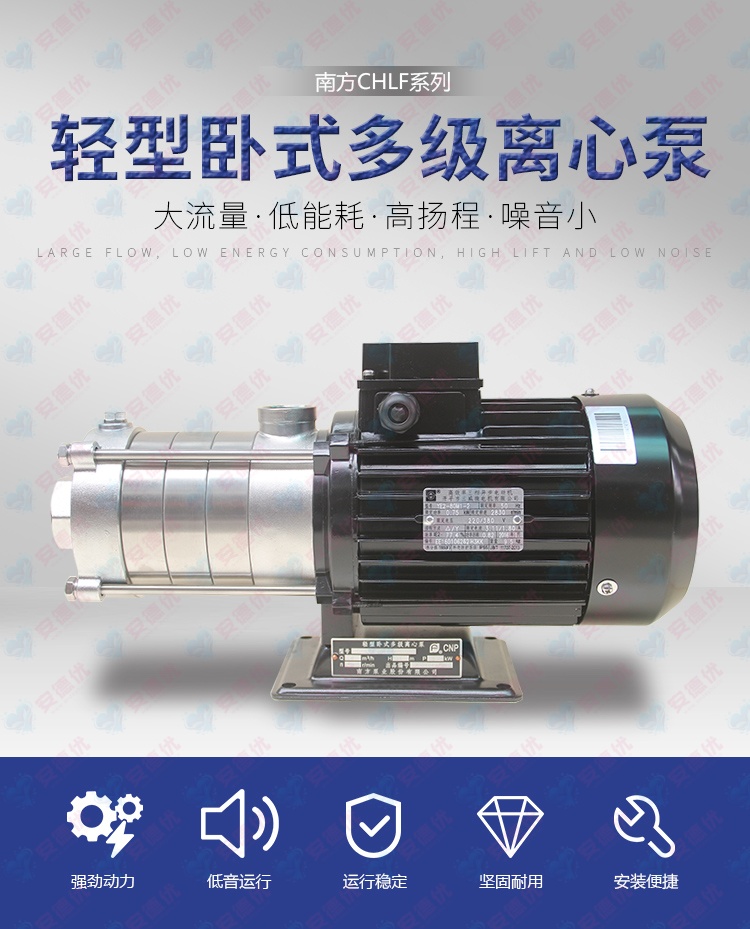

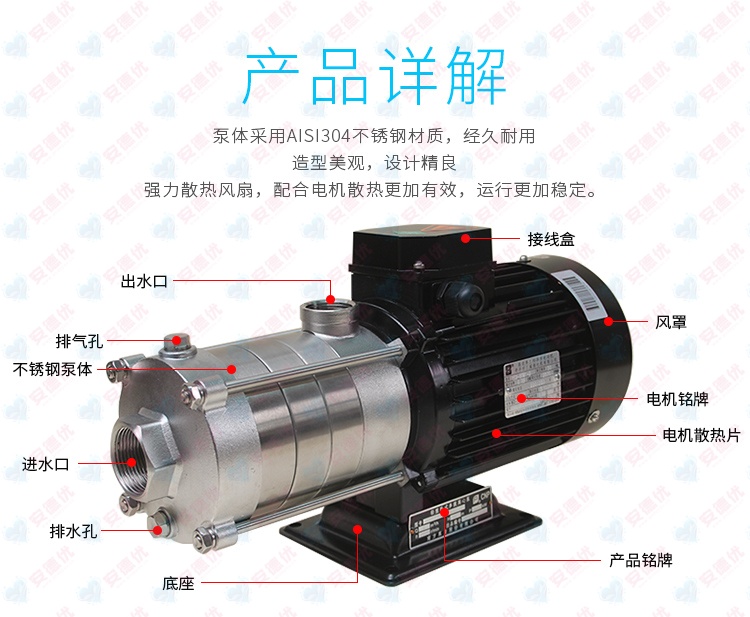

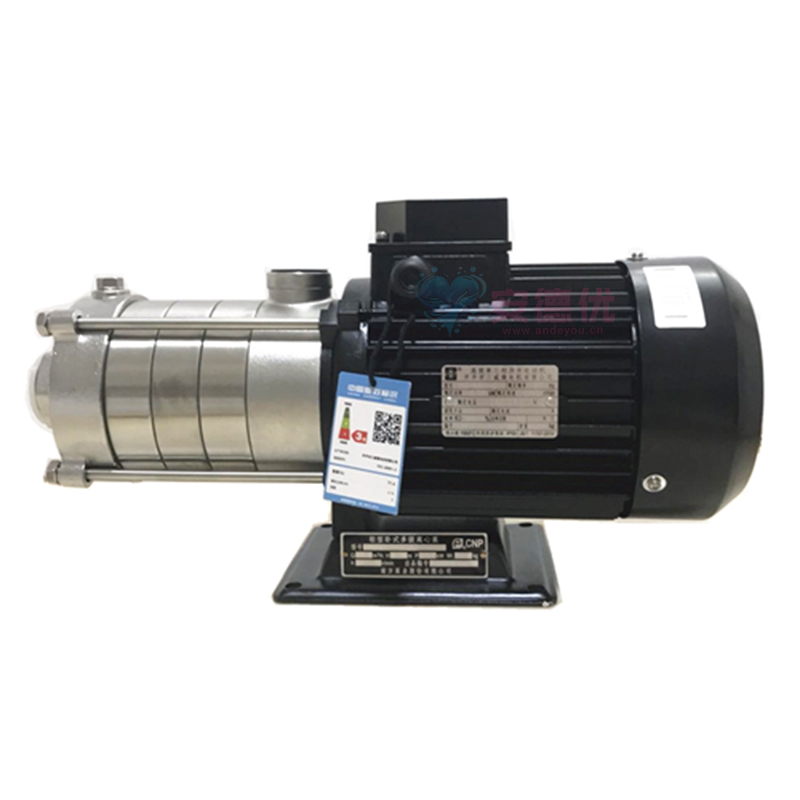

一、水泵结构
二、产品应用场景

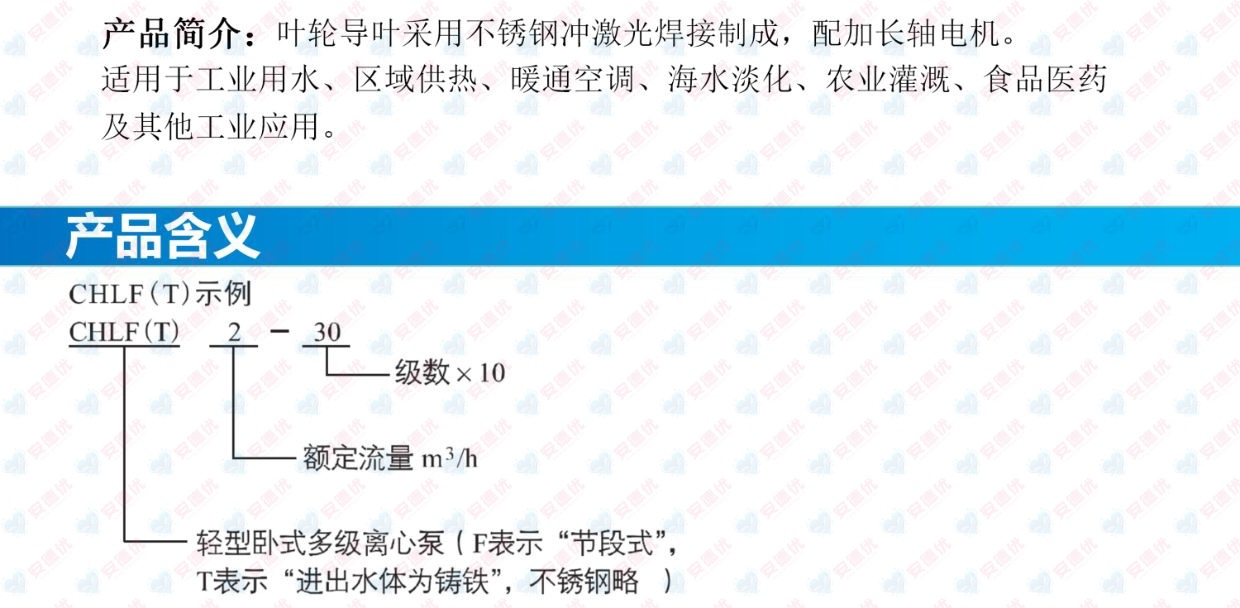

三、产品特点
四、性能参数

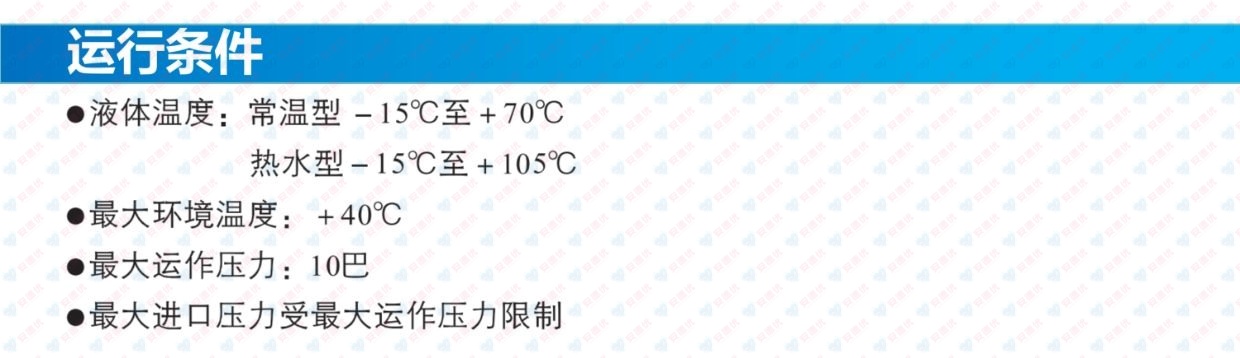

五、运行条件
| 型号 | 额定流量(m³/h) | 额定扬程(m) | 功率(kW) | 额定电压(V) | 额定转速(rpm) | 进出口径 |

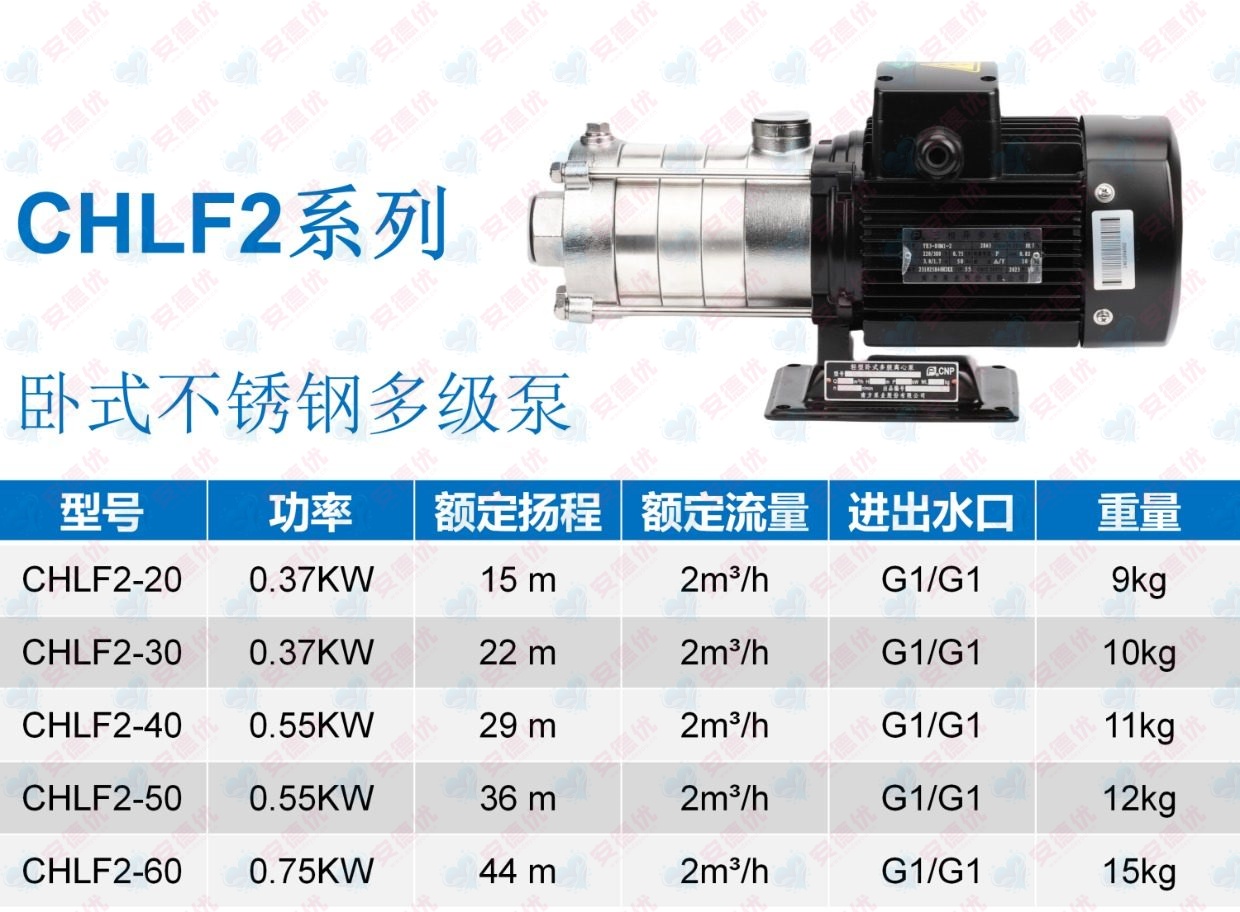

| CHLF2-20 | 2 | 15 | 0.37 | 220V/380V | 2900 | G1×G1 |
| CHLF2-30 | 2 | 22 | 0.37 | 220V/380V | 2900 | G1×G1 |
| CHLF2-40 | 2 | 29 | 0.55 | 220V/380V | 2900 | G1×G1 |
| CHLF2-50 | 2 | 36 | 0.55 | 220V/380V | 2900 | G1×G1 |
| CHLF2-60 | 2 | 44 | 0.75 | 220V/380V | 2900 | G1×G1 |

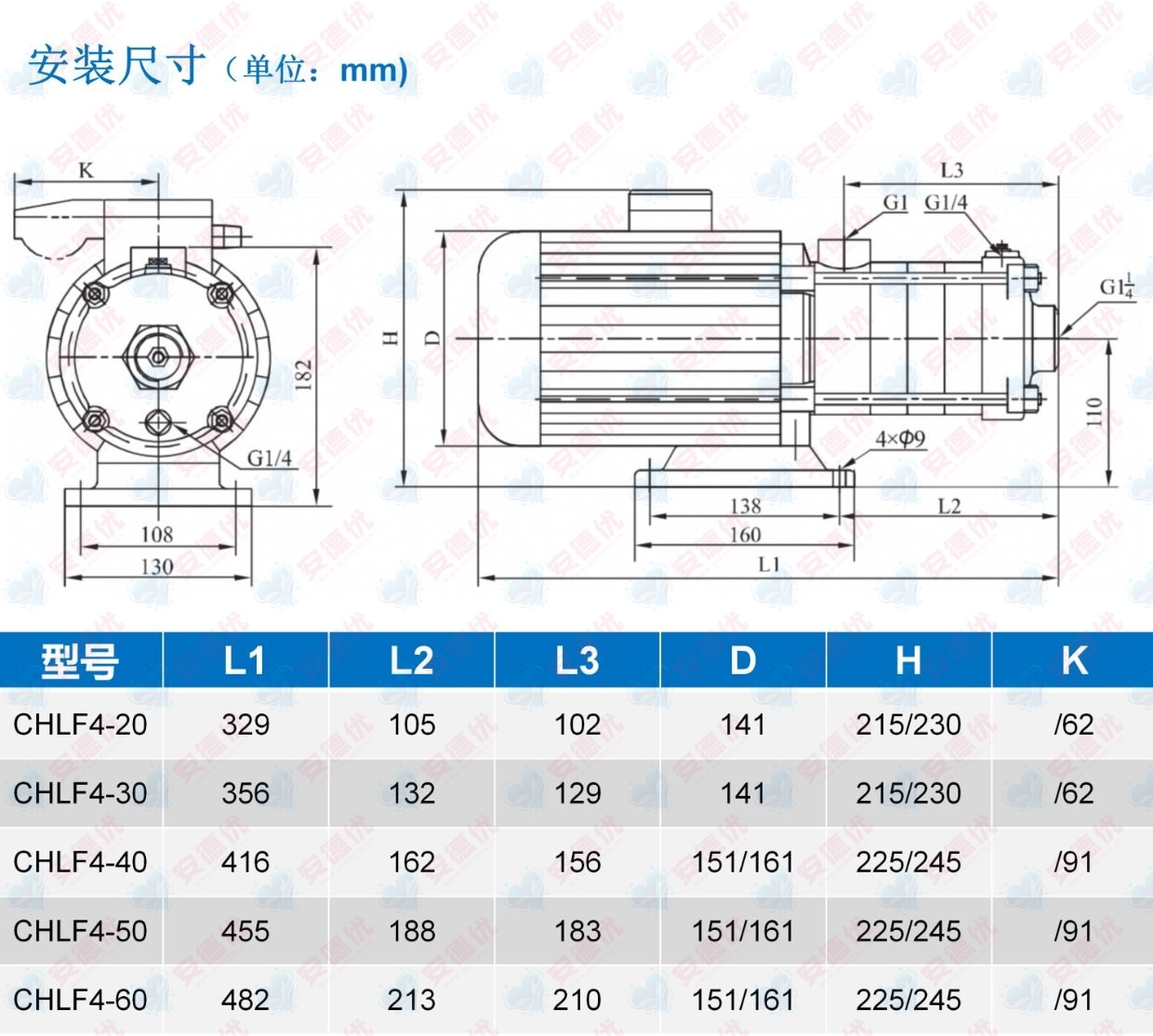

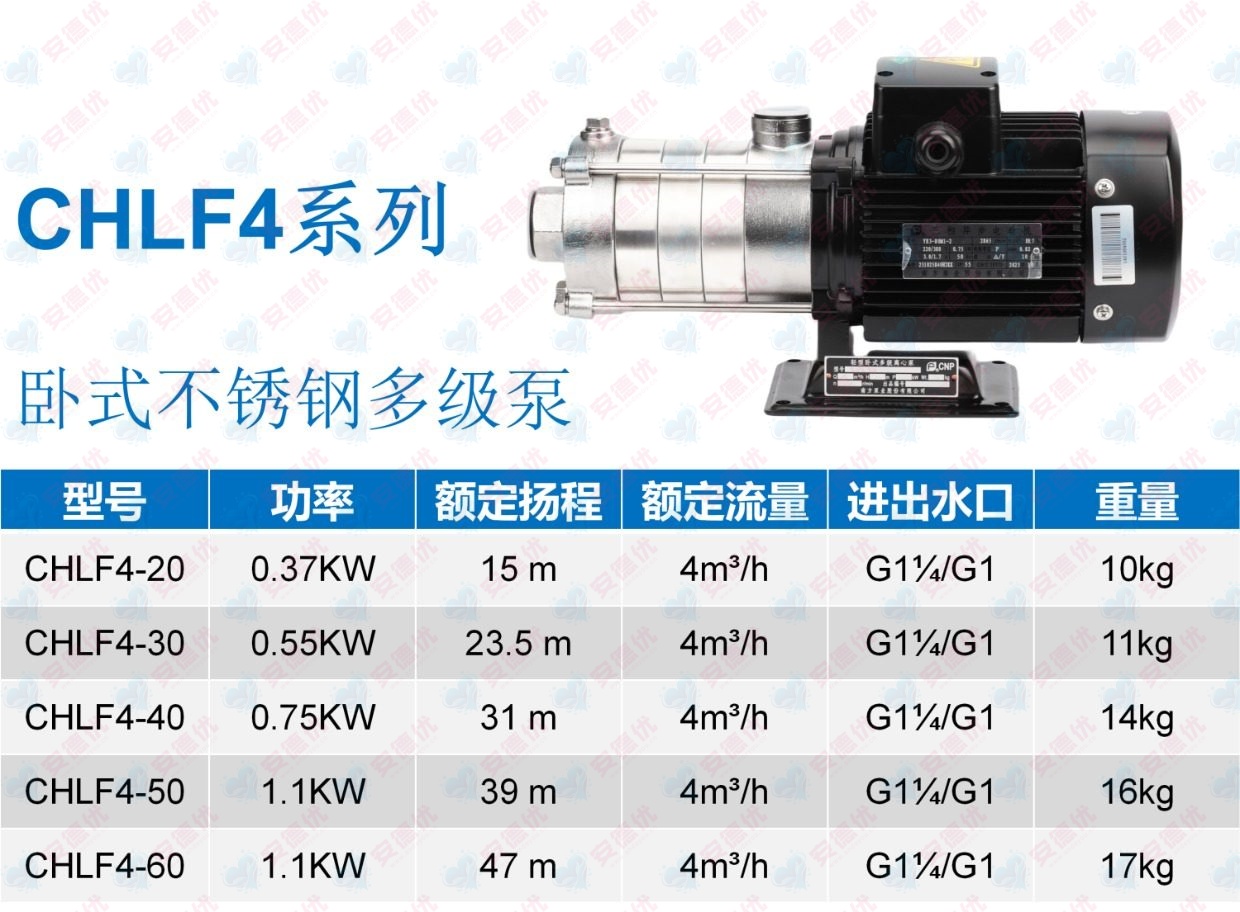

| CHLF4-20 | 4 | 15 | 0.37 | 220V/380V | 2900 | G1 1/4×G1 |
| CHLF4-30 | 4 | 23.5 | 0.55 | 220V/380V | 2900 | G1 1/4×G1 |
| CHLF4-40 | 4 | 31 | 0.75 | 220V/380V | 2900 | G1 1/4×G1 |
| CHLF4-50 | 4 | 39 | 1.1 | 220V/380V | 2900 | G1 1/4×G1 |
| CHLF4-60 | 4 | 47 | 1.1 | 220V/380V | 2900 | G1 1/4×G1 |

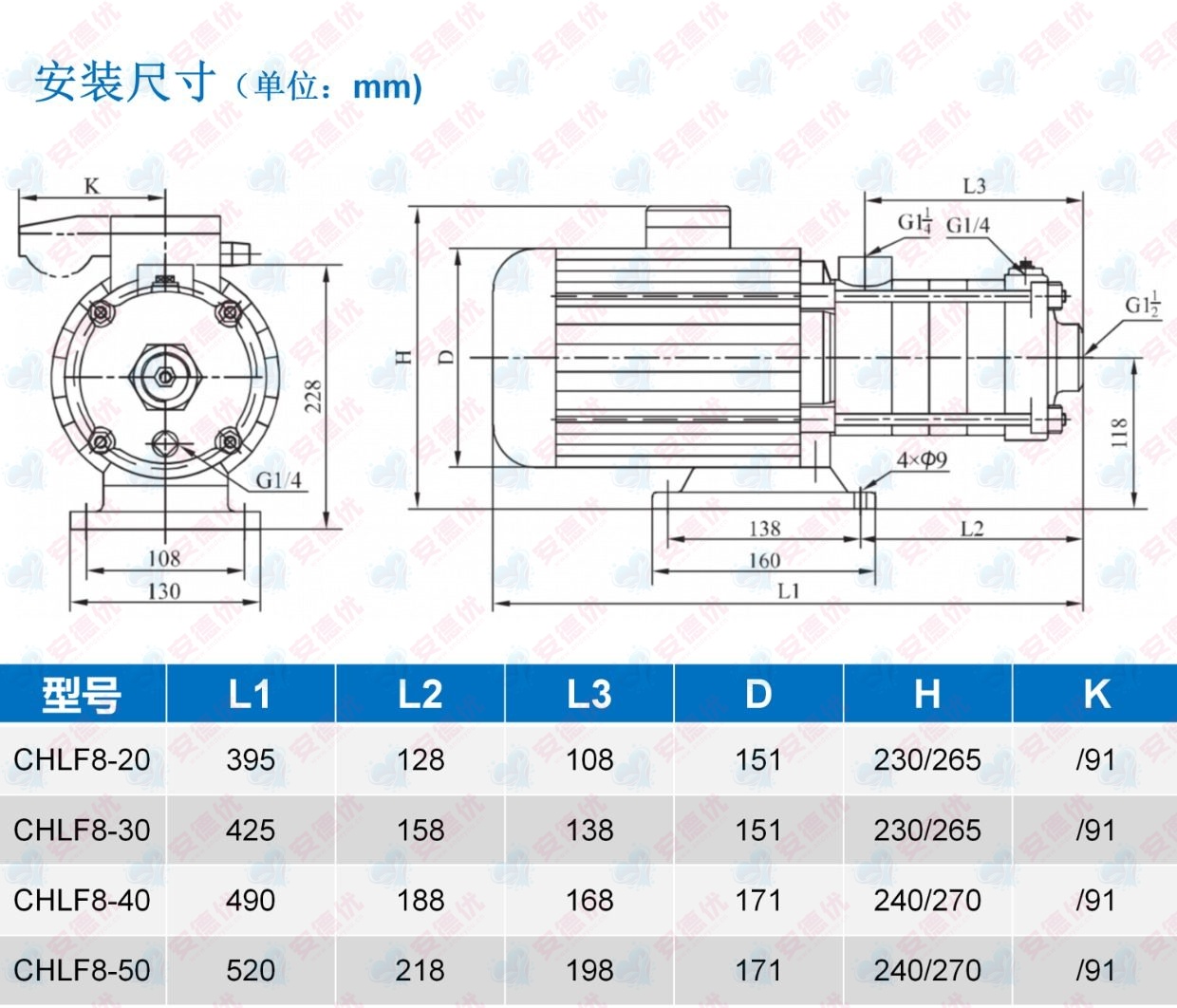

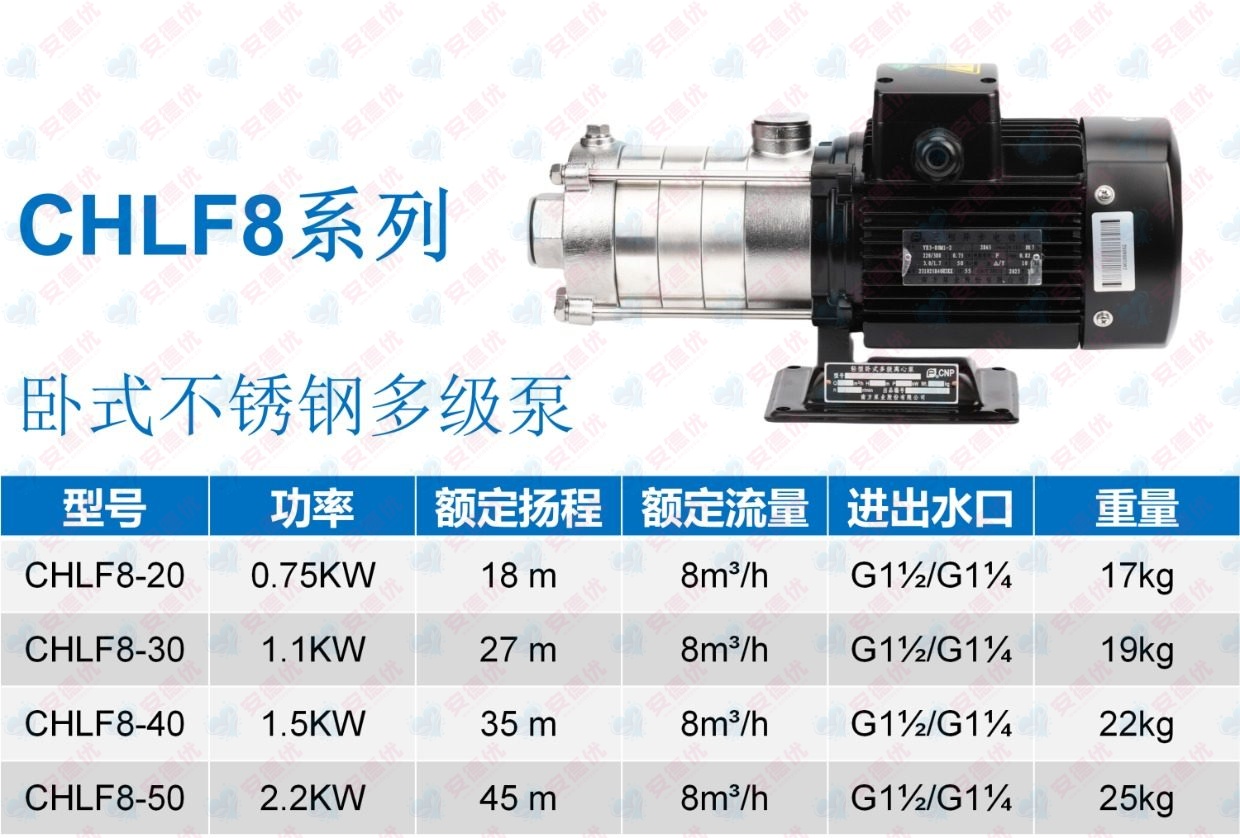

| CHLF8-10 | 8 | 9 | 0.75 | 220V/380V | 2900 | G1 1/2×G1 1/4 |
| CHLF8-20 | 8 | 18 | 0.75 | 220V/380V | 2900 | G1 1/2×G1 1/4 |
| CHLF8-30 | 8 | 27 | 1.1 | 220V/380V | 2900 | G1 1/2×G1 1/4 |
| CHLF8-40 | 8 | 35 | 1.5 | 220V/380V | 2900 | G1 1/2×G1 1/4 |
| CHLF8-50 | 8 | 45 | 2.2 | 220V/380V | 2900 | G1 1/2×G1 1/4 |

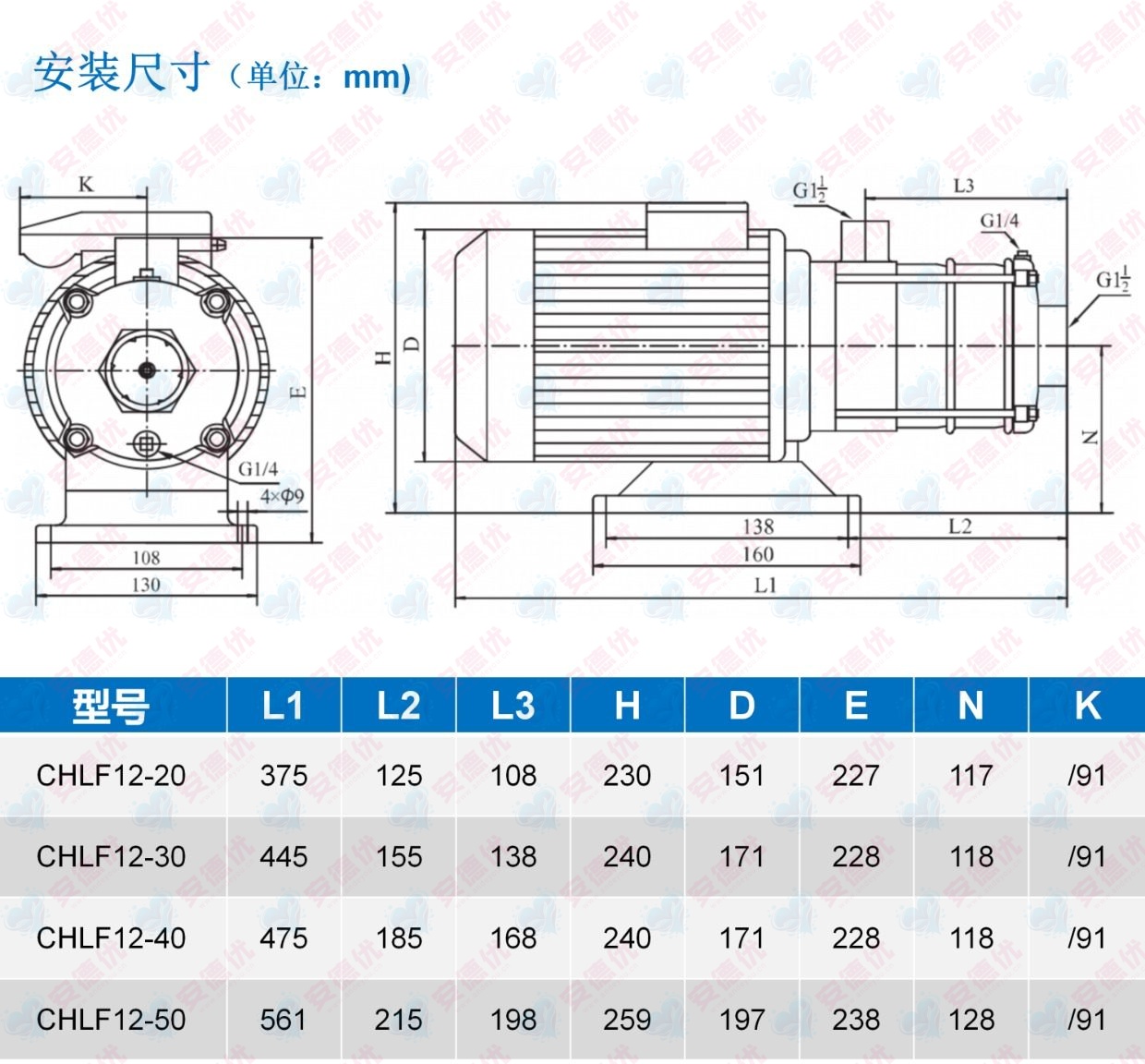

| CHLF12-10 | 12 | 9.5 | 0.75 | 220V/380V | 2900 | G1 1/2×G1 1/2 |
| CHLF12-20 | 12 | 19.5 | 1.2 | 220V/380V | 2900 | G1 1/2×G1 1/2 |
| CHLF12-30 | 12 | 29.5 | 1.8 | 220V/380V | 2900 | G1 1/2×G1 1/2 |
| CHLF12-40 | 12 | 39.5 | 2.4 | 220V/380V | 2900 | G1 1/2×G1 1/2 |
| CHLF12-50 | 12 | 50 | 3 | 380V | 2900 | G1 1/2×G1 1/2 |

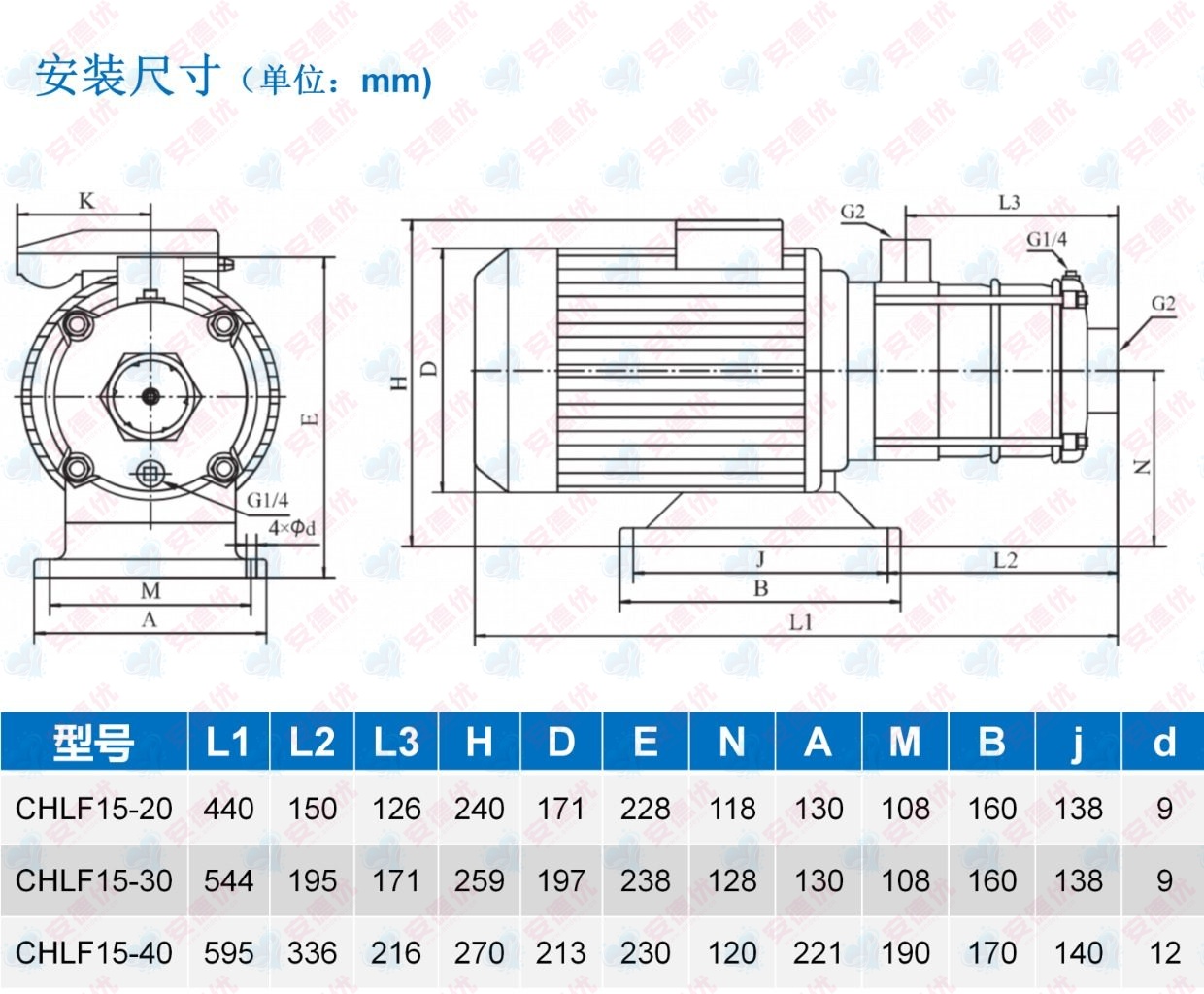

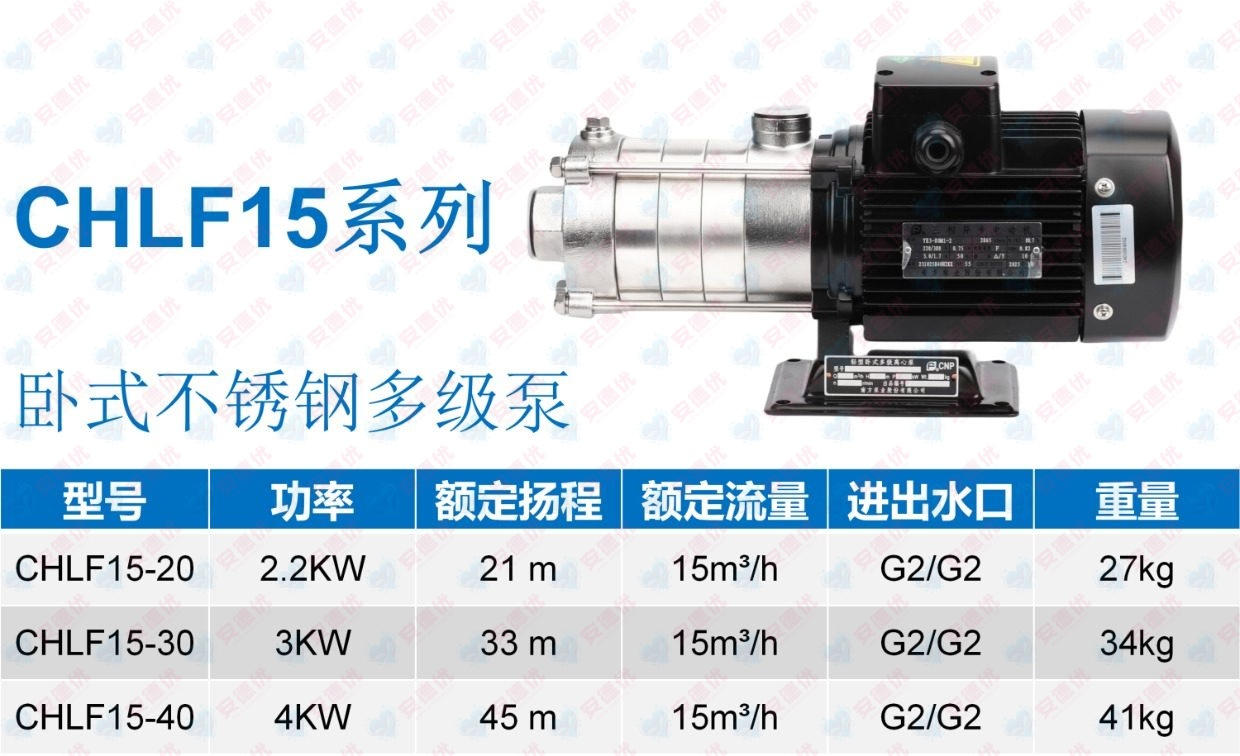

| CHLF15-10 | 15 | 9 | 1.1 | 220V/380V | 2900 | G2×G2 |
| CHLF15-20 | 15 | 21 | 2.2 | 220V/380V | 2900 | G2×G2 |
| CHLF15-30 | 15 | 33 | 3 | 380V | 2900 | G2×G2 |
| CHLF15-40 | 15 | 45 | 4 | 380V | 2900 | G2×G2 |

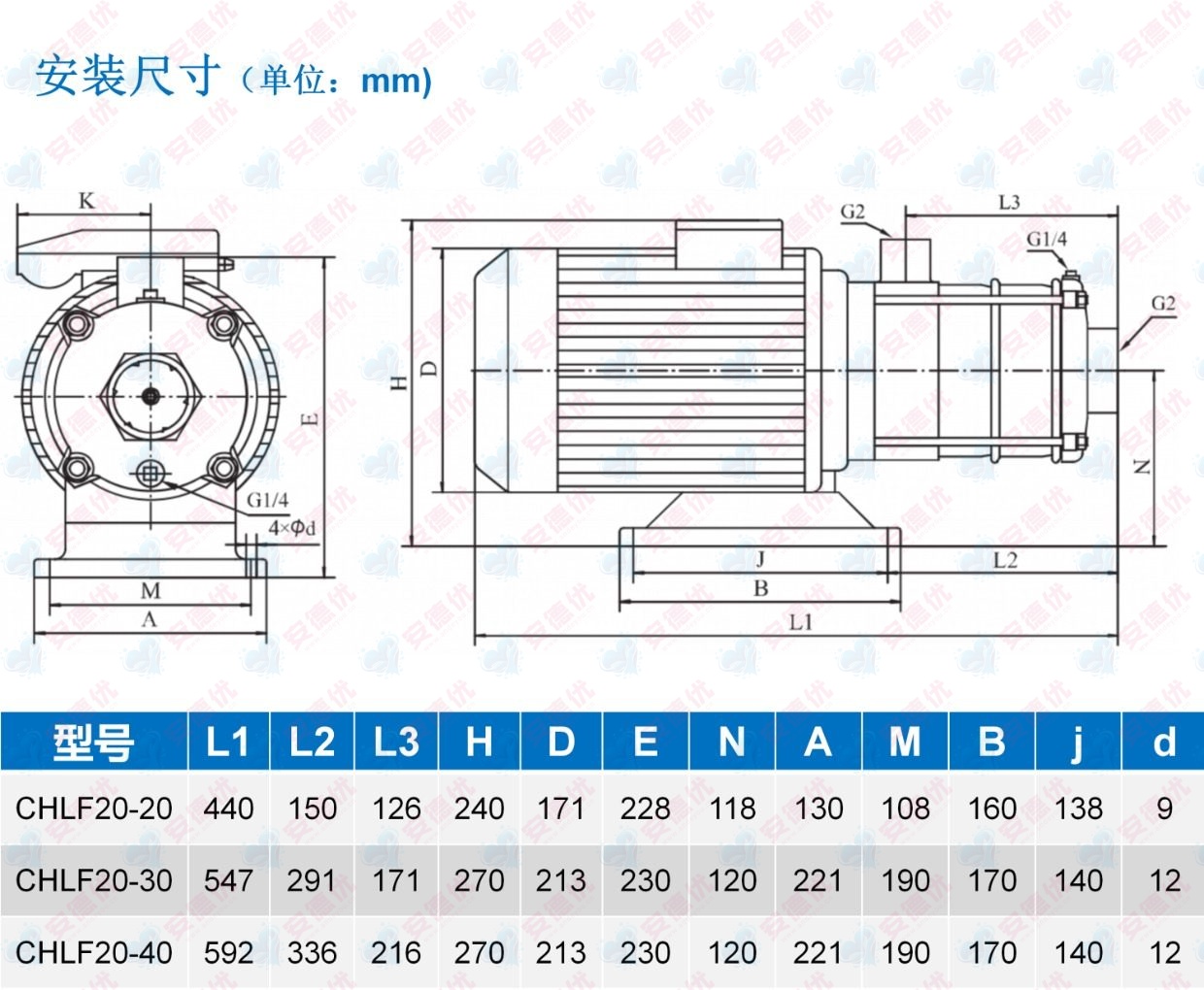

| CHLF20-10 | 20 | 10 | 1.1 | 220V/380V | 2900 | G2×G2 |
| CHLF20-20 | 20 | 22 | 2.2 | 220V/380V | 2900 | G2×G2 |
| CHLF20-30 | 20 | 34 | 4 | 380V | 2900 | G2×G2 |
| CHLF20-40 | 20 | 46.5 | 4.4 | 380V | 2900 | G2×G2 |
