产品用途：
园林浇灌、农田排灌、家庭生活用水、建筑施工给排水、音乐喷泉、水上游乐场、河道取水、浇花浇菜、园林花艺、水产养殖增氧
使用条件：
1.潜水深度需在0.5m-5m之间
2.介质PH值在6.5-8.5之间
3.介质温度不超过+40°C
4.介质中含杂质的体积比不超过0.1%，颗粒度不大于0.2mm
5.交流电源额定频率为50Hz，额定电压为单相220V、三相380V，电压波动范围为额定值的±10%

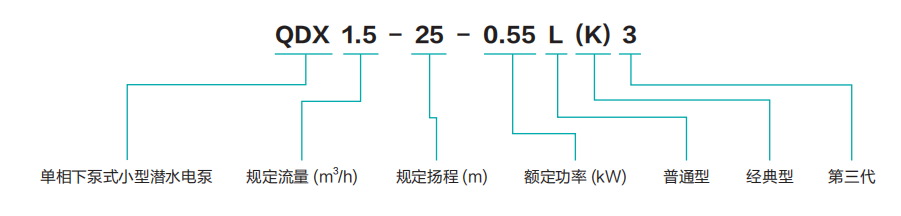

型号说明：
| 规格型号 | 额定流量 (m³/h) |
额定扬程 (m) |
额定功率 (Kw) |
额定电压 (V) |
电流 (A) |
管径 (mm) |
外形尺寸 (mm) |
净重 (Kg) |
扬程使用范围 (m) |
| QDX1.5-12-0.25K3 | 1.5 | 12 | 0.25 | 220 | 2.1 | 25 | 179*129*325 | 5.5 | 5-13 |
| QDX1.5-17-0.37K3 | 1.5 | 17 | 0.37 | 220 | 2.9 | 25 | 190*173*355 | 8 | 7-18 |
| QDX1.5-25-0.55K3 | 1.5 | 25 | 0.55 | 220 | 4.1 | 25 | 205*169*366 | 10 | 15-26 |
| QDX3-18-0.55K3 | 3 | 18 | 0.55 | 220 | 4.1 | 32 | 210*164*367 | 11 | 5-21 |
| QDX10-12-0.55K3 | 10 | 12 | 0.55 | 220 | 4.1 | 38 | 230*164*370 | 11 | 5-16 |
| QDX15-7-0.55K3 | 15 | 7 | 0.55 | 220 | 4.1 | 51 | 235*164*370 | 11 | 3-9 |
| QDX1.5-32-0.75K3 | 1.5 | 32 | 0.75 | 220 | 5.2 | 25 | 232*188*390 | 12 | 12-33 |
| QDX3-24-0.75K3 | 3 | 24 | 0.75 | 220 | 5.2 | 32 | 209*170*387 | 12 | 14-26 |
| QDX8-18-0.75K3 | 8 | 18 | 0.75 | 220 | 5.2 | 38 | 229*164*391 | 13 | 15-19 |
| QDX10-16-0.75K3 | 10 | 16 | 0.75 | 220 | 5.2 | 51 | 229*164*391 | 13 | 10-19 |
| QDX15-10-0.75K3 | 15 | 10 | 0.75 | 220 | 5.2 | 64 | 237*164*403 | 13 | 3-11 |
| QDX30-6-0.75K3 | 30 | 6 | 0.75 | 220 | 5.2 | 76 | 266*188*416 | 16 | 2-8 |
| QDX3-30-1.1K3 | 3 | 30 | 1.1 | 220 | 7.3 | 25 | 240*189*430 | 14.5 | 18-32 |
| QDX6-25-1.1K3 | 6 | 25 | 1.1 | 220 | 7.3 | 51 | 240*189*430 | 14.5 | 8-29 |
| QDX14-16-1.1K3 | 14 | 16 | 1.1 | 220 | 7.3 | 51 | 239*170*441 | 16 | 9-17 |
| QDX15-14-1.1K3 | 15 | 14 | 1.1 | 220 | 7.3 | 64 | 239*170*441 | 16 | 9-17 |
| QDX40-6-1.1K3 | 40 | 6 | 1.1 | 220 | 7.3 | 76 | 300*190*475 | 17.5 | 3-9 |
| QDX15-18-1.5K3 | 15 | 18 | 1.5 | 220 | 9.5 | 64 | 239*170*478 | 19 | 8-19 |
| QDX40-9-1.5K3 | 40 | 9 | 1.5 | 220 | 9.5 | 76 | 287*217*509 | 21 | 2-11 |
| QDX50-7-1.5K3 | 50 | 7 | 1.5 | 220 | 9.5 | 76 | 287*217*509 | 21 | 2-11 |
| QDX50-7-1.5K3 | 50 | 7 | 1.5 | 220 | 9.5 | 102 | 287*217*509 | 21 | 2-11 |
| QX10-12-0.55K3 | 10 | 12 | 0.55 | 380 | 1.6 | 38 | 230*164*370 | 10 | 5-16 |
| QX1.5-32-0.75K3 | 1.5 | 32 | 0.75 | 380 | 2.2 | 25 | 232*188*390 | 11 | 12-33 |
| QX3-24-0.75K3 | 3 | 24 | 0.75 | 380 | 2.2 | 32 | 209*170*387 | 11 | 14-26 |
| QX8-18-0.75K3 | 8 | 18 | 0.75 | 380 | 2.2 | 38 | 229*164*391 | 12 | 15-19 |
| QX10-16-0.75K3 | 10 | 16 | 0.75 | 380 | 2.2 | 51 | 229*164*391 | 12 | 10-19 |
| QX30-6-0.75K3 | 30 | 6 | 0.75 | 380 | 2.2 | 76 | 266*188*416 | 14 | 2-8 |
| QX3-30-1.1K3 | 3 | 30 | 1.1 | 380 | 2.7 | 25 | 240*189*430 | 13 | 18-32 |
| QX6-25-1.1K3 | 6 | 25 | 1.1 | 380 | 2.7 | 51 | 240*189*430 | 13 | 8-29 |
| QX14-16-1.1K3 | 14 | 16 | 1.1 | 380 | 2.7 | 51 | 239*170*441 | 14.5 | 9-17 |
| QX15-14-1.1K3 | 15 | 14 | 1.1 | 380 | 2.7 | 64 | 239*170*441 | 14.5 | 9-17 |
| QX40-6-1.1K3 | 40 | 6 | 1.1 | 380 | 2.7 | 76 | 300*190*475 | 17 | 3-9 |
| QX15-18-1.5K3 | 15 | 18 | 1.5 | 380 | 3.6 | 64 | 239*170*458 | 16.5 | 8-19 |
| QX40-9-1.5K3 | 25 | 12 | 1.5 | 380 | 3.6 | 64 | 238*168*470 | 16.5 | 5-15 |
| QX50-7-1.5K3 | 40 | 9 | 1.5 | 380 | 3.6 | 76 | 287*217*489 | 19 | 2-11 |
| QX50-7-1.5K3 | 50 | 7 | 1.5 | 380 | 3.6 | 102 | 287*217*489 | 19 | 2-11 |
