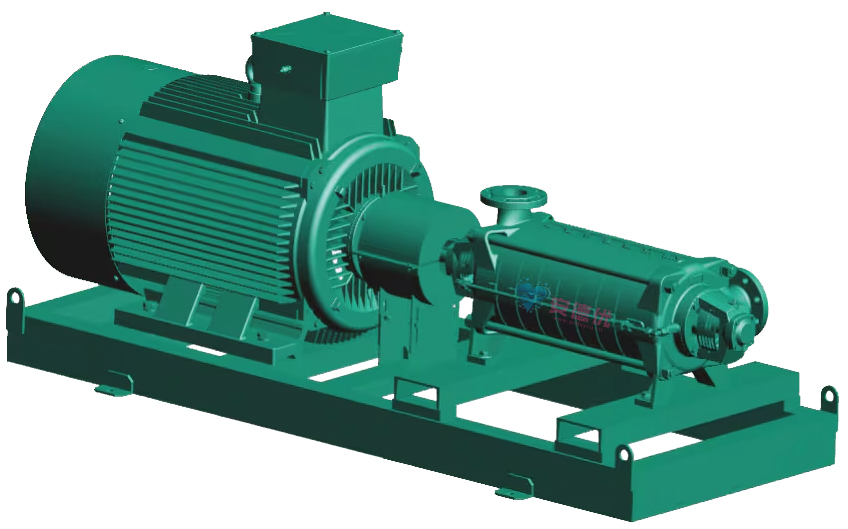

威乐Zeox FIRST H卧式多级离心泵

Zeox FIRST H 3202-5,5-2、Zeox FIRST H 3202-7,5-2、Zeox FIRST H 3202-9-2、Zeox FIRST H 3203-7,5-2、Zeox FIRST H 3203-9-2、Zeox FIRST H 3203-11-2、Zeox FIRST H 3203-15-2、Zeox FIRST H 3204-9-2、Zeox FIRST H 3204-11-2、Zeox FIRST H 3204-15-2、Zeox FIRST H 3204-18,5-2、Zeox FIRST H 3205-11-2、Zeox FIRST H 3205-15-2、Zeox FIRST H 3205-18,5-2、Zeox FIRST H 3205-22-2、Zeox FIRST H 3206-15-2

威乐Zeox FIRST H卧式多级离心泵，专为苛刻的工业与商业应用打造。该系列水泵采用不锈钢核心部件，具备高效节能、超低静音与长久耐用的卓越特性。它支持智能变频控制，轻松实现稳定可靠的恒压供水，是酒店、医院、区域供热及工业循环系统等领域的理想选择。威乐品牌提供全面技术支持与专业服务，为您的系统高效稳定运行保驾护航。立即联系我们，获取专属解决方案。
在线留言 电话咨询
功能特点
规格参数
外形尺寸
视频介绍

功能特点

特点/产品优势

  • 高效水力部件和带PTC传感器的高效电机（至少为IE3）的组合降低了能源成本
  • 高质量的制造材料、平衡的叶轮和内冲洗式机械密封提高了运行可靠性
  • 根据要求制造，精准满足您对工况点的特定要求
  • 模块化结构，配备智能法兰定位，以满足客户的个性化要求

结构

不带自吸的高效高压多级离心泵

应用

  • 商用农业
  • 供水/升压
  • 消防
  • 暖气、空气调节、冷却

设备/功能

  • 标配高效电机（≤ 55 kW：IE3，≥ 75 kW：IE4）
  • 经旁通管路的冲洗装置实现了长使用寿命
  • 可应要求提供填料密封，采用独有的“Twinner系统”设计，更换时无需拆卸水泵。

型号代码

示例：

Zeox FIRST V9004/A-75-2-S20-S6D6/B

Zeox FIRST

分段结构不带自吸的多级高压多级离心泵

V 或 H

立式或卧式安装

90

流量 Q，m3/h

04

叶轮数

A

叶轮类型（V 结构）

75

电机功率 (kW)

2

2 极电机

S20

结构变体：无规格 = 标准结构，叶轮由青铜制成：L1，填料密封：S20

S6D6

采用其他法兰和轴找正对中的变体：无规格 = 标准找正对中，SXDX

B

技术开发指数

技术数据

  • 电源连接 3~400 V，50 Hz
  • 最大入口压力：立式结构为 6 bar；卧式结构为 16 bar
  • 最高流体温度范围 -5 °C 至 +90 °C
  • 最高环境温度范围 -10 °C 至 +40 °C
  • 最大工作压力：立式结构为 27 bar，卧式结构 DN 80 为 55 bar，卧式结构 DN 100 为 50 bar
  • 防护等级：IP55
  • 压力和吸入侧的连接：立式结构为 DN 80 和 DN 100，卧式结构为 DN 65、DN 80、DN 100、DN 150

材料

  • 水泵壳体和联轴器由灰口铸铁制成，采用优质油漆作业，耐腐蚀性较高
  • 底座和电机支架由钢制成，采用优质油漆作业，耐腐蚀性较高
  • 分级壳体和导向叶片装置由灰口铸铁制成，叶轮由带电泳涂层的灰口铸铁制成
  • 分级壳体密封垫由 NBR 制成
  • 滑动轴承由青铜制成
  • 轴由碳钢或不锈钢制成
  • 机械密封的旋转和静止环：碳化钨/碳
  • 机械密封垫由 NBR/PTFE 制成
  • PTFE 密封件

出厂状态

  • 卧式水泵系统，配有多级水力部件、联轴器和安装在底座上的校准的电机
  • 安装及操作说明

选项

  • 可根据要求提供特殊的法兰和轴端位置
  • 可根据要求提供价格更低的填料函压盖密封环
  • 可根据要求提供青铜或不锈钢的叶轮和轴
  • 可应要求根据ISO 9906标准进行水力部件检查和/或NPSH测量

附件

  • Zyklonabscheider

规格参数

型号 电压
(V)		 额定流量
(m³/h)		 额定扬程
(m)		 功率
(W)		 能效等级 额定转速(rpm) 口径
Zeox FIRST H 3202-5,5-2 380V 32 60 5.5 IE3 2900 DN65×DN50
Zeox FIRST H 3202-7,5-2 380V 32 60 7.5 IE3 2900 DN65×DN50
Zeox FIRST H 3202-9-2 380V 32 60 9 IE3 2900 DN65×DN50
Zeox FIRST H 3203-7,5-2 380V 32 90 7.5 IE3 2900 DN65×DN50
Zeox FIRST H 3203-9-2 380V 32 90 9 IE3 2900 DN65×DN50
Zeox FIRST H 3203-11-2 380V 32 90 11 IE3 2900 DN65×DN50
Zeox FIRST H 3203-15-2 380V 32 90 15 IE3 2900 DN65×DN50
Zeox FIRST H 3204-9-2 380V 31 121 9 IE3 2900 DN65×DN50
Zeox FIRST H 3204-11-2 380V 31 121 11 IE3 2900 DN65×DN50
Zeox FIRST H 3204-15-2 380V 31 121 15 IE3 2900 DN65×DN50
Zeox FIRST H 3204-18,5-2 380V 31 121 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 3205-11-2 380V 31 152 11 IE3 2900 DN65×DN50
Zeox FIRST H 3205-15-2 380V 31 152 15 IE3 2900 DN65×DN50
Zeox FIRST H 3205-18,5-2 380V 31 152 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 3205-22-2 380V 31 152 22 IE3 2900 DN65×DN50
Zeox FIRST H 3206-15-2 380V 31 182 15 IE3 2900 DN65×DN50
Zeox FIRST H 3206-18,5-2 380V 31 182 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 3206-22-2 380V 31 182 22 IE3 2900 DN65×DN50
Zeox FIRST H 3206-30-2 380V 31 182 30 IE3 2900 DN65×DN50
Zeox FIRST H 3207-15-2 380V 31 212 15 IE3 2900 DN65×DN50
Zeox FIRST H 3207-18,5-2 380V 31 212 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 3207-22-2 380V 31 212 22 IE3 2900 DN65×DN50
Zeox FIRST H 3207-30-2 380V 31 212 30 IE3 2900 DN65×DN50
Zeox FIRST H 3208-18,5-2 380V 31 242 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 3208-22-2 380V 31 242 22 IE3 2900 DN65×DN50
Zeox FIRST H 3208-30-2 380V 31 242 30 IE3 2900 DN65×DN50
Zeox FIRST H 3208-37-2 380V 31 242 37 IE3 2900 DN65×DN50
Zeox FIRST H 3209-18,5-2 380V 31 272 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 3209-22-2 380V 31 272 22 IE3 2900 DN65×DN50
Zeox FIRST H 3209-30-2 380V 31 272 30 IE3 2900 DN65×DN50
Zeox FIRST H 3209-37-2 380V 31 272 37 IE3 2900 DN65×DN50
Zeox FIRST H 3210-22-2 380V 31 302 22 IE3 2900 DN65×DN50
Zeox FIRST H 3210-30-2 380V 31 302 30 IE3 2900 DN65×DN50
Zeox FIRST H 3210-37-2 380V 31 302 37 IE3 2900 DN65×DN50
Zeox FIRST H 3210-45-2 380V 31 302 45 IE3 2900 DN65×DN50
Zeox FIRST H 3211-22-2 380V 31 332 22 IE3 2900 DN65×DN50
Zeox FIRST H 3211-30-2 380V 31 332 30 IE3 2900 DN65×DN50
Zeox FIRST H 3211-37-2 380V 31 332 37 IE3 2900 DN65×DN50
Zeox FIRST H 3211-45-2 380V 31 332 45 IE3 2900 DN65×DN50
Zeox FIRST H 3212-30-2 380V 31 362 30 IE3 2900 DN65×DN50
Zeox FIRST H 3212-37-2 380V 31 362 37 IE3 2900 DN65×DN50
Zeox FIRST H 3212-45-2 380V 31 362 45 IE3 2900 DN65×DN50
Zeox FIRST H 3212-55-2 380V 31 362 55 IE3 2900 DN65×DN50
Zeox FIRST H 3213-30-2 380V 31 395 30 IE3 2900 DN65×DN50
Zeox FIRST H 3213-37-2 380V 31 395 37 IE3 2900 DN65×DN50
Zeox FIRST H 3213-45-2 380V 31 395 45 IE3 2900 DN65×DN50
Zeox FIRST H 3213-55-2 380V 31 395 55 IE3 2900 DN65×DN50
Zeox FIRST H 4202-7,5-2 380V 37 70 7.5 IE3 2900 DN65×DN50
Zeox FIRST H 4202-9-2 380V 37 70 9 IE3 2900 DN65×DN50
Zeox FIRST H 4202-11-2 380V 37 70 11 IE3 2900 DN65×DN50
Zeox FIRST H 4202-15-2 380V 37 70 15 IE3 2900 DN65×DN50
Zeox FIRST H 4203-9-2 380V 37 105 9 IE3 2900 DN65×DN50
Zeox FIRST H 4203-11-2 380V 37 105 11 IE3 2900 DN65×DN50
Zeox FIRST H 4203-15-2 380V 37 105 15 IE3 2900 DN65×DN50
Zeox FIRST H 4203-18,5-2 380V 37 105 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 4204-15-2 380V 37 140 15 IE3 2900 DN65×DN50
Zeox FIRST H 4204-18,5-2 380V 37 140 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 4204-22-2 380V 37 140 22 IE3 2900 DN65×DN50
Zeox FIRST H 4204-30-2 380V 37 140 30 IE3 2900 DN65×DN50
Zeox FIRST H 4205-15-2 380V 37 175 15 IE3 2900 DN65×DN50
Zeox FIRST H 4205-18,5-2 380V 37 175 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 4205-22-2 380V 37 175 22 IE3 2900 DN65×DN50
Zeox FIRST H 4205-30-2 380V 37 175 30 IE3 2900 DN65×DN50
Zeox FIRST H 4206-18,5-2 380V 37 210 18.5 IE3 2900 DN65×DN50
Zeox FIRST H 4206-22-2 380V 37 210 22 IE3 2900 DN65×DN50
Zeox FIRST H 4206-30-2 380V 37 210 30 IE3 2900 DN65×DN50
Zeox FIRST H 4206-37-2 380V 37 210 37 IE3 2900 DN65×DN50
Zeox FIRST H 4207-22-2 380V 37 245 22 IE3 2900 DN65×DN50
Zeox FIRST H 4207-30-2 380V 37 245 30 IE3 2900 DN65×DN50
Zeox FIRST H 4207-37-2 380V 37 245 37 IE3 2900 DN65×DN50
Zeox FIRST H 4207-45-2 380V 37 245 45 IE3 2900 DN65×DN50
Zeox FIRST H 4208-30-2 380V 36 280 30 IE3 2900 DN65×DN50
Zeox FIRST H 4208-37-2 380V 36 280 37 IE3 2900 DN65×DN50
Zeox FIRST H 4208-45-2 380V 36 280 45 IE3 2900 DN65×DN50
Zeox FIRST H 4208-55-2 380V 36 280 55 IE3 2900 DN65×DN50
Zeox FIRST H 4209-30-2 380V 37 315 45 IE3 2900 DN65×DN50
Zeox FIRST H 4209-37-2 380V 37 315 37 IE3 2900 DN65×DN50
Zeox FIRST H 4209-45-2 380V 37 315 45 IE3 2900 DN65×DN50
Zeox FIRST H 4209-55-2 380V 37 315 55 IE3 2900 DN65×DN50
Zeox FIRST H 4210-37-2 380V 37 350 37 IE3 2900 DN65×DN50
Zeox FIRST H 4210-45-2 380V 37 350 45 IE3 2900 DN65×DN50
Zeox FIRST H 4210-55-2 380V 37 350 55 IE3 2900 DN65×DN50
Zeox FIRST H 4210-75-2 380V 37 350 75 IE4 2900 DN65×DN50
Zeox FIRST H 4211-37-2 380V 37 385 37 IE3 2900 DN65×DN50
Zeox FIRST H 4211-45-2 380V 37 385 45 IE3 2900 DN65×DN50
Zeox FIRST H 4211-55-2 380V 37 385 55 IE3 2900 DN65×DN50
Zeox FIRST H 4211-75-2 380V 37 385 55 IE3 2900 DN65×DN50
Zeox FIRST H 4212-37-2 380V 37 420 37 IE3 2900 DN65×DN50
Zeox FIRST H 4212-45-2 380V 37 420 45 IE3 2900 DN65×DN50
Zeox FIRST H 4212-55-2 380V 37 420 55 IE3 2900 DN65×DN50
Zeox FIRST H 4212-75-2 380V 37 420 75 IE4 2900 DN65×DN50
Zeox FIRST H 6002-18,5-2 380V 72.5 98 18.5 IE3 2900 DN80×DN65
Zeox FIRST H 6002-22-2 380V 72.5 98 22 IE3 2900 DN80×DN65
Zeox FIRST H 6002-30-2 380V 72.5 98 30 IE3 2900 DN80×DN65
Zeox FIRST H 6003-22-2 380V 72.5 147 22 IE3 2900 DN80×DN65
Zeox FIRST H 6003-30-2 380V 72.5 147 30 IE3 2900 DN80×DN65
Zeox FIRST H 6003-37-2 380V 72.5 147 37 IE3 2900 DN80×DN65
Zeox FIRST H 6003-45-2 380V 72.5 147 45 IE3 2900 DN80×DN65
Zeox FIRST H 6004-37-3 380V 72.5 196 37 IE3 2900 DN80×DN65
Zeox FIRST H 6004-45-2 380V 72.5 196 45 IE3 2900 DN80×DN65
Zeox FIRST H 6004-55-2 380V 72.5 196 55 IE3 2900 DN80×DN65
Zeox FIRST H 6005-45-2 380V 72.5 245 45 IE3 2900 DN80×DN65
Zeox FIRST H 6005-55-2 380V 72.5 245 55 IE3 2900 DN80×DN65
Zeox FIRST H 6005-75-2 380V 72.5 245 75 IE4 2900 DN80×DN65
Zeox FIRST H 6006-55-2 380V 72.5 292 55 IE3 2900 DN80×DN65
Zeox FIRST H 6006-75-2 380V 72.5 292 75 IE4 2900 DN80×DN65
Zeox FIRST H 6006-90-2 380V 72.5 292 90 IE4 2900 DN80×DN65
Zeox FIRST H 6007-75-2 380V 72.5 342 75 IE4 2900 DN80×DN65
Zeox FIRST H 6007-90-2 380V 72.5 342 90 IE4 2900 DN80×DN65
Zeox FIRST H 6007-110-2 380V 72.5 342 110 IE4 2900 DN80×DN65
Zeox FIRST H 6008-75-2 380V 72.5 391 75 IE4 2900 DN80×DN65
Zeox FIRST H 6008-90-2 380V 72.5 391 90 IE4 2900 DN80×DN65
Zeox FIRST H 6008-110-2 380V 72.5 391 110 IE4 2900 DN80×DN65
Zeox FIRST H 6009-75-2 380V 72.5 440 75 IE4 2900 DN80×DN65
Zeox FIRST H 6009-90-2 380V 72.5 440 90 IE4 2900 DN80×DN65
Zeox FIRST H 6009-110-2 380V 72.5 440 110 IE4 2900 DN80×DN65
Zeox FIRST H 6009-132-2 380V 72.5 440 132 IE4 2900 DN80×DN65
Zeox FIRST H 9002-22-2 380V 84 105 22 IE3 2900 DN80×DN65
Zeox FIRST H 9002-30-2 380V 84 105 30 IE3 2900 DN80×DN65
Zeox FIRST H 9002-37-2 380V 84 105 37 IE3 2900 DN80×DN65
Zeox FIRST H 9003-30-2 380V 84 159 30 IE3 2900 DN80×DN65
Zeox FIRST H 9003-37-2 380V 84 159 37 IE3 2900 DN80×DN65
Zeox FIRST H 9003-45-2 380V 84 159 45 IE3 2900 DN80×DN65
Zeox FIRST H 9003-55-2 380V 84 159 55 IE3 2900 DN80×DN65
Zeox FIRST H 9004-37-2 380V 84 210 37 IE3 2900 DN80×DN65
Zeox FIRST H 9004-45-2 380V 84 210 45 IE3 2900 DN80×DN65
Zeox FIRST H 9004-55-2 380V 84 210 55 IE3 2900 DN80×DN65
Zeox FIRST H 9004-75-2 380V 84 210 75 IE4 2900 DN80×DN65
Zeox FIRST H 9005-55-2 380V 83 264 55 IE3 2900 DN80×DN65
Zeox FIRST H 9005-75-2 380V 83 264 75 IE4 2900 DN80×DN65
Zeox FIRST H 9005-90-2 380V 83 264 90 IE4 2900 DN80×DN65
Zeox FIRST H 9006-75-2 380V 83 318 75 IE4 2900 DN80×DN65
Zeox FIRST H 9006-90-2 380V 83 318 90 IE4 2900 DN80×DN65
Zeox FIRST H 9006-110-2 380V 83 318 110 IE4 2900 DN80×DN65
Zeox FIRST H 9007-75-2 380V 83 370 75 IE4 2900 DN80×DN65
Zeox FIRST H 9007-90-2 380V 83 370 90 IE4 2900 DN80×DN65
Zeox FIRST H 9007-110-2 380V 83 370 110 IE4 2900 DN80×DN65
Zeox FIRST H 9007-132-2 380V 83 370 132 IE4 2900 DN80×DN65
Zeox FIRST H 9008-90-2 380V 83 420 90 IE4 2900 DN80×DN65
Zeox FIRST H 9008-110-2 380V 83 420 110 IE4 2900 DN80×DN65
Zeox FIRST H 9008-132-2 380V 83 420 132 IE4 2900 DN80×DN65
Zeox FIRST H 9008-160-2 380V 83 420 160 IE4 2900 DN80×DN65
Zeox FIRST H 12002-45-2 380V 138 138 45 IE3 2900 DN100×DN80
Zeox FIRST H 12002-55-2 380V 138 138 55 IE3 2900 DN100×DN80
Zeox FIRST H 12002-75-2 380V 138 138 75 IE4 2900 DN100×DN80
Zeox FIRST H 12003-75-2 380V 138 207 75 IE4 2900 DN100×DN80
Zeox FIRST H 12003-90-2 380V 138 207 90 IE4 2900 DN100×DN80
Zeox FIRST H 12003-110-2 380V 138 207 110 IE4 2900 DN100×DN80
Zeox FIRST H 12004-90-2 380V 138 275 90 IE4 2900 DN100×DN80
Zeox FIRST H 12004-110-2 380V 138 275 110 IE4 2900 DN100×DN80
Zeox FIRST H 12004-132-2 380V 138 275 132 IE4 2900 DN100×DN80
Zeox FIRST H 12004-160-2 380V 138 275 160 IE4 2900 DN100×DN80
Zeox FIRST H 12005-110-2 380V 138 344 110 IE4 2900 DN100×DN80
Zeox FIRST H 12005-132-2 380V 138 344 132 IE4 2900 DN100×DN80
Zeox FIRST H 12005-160-2 380V 138 344 160 IE4 2900 DN100×DN80
Zeox FIRST H 12005-200-2 380V 138 344 200 IE4 2900 DN100×DN80
Zeox FIRST H 12006-132-2 380V 139 410 132 IE4 2900 DN100×DN80
Zeox FIRST H 12006-160-2 380V 139 410 160 IE4 2900 DN100×DN80
Zeox FIRST H 12006-200-2 380V 139 410 200 IE4 2900 DN100×DN80
Zeox FIRST H 12006-250-2 380V 139 410 250 IE4 2900 DN100×DN80
Zeox FIRST H 16002-55-2 380V 171 133 55 IE4 2900 DN100×DN80
Zeox FIRST H 16002-75-2 380V 171 133 75 IE4 2900 DN100×DN80
Zeox FIRST H 16002-90-2 380V 171 133 90 IE4 2900 DN100×DN80
Zeox FIRST H 16002-110-2 380V 171 133 110 IE4 2900 DN100×DN80
Zeox FIRST H 16003-75-2 380V 170 200 75 IE4 2900 DN100×DN80
Zeox FIRST H 16003-90-2 380V 170 200 90 IE4 2900 DN100×DN80
Zeox FIRST H 16003-110-2 380V 170 200 110 IE4 2900 DN100×DN80
Zeox FIRST H 16003-132-2 380V 170 200 132 IE4 2900 DN100×DN80
Zeox FIRST H 16003-160-2 380V 170 200 160 IE4 2900 DN100×DN80
Zeox FIRST H 16004-110-2 380V 170 265 110 IE4 2900 DN100×DN80
Zeox FIRST H 16004-132-2 380V 170 265 132 IE4 2900 DN100×DN80
Zeox FIRST H 16004-160-2 380V 170 265 160 IE4 2900 DN100×DN80
Zeox FIRST H 16004-200-2 380V 170 265 200 IE4 2900 DN100×DN80
Zeox FIRST H 16005-132-2 380V 170 330 132 IE4 2900 DN100×DN80
Zeox FIRST H 16005-160-2 380V 170 330 160 IE4 2900 DN100×DN80
Zeox FIRST H 16005-200-2 380V 170 330 200 IE4 2900 DN100×DN80
Zeox FIRST H 16005-250-2 380V 170 330 250 IE4 2900 DN100×DN80
Zeox FIRST H 16006-160-2 380V 170 400 160 IE4 2900 DN100×DN80
Zeox FIRST H 16006-200-2 380V 170 400 200 IE4 2900 DN100×DN80
Zeox FIRST H 16006-250-2 380V 170 400 250 IE4 2900 DN100×DN80
Zeox FIRST H 16006-315-2 380V 170 400 315 IE4 2900 DN100×DN80
Zeox FIRST H 20002-90-2 380V 260 160 90 IE4 2900 DN150×DN125
Zeox FIRST H 20002-110-2 380V 260 160 110 IE4 2900 DN150×DN125
Zeox FIRST H 20002-132-2 380V 260 160 132 IE4 2900 DN150×DN125
Zeox FIRST H 20002-160-2 380V 260 160 160 IE4 2900 DN150×DN125
Zeox FIRST H 20003-160-2 380V 260 240 160 IE4 2900 DN150×DN125
Zeox FIRST H 20003-200-2 380V 260 240 200 IE4 2900 DN150×DN125
Zeox FIRST H 20003-250-2 380V 260 240 250 IE4 2900 DN150×DN125
Zeox FIRST H 24002-132-2 380V 295 174 132 IE4 2900 DN150×DN125
Zeox FIRST H 24002-160-2 380V 295 174 160 IE4 2900 DN150×DN125
Zeox FIRST H 24002-200-2 380V 295 174 200 IE4 2900 DN150×DN125
Zeox FIRST H 24003-200-2 380V 295 260 200 IE4 2900 DN150×DN125
Zeox FIRST H 24003-250-2 380V 295 260 250 IE4 2900 DN150×DN125
Zeox FIRST H 24003-315-2 380V 295 260 315 IE4 2900 DN150×DN125
Zeox FIRST H 28002-132-2 380V 310 170 132 IE4 2900 DN150×DN125
Zeox FIRST H 28002-160-2 380V 310 170 160 IE4 2900 DN150×DN125
Zeox FIRST H 28002-200-2 380V 310 170 200 IE4 2900 DN150×DN125
Zeox FIRST H 28003-200-2 380V 310 267 200 IE4 2900 DN150×DN125
Zeox FIRST H 28003-250-2 380V 310 267 250 IE4 2900 DN150×DN125
Zeox FIRST H 28003-315-2 380V 310 267 315 IE4 2900 DN150×DN125

外形尺寸

视频介绍

留言咨询

*
*
*
*
*
提交
