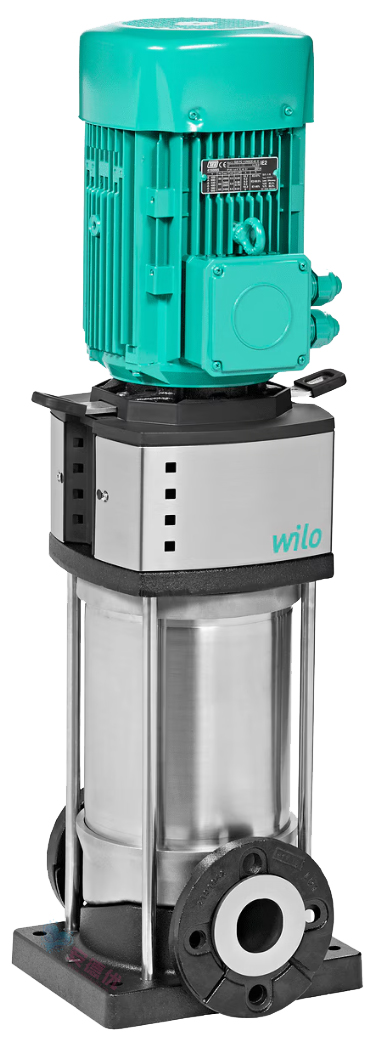

威乐Multivert MVI不锈钢立式多级离心泵

MVI 7001-3/16/E/3-380-50-2(B-cx)-S、MVI 7001-3/25/E/3-380-50-2(B-cx)-S、MVI 7001/1-3/16/E/3-380-50-2(B-cx)-S、MVI 7001/1-3/25/E/3-380-50-2(B-cx)-S、MVI 7002-3/16/E/3-380-50-2(B-cx)-S、MVI 7002-3/25/E/3-380-50-2(B-cx)-S、MVI 7002/1-3/16/E/3-380-50-2(B-cx)-S、MVI 7002/1-3/25/E/3-380-50-2(B-cx)-S、MVI 7002/2-3/16/E/3-380-50-2(B-cx)-S、MVI 7002/2-3/25/E/3-380-50-2(B-cx)-S

威乐Multivert MVI不锈钢立式多级离心泵，专为高标准供水需求设计。其核心过流部件采用全不锈钢材质，具备出色的耐腐蚀与耐污染特性，确保水质纯净，完美适用于生活热水循环、HVAC系统及食品医药等卫生要求严格的领域。该泵秉承威乐高效节能技术，运行稳定可靠，结构紧凑，是追求长效稳定与卓越性能的理想解决方案。选择威乐原厂正品，为您的关键系统提供持久动力。
Product Consultation 电话咨询
功能特点
规格参数
外形尺寸
视频介绍

功能特点

特点/产品优势

  • 防腐蚀叶轮、散流器和分级壳体
  • 接触介质的所有部件（EPDM 型）均获得了饮用水许可

结构

串联式连接的立式结构不带自吸多级高压离心泵。

应用

  • 供水和升压
  • 消防设备
  • 锅炉给水
  • 工业循环设备
  • 过程工程
  • 冷却水循环系统
  • 清洗和喷洒设备

设备/功能

  • MVI 70..和 95..：PN 16 和 PN 25 型号带有圆法兰

型号代码

示例：

MVI 7002/1-3/16/E/3-400-50-2

MVI

立式高压多级离心泵

70

流量，m3/h

02

叶轮数

1

已切削叶轮数

3

3= 水泵壳体为 EN-GJL-250（电泳涂层），水力部件为 1.4301 (AISI 304)

16

法兰类型 16 = 法兰 PN 16（圆形或椭圆形） 25 = 法兰 PN 25（圆形或椭圆形）

E

密封垫类型 E = EPDM V = FKM（氟橡胶）

3

3 = 3~（三相交流电）

400

连接电压，V

50

频率，Hz

2

极数

技术数据

  • 电路连接：
    • 3~400 V (±10 %)，50 Hz
    • ≤ 4 kW 230 V/400 V；Δ/Y
    • > 4 kW 400 V/690 V；Δ/Y
  • 流体温度 -15 °C 至 +120 °C（采用 EPDM）（-15 °C 至 +90 °C，采用 FKM）
  • 最大工作压力 16/25 bar
  • 最大入口压力 10 bar
  • 防护等级 IP55
  • 法兰连接：
  • MVI 70../95..PN 16/PN 25：圆法兰 (DN 100)

材料

MVI 70../95..：

  • 叶轮由不锈钢 1.4408 (AISI 316) 制成
  • 级室由 1.4301 (AISI 304) 不锈钢制成
  • 水泵壳体由带电泳涂层的灰口铸铁 EN-GJL 250 制成
  • 轴由 1.4057 (AISI 431) 不锈钢制成
  • 密封垫 EPDM
  • 壳体外罩由 1.4301 (AISI 304) 不锈钢制成
  • 壳体底部由 1.4301 (AISI 304) 不锈钢制成
  • 机械密封由 B 碳/碳化钨、SiC/碳制成
  • 压力罩由 1.4301 (AISI 304) 不锈钢制成
  • 轴承由碳化钨制成

出厂状态

  • MVI 高压多级离心泵
  • 安装及操作说明

规格参数

型号 电压
(V)		 额定流量
(m³/h)		 额定扬程
(m)		 功率
(kW)		 电机能效 口径
MVI 7001-3/16/E/3-380-50-2(B-cx)-S 380V 70 19 5.5   DN100×DN80
MVI 7001-3/25/E/3-380-50-2(B-cx)-S 380V 70 19 5.5   DN100×DN100
MVI 7001/1-3/16/E/3-380-50-2(B-cx)-S 380V 70 13.2 4   DN100×DN100
MVI 7001/1-3/25/E/3-380-50-2(B-cx)-S 380V 70 13.2 4   DN100×DN100
MVI 7002-3/16/E/3-380-50-2(B-cx)-S 380V 70 40 11   DN100×DN100
MVI 7002-3/25/E/3-380-50-2(B-cx)-S 380V 70 40 11   DN100×DN100
MVI 7002/1-3/16/E/3-380-50-2(B-cx)-S 380V 70 33 11   DN100×DN100
MVI 7002/1-3/25/E/3-380-50-2(B-cx)-S 380V 70 33 11   DN100×DN100
MVI 7002/2-3/16/E/3-380-50-2(B-cx)-S 380V 70 27 7.5   DN100×DN100
MVI 7002/2-3/25/E/3-380-50-2(B-cx)-S 380V 70 27 7.5   DN100×DN100
MVI7002G-1/16/E/K/3-380-50-2(a-dk1) 380V 70 40 11 CL2 DN100×DN100
MVI7002G-2/16/E/K/3-380-50-2(a-dk1) 380V 70 40 11 CL2 DN100×DN100
MVI 7003-3/16/E/3-380-50-2(B-dk1)-S 380V 70 62 18.5 GB3 DN100×DN100
MVI 7003-3/25/E/3-380-50-2(B-dk1)-S 380V 70 62 18.5 GB3 DN100×DN100
MVI 7003/1-3/16/E/3-380-50-2(B-dk1)-S 380V 70 54 15 GB3 DN100×DN100
MVI 7003/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 54 15 GB3 DN100×DN100
MVI7003/1G-1/16/E/K/3-380-50-2(a-dk1) 380V 70 54 15 GB3 DN100×DN100
MVI7003/1G-2/16/E/K/3-380-50-2(a-dk1) 380V 70 54 15 GB3 DN100×DN100
MVI 7003/2-3/16/E/3-380-50-2(B-dk1)-S 380V 70 47 15 GB3 DN100×DN100
MVI 7003/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 47 15 GB3 DN100×DN100
MVI7003/2G-1/16/E/K/3-380-50-2(a-dk1) 380V 70 48 15 GB3 DN100×DN100
MVI7003/2G-2/16/E/K/3-380-50-2(a-dk1) 380V 70 48 15 GB3 DN100×DN100
MVI7003G-1/16/E/K/3-380-50-2(a-dk1) 380V 70 63 18.5 GB3 DN100×DN100
MVI7003G-2/16/E/K/3-380-50-2(a-dk1) 380V 70 63 18.5 GB3 DN100×DN100
MVI 7004-3/16/E/3-380-50-2(B-dk1)-S 380V 70 83 22 GB3 DN100×DN100
MVI 7004-3/25/E/3-380-50-2(B-dk1)-S 380V 70 83 22 GB3 DN100×DN100
MVI 7004/1-3/16/E/3-380-50-2(B-dk1)-S 380V 70 76 22 GB3 DN100×DN100
MVI 7004/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 76 22 GB3 DN100×DN100
MVI 7004/2-3/16/E/3-380-50-2(B-dk1)-S 380V 70 68 18.5 GB3 DN100×DN100
MVI 7004/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 68 18.5 GB3 DN100×DN100
MVI 7005-3/16/E/3-380-50-2(B-dk1)-S 380V 70 105 30 GB3 DN100×DN100
MVI 7005-3/25/E/3-380-50-2(B-dk1)-S 380V 70 105 30 GB3 DN100×DN100
MVI 7005/1-3/16/E/3-380-50-2(B-dk1)-S 380V 70 98 30 GB3 DN100×DN100
MVI 7005/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 98 30 GB3 DN100×DN100
MVI 7005/2-3/16/E/3-380-50-2(B-dk1)-S 380V 70 91 30 GB3 DN100×DN100
MVI 7005/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 91 30 GB3 DN100×DN100
MVI 7006-3/25/E/3-380-50-2(B-dk1)-S 380V 70 126 37 GB3 DN100×DN100
MVI 7006/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 118 37 GB3 DN100×DN100
MVI 7006/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 112 30 GB3 DN100×DN100
MVI 7007/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 138 37 GB3 DN100×DN100
MVI 7007/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 132 37 GB3 DN100×DN100
MVI7007G-1/25/E/K/3-380-50-2(a-dk1) 380V 70 155 45 CL2 DN100×DN100
MVI7007G-2/25/E/K/3-380-50-2(a-dk1) 380V 70 155 45 CL2 DN100×DN100
MVI 9501-3/16/E/3-380-50-2(B-cx)-S 380V 95 21 11   DN100×DN100
MVI 9501-3/25/E/3-380-50-2(B-cx)-S 380V 95 21 11   DN100×DN100
MVI 9501/1-3/16/E/3-380-50-2(B-cx)-S 380V 95 14 7.5   DN100×DN100
MVI 9501/1-3/25/E/3-380-50-2(B-cx)-S 380V 95 14 7.5   DN100×DN100
MVI 9502-3/16/E/3-380-50-2(B-dk1)-S 380V 95 54 18.5 GB3 DN100×DN100
MVI 9502-3/25/E/3-380-50-2(B-dk1)-S 380V 95 54 18.5 GB3 DN100×DN100
MVI 9502/1-3/16/E/3-380-50-2(B-dk1)-S 380V 95 38 15 GB3 DN100×DN100
MVI 9502/1-3/25/E/3-380-50-2(B-dk1)-S 380V 95 38 15 GB3 DN100×DN100
MVI 9502/2-3/16/E/3-380-50-2(B-dk1)-S 380V 95 43 15 GB3 DN100×DN100
MVI 9502/2-3/25/E/3-380-50-2(B-dk1)-S 380V 95 43 15 GB3 DN100×DN100
MVI9502/2G-1/16/E/K/3-380-50-2(a-dk1) 380V 95 26 11 CL2 DN100×DN100
MVI9502/2G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 26 11 CL2 DN100×DN100
MVI9502G-1/16/E/K/3-380-50-2(a-dk1) 380V 95 39 15 GB3 DN100×DN100
MVI9502G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 39 15 GB3 DN100×DN100
MVI 9503-3/16/E/3-380-50-2(B-dk1)-S 380V 95 68 30 GB3 DN100×DN100
MVI 9503-3/25/E/3-380-50-2(B-dk1)-S 380V 95 68 30 GB3 DN100×DN100
MVI 9503/1-3/16/E/3-380-50-2(B-dk1)-S 380V 95 60 30 GB3 DN100×DN100
MVI 9503/1-3/25/E/3-380-50-2(B-dk1)-S 380V 95 60 30 GB3 DN100×DN100
MVI 9503/2-3/16/E/3-380-50-2(B-dk1)-S 380V 95 54 22 GB3 DN100×DN100
MVI 9503/2-3/25/E/3-380-50-2(B-dk1)-S 380V 95 54 22 GB3 DN100×DN100
MVI9503/2G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 48 18.5 GB3 DN100×DN100
MVI9503G-1/16/E/K/3-380-50-2(a-dk1) 380V 95 61 22 GB3 DN100×DN100
MVI9503G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 61 22 GB3 DN100×DN100
MVI 9504-3/16/E/3-380-50-2(B-dk1)-S 380V 95 110 37 GB3 DN100×DN100
MVI 9504-3/25/E/3-380-50-2(B-dk1)-S 380V 95 110 37 GB3 DN100×DN100
MVI 9504/1-3/16/E/3-380-50-2(B-dk1)-S 380V 95 103 37 GB3 DN100×DN100
MVI 9504/1-3/25/E/3-380-50-2(B-dk1)-S 380V 95 103 37 GB3 DN100×DN100
MVI 9504/2-3/16/E/3-380-50-2(B-dk1)-S 380V 95 78 30 GB3 DN100×DN100
MVI 9504/2-3/25/E/3-380-50-2(B-dk1)-S 380V 95 78 30 GB3 DN100×DN100
MVI9504/2G-1/16/E/K/3-380-50-2(a-dk1) 380V 95 70 30 GB3 DN100×DN100
MVI9504/2G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 70 30 GB3 DN100×DN100
MVI 9505-3/25/E/3-380-50-2(B-dk1)-S 380V 95 116 45 CL2 DN100×DN100
MVI 9505/1-3/25/E/3-380-50-2(B-dk1)-S 380V 95 110 45 CL2 DN100×DN100
MVI 9505/2-3/25/E/3-380-50-2(B-dk1)-S 380V 95 102 45 CL2 DN100×DN100
MVI9505G-1/25/E/K/3-380-50-2(a-dk1) 380V 95 105 37 GB3 DN100×DN100
MVI9505G-2/25/E/K/3-380-50-2(a-dk1) 380V 95 105 37 GB3 DN100×DN100
MVI9506G-1/25/E/K/3-380-50-2(a-dk1) 380V 95 126 45 CL2 DN100×DN100
MVI9506G-2/25/E/K/3-380-50-2(a-dk1) 380V 95 126 45 CL2 DN100×DN100
MVI12001G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 19.7 11 CL2 DN100×DN100
MVI12001G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 19.7 11 CL2 DN125×DN125
MVI12002G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 42 22 CL2 DN125×DN125
MVI12002G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 42 22 CL2 DN125×DN125
MVI12003G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 62 30 GB3 DN125×DN125
MVI12003G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 62 30 GB3 DN125×DN125
MVI12004/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 77 37 GB3 DN125×DN125
MVI12004/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 77 37 GB3 DN125×DN125
MVI12005/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 100 45 CL2 DN125×DN125
MVI12005/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 100 45 CL2 DN125×DN125
MVI12006/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 120 55 CL2 DN125×DN125
MVI12006/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 120 55 CL2 DN125×DN125
MVI12007G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 150 75 CL2 DN125×DN125
MVI12007G-3/25/E/K/3-380-50-2(a-dk1) 380V 120 150 75 CL2 DN125×DN125
MVI15001/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 11.2 11 CL2 DN125×DN125
MVI15001/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 11.2 11 CL2 DN125×DN125
MVI15001G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 17.4 15 GB3 DN125×DN125
MVI15001G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 17.4 15 GB3 DN125×DN125
MVI15002/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 30.5 22 GB3 DN125×DN125
MVI15003/2G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 45 30 GB3 DN125×DN125
MVI15004/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 74 45 CL2 DN125×DN125
MVI15004/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 74 45 CL2 DN125×DN125
MVI15005/2G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 88 55 CL2 DN125×DN125
MVI15006G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 122 75 CL2 DN125×DN125
MVI15006G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 122 75 CL2 DN125×DN125
