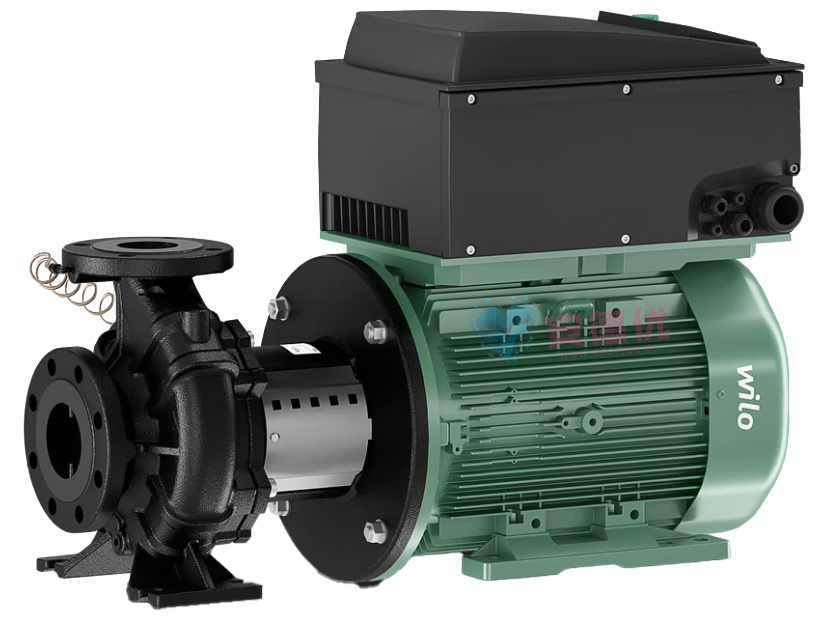

威乐CronoBloc-BL-E卧式管道泵(IE4变频款)

CronoBloc-BL-E32/95-1,5/2、CronoBloc-BL-E32/95-1,5/2-R1、CronoBloc-BL-E32/95-1,5/2-R1-S1、CronoBloc-BL-E32/95-1,5/2-S1、CronoBloc-BL-E32/105-2,2/2、CronoBloc-BL-E32/105-2,2/2-R1、CronoBloc-BL-E32/105-2,2/2-R1-S1、CronoBloc-BL-E32/105-2,2/2-S1、CronoBloc-BL-E32/115-3/2、CronoBloc-BL-E32/115-3/2-R1、CronoBloc-BL-E32/115-3/2-R1-S1、CronoBloc-BL-E32/115-3/2-S1、CronoBloc-BL-E32/125-4/2、CronoBloc-BL-E32/125-4/2-R1、CronoBloc-BL-E32/125-4/2-R1-S1、CronoBloc-BL-E32/125-4/2-S1、CronoBloc-BL-E32/150-4/2

威乐CronoBloc-BL-E卧式管道泵（IE4变频款）专为高效节能系统设计，集成了先进的IE4超高能效电机与智能变频技术，显著降低运行能耗。该泵采用创新的干转子设计，确保在HVAC暖通空调、工业制冷、供热循环及水处理等多种应用中实现稳定可靠的运行。其低噪音、智能温控及紧凑卧式结构特点，尤为适合对空间与能效有严苛要求的商业及工业项目。选择威乐，即为您的系统选择持久高效的解决方案。
在线留言 电话咨询
功能特点
规格参数
外形尺寸
视频介绍

功能特点

特点/产品优势

  • 集成电子功率调节装置，可节约能源
  • 可以选装接口用于通过插入式 IF 模块进行总线通讯
  • 采用成熟的绿色按钮技术，配备显示屏，保证操作简单易行
  • 带跳闸电子装置的集成式全面电机保护（PTC 热敏电阻传感器）
  • 功率和主要尺寸符合 EN 733 标准（适用于标准泵），可满足用户要求

环保属性

  • 采用IE4电机技术和MEI ≥ 0.4的水力部件，十分节能
  • 在我们欧洲工厂的生产和流程可实现可持续性和碳中和

结构

采用模块结构的电子控制干转子单头泵，带有法兰连接和自动功率调节。

应用

泵送采暖水（根据 VDI 2035 标准）、冷水和水-乙二醇混合物，供暖系统、冷水系统和冷却系统中不含磨损性物质。

设备/功能

运行模式

  • Δp-c表示恒定压差
  • Δp-v 代表变量用压差
  • PID-Control
  • 恒速（n=常量）

手动操作层面

  • 绿色按钮和显示屏

手动功能

  • 设置压差额定值
  • 设置转速（手动控制模式）
  • 设置运行模式
  • 设置水泵开/关
  • 配置所有运行参数
  • 故障确认

外部控制功能

  • 1ד优先关闭”控制输入
  • 1ד外部水泵更换”控制输入（仅在双头泵运行时有效）
  • 1×0-10 V、2-10 V、0-20 mA、4-20 mA模拟量输入，用于恒定转速（DDC）和额定值远程调节
  • 1×0-10 V、2-10 V、0-20 mA、4-20 mA模拟量输入，用于压力传感器的实际值信号

报告和显示功能

  • 集中故障信息 SSM
  • 集中运行消息 SBM

数据交换

  • 红外接口与红外线棒实现无线数据交换
  • Wilo IF模块（Modbus、BACnet、CAN、PLR、LON）的插入位置，用于连接楼宇自动化系统
  • 用于双泵通信的接口

安全功能

  • 全面的电机保护，内置跳闸电子设备
  • 禁止存取

双头泵管理（2x 单头泵，仅限 Y 形管应用）

  • 主要/后备运行（自动故障切换）
  • 24 小时后的水泵更换主要/后备运行
  • 并联运行
  • 并联运行（优化效率的最大负载接通和关闭）

型号代码

示例

BL-E 80/145-11/2-xx

BL-E

直联泵带电子控制器

80

管道连接的公称直径 DN（压力端口）

145

标称叶轮直径，单位 mm

11

电机额定功率 P2，单位 kW

2

极数

-xx

规格：比如 R1 规格无压差传感器

技术数据

  • 允许温度范围 -20 °C 至 +140 °C
  • 最低能效指数（MEI）≥ 0.4
  • 机械密封适用于在最高温度Tmax. = +140 °C以下输水。在温度T≤ +40 °C时，允许输送体积含量20%至40%的乙二醇混合物。如果水-乙二醇混合物中的乙二醇体积含量> 40%且不超过50%、介质温度> +40 °C且不超过+120 °C或有除水以外的其他介质，则必须提供其他机械密封。使用水与乙二醇混合物时，一般建议使用带有相应机械密封的S1款型。
  • 电源连接
    • 3~440 V -5%+10%，50/60 Hz
    • 3~400 V ±10 %，50/60 Hz
    • 3~380 V -5% +10%，50/60 Hz
  • 无需额外措施即可满足电磁兼容性要求：
    • 居住区干扰释放符合EN 61800-3:2018
    • 工业区抗干扰性符合EN 61800-3:2018
  • 防护等级 IP55
  • 公称直径 DN 32 至 DN 150
  • 最大工作压力 16 bar 时，温度最高 +120 °C，13 bar 时，温度最高 +140 °C

材料

  • 水泵壳体和联接架：EN-GJL-250
  • 叶轮
    • 标准型号：EN-GJL-200
    • 特殊规格：青铜 CuSn 10
    • 特殊规格：不锈钢1.4408
  • 轴：1.4122
  • 机械密封：AQEGG；可根据客户需求提供其他机械密封

类型

单元组合结构的单级低压离心泵，设有轴向吸水口和径向布置的压力端口，带

  • 机械密封
  • 法兰连接，带有测压连接 R 1/8
  • 联接架
  • 联轴器
  • 驱动内置电子转速控制装置

出厂状态

  • 水泵
  • 安装及操作说明

选项

  • ...-R1 款无压差传感器
  • ...-L1 变体带有青铜叶轮（额外收费）
  • …-L4 变体带有不锈钢叶轮（额外收费）

附件

  • 支撑块用于底座安装
  • IR 棒
  • IF 模块 PLR 用于连接至 PLR/接口转换器
  • IF 模块 LON 用于连接至 LONWORKS 网络
  • IF 模块 BACnet
  • IF 模块 Modbus
  • IF 模块 CAN
  • VR-HVAC 控制系统
  • CCe-HVAC 控制系统
  • SCe-HVAC 控制系统
  • 压差传感器 (DDG)

规格参数

型号 电压
(V)		 额定流量
(m³/h)		 额定扬程
(m)		 功率
(kW)		 电机能效 额定转速(rpm) 口径
CronoBloc-BL-E32/95-1,5/2 380V 0-34 1.2-18.2 1.5 IE4 2910 DN50×DN32
CronoBloc-BL-E32/95-1,5/2-R1 380V 0-34 1.2-18.2 1.5 IE4 2910 DN50×DN32
CronoBloc-BL-E32/95-1,5/2-R1-S1 380V 0-34 1.2-18.2 1.5 IE4 2910 DN50×DN32
CronoBloc-BL-E32/95-1,5/2-S1 380V 0-34 1.2-18.2 1.5 IE4 2910 DN50×DN32
CronoBloc-BL-E32/105-2,2/2 380V 0-43 1.4-22.4 2.2 IE4 2920 DN50×DN32
CronoBloc-BL-E32/105-2,2/2-R1 380V 0-43 1.4-22.4 2.2 IE4 2920 DN50×DN32
CronoBloc-BL-E32/105-2,2/2-R1-S1 380V 0-43 1.4-22.4 2.2 IE4 2920 DN50×DN32
CronoBloc-BL-E32/105-2,2/2-S1 380V 0-43 1.4-22.4 2.2 IE4 2920 DN50×DN32
CronoBloc-BL-E32/115-3/2 380V 0-38 2-28 3 IE4 2920 DN50×DN32
CronoBloc-BL-E32/115-3/2-R1 380V 0-38 2-28 3 IE4 2920 DN50×DN32
CronoBloc-BL-E32/115-3/2-R1-S1 380V 0-38 2-28 3 IE4 2920 DN50×DN32
CronoBloc-BL-E32/115-3/2-S1 380V 0-38 2-28 3 IE4 2920 DN50×DN32
CronoBloc-BL-E32/125-4/2 380V 0-40 2-29.5 4 IE4 2920 DN50×DN32
CronoBloc-BL-E32/125-4/2-R1 380V 0-40 2-29.5 4 IE4 2920 DN50×DN32
CronoBloc-BL-E32/125-4/2-R1-S1 380V 0-40 2-29.5 4 IE4 2920 DN50×DN32
CronoBloc-BL-E32/125-4/2-S1 380V 0-40 2-29.5 4 IE4 2920 DN50×DN32
CronoBloc-BL-E32/150-4/2 380V 0-37 2.5-35 4 IE4 2920 DN50×DN32
CronoBloc-BL-E32/150-4/2-R1 380V 0-37 2.5-35 4 IE4 2920 DN50×DN32
CronoBloc-BL-E32/150-4/2-R1-S1 380V 0-37 2.5-35 4 IE4 2920 DN50×DN32
CronoBloc-BL-E32/150-4/2-S1 380V 0-37 2.5-35 4 IE4 2920 DN50×DN32
CronoBloc-BL-E32/160-5,5/2 380V 0-43 2.5-40 5.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/160-5,5/2-R1 380V 0-43 2.5-40 5.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/160-5,5/2-R1-S1 380V 0-43 2.5-40 5.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/160-5,5/2-S1 380V 0-43 2.5-40 5.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/190-5,5/2 380V 0-33 3-44 5.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/190-5,5/2-R1 380V 0-33 3-44 5.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/190-5,5/2-R1-S1 380V 0-33 3-44 5.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/190-5,5/2-S1 380V 0-33 3-44 5.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/200-7,5/2 380V 0-38 3.5-54 7.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/200-7,5/2-R1 380V 0-38 3.5-54 7.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/200-7,5/2-R1-S1 380V 0-38 3.5-54 7.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/200-7,5/2-S1 380V 0-38 3.5-54 7.5 IE4 2940 DN50×DN32
CronoBloc-BL-E32/230-11/2 380V 0-41 4-66 11 IE4 2960 DN50×DN32
CronoBloc-BL-E32/230-11/2-R1 380V 0-41 4-66 11 IE4 2960 DN50×DN32
CronoBloc-BL-E32/230-11/2-R1-S1 380V 0-41 4-66 11 IE4 2960 DN50×DN32
CronoBloc-BL-E32/230-11/2-S1 380V 0-41 4-66 11 IE4 2960 DN50×DN32
CronoBloc-BL-E32/240-15/2 380V 0-43 5-82 15 IE4 2960 DN50×DN32
CronoBloc-BL-E32/240-15/2-R1 380V 0-43 5-82 15 IE4 2960 DN50×DN32
CronoBloc-BL-E32/240-15/2-R1-S1 380V 0-43 5-82 15 IE4 2960 DN50×DN32
CronoBloc-BL-E32/240-15/2-S1 380V 0-43 5-82 15 IE4 2960 DN50×DN32
CronoBloc-BL-E32/250-18,5/2 380V 0-47 6-92 18.5 IE4 2950 DN50×DN32
CronoBloc-BL-E32/250-18,5/2-R1 380V 0-47 6-92 18.5 IE4 2950 DN50×DN32
CronoBloc-BL-E32/250-18,5/2-R1-S1 380V 0-47 6-92 18.5 IE4 2950 DN50×DN32
CronoBloc-BL-E32/250-18,5/2-S1 380V 0-47 6-92 18.5 IE4 2950 DN50×DN32
CronoBloc-BL-E32/250.1-11/2 380V 0-33 5-77 11 IE4 2950 DN50×DN32
CronoBloc-BL-E32/250.1-11/2-R1 380V 0-33 5-77 11 IE4 2950 DN50×DN32
CronoBloc-BL-E32/250.1-11/2-R1-S1 380V 0-33 5-77 11 IE4 2950 DN50×DN32
CronoBloc-BL-E32/250.1-11/2-S1 380V 0-33 5-77 11 IE4 2950 DN50×DN32
CronoBloc-BL-E40/85-1,5/2 380V 0-45 1-13.8 1.5 IE4 2910 DN65×DN40
CronoBloc-BL-E40/85-1,5/2-R1 380V 0-45 1-13.8 1.5 IE4 2910 DN65×DN40
CronoBloc-BL-E40/85-1,5/2-R1-S1 380V 0-45 1-13.8 1.5 IE4 2910 DN65×DN40
CronoBloc-BL-E40/85-1,5/2-S1 380V 0-45 1-13.8 1.5 IE4 2910 DN65×DN40
CronoBloc-BL-E40/95-2,2/2 380V 0-47 1.2-18.6 2.2 IE4 2920 DN65×DN40
CronoBloc-BL-E40/95-2,2/2-R1 380V 0-47 1.2-18.6 2.2 IE4 2920 DN65×DN40
CronoBloc-BL-E40/95-2,2/2-R1-S1 380V 0-47 1.2-18.6 2.2 IE4 2920 DN65×DN40
CronoBloc-BL-E40/95-2,2/2-S1 380V 0-47 1.2-18.6 2.2 IE4 2920 DN65×DN40
CronoBloc-BL-E40/105-3/2 380V 0-58 1.4-23 3 IE4 2920 DN65×DN40
CronoBloc-BL-E40/105-3/2-R1 380V 0-58 1.4-23 3 IE4 2920 DN65×DN40
CronoBloc-BL-E40/105-3/2-R1-S1 380V 0-58 1.4-23 3 IE4 2920 DN65×DN40
CronoBloc-BL-E40/105-3/2-S1 380V 0-58 1.4-23 3 IE4 2920 DN65×DN40
CronoBloc-BL-E40/115-4/2 380V 0-60 1.8-27.4 4 IE4 2920 DN65×DN40
CronoBloc-BL-E40/115-4/2-R1 380V 0-60 1.8-27.4 4 IE4 2920 DN65×DN40
CronoBloc-BL-E40/115-4/2-R1-S1 380V 0-60 1.8-27.4 4 IE4 2920 DN65×DN40
CronoBloc-BL-E40/115-4/2-S1 380V 0-60 1.8-27.4 4 IE4 2920 DN65×DN40
CronoBloc-BL-E40/125-5,5/2 380V 0-75 2-31 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/125-5,5/2-R1 380V 0-75 2-31 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/125-5,5/2-R1-S1 380V 0-75 2-31 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/125-5,5/2-S1 380V 0-75 2-31 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/140-5,5/2 380V 0-55 2-34 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/140-5,5/2-R1 380V 0-55 2-34 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/140-5,5/2-R1-S1 380V 0-55 2-34 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/140-5,5/2-S1 380V 0-55 2-34 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/150-7,5/2 380V 0-62 2.5-42 7.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/150-7,5/2-R1 380V 0-62 2.5-42 7.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/150-7,5/2-R1-S1 380V 0-62 2.5-42 7.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/150-7,5/2-S1 380V 0-62 2.5-42 7.5 IE4 2940 DN65×DN40
CronoBloc-BL-E40/190-11/2 380V 0-65 4-55 11 IE4 2960 DN65×DN40
CronoBloc-BL-E40/190-11/2-R1 380V 0-65 4-55 11 IE4 2960 DN65×DN40
CronoBloc-BL-E40/190-11/2-R1-S1 380V 0-65 4-55 11 IE4 2960 DN65×DN40
CronoBloc-BL-E40/190-11/2-S1 380V 0-65 4-55 11 IE4 2960 DN65×DN40
CronoBloc-BL-E40/200-15/2 380V 0-70 4-64 15 IE4 2960 DN65×DN40
CronoBloc-BL-E40/200-15/2-R1 380V 0-70 4-64 15 IE4 2960 DN65×DN40
CronoBloc-BL-E40/200-15/2-R1-S1 380V 0-70 4-64 15 IE4 2960 DN65×DN40
CronoBloc-BL-E40/200-15/2-S1 380V 0-70 4-64 15 IE4 2960 DN65×DN40
CronoBloc-BL-E 40/235-18,5/2 380V 0-69 5-78 18.5 IE4 2960 DN65×DN40
CronoBloc-BL-E 40/235-18,5/2-R1 380V 0-69 5-78 18.5 IE4 2960 DN65×DN40
CronoBloc-BL-E 40/235-18,5/2-R1-S1 380V 0-69 5-78 18.5 IE4 2960 DN65×DN40
CronoBloc-BL-E 40/235-18,5/2-S1 380V 0-69 5-78 18.5 IE4 2960 DN65×DN40
CronoBloc-BL-E 40/245-22/2 380V 0-73 6-88 22 IE4 2970 DN65×DN40
CronoBloc-BL-E 40/245-22/2-R1 380V 0-73 6-88 22 IE4 2970 DN65×DN40
CronoBloc-BL-E 40/245-22/2-R1-S1 380V 0-73 6-88 22 IE4 2970 DN65×DN40
CronoBloc-BL-E 40/245-22/2-S1 380V 0-73 6-88 22 IE4 2970 DN65×DN40
CronoBloc-BL-E50/95-3/2 380V 0-72 1.2-18.4 3 IE4 2920 DN65×DN40
CronoBloc-BL-E50/95-3/2-R1 380V 0-72 1.2-18.4 3 IE4 2920 DN65×DN40
CronoBloc-BL-E50/95-3/2-R1-S1 380V 0-72 1.2-18.4 3 IE4 2920 DN65×DN40
CronoBloc-BL-E50/95-3/2-S1 380V 0-72 1.2-18.4 3 IE4 2920 DN65×DN40
CronoBloc-BL-E50/105-4/2 380V 0-102 1.4-21.8 4 IE4 2920 DN65×DN40
CronoBloc-BL-E50/105-4/2-R1 380V 0-102 1.4-21.8 4 IE4 2920 DN65×DN40
CronoBloc-BL-E50/105-4/2-R1-S1 380V 0-102 1.4-21.8 4 IE4 2920 DN65×DN40
CronoBloc-BL-E50/105-4/2-S1 380V 0-102 1.4-21.8 4 IE4 2920 DN65×DN40
CronoBloc-BL-E50/115-5,5/2 380V 0-115 1.8-26.4 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E50/115-5,5/2-R1 380V 0-115 1.8-26.4 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E50/115-5,5/2-R1-S1 380V 0-115 1.8-26.4 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E50/115-5,5/2-S1 380V 0-115 1.8-26.4 5.5 IE4 2940 DN65×DN40
CronoBloc-BL-E50/125-7,5/2 380V 0-114 2-30 7.5 IE4 2950 DN65×DN40
CronoBloc-BL-E50/125-7,5/2-R1 380V 0-114 2-30 7.5 IE4 2950 DN65×DN40
CronoBloc-BL-E50/125-7,5/2-R1-S1 380V 0-114 2-30 7.5 IE4 2950 DN65×DN40
CronoBloc-BL-E50/125-7,5/2-S1 380V 0-114 2-30 7.5 IE4 2950 DN65×DN40
CronoBloc-BL-E50/155-7,5/2 380V 0-97 2.5-39 7.5 IE4 2950 DN65×DN40
CronoBloc-BL-E50/155-7,5/2-R1 380V 0-97 2.5-39 7.5 IE4 2950 DN65×DN40
CronoBloc-BL-E50/155-7,5/2-R1-S1 380V 0-97 2.5-39 7.5 IE4 2950 DN65×DN40
CronoBloc-BL-E50/155-7,5/2-S1 380V 0-97 2.5-39 7.5 IE4 2950 DN65×DN40
CronoBloc-BL-E50/160-11/2 380V 0-102 3-46 11 IE4 2960 DN65×DN40
CronoBloc-BL-E50/160-11/2-R1 380V 0-102 3-46 11 IE4 2960 DN65×DN40
CronoBloc-BL-E50/160-11/2-R1-S1 380V 0-102 3-46 11 IE4 2960 DN65×DN40
CronoBloc-BL-E50/160-11/2-S1 380V 0-102 3-46 11 IE4 2960 DN65×DN40
CronoBloc-BL-E50/180-15/2 380V 0-88 4-60 15 IE4 2960 DN65×DN40
CronoBloc-BL-E50/180-15/2-R1 380V 0-88 4-60 15 IE4 2960 DN65×DN40
CronoBloc-BL-E50/180-15/2-R1-S1 380V 0-88 4-60 15 IE4 2960 DN65×DN40
CronoBloc-BL-E50/180-15/2-S1 380V 0-88 4-60 15 IE4 2960 DN65×DN40
CronoBloc-BL-E50/190-18,5/2 380V 0-100 4-66 18.5 IE4 2960 DN65×DN40
CronoBloc-BL-E50/190-18,5/2-R1 380V 0-100 4-66 18.5 IE4 2960 DN65×DN40
CronoBloc-BL-E50/190-18,5/2-R1-S1 380V 0-100 4-66 18.5 IE4 2960 DN65×DN40
CronoBloc-BL-E50/190-18,5/2-S1 380V 0-100 4-66 18.5 IE4 2960 DN65×DN40
CronoBloc-BL-E50/200-22/2 380V 0-126 4-70 22 IE4 2960 DN65×DN40
CronoBloc-BL-E50/200-22/2-R1 380V 0-126 4-70 22 IE4 2960 DN65×DN40
CronoBloc-BL-E50/200-22/2-R1-S1 380V 0-126 4-70 22 IE4 2960 DN65×DN40
CronoBloc-BL-E50/200-22/2-S1 380V 0-126 4-70 22 IE4 2960 DN65×DN40
CronoBloc-BL-E50/230-22/2 380V 0-96 4-70 22 IE4 2970 DN65×DN40
CronoBloc-BL-E50/230-22/2-R1 380V 0-96 4-70 22 IE4 2970 DN65×DN40
CronoBloc-BL-E50/230-22/2-R1-S1 380V 0-96 4-70 22 IE4 2970 DN65×DN40
CronoBloc-BL-E50/230-22/2-S1 380V 0-96 4-70 22 IE4 2970 DN65×DN40
CronoBloc-BL-E50/250-5,5/4 380V 0-58 1.6-24 5.5 IE4 1480 DN65×DN40
CronoBloc-BL-E50/250-5,5/4-R1 380V 0-58 1.6-24 5.5 IE4 1480 DN65×DN40
CronoBloc-BL-E50/250-5,5/4-R1-S1 380V 0-58 1.6-24 5.5 IE4 1480 DN65×DN40
CronoBloc-BL-E50/250-5,5/4-S1 380V 0-58 1.6-24 5.5 IE4 1480 DN65×DN40
CronoBloc-BL-E50/315-11/4 380V 0-70 3-39 11 IE4 1470 DN65×DN40
CronoBloc-BL-E50/315-11/4-R1 380V 0-70 3-39 11 IE4 1470 DN65×DN40
CronoBloc-BL-E50/315-11/4-R1-S1 380V 0-70 3-39 11 IE4 1470 DN65×DN40
CronoBloc-BL-E50/315-11/4-S1 380V 0-70 3-39 11 IE4 1470 DN65×DN40
CronoBloc-BL-E65/95-4/2 380V 0-122 1-16 4 IE4 2910 DN80×DN65
CronoBloc-BL-E65/95-4/2-R1 380V 0-122 1-16 4 IE4 2910 DN80×DN65
CronoBloc-BL-E65/95-4/2-R1-S1 380V 0-122 1-16 4 IE4 2910 DN80×DN65
CronoBloc-BL-E65/95-4/2-S1 380V 0-122 1-16 4 IE4 2910 DN80×DN65
CronoBloc-BL-E65/105-5,5/2 380V 0-130 1.4-19.6 5.5 IE4 2930 DN80×DN65
CronoBloc-BL-E65/105-5,5/2-R1 380V 0-130 1.4-19.6 5.5 IE4 2930 DN80×DN65
CronoBloc-BL-E65/105-5,5/2-R1-S1 380V 0-130 1.4-19.6 5.5 IE4 2930 DN80×DN65
CronoBloc-BL-E65/105-5,5/2-S1 380V 0-130 1.4-19.6 5.5 IE4 2930 DN80×DN65
CronoBloc-BL-E65/115-7,5/2 380V 0-152 1.6-23.4 7.5 IE4 2940 DN80×DN65
CronoBloc-BL-E65/115-7,5/2-R1 380V 0-152 1.6-23.4 7.5 IE4 2940 DN80×DN65
CronoBloc-BL-E65/115-7,5/2-R1-S1 380V 0-152 1.6-23.4 7.5 IE4 2940 DN80×DN65
CronoBloc-BL-E65/115-7,5/2-S1 380V 0-152 1.6-23.4 7.5 IE4 2940 DN80×DN65
CronoBloc-BL-E65/140-11/2 380V 0-144 2.5-38.2 11 IE4 2960 DN80×DN65
CronoBloc-BL-E65/140-11/2-R1 380V 0-144 2.5-38.2 11 IE4 2960 DN80×DN65
CronoBloc-BL-E65/140-11/2-R1-S1 380V 0-144 2.5-38.2 11 IE4 2960 DN80×DN65
CronoBloc-BL-E65/140-11/2-S1 380V 0-144 2.5-38.2 11 IE4 2960 DN80×DN65
CronoBloc-BL-E65/150-15/2 380V 0-130 3-45 15 IE4 2960 DN80×DN65
CronoBloc-BL-E65/150-15/2-R1 380V 0-130 3-45 15 IE4 2960 DN80×DN65
CronoBloc-BL-E65/150-15/2-R1-S1 380V 0-130 3-45 15 IE4 2960 DN80×DN65
CronoBloc-BL-E65/150-15/2-S1 380V 0-130 3-45 15 IE4 2960 DN80×DN65
CronoBloc-BL-E65/160-18,5/2 380V 0-170 3-47 18.5 IE4 2960 DN80×DN65
CronoBloc-BL-E65/160-18,5/2-R1 380V 0-170 3-47 18.5 IE4 2960 DN80×DN65
CronoBloc-BL-E65/160-18,5/2-R1-S1 380V 0-170 3-47 18.5 IE4 2960 DN80×DN65
CronoBloc-BL-E65/160-18,5/2-S1 380V 0-170 3-47 18.5 IE4 2960 DN80×DN65
CronoBloc-BL-E65/180-22/2 380V 0-140 4-81 22 IE4 2970 DN80×DN65
CronoBloc-BL-E65/180-22/2-R1 380V 0-140 4-81 22 IE4 2970 DN80×DN65
CronoBloc-BL-E65/180-22/2-R1-S1 380V 0-140 4-81 22 IE4 2970 DN80×DN65
CronoBloc-BL-E65/180-22/2-S1 380V 0-140 4-81 22 IE4 2970 DN80×DN65
CronoBloc-BL-E65/245-5,5/4 380V 0-90 1.4-22.8 5.5 IE4 1470 DN80×DN65
CronoBloc-BL-E65/245-5,5/4-R1 380V 0-90 1.4-22.8 5.5 IE4 1470 DN80×DN65
CronoBloc-BL-E65/245-5,5/4-R1-S1 380V 0-90 1.4-22.8 5.5 IE4 1470 DN80×DN65
CronoBloc-BL-E65/245-5,5/4-S1 380V 0-90 1.4-22.8 5.5 IE4 1470 DN80×DN65
CronoBloc-BL-E65/250-7,5/4 380V 0-112 1.6-25 7.5 IE4 1470 DN80×DN65
CronoBloc-BL-E65/250-7,5/4-R1 380V 0-112 1.6-25 7.5 IE4 1470 DN80×DN65
CronoBloc-BL-E65/250-7,5/4-R1-S1 380V 0-112 1.6-25 7.5 IE4 1470 DN80×DN65
CronoBloc-BL-E65/250-7,5/4-S1 380V 0-112 1.6-25 7.5 IE4 1470 DN80×DN65
CronoBloc-BL-E65/305-11/4 380V 0-92 2-34 11 IE4 1470 DN80×DN65
CronoBloc-BL-E65/305-11/4-R1 380V 0-92 2-34 11 IE4 1470 DN80×DN65
CronoBloc-BL-E65/305-11/4-R1-S1 380V 0-92 2-34 11 IE4 1470 DN80×DN65
CronoBloc-BL-E65/305-11/4-S1 380V 0-92 2-34 11 IE4 1470 DN80×DN65
CronoBloc-BL-E65/315-15/4 380V 0-110 3-40 15 IE4 1470 DN80×DN65
CronoBloc-BL-E65/315-15/4-R1 380V 0-110 3-40 15 IE4 1470 DN80×DN65
CronoBloc-BL-E65/315-15/4-R1-S1 380V 0-110 3-40 15 IE4 1470 DN80×DN65
CronoBloc-BL-E65/315-15/4-S1 380V 0-110 3-40 15 IE4 1470 DN80×DN65
CronoBloc-BL-E80/120-11/2 380V 0-200 2-26 11 IE4 2960 DN100×DN80
CronoBloc-BL-E80/120-11/2-R1 380V 0-200 2-26 11 IE4 2960 DN100×DN80
CronoBloc-BL-E80/120-11/2-R1-S1 380V 0-200 2-26 11 IE4 2960 DN100×DN80
CronoBloc-BL-E80/120-11/2-S1 380V 0-200 2-26 11 IE4 2960 DN100×DN80
CronoBloc-BL-E80/130-15/2 380V 0-214 2-32 15 IE4 2960 DN100×DN80
ronoBloc-BL-E80/130-15/2-R1 380V 0-214 2-32 15 IE4 2960 DN100×DN80
CronoBloc-BL-E80/130-15/2-R1-S1 380V 0-214 2-32 15 IE4 2960 DN100×DN80
CronoBloc-BL-E80/130-15/2-S1 380V 0-214 2-32 15 IE4 2960 DN100×DN80
CronoBloc-BL-E80/140-18,5/2 380V 0-224 2.5-37 18.5 IE4 2960 DN100×DN80
CronoBloc-BL-E80/140-18,5/2-R1 380V 0-224 2.5-37 18.5 IE4 2960 DN100×DN80
CronoBloc-BL-E80/140-18,5/2-R1-S1 380V 0-224 2.5-37 18.5 IE4 2960 DN100×DN80
CronoBloc-BL-E80/140-18,5/2-S1 380V 0-224 2.5-37 18.5 IE4 2960 DN100×DN80
CronoBloc-BL-E80/150-22/2 380V 0-260 2.5-40.5 22 IE4 2970 DN100×DN80
CronoBloc-BL-E80/150-22/2-R1 380V 0-260 2.5-40.5 22 IE4 2970 DN100×DN80
CronoBloc-BL-E80/150-22/2-R1-S1 380V 0-260 2.5-40.5 22 IE4 2970 DN100×DN80
CronoBloc-BL-E80/150-22/2-S1 380V 0-260 2.5-40.5 22 IE4 2970 DN100×DN80
CronoBloc-BL-E 80/170-22/2 380V 0-190 3-51 22 IE4 2960 DN100×DN80
CronoBloc-BL-E 80/170-22/2-R1 380V 0-190 3-51 22 IE4 2960 DN100×DN80
CronoBloc-BL-E 80/170-22/2-R1-S1 380V 0-190 3-51 22 IE4 2960 DN100×DN80
CronoBloc-BL-E 80/170-22/2-S1 380V 0-190 3-51 22 IE4 2960 DN100×DN80
CronoBloc-BL-E80/190-5,5/4 380V 0-142 1.2-18.4 5.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/190-5,5/4-R1 380V 0-142 1.2-18.4 5.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/190-5,5/4-R1-S1 380V 0-142 1.2-18.4 5.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/190-5,5/4-S1 380V 0-142 1.2-18.4 5.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/200-7,5/4 380V 0-150 1.2-19.4 7.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/200-7,5/4-R1 380V 0-150 1.2-19.4 7.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/200-7,5/4-R1-S1 380V 0-150 1.2-19.4 7.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/200-7,5/4-S1 380V 0-150 1.2-19.4 7.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/240-7,5/4 380V 0-125 1.4-22 7.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/240-7,5/4-R1 380V 0-125 1.4-22 7.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/240-7,5/4-R1-S1 380V 0-125 1.4-22 7.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/240-7,5/4-S1 380V 0-125 1.4-22 7.5 IE4 1470 DN100×DN80
CronoBloc-BL-E80/250-11/4 380V 0-150 1.8-25.8 11 IE4 1470 DN100×DN80
CronoBloc-BL-E80/250-11/4-R1 380V 0-150 1.8-25.8 11 IE4 1470 DN100×DN80
CronoBloc-BL-E80/250-11/4-R1-S1 380V 0-150 1.8-25.8 11 IE4 1470 DN100×DN80
CronoBloc-BL-E80/250-11/4-S1 380V 0-150 1.8-25.8 11 IE4 1470 DN100×DN80
CronoBloc-BL-E80/295-15/4 380V 0-155 2-32 15 IE4 1470 DN100×DN80
CronoBloc-BL-E80/295-15/4-R1 380V 0-155 2-32 15 IE4 1470 DN100×DN80
CronoBloc-BL-E80/295-15/4-R1-S1 380V 0-155 2-32 15 IE4 1470 DN100×DN80
CronoBloc-BL-E80/295-15/4-S1 380V 0-155 2-32 15 IE4 1470 DN100×DN80
CronoBloc-BL-E80/305-18,5/4 380V 0-168 2.5-36.5 18.5 IE4 1480 DN100×DN80
CronoBloc-BL-E80/305-18,5/4-R1 380V 0-168 2.5-36.5 18.5 IE4 1480 DN100×DN80
CronoBloc-BL-E80/305-18,5/4-R1-S1 380V 0-168 2.5-36.5 18.5 IE4 1480 DN100×DN80
CronoBloc-BL-E80/305-18,5/4-S1 380V 0-168 2.5-36.5 18.5 IE4 1480 DN100×DN80
CronoBloc-BL-E80/315-22/4 380V 0-178 3-41 22 IE4 1490 DN100×DN80
CronoBloc-BL-E80/315-22/4-R1 380V 0-178 3-41 22 IE4 1490 DN100×DN80
CronoBloc-BL-E80/315-22/4-R1-S1 380V 0-178 3-41 22 IE4 1490 DN100×DN80
CronoBloc-BL-E80/315-22/4-S1 380V 0-178 3-41 22 IE4 1490 DN100×DN80
CronoBloc-BL-E100/130-15/2 380V 0-350 2-26 15 IE4 2960 DN125×DN100
CronoBloc-BL-E100/130-15/2-R1 380V 0-350 2-26 15 IE4 2960 DN125×DN100
CronoBloc-BL-E100/130-15/2-R1-S1 380V 0-350 2-26 15 IE4 2960 DN125×DN100
CronoBloc-BL-E100/130-15/2-S1 380V 0-350 2-26 15 IE4 2960 DN125×DN100
CronoBloc-BL-E100/140-18,5/2 380V 0-370 2-30.5 18.5 IE4 2960 DN125×DN100
CronoBloc-BL-E100/140-18,5/2-R1 380V 0-370 2-30.5 18.5 IE4 2960 DN125×DN100
CronoBloc-BL-E100/140-18,5/2-R1-S1 380V 0-370 2-30.5 18.5 IE4 2960 DN125×DN100
CronoBloc-BL-E100/140-18,5/2-S1 380V 0-370 2-30.5 18.5 IE4 2960 DN125×DN100
CronoBloc-BL-E100/150-22/2 380V 0-390 2.5-34 22 IE4 2970 DN125×DN100
CronoBloc-BL-E100/150-22/2-R1 380V 0-390 2.5-34 22 IE4 2970 DN125×DN100
CronoBloc-BL-E100/150-22/2-R1-S1 380V 0-390 2.5-34 22 IE4 2970 DN125×DN100
CronoBloc-BL-E100/150-22/2-S1 380V 0-390 2.5-34 22 IE4 2970 DN125×DN100
CronoBloc-BL-E100/190-5,5/4 380V 0-220 1--14 2.5 IE4 1460 DN125×DN100
CronoBloc-BL-E100/190-5,5/4-R1 380V 0-220 1-14 5.5 IE4 1460 DN125×DN100
CronoBloc-BL-E100/190-5,5/4-R1-S1 380V 0-220 1-14 5.5 IE4 1460 DN125×DN100
CronoBloc-BL-E100/190-5,5/4-S1 380V 0-220 1-14 5.5 IE4 1460 DN125×DN100
CronoBloc-BL-E100/200-7,5/4 380V 0-250 1-16.5 7.5 IE4 1470 DN125×DN100
CronoBloc-BL-E100/200-7,5/4-R1 380V 0-250 1-16.5 7.5 IE4 1470 DN125×DN100
CronoBloc-BL-E100/200-7,5/4-R1-S1 380V 0-250 1-16.5 7.5 IE4 1470 DN125×DN100
CronoBloc-BL-E100/200-7,5/4-S1 380V 0-250 1-16.5 7.5 IE4 1470 DN125×DN100
CronoBloc-BL-E100/240-11/4 380V 0-205 1.8-24 11 IE4 1470 DN125×DN100
CronoBloc-BL-E100/240-11/4-R1 380V 0-205 1.8-24 11 IE4 1470 DN125×DN100
CronoBloc-BL-E100/240-11/4-R1-S1 380V 0-205 1.8-24 11 IE4 1470 DN125×DN100
CronoBloc-BL-E100/240-11/4-S1 380V 0-205 1.8-24 11 IE4 1470 DN125×DN100
CronoBloc-BL-E100/250-15/4 380V 0-210 2-28.5 15 IE4 1480 DN125×DN100
CronoBloc-BL-E100/250-15/4-R1 380V 0-210 2-28.5 15 IE4 1480 DN125×DN100
CronoBloc-BL-E100/250-15/4-R1-S1 380V 0-210 2-28.5 15 IE4 1480 DN125×DN100
CronoBloc-BL-E100/250-15/4-S1 380V 0-210 2-28.5 15 IE4 1480 DN125×DN100
CronoBloc-BL-E100/295-18,5/4 380V 0-245 2-29 18.5 IE4 1480 DN125×DN100
CronoBloc-BL-E100/295-18,5/4-R1 380V 0-245 2-29 18.5 IE4 1480 DN125×DN100
CronoBloc-BL-E100/295-18,5/4-R1-S1 380V 0-245 2-29 18.5 IE4 1480 DN125×DN100
CronoBloc-BL-E100/295-18,5/4-S1 380V 0-245 2-29 18.5 IE4 1480 DN125×DN100
CronoBloc-BL-E100/305-22/4 380V 0-245 2-33.5 22 IE4 1480 DN125×DN100
CronoBloc-BL-E100/305-22/4-R1 380V 0-245 2-33.5 22 IE4 1480 DN125×DN100
CronoBloc-BL-E100/305-22/4-R1-S1 380V 0-245 2-33.5 22 IE4 1480 DN125×DN100
CronoBloc-BL-E100/305-22/4-S1 380V 0-245 2-33.5 22 IE4 1480 DN125×DN100
CronoBloc-BL-E125/170-5,5/4 380V 0-265 0.8-10.1 5.5 IE4 1470 DN150×DN125
CronoBloc-BL-E125/170-5,5/4-R1 380V 0-265 0.8-10.1 5.5 IE4 1470 DN150×DN125
CronoBloc-BL-E125/170-5,5/4-R1-S1 380V 0-265 0.8-10.1 5.5 IE4 1470 DN150×DN125
CronoBloc-BL-E125/170-5,5/4-S1 380V 0-265 0.8-10.1 5.5 IE4 1470 DN150×DN125
CronoBloc-BL-E125/180-7,5/4 380V 0-280 0.8-12.5 7.5 IE4 1470 DN150×DN125
CronoBloc-BL-E125/180-7,5/4-R1 380V 0-280 0.8-12.5 7.5 IE4 1470 DN150×DN125
CronoBloc-BL-E125/180-7,5/4-R1-S1 380V 0-280 0.8-12.5 7.5 IE4 1470 DN150×DN125
CronoBloc-BL-E125/180-7,5/4-S1 380V 0-280 0.8-12.5 7.5 IE4 1470 DN150×DN125
CronoBloc-BL-E125/190-11/4 380V 0-370 1--16 11 IE4 1470 DN150×DN125
CronoBloc-BL-E125/190-11/4-R1 380V 0-370 1-16 11 IE4 1470 DN150×DN125
CronoBloc-BL-E125/190-11/4-R1-S1 380V 0-370 1-16 11 IE4 1470 DN150×DN125
CronoBloc-BL-E125/190-11/4-S1 380V 0-370 1-16 11 IE4 1470 DN150×DN125
CronoBloc-BL-E125/230-15/4 380V 0-340 1.5-21.5 15 IE4 1480 DN150×DN125
CronoBloc-BL-E125/230-15/4-R1 380V 0-340 1.5-21.5 15 IE4 1480 DN150×DN125
CronoBloc-BL-E125/230-15/4-R1-S1 380V 0-340 1.5-21.5 15 IE4 1480 DN150×DN125
CronoBloc-BL-E125/230-15/4-S1 380V 0-340 1.5-21.5 15 IE4 1480 DN150×DN125
CronoBloc-BL-E125/240-18,5/4 380V 0-350 1.8-24 18.5 IE4 1480 DN150×DN125
CronoBloc-BL-E125/240-18,5/4-R1 380V 0-350 1.8-24 18.5 IE4 1480 DN150×DN125
CronoBloc-BL-E125/240-18,5/4-R1-S1 380V 0-350 1.8-24 18.5 IE4 1480 DN150×DN125
CronoBloc-BL-E125/240-18,5/4-S1 380V 0-350 1.8-24 18.5 IE4 1480 DN150×DN125
CronoBloc-BL-E125/250-22/4 380V 0-430 2--26 22 IE4 1480 DN150×DN125
CronoBloc-BL-E125/250-22/4-R1 380V 0-430 2-26 22 IE4 1480 DN150×DN125
CronoBloc-BL-E125/250-22/4-R1-S1 380V 0-430 2-26 22 IE4 1480 DN150×DN125
CronoBloc-BL-E125/250-22/4-S1 380V 0-430 2-26 22 IE4 1480 DN150×DN125
CronoBloc-BL-E150/180-7,5/4 380V 0-420 0.7-10.5 7.5 IE4 1470 DN200×DN150
CronoBloc-BL-E150/180-7,5/4-R1 380V 0-420 0.7-10.5 7.5 IE4 1470 DN200×DN150
CronoBloc-BL-E150/180-7,5/4-R1-S1 380V 0-420 0.7-10.5 7.5 IE4 1470 DN200×DN150
CronoBloc-BL-E150/180-7,5/4-S1 380V 0-420 0.7-10.5 7.5 IE4 1470 DN200×DN150
CronoBloc-BL-E150/190-11/4 380V 0-460 1-13.5 11 IE4 1470 DN200×DN150
CronoBloc-BL-E150/190-11/4-R1 380V 0-460 1-13.5 11 IE4 1470 DN200×DN150
CronoBloc-BL-E150/190-11/4-R1-S1 380V 0-460 1-13.5 11 IE4 1470 DN200×DN150
CronoBloc-BL-E150/190-11/4-S1 380V 0-460 1-13.5 11 IE4 1470 DN200×DN150
CronoBloc-BL-E150/200-15/4 380V 0-520 1-16.2 15 IE4 1480 DN200×DN150
CronoBloc-BL-E150/200-15/4-R1 380V 0-520 1-16.2 15 IE4 1480 DN200×DN150
CronoBloc-BL-E150/200-15/4-R1-S1 380V 0-520 1-16.2 15 IE4 1480 DN200×DN150
CronoBloc-BL-E150/200-15/4-S1 380V 0-520 1-16.2 15 IE4 1480 DN200×DN150
CronoBloc-BL-E150/230-18,5/4 380V 0-500 1.2-19.6 18.5 IE4 1480 DN200×DN150
CronoBloc-BL-E150/230-18,5/4-R1 380V 0-500 1.2-19.6 18.5 IE4 1480 DN200×DN150
CronoBloc-BL-E150/230-18,5/4-R1-S1 380V 0-500 1.2-19.6 18.5 IE4 1480 DN200×DN150
CronoBloc-BL-E150/230-18,5/4-S1 380V 0-500 1.2-19.6 18.5 IE4 1480 DN200×DN150
CronoBloc-BL-E150/240-22/4 380V 0-520 1.6-22 22 IE4 1480 DN200×DN150
CronoBloc-BL-E150/240-22/4-R1 380V 0-520 1.6-22 22 IE4 1480 DN200×DN150
CronoBloc-BL-E150/240-22/4-R1-S1 380V 0-520 1.6-22 22 IE4 1480 DN200×DN150
CronoBloc-BL-E150/240-22/4-S1 380V 0-520 1.6-22 22 IE4 1480 DN200×DN150

外形尺寸

视频介绍

留言咨询

*
*
*
*
*
提交
