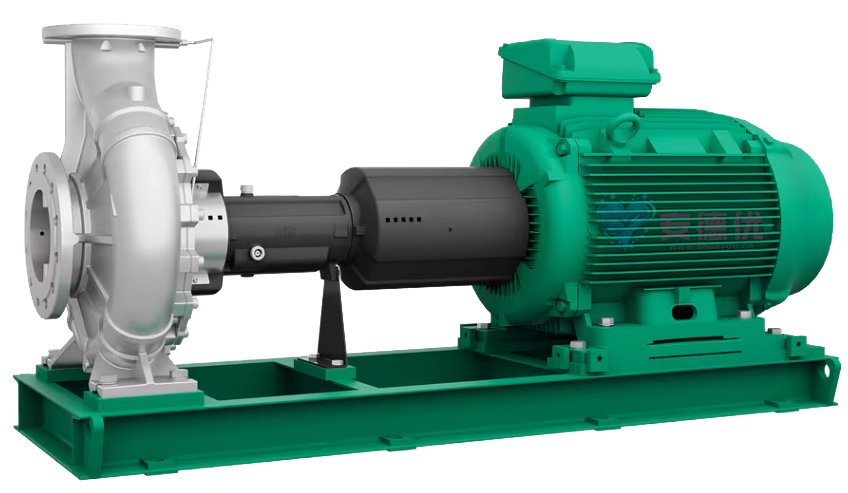

威乐Atmos GIGA-NX分体式卧式端吸管道离心泵(不锈钢)

Atmos GIGA-NX 65/315-55/2W-GB3、Atmos GIGA-NX 65/315-75/2W-GB2、Atmos GIGA-NX 65/315-75/2W-GB3、Atmos GIGA-NX 65/315-90/2W-GB2、Atmos GIGA-NX 65/315-90/2W-GB3、Atmos GIGA-NX 65/315-110/2W-GB2、Atmos GIGA-NX 65/315-110/2W-GB3、Atmos GIGA-NX 80/160-1.1/4W WOS-GB2、Atmos GIGA-NX 80/160-1.1/4W WOS-GB3、Atmos GIGA-NX 80/160-1.5/4W WOS-GB2、Atmos GIGA-NX 80/160-1.5/4W WOS-GB3、Atmos GIGA-NX 80/160-2.2/4W WOS-GB2

威乐Atmos GIGA-NX分体式卧式端吸管道离心泵，采用全不锈钢材质，具备卓越的耐腐蚀性与超长使用寿命，专为严苛工业环境打造。其创新的分体式结构设计，使核心部件维护与更换无需拆卸管路，极大降低停机时间与维护成本。该泵融合高效水力模型与宽频电机技术，实现大幅度节能降耗，稳定应对大流量、高扬程工况。广泛适用于暖通空调、区域能源站、工业循环系统及大型建筑供水等关键领域，是追求极致可靠性与运行经济性的智慧选择。
Product Consultation 电话咨询
功能特点
规格参数
外形尺寸
视频介绍

功能特点

可靠且坚固耐用的标准泵，用于工业应用。

Wilo-Atmos GIGA-NX有多种型号，可提供不同电机和材料，运行温度范围达到了-20至+140 °C。得益于这些优势，该干转子泵成为了可配置的全能型产品，适用于各种工业应用。

水泵专为连续运行而设计，采用防腐蚀不锈钢水力部件和免维护滚珠轴承，可确保长使用寿命。易拆卸短节有助于在维护时快速更换机械密封。Wilo-Atmos GIGA-NX可通过Wilo-EFC变频器进行转速控制，并可配备温度和振动监控装置，以便及早发现潜在故障。

Wilo为此额外提供售后服务套餐WiloCare，全面囊括从试运行到维护等各个生命周期。通过Wilo远程监控系统保证运行可靠、放心无忧。

特点/产品优势

  • 改进的水力部件和GB2/GB3电机提高了总效率，从而实现节能
  • 符合相应的ISO标准（2858、5199），满足工业要求
  • 水力部件和机械密封可进行配置，因而用途广泛
  • 所有铸件均带有电泳涂镀，确保了高耐腐蚀性和长使用寿命
  • 采用标准化尺寸，各种型号的电机和叶轮采用特定应用材料制成，因此可进行个性化定制
  • 便于操作的距离联轴器采用“后面拔出”结构，便于维护
  • 经过改良的叶轮设计降低了压力，实现了高度的运行可靠性

结构

单级低压离心泵，轴向吸入，安装于底座上。标准规格，带易拆卸短节。

应用

  • 泵送采暖水（根据 VDI 2035 标准）、冷水和水-乙二醇混合物，供暖系统、冷水系统和冷却系统中不含磨损性物质。
  • 应用在灌溉、楼宇技术、一般工业、电站等领域。

设备/功能

单级低压离心泵，采用单元组合结构形式，带联轴器、联轴器护罩、电机和底座

  • 机械密封

型号代码

示例

Atmos GIGA-NX 40/200-11/2

Atmos

产品系列

GIGA

系列编号

NX

标准端吸离心泵

40

压力法兰的DN标识

200

叶轮标称直径 [mm]

11

额定功率 P2 [kW]

2

电机级数

技术数据

  • 允许温度范围: -20 °C 至 +140 °C
  • 电源连接 3~380 V，50 Hz
  • 防护等级 IP55
  • 公称直径 DN 32 至 DN 150
  • 最大工作压力 16/25 bar

材料

  • 水泵壳体和联接架。标准：304，其它根据要求提供
  • 叶轮：标准：304；其它根据要求提供
  • 机械密封：AQEGG；可根据客户需求提供其他机械密封

类型

  • 单级低压离心泵作为带配备法兰式轴承托架的轴向吸水口和轴固定件的底座泵，用于灵活连接驱动装置
  • 标准配置一个易拆卸短节（套筒联轴器），拆卸转子装置时不需要移动电机
  • 变体...-P5 无易拆卸短节（降低价格，参见价格列表）

出厂状态

  • 水泵
  • 安装及操作说明
  • 带裸轴的水泵或者
  • 带联轴器和联轴器护罩的底座式泵，不带电机或者
  • 配电动机的底座式完整安装水泵

选项

  • 规格...-P5 无易拆卸短节（降低价格）
  • 可应要求提供其他材料和型号
  • 可应要求提供其他电压和频率

附件

自动转速控制：

Wilo 水泵控制系统用于对水泵功率进行自动的无级变速调控。请联络 Wilo 了解有关“控制开关和控制器”的更多信息。

调试

  • 转速为 2900 rpm 的水泵安装在住宅建筑内时，需要采取相应的隔噪和降噪措施。
  • 水泵特征曲线和具体的电机功率取决于被泵送的相应流体。当输送的流体的浓度和/或黏度不同时，水泵特征曲线和电机功率有很大不同。为此请注意“推荐的配置极限值”表！推荐的配置极值如下计算：从具体的水泵特征曲线中得出的 Qoptimum（水泵达到最佳效率时的流量）；从“推荐的配置极限值”表中得出的 Qmin 和 Qmax 系数。Qmin 配置= Qmin x Qoptimum Qmax 配置 = Qmax x Qoptimum 例如：规格尺寸 Atmos GIGA-NX 032-125 Qmin = 0.3 x 8 = 2.4 m3/h Qmax = 1.2 x 8 = 9.6 m3/h
  • 负载敏感泵功率，所有 Wilo 标准泵均配备 IEC 标准电机。Wilo 控制器适合为常规形式标准电机驱动的水泵进行自动的、负载敏感的转速控制。
  • 主机运行/备用运行

规格参数

型号 电压
(V)		 额定流量
(m³/h)		 额定扬程
(m)		 功率
(kW)		 电机能效 额定转速(rpm) 口径
Atmos GIGA-NX 32/125-0.37/4W WOS-GB3 380V 17.4 6.4 0.37 CL2 1350 DN50×DN32
Atmos GIGA-NX 32/125-0.55/4W WOS-GB2 380V 17.4 6.4 0.55 GB2 1370 DN50×DN32
Atmos GIGA-NX 32/125-0.55/4W WOS-GB3 380V 17.4 6.4 0.55 CL2 1370 DN50×DN32
Atmos GIGA-NX 32/125-1.1/2W WOS-GB2 380V 35 26 1.1 GB2 2900 DN50×DN32
Atmos GIGA-NX 32/125-1.1/2W WOS-GB3 380V 35 26 1.1 GB3 2860 DN50×DN32
Atmos GIGA-NX 32/125-1.5/2W WOS-GB2 380V 35 26 1.5 GB2 2910 DN50×DN32
Atmos GIGA-NX 32/125-1.5/2W WOS-GB3 380V 35 26 1.5 GB3 2870 DN50×DN32
Atmos GIGA-NX 32/125-2.2/2W WOS-GB2 380V 35 26 2.2 GB2 2910 DN50×DN32
Atmos GIGA-NX 32/125-2.2/2W WOS-GB3 380V 35 26 2.2 GB3 2870 DN50×DN32
Atmos GIGA-NX 32/125-3/2W WOS-GB2 380V 35 26 3 GB2 2920 DN50×DN32
Atmos GIGA-NX 32/125-3/2W WOS-GB3 380V 35 26 3 GB3 2890 DN50×DN32
Atmos GIGA-NX 32/125-4/2W WOS-GB2 380V 35 26 4 GB2 2920 DN50×DN32
Atmos GIGA-NX 32/125-4/2W WOS-GB3 380V 35 26 4 GB3 2920 DN50×DN32
Atmos GIGA-NX 32/160-0.37/4W WOS-GB3 380V 17.6 8 0.37 CL2 1350 DN50×DN32
Atmos GIGA-NX 32/160-0.55/4W WOS-GB2 380V 17.6 8 0.55 GB2 1370 DN50×DN32
Atmos GIGA-NX 32/160-0.55/4W WOS-GB3 380V 17.6 8 0.55 CL2 1370 DN50×DN32
Atmos GIGA-NX 32/160-2.2/2W WOS-GB2 380V 37.5 35.5 2.2 GB2 2910 DN50×DN32
Atmos GIGA-NX 32/160-2.2/2W WOS-GB3 380V 37.5 35.5 2.2 GB3 2870 DN50×DN32
Atmos GIGA-NX 32/160-3/2W WOS-GB2 380V 37.5 35.5 3 GB2 2920 DN50×DN32
Atmos GIGA-NX 32/160-3/2W WOS-GB3 380V 37.5 35.5 3 GB3 2890 DN50×DN32
Atmos GIGA-NX 32/160-4/2W WOS-GB2 380V 37.5 35.5 4 GB2 2920 DN50×DN32
Atmos GIGA-NX 32/160-4/2W WOS-GB3 380V 37.5 35.5 4 GB3 2900 DN50×DN32
Atmos GIGA-NX 32/160-5.5/2W WOS-GB2 380V 37.5 35.5 5.5 GB2 2940 DN50×DN32
Atmos GIGA-NX 32/160-5.5/2W WOS-GB3 380V 37.5 35.5 5.5 GB3 2930 DN50×DN32
Atmos GIGA-NX 32/160.1-0,37/4W WOS-GB3 380V 11.4 9.3 0.37 CL2 1350 DN50×DN32
Atmos GIGA-NX 32/160.1-0,55/4W WOS-GB2 380V 11.4 9.3 0.55 GB2 1370 DN50×DN32
Atmos GIGA-NX 32/160.1-0,55/4W WOS-GB3 380V 11.4 9.3 0.55 CL2 1370 DN50×DN32
Atmos GIGA-NX 32/160.1-1,5/2W WOS-GB2 380V 22.9 37 1.5 GB2 2910 DN50×DN32
Atmos GIGA-NX 32/160.1-1,5/2W WOS-GB3 380V 22.9 37 1.5 GB3 2870 DN50×DN32
Atmos GIGA-NX 32/160.1-1.1/2W WOS-GB2 380V 22.9 37 1.1 GB2 2900 DN50×DN32
Atmos GIGA-NX 32/160.1-1.1/2W WOS-GB3 380V 22.9 37 1.1 GB3 2860 DN50×DN32
Atmos GIGA-NX 32/160.1-2,2/2W WOS-GB2 380V 23 37 2.2 GB2 2910 DN50×DN32
Atmos GIGA-NX 32/160.1-2,2/2W WOS-GB3 380V 23 37 2.2 GB3 2870 DN50×DN32
Atmos GIGA-NX 32/160.1-3/2W WOS-GB2 380V 23 37 3 GB2 2920 DN50×DN32
Atmos GIGA-NX 32/160.1-3/2W WOS-GB3 380V 23 37 3 GB3 2890 DN50×DN32
Atmos GIGA-NX 32/160.1-4/2W WOS-GB2 380V 23 37 4 GB2 2920 DN50×DN32
Atmos GIGA-NX 32/160.1-4/2W WOS-GB3 380V 23 37 4 GB3 2900 DN50×DN32
Atmos GIGA-NX 32/200-0.37/4W WOS-GB3 380V 16.3 13.5 0.37 CL2 1350 DN50×DN32
Atmos GIGA-NX 32/200-0.55/4W WOS-GB2 380V 16.3 13.5 0.55 GB2 1370 DN50×DN32
Atmos GIGA-NX 32/200-0.55/4W WOS-GB3 380V 16.3 13.5 0.55 CL2 1370 DN50×DN32
Atmos GIGA-NX 32/200-0.75/4W WOS-GB2 380V 16.3 13.5 0.75 GB2 1430 DN50×DN32
Atmos GIGA-NX 32/200-0.75/4W WOS-GB3 380V 16.3 13.5 0.75 CL2 1430 DN50×DN32
Atmos GIGA-NX 32/200-1.1/4W WOS-GB2 380V 16.3 13.5 1.1 - 1445 DN50×DN32
Atmos GIGA-NX 32/200-1.1/4W WOS-GB3 380V 16.3 13.5 1.1 CL2 1440 DN50×DN32
Atmos GIGA-NX 32/200-3/2W WOS-GB2 380V 31 50 3 GB2 2920 DN50×DN32
Atmos GIGA-NX 32/200-3/2W WOS-GB3 380V 31 50 3 GB3 2890 DN50×DN32
Atmos GIGA-NX 32/200-4/2W WOS-GB2 380V 31 50 4 GB2 2920 DN50×DN32
Atmos GIGA-NX 32/200-4/2W WOS-GB3 380V 31 50 4 GB3 2900 DN50×DN32
Atmos GIGA-NX 32/200-5.5/2W WOS-GB2 380V 31 50 5.5 GB2 2940 DN50×DN32
Atmos GIGA-NX 32/200-5.5/2W WOS-GB3 380V 31 50 5.5 GB3 2930 DN50×DN32
Atmos GIGA-NX 32/200-7.5/2W WOS-GB2 380V 31 50 7.5 GB2 2940 DN50×DN32
Atmos GIGA-NX 32/200-7.5/2W WOS-GB3 380V 31 50 7.5 GB3 2930 DN50×DN32
Atmos GIGA-NX 32/250-0.55/4W WOS-GB2 380V 20.6 23 0.55 GB2 1370 DN50×DN32
Atmos GIGA-NX 32/250-0.55/4W WOS-GB3 380V 20.6 23 0.55 CL2 1370 DN50×DN32
Atmos GIGA-NX 32/250-0.75/4W WOS-GB2 380V 20.6 23 0.75 GB2 1430 DN50×DN32
Atmos GIGA-NX 32/250-0.75/4W WOS-GB3 380V 20.6 23 0.75 CL2 1430 DN50×DN32
Atmos GIGA-NX 32/250-1.1/4W WOS-GB2 380V 20.6 23 1.1 - 1445 DN50×DN32
Atmos GIGA-NX 32/250-1.1/4W WOS-GB3 380V 20.6 23 1.1 CL2 1440 DN50×DN32
Atmos GIGA-NX 32/250-1.5/4W WOS-GB2 380V 20.6 23 1.5 GB2 1445 DN50×DN32
Atmos GIGA-NX 32/250-1.5/4W WOS-GB3 380V 20.6 23 1.5 CL2 1440 DN50×DN32
Atmos GIGA-NX 32/250-2.2/4W WOS-GB2 380V 20.6 23 2.2 GB2 1460 DN50×DN32
Atmos GIGA-NX 32/250-2.2/4W WOS-GB3 380V 20.6 23 2.2 CL2 1450 DN50×DN32
Atmos GIGA-NX 32/250-3/4W WOS-GB2 380V 20.6 23 3 GB2 1460 DN50×DN32
Atmos GIGA-NX 32/250-3/4W WOS-GB3 380V 20.6 23 3 CL2 1450 DN50×DN32
Atmos GIGA-NX 32/250-5.5/2W WOS-GB2 380V 40.3 88 5.5 GB2 2940 DN50×DN32
Atmos GIGA-NX 32/250-5.5/2W WOS-GB3 380V 40.3 88 5.5 GB3 2930 DN50×DN32
Atmos GIGA-NX 32/250-7.5/2W WOS-GB2 380V 40.3 88 7.5 GB2 2940 DN50×DN32
Atmos GIGA-NX 32/250-7.5/2W WOS-GB3 380V 40.3 88 7.5 GB3 2930 DN50×DN32
Atmos GIGA-NX 32/250-11/2W WOS-GB2 380V 40.3 88 11 GB2 2960 DN50×DN32
Atmos GIGA-NX 32/250-11/2W WOS-GB3 380V 40.3 88 11 GB3 2945 DN50×DN32
Atmos GIGA-NX 32/250-15/2W WOS-GB2 380V 40.3 88 15 GB2 2960 DN50×DN32
Atmos GIGA-NX 32/250-15/2W WOS-GB2 380V 40.3 88 15 GB3 2945 DN50×DN32
Atmos GIGA-NX 32/250-18.5/2W WOS-GB2 380V 40.3 88 18.5 GB2 2960 DN50×DN32
Atmos GIGA-NX 32/250-18.5/2W WOS-GB3 380V 40.3 88 18.5 GB3 2945 DN50×DN32
Atmos GIGA-NX 40/125-0.37/4W WOS-GB3 380V 27.5 6.3 0.37 CL2 1350 DN65×DN40
Atmos GIGA-NX 40/125-0.55/4W WOS-GB2 380V 27.5 6.3 0.55 GB2 1370 DN65×DN40
Atmos GIGA-NX 40/125-0.55/4W WOS-GB3 380V 27.5 6.3 0.55 CL2 1370 DN65×DN40
Atmos GIGA-NX 40/125-0.75/4W WOS-GB2 380V 27.5 6.3 0.75 GB2 1430 DN65×DN40
Atmos GIGA-NX 40/125-0.75/4W WOS-GB3 380V 27.5 6.3 0.75 CL2 1430 DN65×DN40
Atmos GIGA-NX 40/125-2.2/2W WOS-GB2 380V 56 26 2.2 GB2 2910 DN65×DN40
Atmos GIGA-NX 40/125-2.2/2W WOS-GB3 380V 56 26 2.2 GB3 2870 DN65×DN40
Atmos GIGA-NX 40/125-3/2W WOS-GB2 380V 56 26 3 GB2 2920 DN65×DN40
Atmos GIGA-NX 40/125-3/2W WOS-GB3 380V 56 26 3 GB3 2890 DN65×DN40
Atmos GIGA-NX 40/125-4/2W WOS-GB2 380V 56 26 4 GB2 2920 DN65×DN40
Atmos GIGA-NX 40/125-4/2W WOS-GB3 380V 56 26 4 GB3 2900 DN65×DN40
Atmos GIGA-NX 40/125-5.5/2W WOS-GB2 380V 56 26 5.5 GB2 2940 DN65×DN40
Atmos GIGA-NX 40/125-5.5/2W WOS-GB3 380V 56 26 5.5 GB3 2930 DN65×DN40
Atmos GIGA-NX 40/160-0.37/4W WOS-GB3 380V 27 9.2 0.37 CL2 1350 DN65×DN40
Atmos GIGA-NX 40/160-0.55/4W WOS-GB2 380V 27 9.2 0.55 GB2 1370 DN65×DN40
Atmos GIGA-NX 40/160-0.55/4W WOS-GB3 380V 27 9.2 0.55 CL2 1370 DN65×DN40
Atmos GIGA-NX 40/160-0.75/4W WOS-GB2 380V 27 9.2 0.75 GB2 1430 DN65×DN40
Atmos GIGA-NX 40/160-0.75/4W WOS-GB3 380V 27 9.2 0.75 CL2 1430 DN65×DN40
Atmos GIGA-NX 40/160-1.1/4W WOS-GB2 380V 27 9.2 1.1 - 1445 DN65×DN40
Atmos GIGA-NX 40/160-1.1/4W WOS-GB3 380V 27 9.2 1.1 CL2 1440 DN65×DN40
Atmos GIGA-NX 40/160-3/2W WOS-GB2 380V 56 39 3 GB2 2920 DN65×DN40
Atmos GIGA-NX 40/160-3/2W WOS-GB3 380V 56 39 3 GB3 2890 DN65×DN40
Atmos GIGA-NX 40/160-4/2W WOS-GB2 380V 56 39 4 GB2 2920 DN65×DN40
Atmos GIGA-NX 40/160-4/2W WOS-GB3 380V 56 39 4 GB3 2900 DN65×DN40
Atmos GIGA-NX 40/160-5.5/2W WOS-GB2 380V 56 39 5.5 GB2 2940 DN65×DN40
Atmos GIGA-NX 40/160-5.5/2W WOS-GB3 380V 56 39 5.5 GB3 2930 DN65×DN40
Atmos GIGA-NX 40/160-7.5/2W WOS-GB2 380V 56 39 7.5 GB2 2940 DN65×DN40
Atmos GIGA-NX 40/160-7.5/2W WOS-GB3 380V 56 39 7.5 GB3 2930 DN65×DN40
Atmos GIGA-NX 40/160-11/2W WOS-GB2 380V 56 39 11 GB2 2960 DN65×DN40
Atmos GIGA-NX 40/160-11/2W WOS-GB3 380V 56 39 11 GB3 2945 DN65×DN40
Atmos GIGA-NX 40/200-0,37/4W WOS-GB3 380V 28.7 15 0.37 CL2 1350 DN65×DN40
Atmos GIGA-NX 40/200-0,55/4W WOS-GB2 380V 28.7 15 0.55 GB2 1370 DN65×DN40
Atmos GIGA-NX 40/200-0,55/4W WOS-GB3 380V 28.7 15 0.55 CL2 1370 DN65×DN40
Atmos GIGA-NX 40/200-0,75/4W WOS-GB2 380V 28.7 15 0.75 GB2 1430 DN65×DN40
Atmos GIGA-NX 40/200-0,75/4W WOS-GB3 380V 28.7 15 0.75 CL2 1445 DN65×DN40
Atmos GIGA-NX 40/200-1,1/4W WOS-GB2 380V 28.7 15 1.1 - 1445 DN65×DN40
Atmos GIGA-NX 40/200-1,1/4W WOS-GB3 380V 28.7 15 1.1 CL2 1440 DN65×DN40
Atmos GIGA-NX 40/200-1,5/4W WOS-GB2 380V 28.7 15 1.5 GB2 1445 DN65×DN40
Atmos GIGA-NX 40/200-1,5/4W WOS-GB3 380V 28.7 15 1.5 CL2 1440 DN65×DN40
Atmos GIGA-NX 40/200-2,2/4W WOS-GB2 380V 28.7 15 2.2 GB2 1460 DN65×DN40
Atmos GIGA-NX 40/200-2,2/4W WOS-GB3 380V 28.7 15 2.2 CL2 1450 DN65×DN40
Atmos GIGA-NX 40/200-5,5/2W WOS-GB2 380V 57 60 5.5 GB2 2940 DN65×DN40
Atmos GIGA-NX 40/200-5,5/2W WOS-GB3 380V 57 60 5.5 GB3 2930 DN65×DN40
Atmos GIGA-NX 40/200-7,5/2W WOS-GB2 380V 57 60 7.5 GB2 2940 DN65×DN40
Atmos GIGA-NX 40/200-7,5/2W WOS-GB3 380V 57 60 7.5 GB3 2930 DN65×DN40
Atmos GIGA-NX 40/200-11/2W WOS-GB2 380V 57 60 11 GB2 2960 DN65×DN40
Atmos GIGA-NX 40/200-11/2W WOS-GB3 380V 57 60 11 GB3 2945 DN65×DN40
Atmos GIGA-NX 40/200-15/2W WOS-GB2 380V 57 60 15 GB2 2960 DN65×DN40
Atmos GIGA-NX 40/200-15/2W WOS-GB3 380V 57 60 15 GB3 2945 DN65×DN40
Atmos GIGA-NX 40/200-18.5/2W WOS-GB2 380V 57 60 18.5 GB2 2960 DN65×DN40
Atmos GIGA-NX 40/200-18.5/2W WOS-GB3 380V 57 60 18.5 GB3 2945 DN65×DN40
Atmos GIGA-NX 40/200-22/2W WOS-GB2 380V 57 60 22 GB2 2960 DN65×DN40
Atmos GIGA-NX 40/200-22/2W WOS-GB3 380V 57 60 22 GB3 2955 DN65×DN40
Atmos GIGA-NX 40/250-1.1/4W WOS-GB2 380V 435 134 132 GB2 2980 DN125×DN100
Atmos GIGA-NX 40/250-1.1/4W WOS-GB3 380V 435 134 132 GB3 2975 DN125×DN100
Atmos GIGA-NX 40/250-1.5/4W WOS-GB2 380V 227 35.5 15 GB2 1475 DN125×DN100
Atmos GIGA-NX 40/250-1.5/4W WOS-GB3 380V 227 35.5 15 CL2 1465 DN125×DN100
Atmos GIGA-NX 40/250-2.2/4W WOS-GB2 380V 227 35.5 22 GB2 1480 DN125×DN100
Atmos GIGA-NX 40/250-2.2/4W WOS-GB3 380V 227 35.5 22 CL2 1470 DN125×DN100
Atmos GIGA-NX 40/250-3/4W WOS-GB2 380V 435 134 90 GB2 2980 DN125×DN100
Atmos GIGA-NX 40/250-3/4W WOS-GB3 380V 435 134 90 GB3 2975 DN125×DN100
Atmos GIGA-NX 40/250-11/2W WOS-GB2 380V 435 134 160 GB2 2980 DN125×DN100
Atmos GIGA-NX 40/250-11/2W WOS-GB3 380V 435 134 160 GB3 2975 DN125×DN100
Atmos GIGA-NX 40/250-15/2W WOS-GB2 380V 227 35.5 18.5 GB2 1480 DN125×DN100
Atmos GIGA-NX 40/250-15/2W WOS-GB3 380V 227 35.5 18.5 CL2 1470 DN125×DN100
Atmos GIGA-NX 40/250-18.5/2W WOS-GB2 380V 435 134 200 GB2 2980 DN125×DN100
Atmos GIGA-NX 40/250-18.5/2W WOS-GB3 380V 435 134 200 GB3 2980 DN125×DN100
Atmos GIGA-NX 40/250-22/2W WOS-GB2 380V 227 35.5 30 GB2 1480 DN125×DN100
Atmos GIGA-NX 40/250-22/2W WOS-GB3 380V 227 35.5 30 CL2 1475 DN125×DN100
Atmos GIGA-NX 40/250-30/2W WOS-GB2 380V 500 58 110 GB2 1490 DN125×DN100
Atmos GIGA-NX 40/250-30/2W WOS-GB3 380V 500 58 110 CL2 1485 DN125×DN100
Atmos GIGA-NX 40/315-2.2/4W WOS-GB2 380V 33.5 39 2.2 GB2 1460 DN65×DN40
Atmos GIGA-NX 40/315-2.2/4W WOS-GB3 380V 33.5 39 2.2 CL2 1450 DN65×DN40
Atmos GIGA-NX 40/315-3/4W WOS-GB2 380V 33.5 39 3 GB2 1460 DN65×DN40
Atmos GIGA-NX 40/315-3/4W WOS-GB3 380V 33.5 39 3 CL2 1450 DN65×DN40
Atmos GIGA-NX 40/315-4/4W WOS-GB2 380V 33.5 39 4 GB2 1460 DN65×DN40
Atmos GIGA-NX 40/315-4/4W WOS-GB3 380V 33.5 39 4 CL2 1450 DN65×DN40
Atmos GIGA-NX 40/315-5.5/4W WOS-GB2 380V 33.5 39 5.5 GB2 1470 DN65×DN40
Atmos GIGA-NX 40/315-5.5/4W WOS-GB3 380V 33.5 39 5.5 CL2 1460 DN65×DN40
Atmos GIGA-NX 40/315-7.5/4W WOS-GB2 380V 33.5 39 7.5 GB2 1470 DN65×DN40
Atmos GIGA-NX 40/315-7.5/4W WOS-GB3 380V 33.5 39 7.5 CL2 1460 DN65×DN40
Atmos GIGA-NX 40/315-22/2W WOS-GB2 380V 66 152 22 GB2 2960 DN65×DN40
Atmos GIGA-NX 40/315-22/2W WOS-GB3 380V 65.5 152 22 GB3 2955 DN65×DN40
Atmos GIGA-NX 40/315-30/2W WOS-GB2 380V 65.5 152 30 GB2 2970 DN65×DN40
Atmos GIGA-NX 40/315-30/2W WOS-GB3 380V 65.5 152 30 GB3 2960 DN65×DN40
Atmos GIGA-NX 40/315-37/2W WOS-GB2 380V 65.5 152 37 GB2 2970 DN65×DN40
Atmos GIGA-NX 40/315-37/2W WOS-GB3 380V 65.5 152 37 GB3 2960 DN65×DN40
Atmos GIGA-NX 40/315-45/2W-GB2 380V 65.5 152 45 GB2 2970 DN65×DN40
Atmos GIGA-NX 40/315-45/2W-GB3 380V 65.5 152 45 GB3 2965 DN65×DN40
Atmos GIGA-NX 40/315-55/2W-GB2 380V 65.5 152 55 GB2 2980 DN65×DN40
Atmos GIGA-NX 40/315-55/2W-GB3 380V 65.5 152 55 GB3 2970 DN65×DN40
Atmos GIGA-NX 50/125-0.37/4W WOS-GB3 380V 44.5 5.9 0.37 CL2 1350 DN80×DN50
Atmos GIGA-NX 50/125-0.55/4W WOS-GB2 380V 44.5 5.9 0.55 GB2 1370 DN80×DN50
Atmos GIGA-NX 50/125-0.55/4W WOS-GB3 380V 44.5 5.9 0.55 CL2 1370 DN80×DN50
Atmos GIGA-NX 50/125-0.75/4W WOS-GB2 380V 44.5 5.9 0.75 GB2 1430 DN80×DN50
Atmos GIGA-NX 50/125-0.75/4W WOS-GB3 380V 44.5 5.9 0.75 CL2 1430 DN80×DN50
Atmos GIGA-NX 50/125-1.1/4W WOS-GB2 380V 44.5 5.9 1.1 - 1445 DN80×DN50
Atmos GIGA-NX 50/125-1.1/4W WOS-GB3 380V 44.5 5.9 1.1 CL2 1440 DN80×DN50
Atmos GIGA-NX 50/125-3/2W WOS-GB2 380V 88 23.7 3 GB2 2920 DN80×DN50
Atmos GIGA-NX 50/125-3/2W WOS-GB3 380V 88 23.7 3 GB3 2890 DN80×DN50
Atmos GIGA-NX 50/125-4/2W WOS-GB2 380V 88 23.7 4 GB2 2900 DN80×DN50
Atmos GIGA-NX 50/125-4/2W WOS-GB3 380V 88 23.7 4 GB3 2900 DN80×DN50
Atmos GIGA-NX 50/125-5.5/2W WOS-GB2 380V 88 23.7 5.5 GB2 2940 DN80×DN50
Atmos GIGA-NX 50/125-5.5/2W WOS-GB3 380V 88 23.7 5.5 GB3 2930 DN80×DN50
Atmos GIGA-NX 50/125-7.5/2W WOS-GB2 380V 88 23.7 7.5 GB2 2940 DN80×DN50
Atmos GIGA-NX 50/125-7.5/2W WOS-GB3 380V 88 23.7 7.5 GB3 2930 DN80×DN50
Atmos GIGA-NX 50/160-0.55/4W WOS-GB2 380V 39.5 9.6 0.55 GB2 1370 DN80×DN50
Atmos GIGA-NX 50/160-0.55/4W WOS-GB3 380V 39.5 9.6 0.55 CL2 1370 DN80×DN50
Atmos GIGA-NX 50/160-0.75/4W WOS-GB2 380V 39.5 9.6 0.75 GB2 1430 DN80×DN50
Atmos GIGA-NX 50/160-0.75/4W WOS-GB3 380V 39.5 9.6 0.75 CL2 1430 DN80×DN50
Atmos GIGA-NX 50/160-1.1/4W WOS-GB2 380V 39.5 9.6 1.1 - 1445 DN80×DN50
Atmos GIGA-NX 50/160-1.1/4W WOS-GB3 380V 39.5 9.6 1.1 CL2 1440 DN80×DN50
Atmos GIGA-NX 50/160-1.5/4W WOS-GB2 380V 39.5 9.6 1.5 GB2 1445 DN80×DN50
Atmos GIGA-NX 50/160-1.5/4W WOS-GB3 380V 39.5 9.6 1.5 CL2 1440 DN80×DN50
Atmos GIGA-NX 50/160-4/2W WOS-GB2 380V 78 37.5 4 GB2 2920 DN80×DN50
Atmos GIGA-NX 50/160-4/2W WOS-GB3 380V 78 37.5 4 GB3 2900 DN80×DN50
Atmos GIGA-NX 50/160-5.5/2W WOS-GB2 380V 78 37.5 5.5 GB2 2940 DN80×DN50
Atmos GIGA-NX 50/160-5.5/2W WOS-GB3 380V 78 37.5 5.5 GB3 2930 DN80×DN50
Atmos GIGA-NX 50/160-7.5/2W WOS-GB2 380V 78 37.5 7.5 GB2 2940 DN80×DN50
Atmos GIGA-NX 50/160-7.5/2W WOS-GB3 380V 78 37.5 7.5 GB3 2930 DN80×DN50
Atmos GIGA-NX 50/160-11/2W WOS-GB2 380V 78 37.5 11 GB2 2960 DN80×DN50
Atmos GIGA-NX 50/160-11/2W WOS-GB3 380V 78 37.5 11 GB3 2945 DN80×DN50
Atmos GIGA-NX 50/200-1.1/4W WOS-GB2 380V 45 15 1.1 - 1445 DN80×DN50
Atmos GIGA-NX 50/200-1.1/4W WOS-GB3 380V 45 15 1.1 CL2 1440 DN80×DN50
Atmos GIGA-NX 50/200-1.5/4W WOS-GB2 380V 45 15 1.5 GB2 1445 DN80×DN50
Atmos GIGA-NX 50/200-1.5/4W WOS-GB3 380V 45 15 1.5 CL2 1440 DN80×DN50
Atmos GIGA-NX 50/200-2.2/4W WOS-GB2 380V 45 15 5.5 GB2 1470 DN80×DN50
Atmos GIGA-NX 50/200-2.2/4W WOS-GB3 380V 45 15 2.2 CL2 1450 DN80×DN50
Atmos GIGA-NX 50/200-3/4W WOS-GB2 380V 45 15 3 GB2 1460 DN80×DN50
Atmos GIGA-NX 50/200-3/4W WOS-GB3 380V 45 15 3 CL2 1450 DN80×DN50
Atmos GIGA-NX 50/200-7.5/2W WOS-GB2 380V 91 61 7.5 GB2 2940 DN80×DN50
Atmos GIGA-NX 50/200-7.5/2W WOS-GB3 380V 91 61 7.5 GB3 2930 DN80×DN50
Atmos GIGA-NX 50/200-11/2W WOS-GB2 380V 91 61 11 GB2 2960 DN80×DN50
Atmos GIGA-NX 50/200-11/2W WOS-GB3 380V 91 61 11 GB3 2945 DN80×DN50
Atmos GIGA-NX 50/200-15/2W WOS-GB2 380V 91 61 15 GB2 2960 DN80×DN50
Atmos GIGA-NX 50/200-15/2W WOS-GB3 380V 91 61 15 GB3 2945 DN80×DN50
Atmos GIGA-NX 50/200-18.5/2W WOS-GB2 380V 91 61 18.5 GB2 2960 DN80×DN50
Atmos GIGA-NX 50/200-18.5/2W WOS-GB3 380V 91 61 18.5 GB3 2945 DN80×DN50
Atmos GIGA-NX 50/200-22/2W WOS-GB2 380V 91 61 22 GB2 2960 DN80×DN50
Atmos GIGA-NX 50/200-22/2W WOS-GB3 380V 91 61 22 GB3 2955 DN80×DN50
Atmos GIGA-NX 50/250-1,5/4W WOS-GB2 380V 50 21 1.5 GB2 1445 DN80×DN50
Atmos GIGA-NX 50/250-1,5/4W WOS-GB3 380V 50 21 1.5 CL2 1440 DN80×DN50
Atmos GIGA-NX 50/250-2,2/4W WOS-GB2 380V 50 21 2.2 GB2 1460 DN80×DN50
Atmos GIGA-NX 50/250-2,2/4W WOS-GB3 380V 50 21 2.2 CL2 1450 DN80×DN50
Atmos GIGA-NX 50/250-3/4W WOS-GB2 380V 50 21 3 GB2 1460 DN80×DN50
Atmos GIGA-NX 50/250-3/4W WOS-GB3 380V 50 21 3 CL2 1450 DN80×DN50
Atmos GIGA-NX 50/250-4/4W WOS-GB2 380V 50 21 4 GB2 1460 DN80×DN50
Atmos GIGA-NX 50/250-4/4W WOS-GB3 380V 50 21 4 CL2 1450 DN80×DN50
Atmos GIGA-NX 50/250-5,5/4W WOS-GB2 380V 50 21 5.5 GB2 1470 DN80×DN50
Atmos GIGA-NX 50/250-5,5/4W WOS-GB3 380V 50 21 5.5 CL2 1460 DN80×DN50
Atmos GIGA-NX 50/250-11/2W WOS-GB2 380V 100 84 11 GB2 2960 DN80×DN50
Atmos GIGA-NX 50/250-11/2W WOS-GB3 380V 100 84 11 GB3 2945 DN80×DN50
Atmos GIGA-NX 50/250-15/2W WOS-GB2 380V 100 84 15 GB2 2960 DN80×DN50
Atmos GIGA-NX 50/250-15/2W WOS-GB3 380V 100 84 15 GB3 2945 DN80×DN50
Atmos GIGA-NX 50/250-18,5/2W WOS-GB2 380V 100 84 18.5 GB2 2960 DN80×DN50
Atmos GIGA-NX 50/250-18,5/2W WOS-GB3 380V 100 84 18.5 GB3 2960 DN80×DN50
Atmos GIGA-NX 50/250-22/2W WOS-GB2 380V 100 84 22 GB2 2960 DN80×DN50
Atmos GIGA-NX 50/250-22/2W WOS-GB3 380V 100 84 22 GB3 2955 DN80×DN50
Atmos GIGA-NX 50/250-30/2W WOS-GB2 380V 100 84 30 GB2 2970 DN80×DN50
Atmos GIGA-NX 50/250-30/2W WOS-GB3 380V 100 84 30 GB3 2960 DN80×DN50
Atmos GIGA-NX 50/250-37/2W WOS-GB2 380V 100 84 37 GB2 2970 DN80×DN50
Atmos GIGA-NX 50/250-37/2W WOS-GB3 380V 100 84 37 GB3 2960 DN80×DN50
Atmos GIGA-NX 50/315-3/4W WOS-GB2 380V 500 58 55 GB2 1485 DN200×DN150
Atmos GIGA-NX 50/315-3/4W WOS-GB3 380V 500 58 55 CL2 1485 DN200×DN150
Atmos GIGA-NX 50/315-4/4W WOS-GB2 380V 33 20.6 1.1 - 1445 DN65×DN40
Atmos GIGA-NX 50/315-4/4W WOS-GB3 380V 33 20.6 1.1 CL2 1440 DN65×DN40
Atmos GIGA-NX 50/315-5.5/4W WOS-GB2 380V 33 20.6 1.5 GB2 1445 DN65×DN40
Atmos GIGA-NX 50/315-5.5/4W WOS-GB2 380V 33 20.6 5.5 GB2 1445 DN65×DN40
Atmos GIGA-NX 50/315-5.5/4W WOS-GB3 380V 33 20.6 1.5 CL2 1440 DN65×DN40
Atmos GIGA-NX 50/315-5.5/4W WOS-GB3 380V 33 20.6 5.5 CL2 1440 DN65×DN40
Atmos GIGA-NX 50/315-7.5/4W WOS-GB2 380V 69 88 11 GB2 2960 DN65×DN40
Atmos GIGA-NX 50/315-7.5/4W WOS-GB2 380V 69 88 7.5 GB2 2960 DN65×DN40
Atmos GIGA-NX 50/315-7.5/4W WOS-GB3 380V 69 88 11 GB3 2945 DN65×DN40
Atmos GIGA-NX 50/315-7.5/4W WOS-GB3 380V 69 88 7.5 CL2 2945 DN65×DN40
Atmos GIGA-NX 50/315-11/4W WOS-GB2 380V 500 58 45 GB2 1485 DN200×DN150
Atmos GIGA-NX 50/315-11/4W WOS-GB3 380V 500 58 45 CL2 1485 DN200×DN150
Atmos GIGA-NX 50/315-30/2W WOS-GB2 380V 500 58 75 GB2 1485 DN200×DN150
Atmos GIGA-NX 50/315-30/2W WOS-GB3 380V 500 58 75 CL2 1485 DN200×DN150
Atmos GIGA-NX 50/315-37/2W WOS-GB2 380V 500 58 90 GB2 1485 DN200×DN150
Atmos GIGA-NX 50/315-37/2W WOS-GB3 380V 500 58 90 CL2 1485 DN200×DN150
Atmos GIGA-NX 50/315-55/2W-GB2 380V 113 144 55 GB2 2980 DN80×DN50
Atmos GIGA-NX 50/315-55/2W-GB3 380V 113 144 55 GB3 2970 DN80×DN50
Atmos GIGA-NX 50/315-75/2W-GB2 380V 113 144 75 GB2 2980 DN80×DN50
Atmos GIGA-NX 50/315-75/2W-GB3 380V 113 144 75 GB3 2975 DN80×DN50
Atmos GIGA-NX 65/125-0.55/4W WOS-GB2 380V 59 4.9 0.55 GB2 1370 DN100×DN65
Atmos GIGA-NX 65/125-0.55/4W WOS-GB3 380V 59 4.9 0.55 CL2 1370 DN100×DN65
Atmos GIGA-NX 65/125-0.75/4W WOS-GB2 380V 59 4.9 0.75 GB2 1430 DN100×DN65
Atmos GIGA-NX 65/125-0.75/4W WOS-GB3 380V 59 4.9 0.75 CL2 1430 DN100×DN65
Atmos GIGA-NX 65/125-1.1/4W WOS-GB2 380V 59 4.8 1.1 - 1445 DN100×DN65
Atmos GIGA-NX 65/125-1.1/4W WOS-GB3 380V 59 4.8 1.1 CL2 1440 DN100×DN65
Atmos GIGA-NX 65/125-4/2W WOS-GB2 380V 124 22.3 4 GB2 2920 DN100×DN65
Atmos GIGA-NX 65/125-4/2W WOS-GB3 380V 124 22.3 4 GB3 2900 DN100×DN65
Atmos GIGA-NX 65/125-5.5/2W WOS-GB2 380V 124 22.3 5.5 GB2 2940 DN100×DN65
Atmos GIGA-NX 65/125-5.5/2W WOS-GB3 380V 124 22.3 5.5 GB3 2930 DN100×DN65
Atmos GIGA-NX 65/125-7.5/2W WOS-GB2 380V 124 22.3 7.5 GB2 2940 DN100×DN65
Atmos GIGA-NX 65/125-7.5/2W WOS-GB3 380V 124 22.3 7.5 GB3 2930 DN100×DN65
Atmos GIGA-NX 65/125-11/2W WOS-GB2 380V 124 22.3 11 GB2 2960 DN100×DN65
Atmos GIGA-NX 65/125-11/2W WOS-GB3 380V 124 22.3 11 GB3 2945 DN100×DN65
Atmos GIGA-NX 65/160-0,55/4W WOS-GB2 380V 61 9.7 0.55 GB2 1370 DN100×DN65
Atmos GIGA-NX 65/160-0,55/4W WOS-GB3 380V 61 9.7 0.55 CL2 1370 DN100×DN65
Atmos GIGA-NX 65/160-0,75/4W WOS-GB2 380V 61 9.7 0.75 GB2 1430 DN100×DN65
Atmos GIGA-NX 65/160-0,75/4W WOS-GB3 380V 61 9.7 0.75 CL2 1430 DN100×DN65
Atmos GIGA-NX 65/160-1,1/4W WOS-GB2 380V 61 9.7 1.1 - 1445 DN100×DN65
Atmos GIGA-NX 65/160-1,1/4W WOS-GB3 380V 61 9.7 1.1 CL2 1440 DN100×DN65
Atmos GIGA-NX 65/160-1,5/4W WOS-GB2 380V 61 9.7 1.5 GB2 1445 DN100×DN65
Atmos GIGA-NX 65/160-1,5/4W WOS-GB3 380V 61 9.7 1.5 CL2 1440 DN100×DN65
Atmos GIGA-NX 65/160-2,2/4W WOS-GB2 380V 61 9.7 2.2 GB2 1460 DN100×DN65
Atmos GIGA-NX 65/160-2,2/4W WOS-GB3 380V 61 9.7 2.2 CL2 1450 DN100×DN65
Atmos GIGA-NX 65/160-5,5/2W WOS-GB3 380V 123 40 5.5 GB2 2940 DN100×DN65
Atmos GIGA-NX 65/160-5,5/2W WOS-GB3 380V 123 40 5.5 GB3 2930 DN100×DN65
Atmos GIGA-NX 65/160-7,5/2W WOS-GB2 380V 123 40 7.5 GB2 2940 DN100×DN65
Atmos GIGA-NX 65/160-7,5/2W WOS-GB3 380V 123 40 7.5 GB3 2930 DN100×DN65
Atmos GIGA-NX 65/160-11/2W WOS-GB2 380V 123 40 11 GB2 2960 DN100×DN65
Atmos GIGA-NX 65/160-11/2W WOS-GB3 380V 123 40 11 GB3 2945 DN100×DN65
Atmos GIGA-NX 65/160-15/2W WOS-GB2 380V 123 40 15 GB2 2960 DN100×DN65
Atmos GIGA-NX 65/160-15/2W WOS-GB3 380V 123 40 15 GB3 2945 DN100×DN65
Atmos GIGA-NX 65/160-18,5/2W WOS-GB2 380V 123 40 18.5 GB2 2960 DN100×DN65
Atmos GIGA-NX 65/160-18,5/2W WOS-GB3 380V 123 40 18.5 GB3 2945 DN100×DN65
Atmos GIGA-NX 65/200-1.5/4W WOS-GB2 380V 71 15 1.5 GB2 1445 DN100×DN65
Atmos GIGA-NX 65/200-1.5/4W WOS-GB3 380V 71 15 1.5 CL2 1440 DN100×DN65
Atmos GIGA-NX 65/200-2.2/4W WOS-GB2 380V 71 15 2.2 GB2 1460 DN100×DN65
Atmos GIGA-NX 65/200-2.2/4W WOS-GB3 380V 71 15 2.2 CL2 1450 DN100×DN65
Atmos GIGA-NX 65/200-3/4W WOS-GB2 380V 71 15 3 GB2 1460 DN100×DN65
Atmos GIGA-NX 65/200-3/4W WOS-GB3 380V 71 15 - - 1460 DN100×DN65
Atmos GIGA-NX 65/200-4/4W WOS-GB2 380V 71 15 4 GB2 1460 DN100×DN65
Atmos GIGA-NX 65/200-4/4W WOS-GB3 380V 71 15 4 CL2 1450 DN100×DN65
Atmos GIGA-NX 65/200-11/2W WOS-GB2 380V 150 66 11 GB2 2960 DN100×DN65
Atmos GIGA-NX 65/200-11/2W WOS-GB3 380V 150 66 11 GB3 2945 DN100×DN65
Atmos GIGA-NX 65/200-15/2W WOS-GB2 380V 150 66 15 GB2 2960 DN100×DN65
Atmos GIGA-NX 65/200-15/2W WOS-GB3 380V 150 66 15 GB3 2945 DN100×DN65
Atmos GIGA-NX 65/200-18.5/2W WOS-GB2 380V 150 66 18.5 GB2 2960 DN100×DN65
Atmos GIGA-NX 65/200-18.5/2W WOS-GB3 380V 150 66 18.5 GB3 2945 DN100×DN65
Atmos GIGA-NX 65/200-22/2W WOS-GB2 380V 150 66 22 GB2 2960 DN100×DN65
Atmos GIGA-NX 65/200-22/2W WOS-GB3 380V 150 66 22 GB3 2955 DN100×DN65
Atmos GIGA-NX 65/200-30/2W WOS-GB2 380V 150 66 30 GB2 2970 DN100×DN65
Atmos GIGA-NX 65/200-30/2W WOS-GB3 380V 150 66 30 GB3 2960 DN100×DN65
Atmos GIGA-NX 65/200-37/2W WOS-GB2 380V 150 66 37 GB2 2970 DN100×DN65
Atmos GIGA-NX 65/200-37/2W WOS-GB3 380V 150 66 37 GB3 2960 DN100×DN65
Atmos GIGA-NX 65/250-2.2/4W WOS-GB2 380V 69 88 15 GB2 2960 DN65×DN40
Atmos GIGA-NX 65/250-2.2/4W WOS-GB2 380V 69 88 15 GB2 2960 DN65×DN40
Atmos GIGA-NX 65/250-2.2/4W WOS-GB3 380V 69 88 15 GB3 2945 DN65×DN40
Atmos GIGA-NX 65/250-2.2/4W WOS-GB3 380V 69 88 15 GB3 2945 DN65×DN40
Atmos GIGA-NX 65/250-3/4W WOS-GB2 380V 33 20.5 2.2 GB2 1460 DN65×DN40
Atmos GIGA-NX 65/250-3/4W WOS-GB2 380V 33 20.5 2.2 GB2 1460 DN65×DN40
Atmos GIGA-NX 65/250-3/4W WOS-GB3 380V 33 20.5 2.2 CL2 1450 DN65×DN40
Atmos GIGA-NX 65/250-3/4W WOS-GB3 380V 33 20.5 2.2 CL2 1450 DN65×DN40
Atmos GIGA-NX 65/250-4/4W WOS-GB2 380V 69 88 30 GB2 2970 DN65×DN40
Atmos GIGA-NX 65/250-4/4W WOS-GB2 380V 69 88 30 GB2 2970 DN65×DN40
Atmos GIGA-NX 65/250-4/4W WOS-GB3 380V 69 88 30 GB3 2960 DN65×DN40
Atmos GIGA-NX 65/250-4/4W WOS-GB3 380V 69 88 30 GB3 2960 DN65×DN40
Atmos GIGA-NX 65/250-5.5/4W WOS-GB2 380V 58 38 11 GB2 1475 DN80×DN50
Atmos GIGA-NX 65/250-5.5/4W WOS-GB2 380V 58 38 11 GB2 1475 DN80×DN50
Atmos GIGA-NX 65/250-5.5/4W WOS-GB3 380V 58 38 11 CL2 1465 DN80×DN50
Atmos GIGA-NX 65/250-5.5/4W WOS-GB3 380V 58 38 11 CL2 1465 DN80×DN50
Atmos GIGA-NX 65/250-7.5/4W WOS-GB2 380V 58 38 7.5 GB2 1460 DN80×DN50
Atmos GIGA-NX 65/250-7.5/4W WOS-GB2 380V 58 38 3 GB2 1460 DN80×DN50
Atmos GIGA-NX 65/250-7.5/4W WOS-GB3 380V 58 38 3 CL2 1450 DN80×DN50
Atmos GIGA-NX 65/250-7.5/4W WOS-GB3 380V 58 38 3 CL2 1450 DN80×DN50
Atmos GIGA-NX 65/250-22/2W WOS-GB2 380V 69 88 18.5 GB2 2960 DN65×DN40
Atmos GIGA-NX 65/250-22/2W WOS-GB2 380V 69 88 18.5 GB2 2960 DN65×DN40
Atmos GIGA-NX 65/250-22/2W WOS-GB3 380V 69 88 18.5 GB3 2945 DN65×DN40
Atmos GIGA-NX 65/250-22/2W WOS-GB3 380V 69 88 18.5 GB3 2945 DN65×DN40
Atmos GIGA-NX 65/250-30/2W WOS-GB2 380V 69 88 22 GB2 2960 DN65×DN40
Atmos GIGA-NX 65/250-30/2W WOS-GB2 380V 69 88 22 GB2 2960 DN65×DN40
Atmos GIGA-NX 65/250-30/2W WOS-GB3 380V 69 88 22 GB3 2955 DN65×DN40
Atmos GIGA-NX 65/250-30/2W WOS-GB3 380V 69 88 22 GB3 2955 DN65×DN40
Atmos GIGA-NX 65/250-37/2W WOS-GB2 380V 33 20.7 3 GB2 1460 DN65×DN40
Atmos GIGA-NX 65/250-37/2W WOS-GB2 380V 33 20.7 3 GB2 1460 DN65×DN40
Atmos GIGA-NX 65/250-37/2W WOS-GB3 380V 33 20.7 3 CL2 1450 DN65×DN40
Atmos GIGA-NX 65/250-37/2W WOS-GB3 380V 33 20.7 3 CL2 1450 DN65×DN40
Atmos GIGA-NX 65/250-45/2W-GB2 380V 155 88 45 GB2 2970 DN100×DN65
Atmos GIGA-NX 65/250-45/2W-GB3 380V 155 88 45 GB3 2965 DN100×DN65
Atmos GIGA-NX 65/250-55/2W-GB2 380V 155 88 55 GB2 2980 DN100×DN65
Atmos GIGA-NX 65/250-55/2W-GB3 380V 155 88 55 GB3 2970 DN100×DN65
Atmos GIGA-NX 65/315-4/4W WOS-GB2 380V 58 38 4 GB2 1460 DN80×DN50
Atmos GIGA-NX 65/315-4/4W WOS-GB2 380V 58 38 4 GB2 1460 DN80×DN50
Atmos GIGA-NX 65/315-4/4W WOS-GB3 380V 58 38 4 CL2 1450 DN80×DN50
Atmos GIGA-NX 65/315-4/4W WOS-GB3 380V 58 38 4 CL2 1450 DN80×DN50
Atmos GIGA-NX 65/315-5.5/4W WOS-GB2 380V 113 145 45 GB2 2970 DN80×DN50
Atmos GIGA-NX 65/315-5.5/4W WOS-GB2 380V 113 145 45 GB2 2970 DN80×DN50
Atmos GIGA-NX 65/315-5.5/4W WOS-GB3 380V 113 145 45 GB3 2965 DN80×DN50
Atmos GIGA-NX 65/315-5.5/4W WOS-GB3 380V 113 145 45 GB3 2965 DN80×DN50
Atmos GIGA-NX 65/315-7.5/4W WOS-GB2 380V 97 37 7.5 GB2 1470 DN100×DN65
Atmos GIGA-NX 65/315-7.5/4W WOS-GB3 380V 97 37 7.5 CL2 1460 DN100×DN65
Atmos GIGA-NX 65/315-11/4W WOS-GB2 380V 113 145 30 GB2 2970 DN80×DN50
Atmos GIGA-NX 65/315-11/4W WOS-GB2 380V 113 145 30 GB2 2970 DN80×DN50
Atmos GIGA-NX 65/315-11/4W WOS-GB3 380V 113 145 30 GB3 2960 DN80×DN50
Atmos GIGA-NX 65/315-11/4W WOS-GB3 380V 113 145 30 GB3 2960 DN80×DN50
Atmos GIGA-NX 65/315-15/4W WOS-GB2 380V 113 145 37 GB2 2970 DN80×DN50
Atmos GIGA-NX 65/315-15/4W WOS-GB2 380V 113 145 37 GB2 2970 DN80×DN50
Atmos GIGA-NX 65/315-15/4W WOS-GB3 380V 113 145 37 GB3 2960 DN80×DN50
Atmos GIGA-NX 65/315-15/4W WOS-GB3 380V 113 145 37 GB3 2960 DN80×DN50
Atmos GIGA-NX 65/315-45/2W-GB2 380V 177 141 45 GB2 2970 DN100×DN65
Atmos GIGA-NX 65/315-45/2W-GB3 380V 177 141 45 GB3 2965 DN100×DN65
Atmos GIGA-NX 65/315-55/2W-GB2 380V 177 141 55 GB2 2980 DN100×DN65
Atmos GIGA-NX 65/315-55/2W-GB3 380V 177 141 55 GB3 2970 DN100×DN65
Atmos GIGA-NX 65/315-75/2W-GB2 380V 177 141 75 GB2 2980 DN100×DN65
Atmos GIGA-NX 65/315-75/2W-GB3 380V 177 141 75 GB3 2975 DN100×DN65
Atmos GIGA-NX 65/315-90/2W-GB2 380V 177 141 90 GB2 2980 DN100×DN65
Atmos GIGA-NX 65/315-90/2W-GB3 380V 177 141 90 GB3 2975 DN100×DN65
Atmos GIGA-NX 65/315-110/2W-GB2 380V 177 141 110 GB2 2980 DN100×DN65
Atmos GIGA-NX 65/315-110/2W-GB3 380V 177 141 110 GB2 2975 DN100×DN65
Atmos GIGA-NX 80/160-1.1/4W WOS-GB2 380V 98 8.7 1.1 - 1445 DN125×DN80
Atmos GIGA-NX 80/160-1.1/4W WOS-GB3 380V 98 8.7 1.1 CL2 1440 DN125×DN80
Atmos GIGA-NX 80/160-1.5/4W WOS-GB2 380V 98 8.7 1.5 GB2 1445 DN125×DN80
Atmos GIGA-NX 80/160-1.5/4W WOS-GB3 380V 98 8.7 1.5 CL2 1440 DN125×DN80
Atmos GIGA-NX 80/160-2.2/4W WOS-GB2 380V 98 8.7 2.2 GB2 1460 DN125×DN80
Atmos GIGA-NX 80/160-2.2/4W WOS-GB3 380V 98 8.7 2.2 CL2 1450 DN125×DN80
Atmos GIGA-NX 80/160-3/4W WOS-GB2 380V 98 8.7 3 GB2 1460 DN125×DN80
Atmos GIGA-NX 80/160-3/4W WOS-GB3 380V 98 8.7 3 CL2 1450 DN125×DN80
Atmos GIGA-NX 80/160-11/2W WOS-GB2 380V 200 36 11 GB2 2960 DN125×DN80
Atmos GIGA-NX 80/160-11/2W WOS-GB3 380V 200 36 11 GB2 2945 DN125×DN80
Atmos GIGA-NX 80/160-15/2W WOS-GB2 380V 200 36 15 GB2 2960 DN125×DN80
Atmos GIGA-NX 80/160-15/2W WOS-GB3 380V 200 36 15 GB3 2945 DN125×DN80
Atmos GIGA-NX 80/160-18.5/2W WOS-GB2 380V 200 36 18.5 GB2 2960 DN125×DN80
Atmos GIGA-NX 80/160-18.5/2W WOS-GB3 380V 200 36 18.5 GB3 2945 DN125×DN80
Atmos GIGA-NX 80/160-22/2W WOS-GB2 380V 200 36 22 GB2 2960 DN125×DN80
Atmos GIGA-NX 80/160-22/2W WOS-GB3 380V 200 36 22 GB3 2955 DN125×DN80
Atmos GIGA-NX 80/160-30/2W WOS-GB2 380V 200 36 30 GB3 2970 DN125×DN80
Atmos GIGA-NX 80/160-30/2W WOS-GB3 380V 200 36 30 GB3 2960 DN125×DN80
Atmos GIGA-NX 80/200-2.2/4W WOS-GB2 380V 112 16 2.2 GB2 1460 DN125×DN80
Atmos GIGA-NX 80/200-2.2/4W WOS-GB3 380V 112 16 2.2 CL2 1450 DN125×DN80
Atmos GIGA-NX 80/200-3/4W WOS-GB2 380V 112 16 3 GB2 1460 DN125×DN80
Atmos GIGA-NX 80/200-3/4W WOS-GB3 380V 112 16 3 CL2 1450 DN125×DN80
Atmos GIGA-NX 80/200-4/4W WOS-GB2 380V 112 16 4 GB2 1460 DN125×DN80
Atmos GIGA-NX 80/200-4/4W WOS-GB3 380V 112 16 4 CL2 1450 DN125×DN80
Atmos GIGA-NX 80/200-5.5/4W WOS-GB2 380V 112 16 5.5 GB2 1470 DN125×DN80
Atmos GIGA-NX 80/200-5.5/4W WOS-GB3 380V 112 16 5.5 CL2 1460 DN125×DN80
Atmos GIGA-NX 80/200-7.5/4W WOS-GB2 380V 112 16 7.5 GB2 1470 DN125×DN80
Atmos GIGA-NX 80/200-7.5/4W WOS-GB3 380V 112 16 7.5 CL2 1460 DN125×DN80
Atmos GIGA-NX 80/200-18.5/2W WOS-GB2 380V 225 65 18.5 GB2 2960 DN125×DN80
Atmos GIGA-NX 80/200-18.5/2W WOS-GB3 380V 225 65 18.5 GB3 2945 DN125×DN80
Atmos GIGA-NX 80/200-22/2W WOS-GB2 380V 225 65 22 GB2 2960 DN125×DN80
Atmos GIGA-NX 80/200-22/2W WOS-GB3 380V 225 65 22 GB3 2955 DN125×DN80
Atmos GIGA-NX 80/200-30/2W WOS-GB2 380V 225 65 30 GB2 2970 DN125×DN80
Atmos GIGA-NX 80/200-30/2W WOS-GB3 380V 225 65 30 GB3 2960 DN125×DN80
Atmos GIGA-NX 80/200-37/2W WOS-GB2 380V 225 65 37 GB2 2970 DN125×DN80
Atmos GIGA-NX 80/200-37/2W WOS-GB3 380V 225 65 37 GB3 2960 DN125×DN80
Atmos GIGA-NX 80/200-45/2W-GB2 380V 225 65 45 GB2 2970 DN125×DN80
Atmos GIGA-NX 80/200-45/2W-GB3 380V 225 65 45 GB3 2965 DN125×DN80
Atmos GIGA-NX 80/200-55/2W-GB2 380V 225 65 55 GB2 2980 DN125×DN80
Atmos GIGA-NX 80/200-55/2W-GB3 380V 225 65 55 GB3 2970 DN125×DN80
Atmos GIGA-NX 80/250-3/4W WOS-GB2 380V 118 24.3 3 GB2 1460 DN125×DN80
Atmos GIGA-NX 80/250-3/4W WOS-GB3 380V 118 24.3 3 CL2 1450 DN125×DN80
Atmos GIGA-NX 80/250-4/4W WOS-GB2 380V 118 24.3 4 GB2 1460 DN125×DN80
Atmos GIGA-NX 80/250-4/4W WOS-GB3 380V 118 24.3 4 CL2 1450 DN125×DN80
Atmos GIGA-NX 80/250-5.5/4W WOS-GB2 380V 118 24.3 5.5 GB2 1470 DN125×DN80
Atmos GIGA-NX 80/250-5.5/4W WOS-GB3 380V 118 24.3 5.5 CL2 1460 DN125×DN80
Atmos GIGA-NX 80/250-7.5/4W WOS-GB2 380V 118 24.3 7.5 GB2 1470 DN125×DN80
Atmos GIGA-NX 80/250-7.5/4W WOS-GB3 380V 118 24.3 7.5 CL2 1460 DN125×DN80
Atmos GIGA-NX 80/250-11/4W WOS-GB2 380V 118 24.3 11 GB2 1475 DN125×DN80
Atmos GIGA-NX 80/250-11/4W WOS-GB3 380V 118 24.3 11 CL2 1465 DN125×DN80
Atmos GIGA-NX 80/250-37/2W WOS-GB2 380V 240 100 37 GB2 2970 DN125×DN80
Atmos GIGA-NX 80/250-37/2W WOS-GB3 380V 240 100 37 GB3 2960 DN125×DN80
Atmos GIGA-NX 80/250-45/2W-GB2 380V 240 100 45 GB2 2970 DN125×DN80
Atmos GIGA-NX 80/250-45/2W-GB3 380V 240 100 45 GB3 2965 DN125×DN80
Atmos GIGA-NX 80/250-55/2W-GB2 380V 240 100 55 GB2 2980 DN125×DN80
Atmos GIGA-NX 80/250-55/2W-GB3 380V 240 100 55 GB3 2970 DN125×DN80
Atmos GIGA-NX 80/250-75/2W-GB2 380V 240 100 75 GB2 2980 DN125×DN80
Atmos GIGA-NX 80/250-75/2W-GB3 380V 240 100 75 GB3 2975 DN125×DN80
Atmos GIGA-NX 80/250-90/2W-GB2 380V 240 100 90 GB2 2980 DN125×DN80
Atmos GIGA-NX 80/250-90/2W-GB3 380V 240 100 90 GB3 2975 DN125×DN80
Atmos GIGA-NX 80/315.1-7.5/4W WOS-GB2 380V 140 38 7.5 GB2 1470 DN125×DN80
Atmos GIGA-NX 80/315.1-7.5/4W WOS-GB3 380V 140 38 7.5 CL2 1460 DN125×DN80
Atmos GIGA-NX 80/315.1-11/4W WOS-GB2 380V 140 38 11 GB2 1475 DN125×DN80
Atmos GIGA-NX 80/315.1-11/4W WOS-GB3 380V 140 38 11 CL2 1465 DN125×DN80
Atmos GIGA-NX 80/315.1-15/4W WOS-GB2 380V 140 38 15 GB2 1475 DN125×DN80
Atmos GIGA-NX 80/315.1-15/4W WOS-GB3 380V 140 38 15 CL2 1465 DN125×DN80
Atmos GIGA-NX 80/315.1-18.5/4W WOS-GB2 380V 140 38 18.5 GB2 1480 DN125×DN80
Atmos GIGA-NX 80/315.1-18.5/4W WOS-GB3 380V 140 38 18.5 CL2 1470 DN125×DN80
Atmos GIGA-NX 80/315.1-22/4W WOS-GB2 380V 140 38 22 GB2 1480 DN125×DN80
Atmos GIGA-NX 80/315.1-22/4W WOS-GB3 380V 140 38 22 CL2 1470 DN125×DN80
Atmos GIGA-NX 80/315.1-75/2W-GB2 380V 275 136 75 GB2 2980 DN125×DN80
Atmos GIGA-NX 80/315.1-75/2W-GB3 380V 275 136 75 GB3 2975 DN125×DN80
Atmos GIGA-NX 80/315.1-90/2W-GB2 380V 275 136 90 GB2 2980 DN125×DN80
Atmos GIGA-NX 80/315.1-90/2W-GB3 380V 275 136 90 GB3 2975 DN125×DN80
Atmos GIGA-NX 80/315.1-110/2W-GB2 380V 275 136 110 GB2 2980 DN125×DN80
Atmos GIGA-NX 80/315.1-110/2W-GB3 380V 275 136 110 GB3 2975 DN125×DN80
Atmos GIGA-NX 80/315.1-132/2W-GB2 380V 275 136 132 GB2 2980 DN125×DN80
Atmos GIGA-NX 80/315.1-132/2W-GB3 380V 275 136 132 GB3 2975 DN125×DN80
Atmos GIGA-NX 80/315.1-160/2W-GB2 380V 275 136 160 GB2 2980 DN125×DN80
Atmos GIGA-NX 80/315.1-160/2W-GB3 380V 275 136 160 GB3 2975 DN125×DN80
Atmos GIGA-NX 80/400-15/4W WOS-GB2 380V 165 62 15 GB2 1475 DN125×DN80
Atmos GIGA-NX 80/400-15/4W WOS-GB3 380V 165 62 15 CL2 1465 DN125×DN80
Atmos GIGA-NX 80/400-18,5/4W WOS-GB2 380V 165 62 18.5 GB2 1480 DN125×DN80
Atmos GIGA-NX 80/400-18,5/4W WOS-GB3 380V 165 62 18.5 CL2 1470 DN125×DN80
Atmos GIGA-NX 80/400-22/4W WOS-GB2 380V 165 62 22 GB2 1480 DN125×DN80
Atmos GIGA-NX 80/400-22/4W WOS-GB3 380V 165 62 22 CL2 1470 DN125×DN80
Atmos GIGA-NX 80/400-30/4W WOS-GB2 380V 165 62 30 GB2 1480 DN125×DN80
Atmos GIGA-NX 80/400-30/4W WOS-GB3 380V 165 62 30 CL2 1475 DN125×DN80
Atmos GIGA-NX 80/400-37/4W-GB2 380V 165 62 37 GB2 1485 DN125×DN80
Atmos GIGA-NX 80/400-37/4W-GB3 380V 165 62 37 CL2 1485 DN125×DN80
Atmos GIGA-NX 80/400-45/4W-GB2 380V 165 62 45 GB2 1485 DN125×DN80
Atmos GIGA-NX 80/400-45/4W-GB3 380V 165 62 45 CL2 1485 DN125×DN80
Atmos GIGA-NX 100/160-2.2/4W WOS -GB2 380V 162 6.8 2.2 GB2 1460 DN125×DN100
Atmos GIGA-NX 100/160-2.2/4W WOS -GB3 380V 162 6.8 2.2 CL2 1450 DN125×DN100
Atmos GIGA-NX 100/160-3/4W WOS-GB2 380V 162 6.8 3 GB2 1450 DN125×DN100
Atmos GIGA-NX 100/160-3/4W WOS-GB3 380V 162 6.8 3 CL2 1450 DN125×DN100
Atmos GIGA-NX 100/160-4/4W WOS-GB2 380V 162 6.8 4 GB2 1460 DN125×DN100
Atmos GIGA-NX 100/160-4/4W WOS-GB3 380V 162 6.8 4 CL2 1450 DN125×DN100
Atmos GIGA-NX 100/160-18.5/2W WOS-GB2 380V 330 28 18.5 GB2 2960 DN125×DN100
Atmos GIGA-NX 100/160-18.5/2W WOS-GB3 380V 330 28 18.5 GB3 2945 DN125×DN100
Atmos GIGA-NX 100/160-22/2W WOS-GB2 380V 330 28 22 GB2 2960 DN125×DN100
Atmos GIGA-NX 100/160-22/2W WOS-GB3 380V 330 28 22 GB3 2955 DN125×DN100
Atmos GIGA-NX 100/160-30/2W WOS-GB2 380V 330 28 30 GB2 2970 DN125×DN100
Atmos GIGA-NX 100/160-30/2W WOS-GB3 380V 330 28 30 GB3 2960 DN125×DN100
Atmos GIGA-NX 100/200-3/4W WOS-GB2 380V 170 13 3 GB2 1460 DN125×DN100
Atmos GIGA-NX 100/200-3/4W WOS-GB3 380V 170 13 3 CL2 1450 DN125×DN100
Atmos GIGA-NX 100/200-4/4W WOS-GB2 380V 170 13 4 GB2 1460 DN125×DN100
Atmos GIGA-NX 100/200-4/4W WOS-GB3 380V 170 13 4 CL2 1450 DN125×DN100
Atmos GIGA-NX 100/200-5.5/4W WOS-GB2 380V 370 61 45 GB2 2970 DN125×DN100
Atmos GIGA-NX 100/200-5.5/4W WOS-GB3 380V 370 61 45 GB3 2965 DN125×DN100
Atmos GIGA-NX 100/200-7.5/4W WOS-GB2 380V 170 13 5.5 GB2 1470 DN125×DN100
Atmos GIGA-NX 100/200-7.5/4W WOS-GB3 380V 170 13 5.5 CL2 1460 DN125×DN100
Atmos GIGA-NX 100/200-30/2W WOS-GB2 380V 370 61 30 GB2 2970 DN125×DN100
Atmos GIGA-NX 100/200-30/2W WOS-GB3 380V 370 61 30 GB3 2960 DN125×DN100
Atmos GIGA-NX 100/200-37/2W WOS-GB2 380V 370 61 37 GB2 2970 DN125×DN100
Atmos GIGA-NX 100/200-37/2W WOS-GB3 380V 370 61 37 GB3 2960 DN125×DN100
Atmos GIGA-NX 100/250.1-5,5/4W WOS-GB2 380V 180 24 5.5 GB2 1470 DN125×DN100
Atmos GIGA-NX 100/250.1-5,5/4W WOS-GB3 380V 180 24 5.5 CL2 1460 DN125×DN100
Atmos GIGA-NX 100/250.1-7,5/4W WOS-GB2 380V 180 24 7.5 GB2 1470 DN125×DN100
Atmos GIGA-NX 100/250.1-7,5/4W WOS-GB3 380V 180 24 7.5 CL2 1460 DN125×DN100
Atmos GIGA-NX 100/250.1-11/4W WOS-GB2 380V 180 24.1 11 GB2 1475 DN125×DN100
Atmos GIGA-NX 100/250.1-11/4W WOS-GB3 380V 180 24.1 11 CL2 1465 DN125×DN100
Atmos GIGA-NX 100/250.1-15/4W WOS-GB2 380V 180 24.1 15 GB2 1475 DN125×DN100
Atmos GIGA-NX 100/250.1-15/4W WOS-GB3 380V 180 24.1 15 CL2 1465 DN125×DN100
Atmos GIGA-NX 100/250.1-55/2W-GB2 380V 360 100 55 GB2 2980 DN125×DN100
Atmos GIGA-NX 100/250.1-55/2W-GB3 380V 365 100 55 GB3 2970 DN125×DN100
Atmos GIGA-NX 100/250.1-75/2W-GB2 380V 365 100 75 GB2 2980 DN125×DN100
Atmos GIGA-NX 100/250.1-75/2W-GB3 380V 365 100 75 GB3 2975 DN125×DN100
Atmos GIGA-NX 100/250.1-90/2W-GB2 380V 365 100 90 GB2 2980 DN125×DN100
Atmos GIGA-NX 100/250.1-90/2W-GB3 380V 365 100 90 GB3 2975 DN125×DN100
Atmos GIGA-NX 100/250.1-110/2W-GB2 380V 365 100 110 GB2 2980 DN125×DN100
Atmos GIGA-NX 100/250.1-110/2W-GB3 380V 365 100 110 GB3 2975 DN125×DN100
Atmos GIGA-NX 100/250.1-132/2W-GB2 380V 365 100 132 GB2 2980 DN125×DN100
Atmos GIGA-NX 100/250.1-132/2W-GB3 380V 365 100 132 GB3 2975 DN125×DN100
Atmos GIGA-NX 100/315.1-11/4W WOS-GB2 380V 370 61 55 GB2 2980 DN125×DN100
Atmos GIGA-NX 100/315.1-11/4W WOS-GB3 380V 370 61 55 GB3 2970 DN125×DN100
Atmos GIGA-NX 100/315.1-15/4W WOS-GB2 380V 168 13.1 7.5 GB2 1470 DN125×DN100
Atmos GIGA-NX 100/315.1-15/4W WOS-GB3 380V 168 13.1 7.5 CL2 1460 DN125×DN100
Atmos GIGA-NX 100/315.1-18.5/4W WOS-GB2 380V 370 61 75 GB2 2980 DN125×DN100
Atmos GIGA-NX 100/315.1-18.5/4W WOS-GB3 380V 370 61 75 GB3 2975 DN125×DN100
Atmos GIGA-NX 100/315.1-22/4W WOS-GB2 380V 225 35.5 11 GB2 1475 DN125×DN100
Atmos GIGA-NX 100/315.1-22/4W WOS-GB3 380V 225 35.5 11 CL2 1465 DN125×DN100
Atmos GIGA-NX 100/315.1-30/4W WOS-GB2 380V 435 133 110 GB2 2980 DN125×DN100
Atmos GIGA-NX 100/315.1-30/4W WOS-GB3 380V 435 133 110 GB3 2975 DN125×DN100
Atmos GIGA-NX 100/400-22/4W WOS-GB2 380V 260 56 22 GB2 1480 DN125×DN100
Atmos GIGA-NX 100/400-22/4W WOS-GB3 380V 260 56 22 CL2 1470 DN125×DN100
Atmos GIGA-NX 100/400-30/4W WOS-GB2 380V 260 56 30 GB2 1480 DN125×DN100
Atmos GIGA-NX 100/400-30/4W WOS-GB3 380V 260 56 30 CL2 1475 DN125×DN100
Atmos GIGA-NX 100/400-37/4W-GB2 380V 260 56 37 GB2 1485 DN125×DN100
Atmos GIGA-NX 100/400-37/4W-GB3 380V 260 56 37 CL2 1485 DN125×DN100
Atmos GIGA-NX 100/400-45/4W-GB2 380V 260 56 45 GB2 1485 DN125×DN100
Atmos GIGA-NX 100/400-45/4W-GB3 380V 260 56 45 CL2 1485 DN125×DN100
Atmos GIGA-NX 100/400-55/4W-GB2 380V 260 56
Atmos GIGA-NX 100/400-55/4W-GB3 380V 260 56 55 CL2 1485 DN125×DN100
Atmos GIGA-NX 125/200-5,5/4W WOS-GB2 380V 290 14 5.5 GB2 1470 DN150×DN125
Atmos GIGA-NX 125/200-5,5/4W WOS-GB3 380V 290 14 5.5 CL2 1460 DN150×DN125
Atmos GIGA-NX 125/200-7,5/4W WOS-GB2 380V 290 14 7.5 GB2 1470 DN150×DN125
Atmos GIGA-NX 125/200-7,5/4W WOS-GB3 380V 290 14 7.5 CL2 1460 DN150×DN125
Atmos GIGA-NX 125/200-11/4W WOS-GB2 380V 290 14 11 GB2 1475 DN150×DN125
Atmos GIGA-NX 125/200-11/4W WOS-GB3 380V 290 14 11 CL2 1465 DN150×DN125
Atmos GIGA-NX 125/200-15/4W WOS-GB2 380V 290 14 15 GB2 1475 DN150×DN125
Atmos GIGA-NX 125/200-15/4W WOS-GB3 380V 290 14 15 CL2 1465 DN150×DN125
Atmos GIGA-NX 125/200-45/2W-GB2 380V 540 51 45 GB2 2970 DN150×DN125
Atmos GIGA-NX 125/200-45/2W-GB3 380V 540 51 45 GB3 2965 DN150×DN125
Atmos GIGA-NX 125/200-55/2W-GB2 380V 540 51 55 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/200-55/2W-GB3 380V 540 51 55 GB3 2970 DN150×DN125
Atmos GIGA-NX 125/200-75/2W-GB2 380V 540 51 75 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/200-75/2W-GB3 380V 540 51 75 GB3 2975 DN150×DN125
Atmos GIGA-NX 125/200-90/2W-GB2 380V 540 51 90 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/200-90/2W-GB3 380V 540 51 90 GB3 2975 DN150×DN125
Atmos GIGA-NX 125/200-110/2W-GB2 380V 540 51 110 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/200-110/2W-GB3 380V 540 51 110 GB3 2975 DN150×DN125
Atmos GIGA-NX 125/250.1-7,5/4W WOS-GB2 380V 305 22 7.5 GB2 1470 DN150×DN125
Atmos GIGA-NX 125/250.1-7,5/4W WOS-GB3 380V 305 22 7.5 CL2 1460 DN150×DN125
Atmos GIGA-NX 125/250.1-11/4W WOS-GB2 380V 305 22 11 GB2 1475 DN150×DN125
Atmos GIGA-NX 125/250.1-11/4W WOS-GB3 380V 305 22 11 CL2 1465 DN150×DN125
Atmos GIGA-NX 125/250.1-15/4W WOS-GB2 380V 305 22 15 GB2 1475 DN150×DN125
Atmos GIGA-NX 125/250.1-15/4W WOS-GB3 380V 305 22 15 CL2 1465 DN150×DN125
Atmos GIGA-NX 125/250.1-18,5/4W WOS-GB2 380V 305 22 18.5 GB2 1480 DN150×DN125
Atmos GIGA-NX 125/250.1-18,5/4W WOS-GB3 380V 305 22 18.5 CL2 1470 DN150×DN125
Atmos GIGA-NX 125/250.1-22/4W WOS-GB2 380V 305 22 22 GB2 1480 DN150×DN125
Atmos GIGA-NX 125/250.1-22/4W WOS-GB3 380V 305 22 22 CL2 1470 DN150×DN125
Atmos GIGA-NX 125/250.1-55/2W-GB2 380V 600 85 55 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/250.1-55/2W-GB3 380V 600 85 55 GB3 2970 DN150×DN125
Atmos GIGA-NX 125/250.1-75/2W-GB2 380V 600 85 75 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/250.1-75/2W-GB3 380V 600 85 75 GB3 2975 DN150×DN125
Atmos GIGA-NX 125/250.1-90/2W-GB2 380V 600 85 90 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/250.1-90/2W-GB3 380V 600 85 90 GB3 2975 DN150×DN125
Atmos GIGA-NX 125/250.1-110/2W-GB2 380V 600 85 110 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/250.1-110/2W-GB3 380V 600 85 110 GB3 2975 DN150×DN125
Atmos GIGA-NX 125/250.1-132/2W-GB2 380V 600 85 132 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/250.1-132/2W-GB3 380V 600 85 132 GB3 2975 DN150×DN125
Atmos GIGA-NX 125/250.1-160/2W-GB2 380V 600 85 160 GB2 2980 DN150×DN125
Atmos GIGA-NX 125/250.1-160/2W-GB3 380V 600 85 160 GB3 2975 DN150×DN125
Atmos GIGA-NX 125/315-15/4W WOS-GB2 380V 330 38 15 GB2 1475 DN150×DN125
Atmos GIGA-NX 125/315-15/4W WOS-GB3 380V 330 38 15 CL2 1465 DN150×DN125
Atmos GIGA-NX 125/315-18.5/4W WOS-GB2 380V 330 38 18.5 GB2 1480 DN150×DN125
Atmos GIGA-NX 125/315-18.5/4W WOS-GB3 380V 330 38 18.5 CL2 1470 DN150×DN125
Atmos GIGA-NX 125/315-22/4W WOS-GB2 380V 330 38 22 GB2 1480 DN150×DN125
Atmos GIGA-NX 125/315-22/4W WOS-GB3 380V 330 38 22 CL2 1470 DN150×DN125
Atmos GIGA-NX 125/315-30/4W WOS-GB2 380V 330 38 30 GB2 1480 DN150×DN125
Atmos GIGA-NX 125/315-30/4W WOS-GB3 380V 330 38 30 CL2 1475 DN150×DN125
Atmos GIGA-NX 125/315-37/4W-GB2 380V 330 38 37 GB2 1485 DN150×DN125
Atmos GIGA-NX 125/315-37/4W-GB3 380V 330 38 37 CL2 1485 DN150×DN125
Atmos GIGA-NX 125/315-45/4W-GB2 380V 330 38 45 GB2 1485 DN150×DN125
Atmos GIGA-NX 125/315-45/4W-GB3 380V 330 38 45 CL2 1485 DN150×DN125
Atmos GIGA-NX 125/400-30/4W WOS-GB2 380V 420 61 30 GB2 1480 DN150×DN125
Atmos GIGA-NX 125/400-30/4W WOS-GB3 380V 420 61 30 CL2 1475 DN150×DN125
Atmos GIGA-NX 125/400-37/4W-GB2 380V 420 61 37 GB2 1485 DN150×DN125
Atmos GIGA-NX 125/400-37/4W-GB3 380V 420 61 37 CL2 1485 DN150×DN125
Atmos GIGA-NX 125/400-45/4W-GB2 380V 420 61 45 GB2 1485 DN150×DN125
Atmos GIGA-NX 125/400-45/4W-GB3 380V 420 61 45 CL2 1485 DN150×DN125
Atmos GIGA-NX 125/400-55/4W-GB2 380V 420 61 55 GB2 1485 DN150×DN125
Atmos GIGA-NX 125/400-55/4W-GB3 380V 420 61 55 CL2 1485 DN150×DN125
Atmos GIGA-NX 125/400-75/4W-GB2 380V 420 61 75 GB2 1485 DN150×DN125
Atmos GIGA-NX 125/400-75/4W-GB3 380V 420 61 75 CL2 1485 DN150×DN125
Atmos GIGA-NX 125/400-90/4W-GB2 380V 420 61 90 GB2 1485 DN150×DN125
Atmos GIGA-NX 125/400-90/4W-GB3 380V 420 61 90 CL2 1485 DN150×DN125
Atmos GIGA-NX 150/200-7.5/4W WOS-GB2 380V 390 11 7.5 GB2 1470 DN200×DN150
Atmos GIGA-NX 150/200-7.5/4W WOS-GB3 380V 390 11 7.5 CL2 1460 DN200×DN150
Atmos GIGA-NX 150/200-11/4W WOS-GB2 380V 390 11 11 GB2 1475 DN200×DN150
Atmos GIGA-NX 150/200-11/4W WOS-GB3 380V 390 11 11 CL2 1465 DN200×DN150
Atmos GIGA-NX 150/200-15/4W WOS-GB2 380V 390 11 15 GB2 1475 DN200×DN150
Atmos GIGA-NX 150/200-15/4W WOS-GB3 380V 390 11 15 CL2 1465 DN200×DN150
Atmos GIGA-NX 150/200-75/2W-GB2 380V 770 42 75 GB2 2980 DN200×DN150
Atmos GIGA-NX 150/200-75/2W-GB3 380V 770 42 75 GB3 2975 DN200×DN150
Atmos GIGA-NX 150/200-90/2W-GB2 380V 770 42 90 GB2 2980 DN200×DN150
Atmos GIGA-NX 150/200-90/2W-GB3 380V 770 42 90 GB3 2975 DN200×DN150
Atmos GIGA-NX 150/200-110/2W-GB2 380V 770 42 110 GB2 2980 DN200×DN150
Atmos GIGA-NX 150/200-110/2W-GB3 380V 770 42 110 GB3 2975 DN200×DN150
Atmos GIGA-NX 150/250-11/4W WOS-GB2 380V 440 20 11 GB2 1475 DN200×DN150
Atmos GIGA-NX 150/250-11/4W WOS-GB3 380V 440 20 11 CL2 1465 DN200×DN150
Atmos GIGA-NX 150/250-15/4W WOS-GB2 380V 440 20 15 GB2 1475 DN200×DN150
Atmos GIGA-NX 150/250-15/4W WOS-GB3 380V 440 20 15 CL2 1465 DN200×DN150
Atmos GIGA-NX 150/250-18.5/4W WOS-GB2 380V 440 20 18.5 GB2 1480 DN200×DN150
Atmos GIGA-NX 150/250-18.5/4W WOS-GB3 380V 440 20 18.5 CL2 1470 DN200×DN150
Atmos GIGA-NX 150/250-22/4W WOS-GB2 380V 440 20 22 GB2 1480 DN200×DN150
Atmos GIGA-NX 150/250-22/4W WOS-GB3 380V 440 20 22 CL2 1470 DN200×DN150
Atmos GIGA-NX 150/250-30/4W WOS-GB2 380V 440 20 30 GB2 1480 DN200×DN150
Atmos GIGA-NX 150/250-30/4W WOS-GB3 380V 440 20 30 CL2 1475 DN200×DN150
Atmos GIGA-NX 150/250-90/2W-GB2 380V 850 72 90 GB2 2980 DN200×DN150
Atmos GIGA-NX 150/250-90/2W-GB3 380V 850 72 90 GB3 2975 DN200×DN150
Atmos GIGA-NX 150/250-110/2W-GB2 380V 850 72 110 GB2 2980 DN200×DN150
Atmos GIGA-NX 150/250-110/2W-GB3 380V 850 72 110 GB3 2975 DN200×DN150
Atmos GIGA-NX 150/250-132/2W-GB2 380V 850 72 132 GB2 2980 DN200×DN150
Atmos GIGA-NX 150/250-132/2W-GB3 380V 850 72 132 GB3 2975 DN200×DN150
Atmos GIGA-NX 150/250-160/2W-GB2 380V 850 72 160 GB2 2980 DN200×DN150
Atmos GIGA-NX 150/250-160/2W-GB3 380V 850 72 160 GB3 2975 DN200×DN150
Atmos GIGA-NX 150/250-200/2W-GB2 380V 850 72 200 GB2 2980 DN200×DN150
Atmos GIGA-NX 150/250-200/2W-GB3 380V 850 72 200 GB3 2980 DN200×DN150
Atmos GIGA-NX 150/315-18.5/4W WOS-GB2 380V 450 34.5 18.5 GB2 1480 DN200×DN150
Atmos GIGA-NX 150/315-18.5/4W WOS-GB3 380V 450 34.5 18.5 CL2 1470 DN200×DN150
Atmos GIGA-NX 150/315-22/4W WOS-GB2 380V 450 34.5 22 GB2 1480 DN200×DN150
Atmos GIGA-NX 150/315-22/4W WOS-GB3 380V 450 34.5 22 CL2 1470 DN200×DN150
Atmos GIGA-NX 150/315-30/4W WOS-GB2 380V 450 34.5 30 GB2 1480 DN200×DN150
Atmos GIGA-NX 150/315-30/4W WOS-GB3 380V 450 34.5 30 CL2 1475 DN200×DN150
Atmos GIGA-NX 150/315-37/4W-GB2 380V 450 34.5 37 GB2 1485 DN200×DN150
Atmos GIGA-NX 150/315-37/4W-GB3 380V 450 34.5 37 CL2 1485 DN200×DN150
Atmos GIGA-NX 150/315-45/4W-GB2 380V 450 34.5 45 GB2 1485 DN200×DN150
Atmos GIGA-NX 150/315-45/4W-GB3 380V 450 34.5 45 CL2 1485 DN200×DN150
Atmos GIGA-NX 150/315-55/4W-GB2 380V 450 34.5 55 GB2 1485 DN200×DN150
Atmos GIGA-NX 150/315-55/4W-GB3 380V 450 34.5 55 CL2 1485 DN200×DN150
Atmos GIGA-NX200/400-45/4W-GB2 380V     45 GB2 1485 DN250×DN200
Atmos GIGA-NX200/400-45/4W-GB3 380V     45 CL2 1485 DN250×DN200
Atmos GIGA-NX200/400-55/4W-GB2 380V     55 GB2 1485 DN250×DN200
Atmos GIGA-NX200/400-55/4W-GB3 380V     55 CL2 1485 DN250×DN200
Atmos GIGA-NX200/400-75/4W-GB2 380V     75 GB2 1485 DN250×DN200
Atmos GIGA-NX200/400-75/4W-GB3 380V     75 CL2 1485 DN250×DN200
Atmos GIGA-NX200/400-90/4W-GB2 380V     90 GB2 1485 DN250×DN200
Atmos GIGA-NX200/400-90/4W-GB3 380V     90 CL2 1485 DN250×DN200
Atmos GIGA-NX200/400-110/4W-GB2 380V     110 GB2 1490 DN250×DN200
Atmos GIGA-NX200/400-110/4W-GB3 380V     110 CL2 1485 DN250×DN200
Atmos GIGA-NX200/400-132/4W-GB2 380V     132 GB2 1490 DN250×DN200
Atmos GIGA-NX200/400-132/4W-GB3 380V     132 - 1485 DN250×DN200
Atmos GIGA-NX200/400-160/4W-GB2 380V     160 GB2 1490 DN250×DN200
Atmos GIGA-NX200/400-160/4W-GB3 380V     160 CL2 1485 DN250×DN200
Atmos GIGA-NX250/260-22/4W-GB2 380V     22 GB2 1480 DN250×DN250
Atmos GIGA-NX250/260-22/4W-GB3 380V     22 CL2 1470 DN250×DN250
Atmos GIGA-NX250/260-30/4W-GB2 380V     30 GB2 1480 DN250×DN250
Atmos GIGA-NX250/260-30/4W-GB3 380V     30 CL2 1475 DN250×DN250

外形尺寸

视频介绍

留言咨询

*
*
*
*
*
提交
