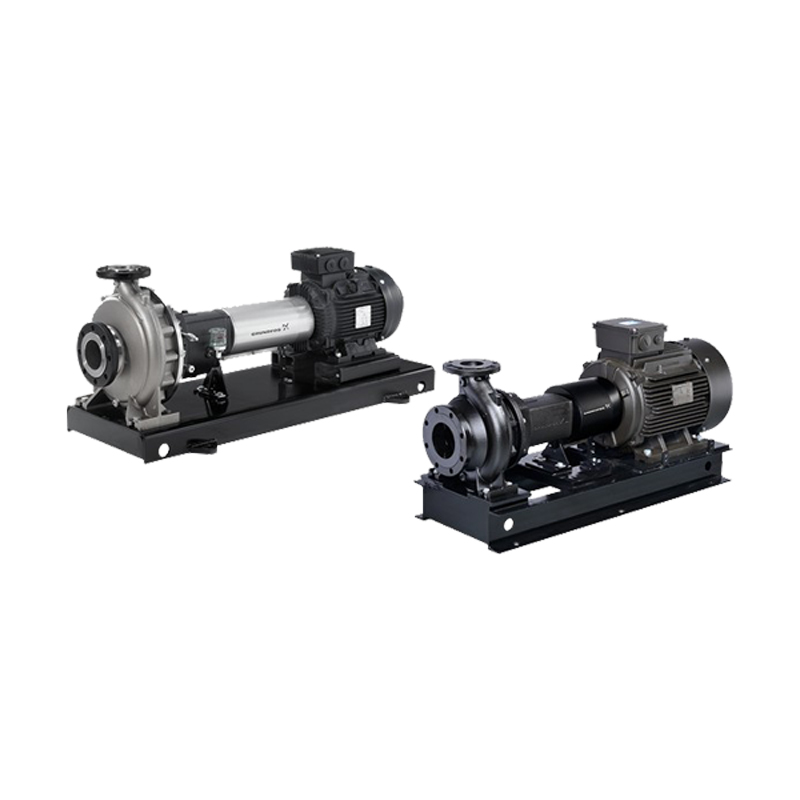

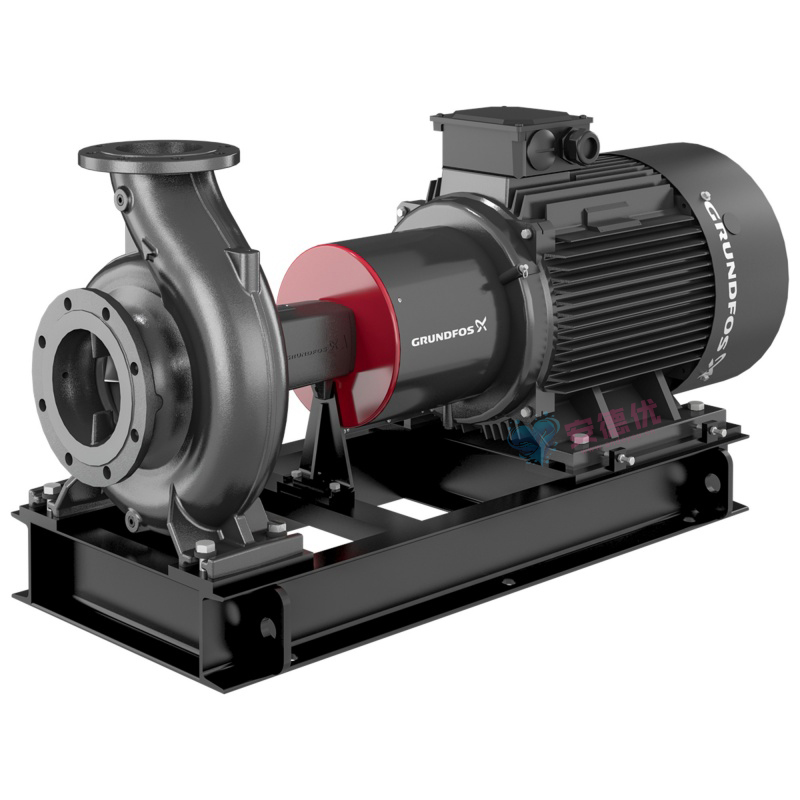

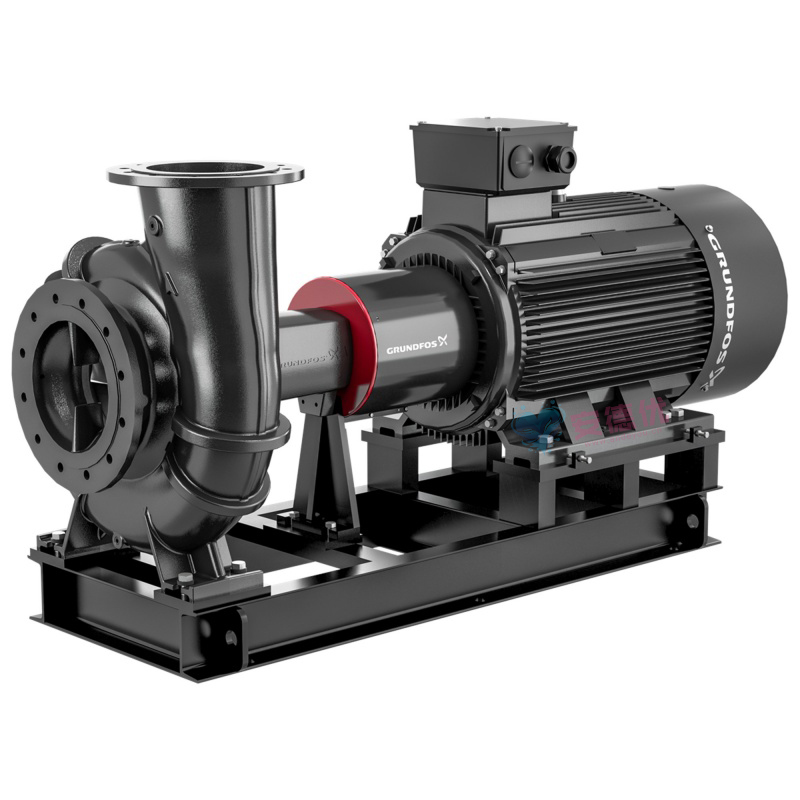

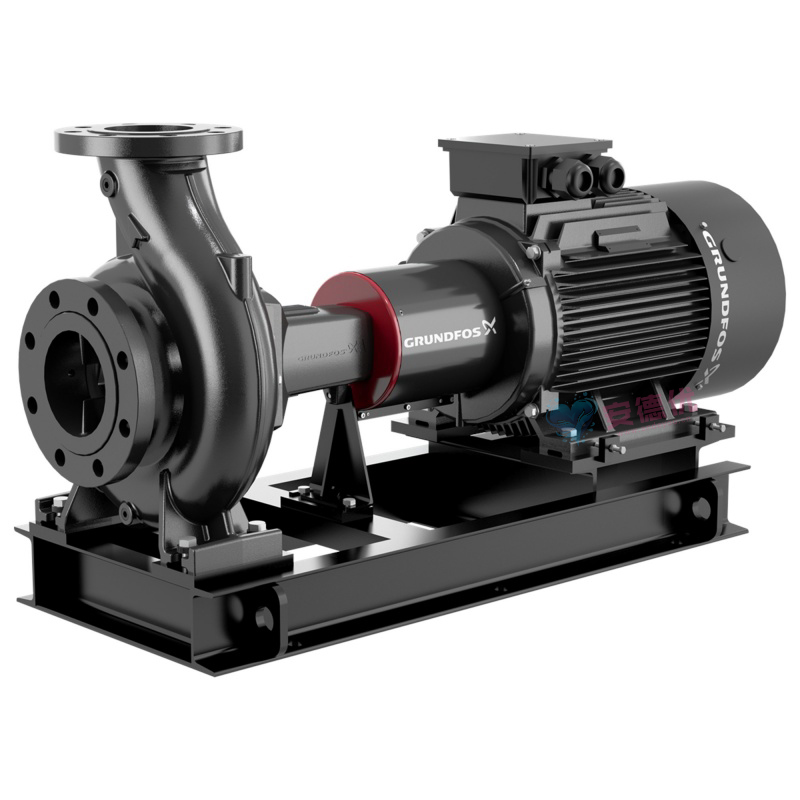

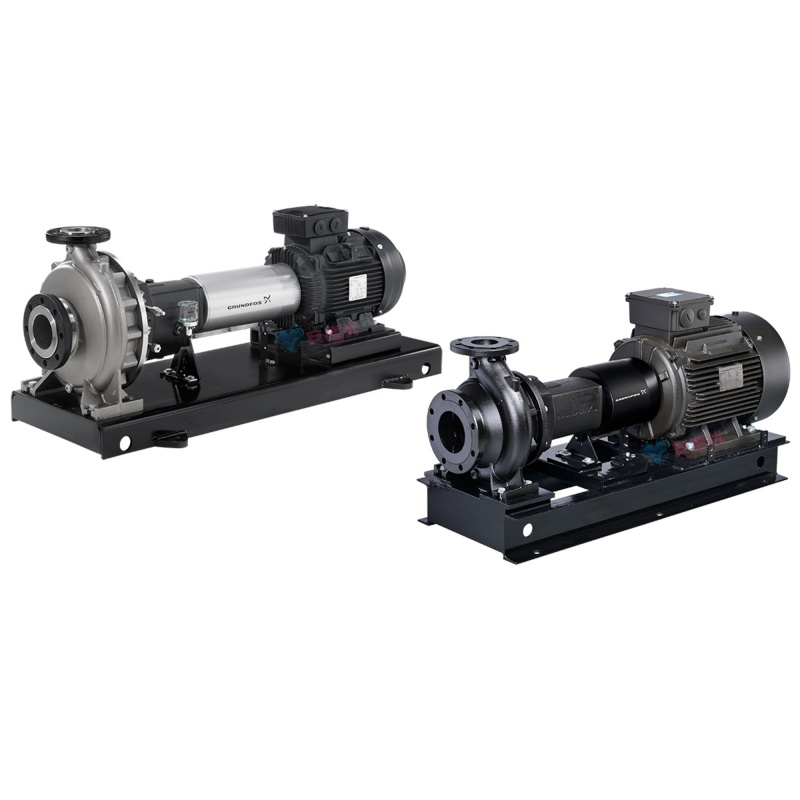

格兰富NK卧式管道单级端吸泵(分体)

NK 32-130.1/114、NK 32-130/121、NK 32-165.1/168、NK 32-180/166、NK 32-205.1/205、NK 40-180/155、NK 40-220/190、NK 40-220/250、NK 40-225/246、NK 50-220/221、NK 50-225/172、NK 50-280/239、NK 65-180/113、NK 65-225/183、NK 80-180/137、NK 80-225/171、NK 80-225/225、NK 80-350/271、

GRUNDFOS格兰富NK卧式管道单级端吸泵(分体)是高效节能的多用途离心泵，适用于供水、工业增压、HVAC及灌溉等场景。采用后拉式设计便于维护，符合ISO 5199标准，配备IE3/IE4高效电机，压力等级达25bar。提供铸铁/不锈钢材质选项，支持变频控制（NKE系列），性能范围覆盖0.25-375kW。DN32-DN350法兰尺寸，双蜗壳设计延长使用寿命，满足严苛工况需求。
在线留言 电话咨询
功能特点
规格参数
外形尺寸
视频介绍

功能特点

GRUNDFOS格兰富NK卧式管道单级端吸泵(分体)

1. ‌多用途设计‌

  • ‌应用领域广泛‌：适用于供水、工业增压、工业液体传输、HVAC（供暖、通风、空调系统）及灌溉五大领域。具体包括市政水厂、高楼增压、工业清洗系统、锅炉给水、区域供热等场景。

2. ‌高效节能‌

  • ‌优化水力性能‌：采用双曲线型封闭式叶轮，表面光滑，确保高效运行，叶轮经过静平衡和水力平衡处理。
  • ‌能效等级‌：符合欧盟EuP指令（EC No 547/2012），大部分泵通过能效指数（MEI）分类，部分型号达到IE5超高能效等级（MGE永磁电机）。

3. ‌结构特点‌

  • ‌模块化设计‌：后拉式结构，维修时无需拆卸泵壳和管路，单人借助起重设备即可完成维护。
  • ‌双蜗壳设计‌（部分型号）：延长密封件和轴承寿命，降低生命周期成本。
  • ‌材质多样‌：泵壳可选铸铁（EN-GJL-250）或球墨铸铁（EN-GJS-500-7），叶轮为不锈钢（1.4308/1.4408）或双相不锈钢（1.4517），适应不同液体介质。

4. ‌灵活配置‌

  • ‌电机选项‌：
    • 标准电机：IE3/IE4能效，支持2极、4极、6极。
    • 变频电机（NKE系列）：集成MGE永磁电机（IE5），内置变频器，支持恒压、比例、温度、流量控制。
  • ‌法兰兼容性‌：符合EN 1092-2标准，提供PN10/16/25压力等级，支持DIN、ANSI、JIS法兰类型。

5. ‌智能控制‌

  • ‌变频功能‌：通过格兰富CUE或内置变频器实现转速调节，适配动态工况，节能高达70%。
  • ‌通信接口‌：支持LON、PROFIBUS、Modbus、BACnet协议，可接入中央管理系统或通过Grundfos GO移动端监控。

6. ‌可靠性与维护便利‌

  • ‌机械密封‌：符合EN 12756标准，提供EPDM、FKM等材质选项，适应-25°C至+140°C液体温度。
  • ‌轴承设计‌：终身润滑轴承或可再润滑重载轴承，部分型号配备绝缘轴承以兼容变频运行。
  • ‌测试认证‌：静态高压测试达1.5×PN，性能测试符合ISO 9906:2012等级2B公差。

7. ‌定制化服务‌

  • ‌特殊需求‌：可提供裸轴泵、加长联轴器、防爆认证（ATEX）、耐腐蚀材质等定制方案。

8. ‌环保与合规‌

  • ‌低噪音‌：声压等级优化，2极电机最低55 dB(A)。
  • ‌RoHS认证‌：符合中国环保要求。

典型型号示例

  • ‌NK 32-180‌：铸铁泵壳，1.1 kW电机，中心出口，适用于中小流量供水系统。
  • ‌NKE 65-225‌：变频泵，内置传感器，支持智能控制，适用于HVAC循环系统。

规格参数

型号 电压/频率 额定流量(m³/h) 额定扬程(m) 功率(kW) 进出口径
NK 32-130.1/100 380V/50Hz 15.39 9.506 0.75 50×32
NK 32-130.1/100 380V/50Hz 15.45 9.573 0.75 50×32
NK 32-130.1/114 380V/50Hz 17.92 13.07 1.1 50×32
NK 32-130.1/114 380V/50Hz 17.92 13.07 1.1 50×32
NK 32-130.1/124 380V/50Hz 20.39 15.84 1.5 50×32
NK 32-130.1/124 380V/50Hz 20.43 15.89 1.5 50×32
NK 32-130.1/135 380V/50Hz 10.92 4.624 0.25 50×32
NK 32-130.1/135 380V/50Hz 10.53 4.299 0.25 50×32
NK 32-130.1/140 380V/50Hz 23.63 21.36 2.2 50×32
NK 32-130.1/140 380V/50Hz 23.63 21.36 2.2 50×32
NK 32-130.1/144 380V/50Hz 11.21 5.01 0.37 50×32
NK 32-130.1/144 380V/50Hz 11.62 5.388 0.37 50×32
NK 32-130.1/144 380V/50Hz 24.43 23.18 3 50×32
NK 32-130.1/144 380V/50Hz 24.3 22.94 3 50×32
NK 32-130/111 380V/50Hz 20.45 12.43 1.1 50×32
NK 32-130/111 380V/50Hz 20.45 12.43 1.1 50×32
NK 32-130/121 380V/50Hz 23.11 15.14 1.5 50×32
NK 32-130/121 380V/50Hz 23.07 15.08 1.5 50×32
NK 32-130/133 380V/50Hz 12.11 4.247 0.25 50×32
NK 32-130/133 380V/50Hz 12.56 4.568 0.25 50×32
NK 32-130/135 380V/50Hz 26.28 20.11 2.2 50×32
NK 32-130/135 380V/50Hz 26.28 20.11 2.2 50×32
NK 32-130/142 380V/50Hz 13.09 4.898 0.37 50×32
NK 32-130/142 380V/50Hz 13.58 5.267 0.37 50×32
NK 32-130/142 380V/50Hz 28.39 22.46 3 50×32
NK 32-130/142 380V/50Hz 28.24 22.23 3 50×32
NK 32-165.1/141 380V/50Hz 15.95 18.65 1.5 50×32
NK 32-165.1/141 380V/50Hz 15.97 18.71 1.5 50×32
NK 32-165.1/151 380V/50Hz 8.84 4.941 0.25 50×32
NK 32-165.1/151 380V/50Hz 9.17 5.314 0.25 50×32
NK 32-165.1/156 380V/50Hz 18.73 23.7 2.2 50×32
NK 32-165.1/156 380V/50Hz 18.73 23.7 2.2 50×32
NK 32-165.1/167 380V/50Hz 10.81 6.712 0.37 50×32
NK 32-165.1/167 380V/50Hz 10.43 6.241 0.37 50×32
NK 32-165.1/168 380V/50Hz 21.24 28.11 3 50×32
NK 32-165.1/168 380V/50Hz 21.35 28.4 3 50×32
NK 32-165.1/177 380V/50Hz 11.3 7.823 0.55 50×32
NK 32-165.1/177 380V/50Hz 11.3 7.823 0.55 50×32
NK 32-165.1/177 380V/50Hz 22.28 31.99 4 50×32
NK 32-165.1/177 380V/50Hz 22.44 32.43 4 50×32
NK 32-180/123 380V/50Hz 17.92 16.6 1.5 50×32
NK 32-180/123 380V/50Hz 17.89 16.55 1.5 50×32
NK 32-180/138 380V/50Hz 10.38 4.87 0.25 50×32
NK 32-180/138 380V/50Hz 10.01 4.528 0.25 50×32
NK 32-180/140 380V/50Hz 21.27 21.48 2.2 50×32
NK 32-180/140 380V/50Hz 21.27 21.48 2.2 50×32
NK 32-180/152 380V/50Hz 23.92 27.05 3 50×32
NK 32-180/152 380V/50Hz 23.8 26.77 3 50×32
NK 32-180/155 380V/50Hz 12.71 6.27 0.37 50×32
NK 32-180/155 380V/50Hz 12.25 5.83 0.37 50×32
NK 32-180/166 380V/50Hz 27.36 32.23 4 50×32
NK 32-180/166 380V/50Hz 27.55 32.67 4 50×32
NK 32-180/174 380V/50Hz 14.24 8.236 0.55 50×32
NK 32-180/174 380V/50Hz 14.24 8.236 0.55 50×32
NK 32-180/177 380V/50Hz 29.17 36.67 5.5 50×32
NK 32-180/177 380V/50Hz 29.17 36.67 5.5 50×32
NK 32-180/177 380V/50Hz 14.74 8.523 0.75 50×32
NK 32-180/177 380V/50Hz 14.74 8.523 0.75 50×32
NK 32-205.1/174 380V/50Hz 10.14 6.712 0.37 50×32
NK 32-205.1/174 380V/50Hz 9.78 6.241 0.37 50×32
NK 32-205.1/176 380V/50Hz 20.51 27.72 3 50×32
NK 32-205.1/176 380V/50Hz 20.4 27.44 3 50×32
NK 32-205.1/189 380V/50Hz 21.44 34.87 4 50×32
NK 32-205.1/189 380V/50Hz 21.29 34.39 4 50×32
NK 32-205.1/192 380V/50Hz 11.5 8.789 0.55 50×32
NK 32-205.1/192 380V/50Hz 11.5 8.789 0.55 50×32
NK 32-205.1/205 380V/50Hz 23.25 41.91 5.5 50×32
NK 32-205.1/205 380V/50Hz 23.25 41.91 5.5 50×32
NK 32-205.1/207 380V/50Hz 23.7 42.74 7.5 50×32
NK 32-205.1/207 380V/50Hz 23.7 42.74 7.5 50×32
NK 32-205.1/207 380V/50Hz 12.48 10.53 0.75 50×32
NK 32-205.1/207 380V/50Hz 12.48 10.53 0.75 50×32
NK 40-130/108 380V/50Hz 33.16 11.14 1.5 50×32
NK 40-130/108 380V/50Hz 33.1 11.1 1.5 65×40
NK 40-130/122 380V/50Hz 3.294 0.7 0.25 65×40
NK 40-130/122 380V/50Hz 18.83 3.542 0.25 65×40
NK 40-130/122 380V/50Hz 38.94 15.15 2.2 65×40
NK 40-130/122 380V/50Hz 38.94 15.15 2.2 65×40
NK 40-130/131 380V/50Hz 42.02 18.57 3 65×40
NK 40-130/131 380V/50Hz 41.8 18.38 3 65×40
NK 40-130/135 380V/50Hz 21.12 4.615 0.37 65×40
NK 40-130/135 380V/50Hz 20.36 4.291 0.37 65×40
NK 40-130/140 380V/50Hz 44.6 22.42 4 65×40
NK 40-130/140 380V/50Hz 44.91 22.73 4 65×40
NK 40-130/142 380V/50Hz 46.37 23.55 5.5 65×40
NK 40-130/142 380V/50Hz 46.37 23.55 5.5 65×40
NK 40-130/142 380V/50Hz 22.4 5.66 0.55 65×40
NK 40-130/142 380V/50Hz 22.4 5.66 0.55 65×40
NK 40-180/112 380V/50Hz 32.14 14.05 2.2 65×40
NK 40-180/125 380V/50Hz 36.2 17.8 3 65×40
NK 40-180/130 380V/50Hz 17.85 4.457 0.37 65×40
NK 40-180/140 380V/50Hz 40.91 22.53 4 65×40
NK 40-180/145 380V/50Hz 20.64 5.698 0.55 65×40
NK 40-180/155 380V/50Hz 44.98 28.08 5.5 65×40
NK 40-180/162 380V/50Hz 22.6 7.147 0.75 65×40
NK 40-180/173 380V/50Hz 49.42 35.5 7.5 65×40
NK 40-180/176 380V/50Hz 50.99 37.21 11 65×40
NK 40-180/176 380V/50Hz 24.56 8.948 11 65×40
NK 40-190/147 380V/50Hz 24.08 6.471 0.75 65×40
NK 40-190/147 380V/50Hz 24.08 6.471 0.75 65×40
NK 40-190/151 380V/50Hz 52.65 28.48 7.5 65×40
NK 40-190/151 380V/50Hz 52.65 28.48 7.5 65×40
NK 40-190/163 380V/50Hz 27.71 8.056 1.1 65×40
NK 40-190/163 380V/50Hz 27.91 8.17 1.1 65×40
NK 40-190/169 380V/50Hz 60.62 37.46 11 65×40
NK 40-190/169 380V/50Hz 60.83 37.72 11 65×40
NK 40-190/180 380V/50Hz 30.65 10.07 1.5 65×40
NK 40-190/180 380V/50Hz 30.87 10.21 1.5 65×40
NK 40-190/191 380V/50Hz 67.29 47.77 15 65×40
NK 40-190/191 380V/50Hz 67.52 48.1 15 65×40
NK 40-190/206 380V/50Hz 70.93 54.51 18.5 65×40
NK 40-190/206 380V/50Hz 71.17 54.88 18.5 65×40
NK 40-190/206 380V/50Hz 34.93 13.03 2.2 65×40
NK 40-190/206 380V/50Hz 35.42 13.39 2.2 65×40
NK 40-220/167 380V/50Hz 13.34 7.664 0.55 65×40
NK 40-220/167 380V/50Hz 13.34 7.664 0.55 65×40
NK 40-220/172 380V/50Hz 30.91 34.61 5.5 65×40
NK 40-220/172 380V/50Hz 30.91 34.61 5.5 65×40
NK 40-220/179 380V/50Hz 15.19 8.905 0.75 65×40
NK 40-220/179 380V/50Hz 15.19 8.905 0.75 65×40
NK 40-220/192 380V/50Hz 35.75 42 7.5 65×40
NK 40-220/192 380V/50Hz 35.75 42 7.5 65×40
NK 40-220/200 380V/50Hz 18.35 11.23 1.1 65×40
NK 40-220/200 380V/50Hz 18.22 11.07 1.1 65×40
NK 40-220/212 380V/50Hz 41.17 52.96 11 65×40
NK 40-220/212 380V/50Hz 41.31 53.32 11 65×40
NK 40-220/218 380V/50Hz 21.81 13.1 1.5 65×40
NK 40-220/218 380V/50Hz 21.96 13.29 1.5 65×40
NK 40-220/244 380V/50Hz 40.92 70.69 15 65×40
NK 40-220/244 380V/50Hz 41.06 71.18 15 65×40
NK 40-220/250 380V/50Hz 21.21 18.54 2.2 65×40
NK 40-220/250 380V/50Hz 20.92 18.03 2.2 65×40
NK 40-220/250 380V/50Hz 42.96 74.21 18.5 65×40
NK 40-220/250 380V/50Hz 43.11 74.72 18.5 65×40
NK 40-225/158 380V/50Hz 43.17 28.18 5.5 65×40
NK 40-225/162 380V/50Hz 21.82 7.05 0.75 65×40
NK 40-225/173 380V/50Hz 49.02 34.79 7.5 65×40
NK 40-225/182 380V/50Hz 24.95 9.24 1.1 65×40
NK 40-225/192 380V/50Hz 59 43.27 11 65×40
NK 40-225/199 380V/50Hz 28.8 11.09 1.5 65×40
NK 40-225/210 380V/50Hz 67.42 52.72 15 65×40
NK 40-225/226 380V/50Hz 31.47 14.79 2.2 65×40
NK 40-225/230 380V/50Hz 71.57 62.9 18.5 65×40
NK 40-225/246 380V/50Hz 67.94 73.63 22 65×40
NK 40-225/250 380V/50Hz 31.78 18.25 3 65×40
NK 50-130/113 380V/50Hz 65.15 11.49 3 65×50
NK 50-130/113 380V/50Hz 64.81 11.37 3 65×50
NK 50-130/113 380V/50Hz 30.29 2.427 0.37 65×50
NK 50-130/113 380V/50Hz 31.41 2.61 0.37 65×50
NK 50-130/123 380V/50Hz 75.69 14.17 4 65×50
NK 50-130/123 380V/50Hz 75.17 13.98 4 65×50
NK 50-130/129 380V/50Hz 39.3 3.96 0.55 65×50
NK 50-130/129 380V/50Hz 39.3 3.96 0.55 65×50
NK 50-130/135 380V/50Hz 81.26 19.06 5.5 65×50
NK 50-130/135 380V/50Hz 81.26 19.06 5.5 65×50
NK 50-130/138 380V/50Hz 41.72 4.781 0.75 65×50
NK 50-130/138 380V/50Hz 41.72 4.781 0.75 65×50
NK 50-130/142 380V/50Hz 85.51 21.53 7.5 65×50
NK 50-130/142 380V/50Hz 85.51 21.53 7.5 65×50
NK 50-130/142 380V/50Hz 41.97 5.174 1.1 65×50
NK 50-130/142 380V/50Hz 41.68 5.102 1.1 65×50
NK 50-220/147 380V/50Hz 30.76 5.215 0.75 65×50
NK 50-220/147 380V/50Hz 30.76 5.215 0.75 65×50
NK 50-220/147 380V/50Hz 60.62 21.57 5.5 65×50
NK 50-220/147 380V/50Hz 60.62 21.57 5.5 65×50
NK 50-220/162 380V/50Hz 68.59 26.76 7.5 65×50
NK 50-220/162 380V/50Hz 68.59 26.76 7.5 65×50
NK 50-220/171 380V/50Hz 34.57 7.289 1.1 65×50
NK 50-220/171 380V/50Hz 34.81 7.392 1.1 65×50
NK 50-220/181 380V/50Hz 77.56 34.74 11 65×50
NK 50-220/181 380V/50Hz 77.29 34.5 11 65×50
NK 50-220/187 380V/50Hz 37.9 9.015 1.5 65×50
NK 50-220/187 380V/50Hz 38.17 9.142 1.5 65×50
NK 50-220/199 380V/50Hz 86.79 43.08 15 65×50
NK 50-220/199 380V/50Hz 87.08 43.37 15 65×50
NK 50-220/210 380V/50Hz 43.95 12.28 2.2 65×50
NK 50-220/210 380V/50Hz 43.35 11.95 2.2 65×50
NK 50-220/211 380V/50Hz 92.45 49.51 18.5 65×50
NK 50-220/211 380V/50Hz 92.76 49.85 18.5 65×50
NK 50-220/221 380V/50Hz 98.51 55.48 22 65×50
NK 50-220/221 380V/50Hz 98.34 55.29 22 65×50
NK 50-220/221 380V/50Hz 46.28 13.41 3 65×50
NK 50-220/221 380V/50Hz 46.6 13.6 3 65×50
NK 50-225/139 380V/50Hz 44.28 22.99 5.5 65×50
NK 50-225/144 380V/50Hz 21.92 6.085 0.75 65×50
NK 50-225/151 380V/50Hz 48.11 28.18 7.5 65×50
NK 50-225/160 380V/50Hz 25.41 7.797 1.1 65×50
NK 50-225/172 380V/50Hz 60.73 37.1 11 65×50
NK 50-225/181 380V/50Hz 29.41 9.924 1.5 65×50
NK 50-225/193 380V/50Hz 64.38 46.56 15 65×50
NK 50-225/207 380V/50Hz 35.01 13.41 2.2 65×50
NK 50-225/208 380V/50Hz 75.32 54.27 18.5 65×50
NK 50-225/225 380V/50Hz 81.14 63.11 22 65×50
NK 50-225/237 380V/50Hz 42.06 16.78 3 65×50
NK 50-225/240 380V/50Hz 41 17.4 4 65×50
NK 50-225/240 380V/50Hz 83.98 72.16 30 65×50
NK 50-280/197 380V/50Hz 73.65 46.47 15 65×50
NK 50-280/197 380V/50Hz 73.91 46.78 15 65×50
NK 50-280/208 380V/50Hz 39.41 12.98 2.2 65×50
NK 50-280/208 380V/50Hz 38.86 12.62 2.2 65×50
NK 50-280/209 380V/50Hz 79.8 52.77 18.5 65×50
NK 50-280/209 380V/50Hz 80.07 53.13 18.5 65×50
NK 50-280/219 380V/50Hz 84.71 59.26 22 65×50
NK 50-280/219 380V/50Hz 84.86 59.46 22 65×50
NK 50-280/226 380V/50Hz 44.51 15.49 3 65×50
NK 50-280/226 380V/50Hz 44.2 15.28 3 65×50
NK 50-280/239 380V/50Hz 103 71.35 30 65×50
NK 50-280/239 380V/50Hz 102.7 70.87 30 65×50
NK 50-280/250 380V/50Hz 49.79 18.77 4 65×50
NK 50-280/250 380V/50Hz 49.96 18.9 4 65×50
NK 50-280/262 380V/50Hz 52.75 20.1 5.5 65×50
NK 50-280/262 380V/50Hz 53.3 20.52 5.5 65×50
NK 50-280/262 380V/50Hz 106.3 84.6 37 65×50
NK 50-280/262 380V/50Hz 106.6 85.18 37 65×50
NK 50-350/236 380V/50Hz 36.27 16.96 3 65×50
NK 50-350/236 380V/50Hz 36.02 16.73 3 65×50
NK 50-350/256 380V/50Hz 40.79 19.84 4 65×50
NK 50-350/256 380V/50Hz 40.93 19.98 4 65×50
NK 50-350/278 380V/50Hz 44.72 24.27 5.5 65×50
NK 50-350/278 380V/50Hz 44.26 23.77 5.5 65×50
NK 50-350/304 380V/50Hz 51.09 29.5 7.5 65×50
NK 50-350/304 380V/50Hz 51.09 29.5 7.5 65×50
NK 50-350/340-336 380V/50Hz 63.48 34.4 11 65×50
NK 50-350/340-336 380V/50Hz 64.13 35.12 11 65×50
NK 65-130/117-107 380V/50Hz 96.07 10.46 4 80×65
NK 65-130/117-107 380V/50Hz 96.74 10.61 4 80×65
NK 65-130/119 380V/50Hz 46.1 3.158 0.55 80×65
NK 65-130/119 380V/50Hz 46.1 3.158 0.55 80×65
NK 65-130/124 380V/50Hz 103.6 14.02 5.5 80×65
NK 65-130/124 380V/50Hz 103.6 14.02 5.5 80×65
NK 65-130/128 380V/50Hz 52.8 3.728 0.75 80×65
NK 65-130/128 380V/50Hz 52.8 3.728 0.75 80×65
NK 65-130/136 380V/50Hz 118.5 17.62 7.5 80×65
NK 65-130/136 380V/50Hz 118.5 17.62 7.5 80×65
NK 65-130/141 380V/50Hz 60.04 4.949 1.1 80×65
NK 65-130/141 380V/50Hz 60.46 5.019 1.1 80×65
NK 65-130/144 380V/50Hz 125.6 21.08 11 80×65
NK 65-130/144 380V/50Hz 126 21.22 11 80×65
NK 65-180/113 380V/50Hz 49.32 13.55 3 80×65
NK 65-180/113 380V/50Hz 49.07 13.41 3 80×65
NK 65-180/124 380V/50Hz 58.83 16.29 4 80×65
NK 65-180/124 380V/50Hz 59.23 16.51 4 80×65
NK 65-180/131 380V/50Hz 32.5 4.4 0.55 80×65
NK 65-180/131 380V/50Hz 32.5 4.4 0.55 80×65
NK 65-180/139 380V/50Hz 66.62 21.1 5.5 80×65
NK 65-180/139 380V/50Hz 66.62 21.1 5.5 80×65
NK 65-180/145 380V/50Hz 35.02 5.478 0.75 80×65
NK 65-180/145 380V/50Hz 35.02 5.478 0.75 80×65
NK 65-180/154 380V/50Hz 72.31 26.99 7.5 80×65
NK 65-180/154 380V/50Hz 72.31 26.99 7.5 80×65
NK 65-180/162 380V/50Hz 37.24 7.392 1.1 80×65
NK 65-180/162 380V/50Hz 37.51 7.497 1.1 80×65
NK 65-180/169 380V/50Hz 85.94 33.09 11 80×65
NK 65-180/169 380V/50Hz 86.23 33.32 11 80×65
NK 65-180/172 380V/50Hz 88.61 34.93 15 80×65
NK 65-180/172 380V/50Hz 88.91 35.17 15 80×65
NK 65-180/172 380V/50Hz 42.06 8.752 1.5 80×65
NK 65-180/172 380V/50Hz 41.77 8.63 1.5 80×65
NK 65-225/144 380V/50Hz 37.77 6.12 1.1 80×65
NK 65-225/144 380V/50Hz 38.04 6.206 1.1 80×65
NK 65-225/150 380V/50Hz 80.05 28.36 11 80×65
NK 65-225/150 380V/50Hz 80.32 28.56 11 80×65
NK 65-225/158 380V/50Hz 42.33 7.322 1.5 80×65
NK 65-225/158 380V/50Hz 42.62 7.426 1.5 80×65
NK 65-225/167 380V/50Hz 93.88 34.66 15 80×65
NK 65-225/167 380V/50Hz 94.2 34.89 15 80×65
NK 65-225/182 380V/50Hz 31.73 4.093 0.55 80×65
NK 65-225/182 380V/50Hz 31.04 3.919 0.55 80×65
NK 65-225/183 380V/50Hz 49.25 9.889 2.2 80×65
NK 65-225/183 380V/50Hz 49.93 10.17 2.2 80×65
NK 65-225/184 380V/50Hz 102.9 41.58 18.5 80×65
NK 65-225/184 380V/50Hz 103.2 41.86 18.5 80×65
NK 65-225/193 380V/50Hz 35.87 4.652 0.75 80×65
NK 65-225/193 380V/50Hz 36.06 4.702 0.75 80×65
NK 65-225/200 380V/50Hz 114.4 47.62 22 80×65
NK 65-225/200 380V/50Hz 114.6 47.78 22 80×65
NK 65-225/211 380V/50Hz 53.96 12.87 3 80×65
NK 65-225/211 380V/50Hz 53.59 12.69 3 80×65
NK 65-225/232 380V/50Hz 116.1 64.36 30 80×65
NK 65-225/232 380V/50Hz 115.7 63.93 30 80×65
NK 65-225/240 380V/50Hz 38.12 6.976 1.1 80×65
NK 65-225/240 380V/50Hz 38.53 7.126 1.1 80×65
NK 65-225/242 380V/50Hz 59.11 16.73 4 80×65
NK 65-225/242 380V/50Hz 59.31 16.84 4 80×65
NK 65-225/242 380V/50Hz 123.6 70.11 37 80×65
NK 65-225/242 380V/50Hz 124 70.58 37 80×65
NK 65-280/210 380V/50Hz 32.11 5.121 0.75 80×65
NK 65-280/210 380V/50Hz 32.28 5.176 0.75 80×65
NK 65-280/217 380V/50Hz 53.08 13.23 3 80×65
NK 65-280/217 380V/50Hz 52.71 13.04 3 80×65
NK 65-280/237 380V/50Hz 38.47 6.761 1.1 80×65
NK 65-280/237 380V/50Hz 38.07 6.618 1.1 80×65
NK 65-280/240 380V/50Hz 60.93 16.37 4 80×65
NK 65-280/240 380V/50Hz 60.72 16.26 4 80×65
NK 65-280/258 380V/50Hz 44.73 8.075 1.5 80×65
NK 65-280/258 380V/50Hz 44.73 8.075 1.5 80×65
NK 65-280/270 380V/50Hz 62.05 20.75 5.5 80×65
NK 65-280/270 380V/50Hz 62.69 21.19 5.5 80×65
NK 65-280/280 380V/50Hz 40.51 9.711 2.2 80×65
NK 65-280/280 380V/50Hz 40.94 9.919 2.2 80×65
NK 65-280/280 380V/50Hz 67.42 22.78 7.5 80×65
NK 65-280/280 380V/50Hz 67.42 22.78 7.5 80×65
NK 80-180/112 380V/50Hz 73.29 11.78 4 100×80
NK 80-180/112 380V/50Hz 72.78 11.62 4 100×80
NK 80-180/123 380V/50Hz 87.06 14.47 5.5 100×80
NK 80-180/123 380V/50Hz 87.06 14.47 5.5 100×80
NK 80-180/128 380V/50Hz 45.78 3.936 0.75 100×80
NK 80-180/128 380V/50Hz 45.78 3.936 0.75 100×80
NK 80-180/137 380V/50Hz 108.4 18.61 7.5 100×80
NK 80-180/137 380V/50Hz 108.4 18.61 7.5 100×80
NK 80-180/145 380V/50Hz 56.35 5.156 1.1 100×80
NK 80-180/145 380V/50Hz 56.75 5.229 1.1 100×80
NK 80-180/153 380V/50Hz 120.7 25.25 11 100×80
NK 80-180/153 380V/50Hz 121.2 25.42 11 100×80
NK 80-180/165 380V/50Hz 59.14 7.134 1.5 100×80
NK 80-180/165 380V/50Hz 58.73 7.035 1.5 100×80
NK 80-180/172 380V/50Hz 130.1 32.54 15 100×80
NK 80-180/172 380V/50Hz 130.5 32.76 15 100×80
NK 80-180/174 380V/50Hz 66.92 8.213 2.2 100×80
NK 80-180/174 380V/50Hz 66 7.989 2.2 100×80
NK 80-180/174 380V/50Hz 133.1 33.3 18.5 100×80
NK 80-180/174 380V/50Hz 133.6 33.53 18.5 100×80
NK 80-225/139 380V/50Hz 62.94 4.974 1.5 100×80
NK 80-225/139 380V/50Hz 62.5 4.905 1.5 100×80
NK 80-225/156 380V/50Hz 79.92 6.799 2.2 100×80
NK 80-225/156 380V/50Hz 78.83 6.613 2.2 100×80
NK 80-225/157 380V/50Hz 164.1 27.82 18.5 100×80
NK 80-225/157 380V/50Hz 164.7 28.02 18.5 100×80
NK 80-225/165 380V/50Hz 53.53 3.248 0.75 100×80
NK 80-225/165 380V/50Hz 53.81 3.283 0.75 100×80
NK 80-225/166 380V/50Hz 170.6 32.27 22 100×80
NK 80-225/166 380V/50Hz 170.9 32.38 22 100×80
NK 80-225/171 380V/50Hz 88.39 8.466 3 100×80
NK 80-225/171 380V/50Hz 87.78 8.35 3 100×80
NK 80-225/183 380V/50Hz 183.6 42.05 30 100×80
NK 80-225/183 380V/50Hz 184.2 42.34 30 100×80
NK 80-225/187 380V/50Hz 60.92 4.577 1.1 100×80
NK 80-225/187 380V/50Hz 60.27 4.48 1.1 100×80
NK 80-225/190 380V/50Hz 95.87 11.18 4 100×80
NK 80-225/190 380V/50Hz 95.54 11.1 4 100×80
NK 80-225/193 380V/50Hz 210.7 46.23 37 100×80
NK 80-225/193 380V/50Hz 211.4 46.54 37 100×80
NK 80-225/202 380V/50Hz 69.41 5.493 1.5 100×80
NK 80-225/202 380V/50Hz 69.41 5.493 1.5 100×80
NK 80-225/205 380V/50Hz 108.7 13.09 5.5 100×80
NK 80-225/205 380V/50Hz 109.9 13.36 5.5 100×80
NK 80-225/205 380V/50Hz 212.4 55.58 45 100×80
NK 80-225/205 380V/50Hz 212.8 55.77 45 100×80
NK 80-225/225 380V/50Hz 71.64 7.019 2.2 100×80
NK 80-225/225 380V/50Hz 107 16.59 7.5 100×80
NK 80-225/225 380V/50Hz 221 66.59 55 100×80
NK 80-225/225 380V/50Hz 221 66.59 55 100×80
NK 80-225/225 380V/50Hz 70.89 6.872 2.2 100×80
NK 80-225/225 380V/50Hz 107 16.59 7.5 100×80
NK 80-280/207-199 380V/50Hz 42.85 5.554 1.1 100×80
NK 80-280/207-199 380V/50Hz 43.3 5.674 1.1 100×80
NK 80-280/214-206 380V/50Hz 68.62 14.09 4 100×80
NK 80-280/214-206 380V/50Hz 68.86 14.18 4 100×80
NK 80-280/226-218 380V/50Hz 48.44 6.908 1.5 100×80
NK 80-280/226-218 380V/50Hz 48.44 6.908 1.5 100×80
NK 80-280/231-223 380V/50Hz 77.83 17.06 5.5 100×80
NK 80-280/231-223 380V/50Hz 77.03 16.71 5.5 100×80
NK 80-280/257-249 380V/50Hz 90.91 20.39 7.5 100×80
NK 80-280/257-249 380V/50Hz 90.91 20.39 7.5 100×80
NK 80-280/267-259 380V/50Hz 57.82 9.016 2.2 100×80
NK 80-280/267-259 380V/50Hz 58.44 9.209 2.2 100×80
NK 80-280/278-270 380V/50Hz 62.93 9.914 3 100×80
NK 80-280/278-270 380V/50Hz 62.93 9.914 3 100×80
NK 80-280/278-270 380V/50Hz 94.27 22.88 11 100×80
NK 80-280/278-270 380V/50Hz 95.25 23.35 11 100×80
NK 80-350/219 380V/50Hz 82.09 15.73 5.5 100×80
NK 80-350/219 380V/50Hz 81.25 15.41 5.5 100×80
NK 80-350/240 380V/50Hz 58.64 7.855 2.2 100×80
NK 80-350/240 380V/50Hz 59.26 8.023 2.2 100×80
NK 80-350/243 380V/50Hz 88.74 19.49 7.5 100×80
NK 80-350/243 380V/50Hz 88.74 19.49 7.5 100×80
NK 80-350/264 380V/50Hz 66.47 9.914 3 100×80
NK 80-350/264 380V/50Hz 66.47 9.914 3 100×80
NK 80-350/271 380V/50Hz 104.6 24.05 11 100×80
NK 80-350/271 380V/50Hz 105.7 24.55 11 100×80
NK 80-350/293 380V/50Hz 75.87 12.22 4 100×80
NK 80-350/293 380V/50Hz 75.87 12.22 4 100×80
NK 80-350/299 380V/50Hz 121.6 29.29 15 100×80
NK 80-350/299 380V/50Hz 122.9 29.9 15 100×80
NK 80-350/328 380V/50Hz 85.51 14.79 5.5 100×80
NK 80-350/328 380V/50Hz 85.95 14.95 5.5 100×80
NK 80-350/328 380V/50Hz 132.1 34.44 18.5 100×80
NK 80-350/328 380V/50Hz 132.6 34.67 18.5 100×80
NK 100-180/130-122 380V/50Hz 147 12.68 7.5 125×100
NK 100-180/130-122 380V/50Hz 147 12.68 7.5 125×100
NK 100-180/138 380V/50Hz 50.78 1.62 0.37 125×100
NK 100-180/138 380V/50Hz 51.9 1.692 0.37 125×100
NK 100-180/138-130 380V/50Hz 74.71 3.615 1.1 125×100
NK 100-180/138-130 380V/50Hz 75.24 3.66 1.1 125×100
NK 100-180/141 380V/50Hz 183.2 16.36 11 125×100
NK 100-180/141 380V/50Hz 183.9 16.48 11 125×100
NK 100-180/146 380V/50Hz 89.72 4.286 1.5 125×100
NK 100-180/146 380V/50Hz 90.36 4.347 1.5 125×100
NK 100-180/153 380V/50Hz 191.4 22.1 15 125×100
NK 100-180/153 380V/50Hz 192.1 22.25 15 125×100
NK 100-180/157 380V/50Hz 61.03 2.475 0.55 125×100
NK 100-180/157 380V/50Hz 59.71 2.37 0.55 125×100
NK 100-180/161 380V/50Hz 98.88 6.173 2.2 125×100
NK 100-180/161 380V/50Hz 100.2 6.347 2.2 125×100
NK 100-180/167 380V/50Hz 194.3 28.23 18.5 125×100
NK 100-180/167 380V/50Hz 194.9 28.42 18.5 125×100
NK 100-180/172 380V/50Hz 207.1 30.25 22 125×100
NK 100-180/172 380V/50Hz 206.8 30.15 22 125×100
NK 100-180/173 380V/50Hz 65.94 3.138 0.75 125×100
NK 100-180/173 380V/50Hz 66.29 3.171 0.75 125×100
NK 100-180/174 380V/50Hz 66.7 3.174 1.1 125×100
NK 100-180/174 380V/50Hz 67.42 3.242 1.1 125×100
NK 100-180/174 380V/50Hz 101.8 7.656 3 125×100
NK 100-180/174 380V/50Hz 101.1 7.551 3 125×100
NK 100-225.1/163 380V/50Hz 190 28.78 22 125×100
NK 100-225.1/163 380V/50Hz 190.3 28.88 22 125×100
NK 100-225.1/168 380V/50Hz 100.1 7.693 3 125×100
NK 100-225.1/168 380V/50Hz 100.8 7.8 3 125×100
NK 100-225.1/176 380V/50Hz 223 33.96 30 125×100
NK 100-225.1/176 380V/50Hz 223.8 34.19 30 125×100
NK 100-225.1/177 380V/50Hz 72.1 3.624 1.1 125×100
NK 100-225.1/177 380V/50Hz 72.87 3.702 1.1 125×100
NK 100-225.1/182 380V/50Hz 114.3 9.137 4 125×100
NK 100-225.1/182 380V/50Hz 114.7 9.2 4 125×100
NK 100-225.1/188 380V/50Hz 239.1 40.17 37 125×100
NK 100-225.1/188 380V/50Hz 238.3 39.9 37 125×100
NK 100-225.1/195 380V/50Hz 80.02 4.7 1.5 125×100
NK 100-225.1/195 380V/50Hz 80.02 4.7 1.5 125×100
NK 100-225.1/199 380V/50Hz 124.2 11.32 5.5 125×100
NK 100-225.1/199 380V/50Hz 125.5 11.4 5.5 125×100
NK 100-225.1/199 380V/50Hz 251.8 45.89 45 125×100
NK 100-225.1/199 380V/50Hz 252.2 46.04 45 125×100
NK 100-225.1/212 380V/50Hz 267.4 53.28 55 125×100
NK 100-225.1/212 380V/50Hz 267.4 53.28 55 125×100
NK 100-225.1/222 380V/50Hz 137.5 14.5 7.5 125×100
NK 100-225.1/222 380V/50Hz 88.57 6.01 2.2 125×100
NK 100-225.1/222 380V/50Hz 89.52 6.139 2.2 125×100
NK 100-225.1/222 380V/50Hz 137.5 14.5 7.5 125×100
NK 100-225/156 380V/50Hz 198.7 20.73 22 125×100
NK 100-225/156 380V/50Hz 198.3 22.65 22 125×100
NK 100-225/162 380V/50Hz 117.8 6.226 3 125×100
NK 100-225/162 380V/50Hz 117 6.14 3 125×100
NK 100-225/172 380V/50Hz 258.9 29.02 30 125×100
NK 100-225/172 380V/50Hz 259.8 29.22 30 125×100
NK 100-225/177 380V/50Hz 87.15 3.021 1.1 125×100
NK 100-225/177 380V/50Hz 88.08 3.086 1.1 125×100
NK 100-225/181 380V/50Hz 128.3 7.871 4 125×100
NK 100-225/181 380V/50Hz 128.8 7.926 4 125×100
NK 100-225/185 380V/50Hz 262.5 34.94 37 125×100
NK 100-225/185 380V/50Hz 261.6 34.71 37 125×100
NK 100-225/197 380V/50Hz 286.2 41.94 45 125×100
NK 100-225/197 380V/50Hz 285.7 41.8 45 125×100
NK 100-225/198 380V/50Hz 89.9 4.289 1.5 125×100
NK 100-225/198 380V/50Hz 89.9 4.289 1.5 125×100
NK 100-225/204 380V/50Hz 135.6 11.03 5.5 125×100
NK 100-225/204 380V/50Hz 137 11.26 5.5 125×100
NK 100-225/215 380V/50Hz 304.2 51.55 55 125×100
NK 100-225/215 380V/50Hz 304.2 51.55 55 125×100
NK 100-225/235 380V/50Hz 151.3 14.86 7.5 125×100
NK 100-225/235 380V/50Hz 151.3 14.86 7.5 125×100
NK 100-225/236 380V/50Hz 96.98 6.306 2.2 125×100
NK 100-225/236 380V/50Hz 98.02 6.441 2.2 125×100
NK 100-225/238 380V/50Hz 100.7 6.689 3 125×100
NK 100-225/238 380V/50Hz 100.7 6.689 3 125×100
NK 100-225/238 380V/50Hz 311.8 64.96 75 125×100
NK 100-225/238 380V/50Hz 311.8 64.96 75 125×100
NK 100-280/194 380V/50Hz 77.46 4.886 1.5 125×100
NK 100-280/194 380V/50Hz 77.46 4.886 1.5 125×100
NK 100-280/196 380V/50Hz 119.7 11.83 5.5 125×100
NK 100-280/196 380V/50Hz 118.5 11.59 5.5 125×100
NK 100-280/215 380V/50Hz 130.2 14.96 7.5 125×100
NK 100-280/215 380V/50Hz 130.2 14.96 7.5 125×100
NK 100-280/218 380V/50Hz 86.71 6.346 2.2 125×100
NK 100-280/218 380V/50Hz 87.64 6.481 2.2 125×100
NK 100-280/234 380V/50Hz 91.21 7.982 3 125×100
NK 100-280/234 380V/50Hz 91.21 7.982 3 125×100
NK 100-280/240 380V/50Hz 143 19.43 11 125×100
NK 100-280/240 380V/50Hz 144.5 19.83 11 125×100
NK 100-280/256 380V/50Hz 99.61 9.37 4 125×100
NK 100-280/256 380V/50Hz 148.4 21.32 15 125×100
NK 100-280/256 380V/50Hz 149.9 21.76 15 125×100
NK 100-280/256 380V/50Hz 99.61 9.37 4 125×100
NK 100-350/224 380V/50Hz 77.6 6.31 2.2 125×100
NK 100-350/224 380V/50Hz 78.43 6.445 2.2 125×100
NK 100-350/224 380V/50Hz 119.8 15.25 7.5 125×100
NK 100-350/224 380V/50Hz 119.8 15.25 7.5 125×100
NK 100-350/251 380V/50Hz 85.4 8.2 3 125×100
NK 100-350/251 380V/50Hz 85.4 8.2 3 125×100
NK 100-350/261 380V/50Hz 140.6 20.44 11 125×100
NK 100-350/261 380V/50Hz 139.2 20.03 11 125×100
NK 100-350/279 380V/50Hz 99.69 9.873 4 125×100
NK 100-350/279 380V/50Hz 99.69 9.873 4 125×100
NK 100-350/290 380V/50Hz 155.6 25.38 15 125×100
NK 100-350/290 380V/50Hz 154 24.86 15 125×100
NK 100-350/307 380V/50Hz 115.6 12.14 5.5 125×100
NK 100-350/307 380V/50Hz 116.2 12.27 5.5 125×100
NK 100-350/308 380V/50Hz 169.3 29.1 18.5 125×100
NK 100-350/308 380V/50Hz 169.9 29.2 18.5 125×100
NK 100-350/326 380V/50Hz 170.2 33.39 22 125×100
NK 100-350/326 380V/50Hz 116.1 14.21 7.5 125×100
NK 100-350/326 380V/50Hz 116.1 14.21 7.5 125×100
NK 100-350/326 380V/50Hz 169.6 33.17 22 125×100
NK 100-380/300 380V/50Hz 117.6 11.41 5.5 125×100
NK 100-380/300 380V/50Hz 117 11.29 5.5 125×100
NK 100-380/313 380V/50Hz 192.9 28.84 22 125×100
NK 100-380/313 380V/50Hz 193.5 29.04 22 125×100
NK 100-380/329 380V/50Hz 132.1 13.87 7.5 125×100
NK 100-380/329 380V/50Hz 132.1 13.87 7.5 125×100
NK 100-380/341 380V/50Hz 215.8 34.46 30 125×100
NK 100-380/341 380V/50Hz 215.8 34.46 30 125×100
NK 100-380/367 380V/50Hz 233 40.05 37 125×100
NK 100-380/367 380V/50Hz 233 40.05 37 125×100
NK 100-380/372 380V/50Hz 156.9 17.68 11 125×100
NK 100-380/372 380V/50Hz 156.9 17.68 11 125×100
NK 100-380/390 380V/50Hz 242.9 46.62 45 125×100
NK 100-380/390 380V/50Hz 242.9 46.62 45 125×100
NK 100-380/408 380V/50Hz 155.5 22.74 15 125×100
NK 100-380/408 380V/50Hz 156.3 22.98 15 125×100
NK 100-380/415 380V/50Hz 245.4 54.78 55 125×100
NK 100-380/415 380V/50Hz 245.4 54.78 55 125×100
NK 100-380/426 380V/50Hz 247.3 58.71 75 125×100
NK 100-380/426 380V/50Hz 165.4 25.56 18.5 125×100
NK 100-380/426 380V/50Hz 163.7 25.05 18.5 125×100
NK 100-380/426 380V/50Hz 247.3 58.71 75 125×100
NK 125-180/142-114 380V/50Hz 260.3 9.843 11 150×125
NK 125-180/142-114 380V/50Hz 261.2 9.91 11 150×125
NK 125-180/152-130 380V/50Hz 68.2 1.432 0.37 150×125
NK 125-180/152-130 380V/50Hz 69.7 1.495 0.37 150×125
NK 125-180/152-134 380V/50Hz 116.7 3.262 1.5 150×125
NK 125-180/152-134 380V/50Hz 117.5 3.308 1.5 150×125
NK 125-180/152-148 380V/50Hz 231.6 18.35 15 150×125
NK 125-180/152-148 380V/50Hz 232.3 18.48 15 150×125
NK 125-180/156 380V/50Hz 79.84 1.854 0.55 150×125
NK 125-180/156 380V/50Hz 81.59 1.936 0.55 150×125
NK 125-180/158 380V/50Hz 135.1 4.502 2.2 150×125
NK 125-180/158 380V/50Hz 137 4.629 2.2 150×125
NK 125-180/159 380V/50Hz 264.7 20.66 18.5 150×125
NK 125-180/159 380V/50Hz 265.6 20.8 18.5 150×125
NK 125-180/166 380V/50Hz 89.84 2.314 0.75 150×125
NK 125-180/166 380V/50Hz 90.32 2.339 0.75 150×125
NK 125-180/166 380V/50Hz 258.8 24.77 22 150×125
NK 125-180/166 380V/50Hz 259.3 24.85 22 150×125
NK 125-180/171 380V/50Hz 141.6 6.117 3 150×125
NK 125-180/171 380V/50Hz 140.6 6.033 3 150×125
NK 125-180/176 380V/50Hz 90.04 2.97 1.1 150×125
NK 125-180/176 380V/50Hz 91 3.033 1.1 150×125
NK 125-180/176 380V/50Hz 140.7 7.056 4 150×125
NK 125-180/176 380V/50Hz 141.2 7.105 4 150×125
NK 125-180/176 380V/50Hz 281.6 29.52 30 150×125
NK 125-180/176 380V/50Hz 282.5 29.72 30 150×125
NK 125-225/178 380V/50Hz 150.2 2.667 1.5 150×125
NK 125-225/178 380V/50Hz 150.2 2.667 1.5 150×125
NK 125-225/179 380V/50Hz 231 6.24 5.5 150×125
NK 125-225/179 380V/50Hz 233.4 6.37 5.5 150×125
NK 125-225/197 380V/50Hz 216.8 8.854 7.5 150×125
NK 125-225/197 380V/50Hz 216.8 8.854 7.5 150×125
NK 125-225/202 380V/50Hz 150.4 4.125 2.2 150×125
NK 125-225/202 380V/50Hz 148.8 4.039 2.2 150×125
NK 125-225/218 380V/50Hz 153 5.433 3 150×125
NK 125-225/218 380V/50Hz 153 5.433 3 150×125
NK 125-225/223 380V/50Hz 243.2 13.05 11 150×125
NK 125-225/223 380V/50Hz 245.7 13.32 11 150×125
NK 125-225/232 380V/50Hz 162.2 6.118 4 150×125
NK 125-225/232 380V/50Hz 162.2 6.118 4 150×125
NK 125-225/232 380V/50Hz 243.5 28.8 15 150×125
NK 125-225/232 380V/50Hz 246 14.5 15 150×125
NK 125-280/204 380V/50Hz 184.6 10.98 7.5 150×125
NK 125-280/204 380V/50Hz 184.6 10.98 7.5 150×125
NK 125-280/205 380V/50Hz 121 4.694 2.2 150×125
NK 125-280/205 380V/50Hz 122.3 4.794 2.2 150×125
NK 125-280/232 380V/50Hz 128.3 6.411 3 150×125
NK 125-280/232 380V/50Hz 128.3 6.411 3 150×125
NK 125-280/232 380V/50Hz 218.4 14.37 11 150×125
NK 125-280/232 380V/50Hz 220.7 14.67 11 150×125
NK 125-280/251 380V/50Hz 150.1 7.504 4 150×125
NK 125-280/251 380V/50Hz 150.1 7.504 4 150×125
NK 125-280/256 380V/50Hz 239.2 18.3 15 150×125
NK 125-280/256 380V/50Hz 236.7 17.93 15 150×125
NK 125-280/270 380V/50Hz 157 8.8 5.5 150×125
NK 125-280/270 380V/50Hz 240 20.38 18.5 150×125
NK 125-280/270 380V/50Hz 240.8 20.52 18.5 150×125
NK 125-280/270 380V/50Hz 156.2 8.709 5.5 150×125
NK 125-320/231 380V/50Hz 186.6 15.2 11 150×125
NK 125-320/231 380V/50Hz 188.6 15.52 11 150×125
NK 125-320/244 380V/50Hz 135.9 7.542 4 150×125
NK 125-320/244 380V/50Hz 135.9 7.542 4 150×125
NK 125-320/248 380V/50Hz 210.8 18.02 15 150×125
NK 125-320/248 380V/50Hz 213 18.4 15 150×125
NK 125-320/260 380V/50Hz 228.9 20.86 18.5 150×125
NK 125-320/260 380V/50Hz 229.7 21.01 18.5 150×125
NK 125-320/261 380V/50Hz 150.3 9.011 5.5 150×125
NK 125-320/261 380V/50Hz 151.1 9.105 5.5 150×125
NK 125-320/271 380V/50Hz 244.3 23.02 22 150×125
NK 125-320/271 380V/50Hz 245.2 23.18 22 150×125
NK 125-320/282 380V/50Hz 168.4 10.8 7.5 150×125
NK 125-320/282 380V/50Hz 168.4 10.8 7.5 150×125
NK 125-320/288 380V/50Hz 171.8 11.2 11 150×125
NK 125-320/288 380V/50Hz 171.8 11.2 11 150×125
NK 125-320/288 380V/50Hz 261.5 25.77 30 150×125
NK 125-320/288 380V/50Hz 261.5 25.77 30 150×125
NK 125-350/228 380V/50Hz 171.3 15.44 11 150×125
NK 125-350/228 380V/50Hz 173.1 15.76 11 150×125
NK 125-350/247 380V/50Hz 122.2 7.961 4 150×125
NK 125-350/247 380V/50Hz 122.2 7.961 4 150×125
NK 125-350/253 380V/50Hz 193.1 19.3 15 150×125
NK 125-350/253 380V/50Hz 195.1 19.7 15 150×125
NK 125-350/275 380V/50Hz 135.5 10.04 5.5 150×125
NK 125-350/275 380V/50Hz 136.2 10.14 5.5 150×125
NK 125-350/276 380V/50Hz 209 23.7 18.5 150×125
NK 125-350/276 380V/50Hz 209.7 23.87 18.5 150×125
NK 125-350/289 380V/50Hz 219.9 26.3 22 150×125
NK 125-350/289 380V/50Hz 220.7 26.48 22 150×125
NK 125-350/301 380V/50Hz 157.4 12.42 7.5 150×125
NK 125-350/301 380V/50Hz 157.4 12.42 7.5 150×125
NK 125-350/319 380V/50Hz 247.3 32.6 30 150×125
NK 125-350/319 380V/50Hz 247.3 32.6 30 150×125
NK 125-350/333-329 380V/50Hz 168.4 15.32 11 150×125
NK 125-350/333-329 380V/50Hz 254.4 34.81 37 150×125
NK 125-350/333-329 380V/50Hz 254.4 34.81 37 150×125
NK 125-350/333-329 380V/50Hz 168.4 15.32 11 150×125
NK 125-360/277 380V/50Hz 228.4 23.95 22 150×125
NK 125-360/277 380V/50Hz 229.2 24.11 22 150×125
NK 125-360/291 380V/50Hz 166.5 11.5 7.5 150×125
NK 125-360/291 380V/50Hz 166.5 11.5 7.5 150×125
NK 125-360/301 380V/50Hz 270.9 28.46 30 150×125
NK 125-360/301 380V/50Hz 270.9 28.46 30 150×125
NK 125-360/323 380V/50Hz 287.8 34.38 37 150×125
NK 125-360/323 380V/50Hz 287.8 34.38 37 150×125
NK 125-360/326 380V/50Hz 189.9 15.2 11 150×125
NK 125-360/326 380V/50Hz 189.8 15.2 11 150×125
NK 125-360/338 380V/50Hz 304.9 38.86 45 150×125
NK 125-360/338 380V/50Hz 304.9 38.86 45 150×125
NK 125-360/350 380V/50Hz 208 18.4 15 150×125
NK 125-360/350 380V/50Hz 209.1 18.59 15 150×125
NK 125-360/355 380V/50Hz 322.6 44.59 55 150×125
NK 125-360/355 380V/50Hz 322.6 44.59 55 150×125
NK 125-360/364 380V/50Hz 219.2 20.92 18.5 150×125
NK 125-360/364 380V/50Hz 332.2 48.14 75 150×125
NK 125-360/364 380V/50Hz 332.2 48.14 75 150×125
NK 125-360/364 380V/50Hz 217 20.5 18.5 150×125
NK 125-380/283 380V/50Hz 290.2 25.06 30 150×125
NK 125-380/283 380V/50Hz 290.2 25.06 30 150×125
NK 125-380/307 380V/50Hz 319 29.63 37 150×125
NK 125-380/307 380V/50Hz 319 29.63 37 150×125
NK 125-380/314 380V/50Hz 213.6 23.1 11 150×125
NK 125-380/314 380V/50Hz 213.6 13.24 11 150×125
NK 125-380/333 380V/50Hz 343.3 34.71 45 150×125
NK 125-380/333 380V/50Hz 343.3 34.71 45 150×125
NK 125-380/349 380V/50Hz 241.9 16.09 15 150×125
NK 125-380/349 380V/50Hz 243.1 16.26 15 150×125
NK 125-380/360 380V/50Hz 367.4 40.22 55 150×125
NK 125-380/360 380V/50Hz 367.4 40.22 55 150×125
NK 125-380/380 380V/50Hz 258 19.37 18.5 150×125
NK 125-380/380 380V/50Hz 255.4 18.98 18.5 150×125
NK 125-380/405 380V/50Hz 409 50.46 75 150×125
NK 125-380/405 380V/50Hz 409 50.46 75 150×125
NK 125-380/406 380V/50Hz 275.8 21.37 22 150×125
NK 125-380/406 380V/50Hz 278.7 21.81 22 150×125
NK 125-380/410 380V/50Hz 270.6 22.78 30 150×125
NK 125-380/410 380V/50Hz 270.6 22.78 30 150×125
NK 125-380/410 380V/50Hz 409.7 52.28 90 150×125
NK 125-380/410 380V/50Hz 409.7 52.28 90 150×125
NK 150-225/180 380V/50Hz 300.8 5.089 5.5 200×150
NK 150-225/180 380V/50Hz 297.7 4.985 5.5 200×150
NK 150-225/196 380V/50Hz 218.5 2.604 2.2 200×150
NK 150-225/196 380V/50Hz 220.8 2.66 2.2 200×150
NK 150-225/196 380V/50Hz 304.8 7.108 7.5 200×150
NK 150-225/196 380V/50Hz 304.8 7.108 7.5 200×150
NK 150-225/212 380V/50Hz 219.2 3.981 3 200×150
NK 150-225/212 380V/50Hz 219.2 3.981 3 200×150
NK 150-225/216 380V/50Hz 343.2 9.462 11 200×150
NK 150-225/216 380V/50Hz 346.7 9.658 11 200×150
NK 150-225/233 380V/50Hz 225.6 5.367 4 200×150
NK 150-225/233 380V/50Hz 225.6 5.367 4 200×150
NK 150-225/238 380V/50Hz 344.3 13.32 15 200×150
NK 150-225/238 380V/50Hz 347.9 13.6 15 200×150
NK 150-225/242 380V/50Hz 235.2 5.985 5.5 200×150
NK 150-225/242 380V/50Hz 236.5 6.047 5.5 200×150
NK 150-225/242 380V/50Hz 359.6 6.95 18.5 200×150
NK 150-225/242 380V/50Hz 360.9 6.89 18.5 200×150
NK 150-280/210 380V/50Hz 200.2 4.144 3 200×150
NK 150-280/210 380V/50Hz 200.2 4.144 3 200×150
NK 150-280/214 380V/50Hz 339.1 8.988 11 200×150
NK 150-280/214 380V/50Hz 335.6 8.805 11 200×150
NK 150-280/229 380V/50Hz 230.4 4.989 4 200×150
NK 150-280/229 380V/50Hz 230.4 4.989 4 200×150
NK 150-280/232 380V/50Hz 368.6 11.65 15 200×150
NK 150-280/232 380V/50Hz 372.4 11.89 15 200×150
NK 150-280/247 380V/50Hz 394.9 14.59 18.5 200×150
NK 150-280/247 380V/50Hz 396.2 14.69 18.5 200×150
NK 150-280/251 380V/50Hz 242.7 6.793 5.5 200×150
NK 150-280/251 380V/50Hz 244 6.864 5.5 200×150
NK 150-280/260 380V/50Hz 395.4 17.4 22 200×150
NK 150-280/260 380V/50Hz 394 17.29 22 200×150
NK 150-280/273 380V/50Hz 256.5 8.53 7.5 200×150
NK 150-280/273 380V/50Hz 389.2 19.81 30 200×150
NK 150-280/273 380V/50Hz 389.2 19.81 30 200×150
NK 150-280/273 380V/50Hz 256.5 8.53 7.5 200×150
NK 150-300/269 380V/50Hz 354 19.12 22 200×150
NK 150-300/269 380V/50Hz 355.2 19.25 22 200×150
NK 150-300/281 380V/50Hz 244.4 9.3 7.5 200×150
NK 150-300/281 380V/50Hz 244.4 9.3 7.5 200×150
NK 150-300/289 380V/50Hz 393.5 22.56 30 200×150
NK 150-300/289 380V/50Hz 393.5 22.56 30 200×150
NK 150-300/289 380V/50Hz 268.5 10.1 11 200×150
NK 150-300/289 380V/50Hz 268.5 10.1 11 200×150
NK 150-350.1/245 380V/50Hz 294.6 16.75 18.5 200×150
NK 150-350.1/245 380V/50Hz 295.6 16.87 18.5 200×150
NK 150-350.1/251 380V/50Hz 187.8 7.64 5.5 200×150
NK 150-350.1/251 380V/50Hz 188.8 7.72 5.5 200×150
NK 150-350.1/256 380V/50Hz 321.6 18.29 22 200×150
NK 150-350.1/256 380V/50Hz 322.7 18.42 22 200×150
NK 150-350.1/271 380V/50Hz 220.4 9.1 7.5 200×150
NK 150-350.1/271 380V/50Hz 220.4 9.1 7.5 200×150
NK 150-350.1/281 380V/50Hz 371.3 22.25 30 200×150
NK 150-350.1/281 380V/50Hz 371.3 22.25 30 200×150
NK 150-350.1/298 380V/50Hz 408.6 25.32 37 200×150
NK 150-350.1/298 380V/50Hz 408.6 25.32 37 200×150
NK 150-350.1/300 380V/50Hz 269.3 11.1 11 200×150
NK 150-350.1/300 380V/50Hz 269.3 11.1 11 200×150
NK 150-350.1/310 380V/50Hz 276.2 11.9 15 200×150
NK 150-350.1/310 380V/50Hz 277.6 12.02 15 200×150
NK 150-350.1/310 380V/50Hz 421.4 27.71 45 200×150
NK 150-350.1/310 380V/50Hz 421.7 27.71 45 200×150
NK 150-350/217 380V/50Hz 176.5 5.151 4 200×150
NK 150-350/217 380V/50Hz 176.5 5.151 4 200×150
NK 150-350/238 380V/50Hz 329.4 14.38 18.5 200×150
NK 150-350/238 380V/50Hz 328.2 14.28 18.5 200×150
NK 150-350/240 380V/50Hz 218 6.192 5.5 200×150
NK 150-350/240 380V/50Hz 219.1 6.257 5.5 200×150
NK 150-350/254 380V/50Hz 392.4 16.16 22 200×150
NK 150-350/254 380V/50Hz 393.8 16.27 22 200×150
NK 150-350/264 380V/50Hz 265.4 8.001 7.5 200×150
NK 150-350/264 380V/50Hz 265.4 8.001 7.5 200×150
NK 150-350/273 380V/50Hz 453.4 18.93 30 200×150
NK 150-350/273 380V/50Hz 453.4 18.93 30 200×150
NK 150-350/294 380V/50Hz 460 23.68 37 200×150
NK 150-350/294 380V/50Hz 460 23.68 37 200×150
NK 150-350/301 380V/50Hz 288.6 11.14 11 200×150
NK 150-350/301 380V/50Hz 288.6 11.14 11 200×150
NK 150-350/318-314 380V/50Hz 458.2 28.82 45 200×150
NK 150-350/318-314 380V/50Hz 458.2 28.82 45 200×150
NK 150-350/328-324 380V/50Hz 448.7 30.8 55 200×150
NK 150-350/328-324 380V/50Hz 448.7 30.8 55 200×150
NK 150-350/328-324 380V/50Hz 295.6 13.37 15 200×150
NK 150-350/328-324 380V/50Hz 294.1 13.23 15 200×150
NK 150-360/288-282 380V/50Hz 392.9 24.69 37 200×150
NK 150-360/288-282 380V/50Hz 392.9 24.69 37 200×150
NK 150-360/290-284 380V/50Hz 261.2 10.8 11 200×150
NK 150-360/290-284 380V/50Hz 261.2 10.8 11 200×150
NK 150-360/302-296 380V/50Hz 428.6 27.5 45 200×150
NK 150-360/302-296 380V/50Hz 428.6 27.5 45 200×150
NK 150-360/313-307 380V/50Hz 297.3 13.13 15 200×150
NK 150-360/313-307 380V/50Hz 295.8 13 15 200×150
NK 150-360/317-311 380V/50Hz 459.1 31.36 55 200×150
NK 150-360/317-311 380V/50Hz 459.1 31.36 55 200×150
NK 150-360/328-322 380V/50Hz 317.5 14.8 18.5 200×150
NK 150-360/328-322 380V/50Hz 320.8 15.11 18.5 200×150
NK 150-360/338-332 380V/50Hz 487.4 38.18 75 200×150
NK 150-360/338-332 380V/50Hz 487.4 38.18 75 200×150
NK 150-360/340-334 380V/50Hz 341.1 16.54 22 200×150
NK 150-360/340-334 380V/50Hz 337.6 16.2 22 200×150
NK 150-360/355-349 380V/50Hz 495 43.11 90 200×150
NK 150-360/355-349 380V/50Hz 495 43.11 90 200×150
NK 150-360/370-364 380V/50Hz 369.2 19.9 30 200×150
NK 150-360/370-364 380V/50Hz 369.2 19.9 30 200×150
NK 150-360/370-364 380V/50Hz 511.2 46.88 110 200×150
NK 150-360/370-364 380V/50Hz 513 47.2 110 200×150
NK 150-380/300 380V/50Hz 287 12.15 15 200×150
NK 150-380/300 380V/50Hz 288.5 12.28 15 200×150
NK 150-380/308 380V/50Hz 486.5 29.35 55 200×150
NK 150-380/308 380V/50Hz 486.5 29.35 55 200×150
NK 150-380/329 380V/50Hz 319.2 14.05 18.5 200×150
NK 150-380/329 380V/50Hz 322.4 14.34 18.5 200×150
NK 150-380/350 380V/50Hz 513.2 37.86 75 200×150
NK 150-380/350 380V/50Hz 513.2 37.86 75 200×150
NK 150-380/351 380V/50Hz 340.6 16.58 22 200×150
NK 150-380/351 380V/50Hz 337.1 16.25 22 200×150
NK 150-380/380 380V/50Hz 557.7 43.74 90 200×150
NK 150-380/380 380V/50Hz 557.7 43.74 90 200×150
NK 150-380/402 380V/50Hz 353.9 21.89 30 200×150
NK 150-380/402 380V/50Hz 353.9 21.89 30 200×150
NK 150-380/409 380V/50Hz 555.1 52.02 110 200×150
NK 150-380/409 380V/50Hz 557 52.37 110 200×150
NK 150-380/430 380V/50Hz 392.8 24.66 37 200×150
NK 150-380/430 380V/50Hz 394.8 24.92 37 200×150
NK 150-380/430 380V/50Hz 554.1 58.7 132 200×150
NK 150-380/430 380V/50Hz 555.9 59.1 132 200×150
NK 150-390/308 380V/50Hz 486.5 29.28 55 200×150
NK 150-390/308 380V/50Hz 486.5 29.28 55 200×150
NK 150-390/324 380V/50Hz 335.1 14.2 18.5 200×150
NK 150-390/324 380V/50Hz 338.6 14.49 18.5 200×150
NK 150-390/338 380V/50Hz 539.2 37.02 75 200×150
NK 150-390/338 380V/50Hz 539.2 37.02 75 200×150
NK 150-390/339 380V/50Hz 354.1 15.9 22 200×150
NK 150-390/339 380V/50Hz 357.8 16.23 22 200×150
NK 150-390/350 380V/50Hz 573.3 41.01 90 200×150
NK 150-390/350 380V/50Hz 573.3 41.01 90 200×150
NK 150-390/361 380V/50Hz 399.3 19.5 30 200×150
NK 150-390/361 380V/50Hz 399.3 19.5 30 200×150
NK 150-390/368 380V/50Hz 619.6 46.67 110 200×150
NK 150-390/368 380V/50Hz 621.7 46.99 110 200×150
NK 150-390/386 380V/50Hz 433 22.56 37 200×150
NK 150-390/386 380V/50Hz 435.2 22.79 37 200×150
NK 150-390/388 380V/50Hz 659.8 52.44 132 200×150
NK 150-390/388 380V/50Hz 662 52.8 132 200×150
NK 150-390/412 380V/50Hz 458.6 25.42 45 200×150
NK 150-390/412 380V/50Hz 460.9 25.68 45 200×150
NK 150-390/415 380V/50Hz 698.8 59.16 160 200×150
NK 150-390/415 380V/50Hz 701.1 59.56 160 200×150
NK 200-300/273 380V/50Hz 515.4 17.7 30 250×200
NK 200-300/273 380V/50Hz 515.4 17.7 30 250×200
NK 200-300/282 380V/50Hz 376.1 8.956 11 250×200
NK 200-300/282 380V/50Hz 376.1 8.956 11 250×200
NK 200-300/288 380V/50Hz 546 21.15 37 250×200
NK 200-300/288 380V/50Hz 546 21.15 37 250×200
NK 200-300/304 380V/50Hz 394.4 10.91 15 250×200
NK 200-300/304 380V/50Hz 580.8 23.65 45 250×200
NK 200-300/304 380V/50Hz 580.8 23.65 45 250×200
NK 200-300/304 380V/50Hz 392.4 10.8 15 250×200
NK 200-350/228 380V/50Hz 354 3.634 5.5 250×200
NK 200-350/228 380V/50Hz 355.8 3.672 5.5 250×200
NK 200-350/239 380V/50Hz 485.2 11.05 22 250×200
NK 200-350/239 380V/50Hz 486.8 11.12 22 250×200
NK 200-350/251 380V/50Hz 397.7 5.05 7.5 250×200
NK 200-350/251 380V/50Hz 397.7 5.05 7.5 250×200
NK 200-350/260 380V/50Hz 584.3 13.98 30 250×200
NK 200-350/260 380V/50Hz 584.3 13.98 30 250×200
NK 200-350/276 380V/50Hz 636.7 16.92 37 250×200
NK 200-350/276 380V/50Hz 636.7 16.92 37 250×200
NK 200-350/279 380V/50Hz 428.8 7.39 11 250×200
NK 200-350/279 380V/50Hz 428.8 7.39 11 250×200
NK 200-350/291 380V/50Hz 650.1 20.33 45 250×200
NK 200-350/291 380V/50Hz 650.1 20.33 45 250×200
NK 200-350/303 380V/50Hz 428.6 10.18 15 250×200
NK 200-350/303 380V/50Hz 430.8 10.28 15 250×200
NK 200-350/307 380V/50Hz 690.6 23.88 55 250×200
NK 200-350/307 380V/50Hz 690.6 23.88 55 250×200
NK 200-350/323 380V/50Hz 451.5 12.08 18.5 250×200
NK 200-350/323 380V/50Hz 456.1 12.33 18.5 250×200
NK 200-350/337 380V/50Hz 695.4 32.61 75 250×200
NK 200-350/337 380V/50Hz 695.4 32.61 75 250×200
NK 200-350/339 380V/50Hz 453.1 14.24 22 250×200
NK 200-350/339 380V/50Hz 457.8 14.54 22 250×200
NK 200-350/341 380V/50Hz 709.7 33.6 90 250×200
NK 200-350/341 380V/50Hz 709.7 33.6 90 250×200
NK 200-380/308 380V/50Hz 321.2 12.2 15 250×200
NK 200-380/308 380V/50Hz 322.9 12.33 15 250×200
NK 200-380/314 380V/50Hz 498.3 29.69 55 250×200
NK 200-380/314 380V/50Hz 498.3 29.69 55 250×200
NK 200-380/329 380V/50Hz 340.5 14.3 18.5 250×200
NK 200-380/329 380V/50Hz 344 14.6 18.5 250×200
NK 200-380/346 380V/50Hz 545.2 37.12 75 250×200
NK 200-380/346 380V/50Hz 545.2 37.12 75 250×200
NK 200-380/348 380V/50Hz 362.1 16 22 250×200
NK 200-380/348 380V/50Hz 365.8 16.33 22 250×200
NK 200-380/368 380V/50Hz 579.3 41.7 90 250×200
NK 200-380/368 380V/50Hz 579.3 41.7 90 250×200
NK 200-380/393 380V/50Hz 391.6 20.31 30 250×200
NK 200-380/393 380V/50Hz 391.6 20.31 30 250×200
NK 200-380/400 380V/50Hz 615.9 48.17 110 250×200
NK 200-380/400 380V/50Hz 617.9 48.5 110 250×200
NK 200-380/404 380V/50Hz 631.5 49.02 132 250×200
NK 200-380/404 380V/50Hz 633.6 49.35 132 250×200
NK 200-500/419 380V/50Hz 463.2 22.4 37 250×200
NK 200-500/419 380V/50Hz 465.6 22.63 37 250×200
NK 200-500/422 380V/50Hz 715.9 52.02 132 250×200
NK 200-500/422 380V/50Hz 718.3 52.37 132 250×200
NK 200-500/441 380V/50Hz 495.2 25.11 45 250×200
NK 200-500/441 380V/50Hz 497.8 25.37 45 250×200
NK 200-500/449 380V/50Hz 741.5 61.04 160 250×200
NK 200-500/449 380V/50Hz 744 61.46 160 250×200
NK 200-500/468 380V/50Hz 774.8 67.23 185 250×200
NK 200-500/468 380V/50Hz 777.4 67.68 185 250×200
NK 200-500/471 380V/50Hz 520.9 29.95 55 250×200
NK 200-500/471 380V/50Hz 518.3 29.65 55 250×200
NK 200-500/477 380V/50Hz 804.8 69.85 200 250×200
NK 200-500/477 380V/50Hz 807.5 70.32 200 250×200
NK 200-500/497 380V/50Hz 841.9 75.6 220 250×200
NK 200-500/497 380V/50Hz 841.9 75.6 220 250×200
NK 200-500/516 380V/50Hz 856.8 83.52 250 250×200
NK 200-500/516 380V/50Hz 859.6 84.08 250 250×200
NK 200-500/521 380V/50Hz 580.4 37.58 75 250×200
NK 200-500/521 380V/50Hz 574.6 36.83 75 250×200
NK 200-500/530 380V/50Hz 597.4 38.5 90 250×200
NK 200-500/530 380V/50Hz 903.9 88.06 280 250×200
NK 200-500/530 380V/50Hz 906.9 88.66 280 250×200
NK 200-500/530 380V/50Hz 600.4 38.89 90 250×200
NK 250-315/258-210 380V/50Hz 584.8 11.32 22 300×250
NK 250-315/258-210 380V/50Hz 586.8 11.39 22 300×250
NK 250-315/260-228 380V/50Hz 409.5 5.61 7.5 300×250
NK 250-315/260-228 380V/50Hz 409.5 5.61 7.5 300×250
NK 250-315/264 380V/50Hz 630.4 14.63 30 300×250
NK 250-315/264 380V/50Hz 630.4 14.63 30 300×250
NK 250-315/280 380V/50Hz 676.2 17.15 37 300×250
NK 250-315/280 380V/50Hz 676.2 17.15 37 300×250
NK 250-315/283 380V/50Hz 438.4 7.79 11 300×250
NK 250-315/283 380V/50Hz 438.4 7.79 11 300×250
NK 250-315/300-288 380V/50Hz 709.2 20.04 45 300×250
NK 250-315/300-288 380V/50Hz 709.2 20.04 45 300×250
NK 250-315/304-288 380V/50Hz 490.6 9.4 15 300×250
NK 250-315/304-288 380V/50Hz 493.1 9.497 15 300×250
NK 250-315/304-288 380V/50Hz 740 21.32 55 300×250
NK 250-315/304-288 380V/50Hz 740 21.32 55 300×250
NK 250-360/273 380V/50Hz 728.1 14.79 37 300×250
NK 250-360/273 380V/50Hz 728.1 14.79 37 300×250
NK 250-360/275 380V/50Hz 481.2 6.5 11 300×250
NK 250-360/275 380V/50Hz 481.2 6.5 11 300×250
NK 250-360/291 380V/50Hz 770 17.4 45 300×250
NK 250-360/291 380V/50Hz 770 17.4 45 300×250
NK 250-360/310 380V/50Hz 517.3 8.6 15 300×250
NK 250-360/310 380V/50Hz 520 8.689 15 300×250
NK 250-360/315 380V/50Hz 817.2 20.52 55 300×250
NK 250-360/315 380V/50Hz 817.2 20.52 55 300×250
NK 250-360/331 380V/50Hz 561.2 9.8 18.5 300×250
NK 250-360/331 380V/50Hz 567 10 18.5 300×250
NK 250-360/359 380V/50Hz 876.5 26.96 75 300×250
NK 250-360/359 380V/50Hz 876.5 26.96 75 300×250
NK 250-360/360 380V/50Hz 573.6 11.6 22 300×250
NK 250-360/360 380V/50Hz 579.5 11.84 22 300×250
NK 250-360/370 380V/50Hz 581.4 12.25 30 300×250
NK 250-360/370 380V/50Hz 872.3 28.53 90 300×250
NK 250-360/370 380V/50Hz 872.3 28.53 90 300×250
NK 250-360/370 380V/50Hz 581.4 12.25 30 300×250
NK 250-380/302 380V/50Hz 716.2 22.24 55 300×250
NK 250-380/302 380V/50Hz 716.2 22.24 55 300×250
NK 250-380/316 380V/50Hz 481.8 10.62 18.5 300×250
NK 250-380/316 380V/50Hz 486.7 10.84 18.5 300×250
NK 250-380/333 380V/50Hz 740.2 29.51 75 300×250
NK 250-380/333 380V/50Hz 740.2 29.51 75 300×250
NK 250-380/334 380V/50Hz 494.9 12.63 22 300×250
NK 250-380/334 380V/50Hz 500 12.9 22 300×250
NK 250-380/353 380V/50Hz 782.1 34.2 90 300×250
NK 250-380/353 380V/50Hz 782.1 34.2 90 300×250
NK 250-380/365 380V/50Hz 543.7 15.9 30 300×250
NK 250-380/365 380V/50Hz 543.7 15.9 30 300×250
NK 250-380/375 380V/50Hz 838.2 38.79 110 300×250
NK 250-380/375 380V/50Hz 841 39.06 110 300×250
NK 250-380/403 380V/50Hz 566.1 19.5 37 300×250
NK 250-380/403 380V/50Hz 569 19.7 37 300×250
NK 250-380/404 380V/50Hz 862.1 44.99 132 300×250
NK 250-380/404 380V/50Hz 865 45.29 132 300×250
NK 250-380/416 380V/50Hz 903.4 48.99 160 300×250
NK 250-380/416 380V/50Hz 594.2 21.19 45 300×250
NK 250-380/416 380V/50Hz 597.2 21.41 45 300×250
NK 250-380/416 380V/50Hz 900.4 48.66 160 300×250
NK 300-300/276-196 380V/50Hz 728.7 4.2 11 350×300
NK 300-300/276-196 380V/50Hz 728.7 4.2 11 350×300
NK 300-300/280-224 380V/50Hz 1134 11.25 45 350×300
NK 300-300/280-224 380V/50Hz 1134 11.25 45 350×300
NK 300-300/280-248 380V/50Hz 768 5.5 15 350×300
NK 300-300/280-248 380V/50Hz 772 5.557 15 350×300
NK 300-300/280-272 380V/50Hz 1195 13.44 55 350×300
NK 300-300/280-272 380V/50Hz 1195 13.44 55 350×300
NK 300-300/290 380V/50Hz 831.3 6.737 18.5 350×300
NK 300-300/290 380V/50Hz 822.8 6.6 18.5 350×300
NK 300-300/305 380V/50Hz 1318 18.14 75 350×300
NK 300-300/305 380V/50Hz 1318 18.14 75 350×300
NK 300-300/307 380V/50Hz 880.9 7.7 22 350×300
NK 300-300/307 380V/50Hz 890 7.86 22 350×300
NK 300-300/326 380V/50Hz 1349 21.4 90 350×300
NK 300-300/326 380V/50Hz 1349 21.4 90 350×300
NK 300-300/340 380V/50Hz 925.8 10.62 30 350×300
NK 300-300/340 380V/50Hz 925.8 10.62 30 350×300
NK 300-300/346-340 380V/50Hz 1448 24.33 110 350×300
NK 300-300/346-340 380V/50Hz 1453 24.5 110 350×300
NK 300-310/320-184 380V/50Hz 759.2 3.71 15 350×300
NK 300-310/320-184 380V/50Hz 763.1 3.744 15 350×300
NK 300-310/320-190 380V/50Hz 1191 8.824 55 350×300
NK 300-310/320-190 380V/50Hz 1191 8.824 55 350×300
NK 300-310/328 380V/50Hz 1648 18.43 110 350×300
NK 300-310/328 380V/50Hz 1642 18.3 110 350×300
NK 300-310/328-196 380V/50Hz 919.9 4.56 18.5 350×300
NK 300-310/328-196 380V/50Hz 929.3 4.653 18.5 350×300
NK 300-310/332-212 380V/50Hz 1518 11.2 75 350×300
NK 300-310/332-212 380V/50Hz 1518 11.2 75 350×300
NK 300-310/336-212 380V/50Hz 1006 4.99 22 350×300
NK 300-310/336-212 380V/50Hz 1016 5.091 22 350×300
NK 300-310/347 380V/50Hz 1133 10.12 37 350×300
NK 300-310/347 380V/50Hz 1127 10.01 37 350×300
NK 300-310/348-240 380V/50Hz 1633 13.67 90 350×300
NK 300-310/348-240 380V/50Hz 1633 13.67 90 350×300
NK 300-310/350 380V/50Hz 1776 22.81 132 350×300
NK 300-310/350 380V/50Hz 1782 22.97 132 350×300
NK 300-310/350-258 380V/50Hz 1159 6.318 30 350×300
NK 300-310/350-258 380V/50Hz 1159 6.323 30 350×300
NK 300-350/327 380V/50Hz 1172 23.22 90 350×300
NK 300-350/327 380V/50Hz 1172 23.22 90 350×300
NK 300-350/337 380V/50Hz 771.9 11.56 30 350×300
NK 300-350/337 380V/50Hz 771.9 11.56 30 350×300
NK 300-350/343 380V/50Hz 1212 27.35 110 350×300
NK 300-350/343 380V/50Hz 1216 27.54 110 350×300
NK 300-350/355 380V/50Hz 832.9 13.58 37 350×300
NK 300-350/355 380V/50Hz 828.7 13.45 37 350×300
NK 300-350/358 380V/50Hz 1258 31.52 132 350×300
NK 300-350/358 380V/50Hz 1262 31.73 132 350×300
NK 300-350/370 380V/50Hz 828.9 15.69 45 350×300
NK 300-350/370 380V/50Hz 833.1 15.85 45 350×300
NK 300-350/370 380V/50Hz 1249 35.9 160 350×300
NK 300-350/370 380V/50Hz 1253 36.15 160 350×300
NK 300-400/390 380V/50Hz 819.8 19.08 55 350×300
NK 300-400/390 380V/50Hz 815.6 18.88 55 350×300
NK 300-400/395 380V/50Hz 1269 44.58 200 350×300
NK 300-400/395 380V/50Hz 1273 44.88 200 350×300
NK 300-400/409 380V/50Hz 1328 47.94 220 350×300
NK 300-400/409 380V/50Hz 1328 47.94 220 350×300
NK 300-400/432 380V/50Hz 1379 53.66 250 350×300
NK 300-400/432 380V/50Hz 1384 54.02 250 350×300
NK 300-400/437 380V/50Hz 906 24.01 75 350×300
NK 300-400/437 380V/50Hz 915.2 24.5 75 350×300
NK 300-400/455 380V/50Hz 1414 59.45 280 350×300
NK 300-400/455 380V/50Hz 1419 59.85 280 350×300
NK 300-400/479 380V/50Hz 957.4 28.36 90 350×300
NK 300-400/479 380V/50Hz 962.2 28.65 90 350×300
NK 300-400/480 380V/50Hz 1450 65.36 315 350×300
NK 300-400/480 380V/50Hz 1454 65.8 315 350×300
NK 350-350/342-306 380V/50Hz 1066 7.655 30 400×350
NK 350-350/342-306 380V/50Hz 1066 7.655 30 400×350
NK 350-350/348-316 380V/50Hz 1637 20.23 110 400×350
NK 350-350/348-316 380V/50Hz 1643 20.37 110 400×350
NK 350-350/364-334 380V/50Hz 1168 9.738 37 400×350
NK 350-350/364-334 380V/50Hz 1174 9.837 37 400×350
NK 350-350/372-336 380V/50Hz 1715 24.68 132 400×350
NK 350-350/372-336 380V/50Hz 1720 24.84 132 400×350
NK 350-350/388-352 380V/50Hz 1208 11.86 45 400×350
NK 350-350/388-352 380V/50Hz 1202 11.74 45 400×350
NK 350-350/388-356 380V/50Hz 1722 30.21 160 400×350
NK 350-350/388-356 380V/50Hz 1728 30.41 160 400×350
NK 350-350/408-374 380V/50Hz 1840 33.12 185 400×350
NK 350-350/408-374 380V/50Hz 1846 33.34 185 400×350
NK 350-350/408-376 380V/50Hz 1232 14.49 55 400×350
NK 350-350/408-376 380V/50Hz 1232 14.64 55 400×350
NK 350-350/416-382 380V/50Hz 1930 34.91 250 400×350
NK 350-350/416-382 380V/50Hz 1917 34.45 200 400×350
NK 350-350/416-382 380V/50Hz 1924 34.68 200 400×350
NK 350-350/416-382 380V/50Hz 1924 34.68 220 400×350
NK 350-350/416-382 380V/50Hz 1930 34.91 315 400×350
NK 350-350/416-382 380V/50Hz 1930 34.91 280 400×350

外形尺寸

视频介绍

留言咨询

*
*
*
*
*
提交
